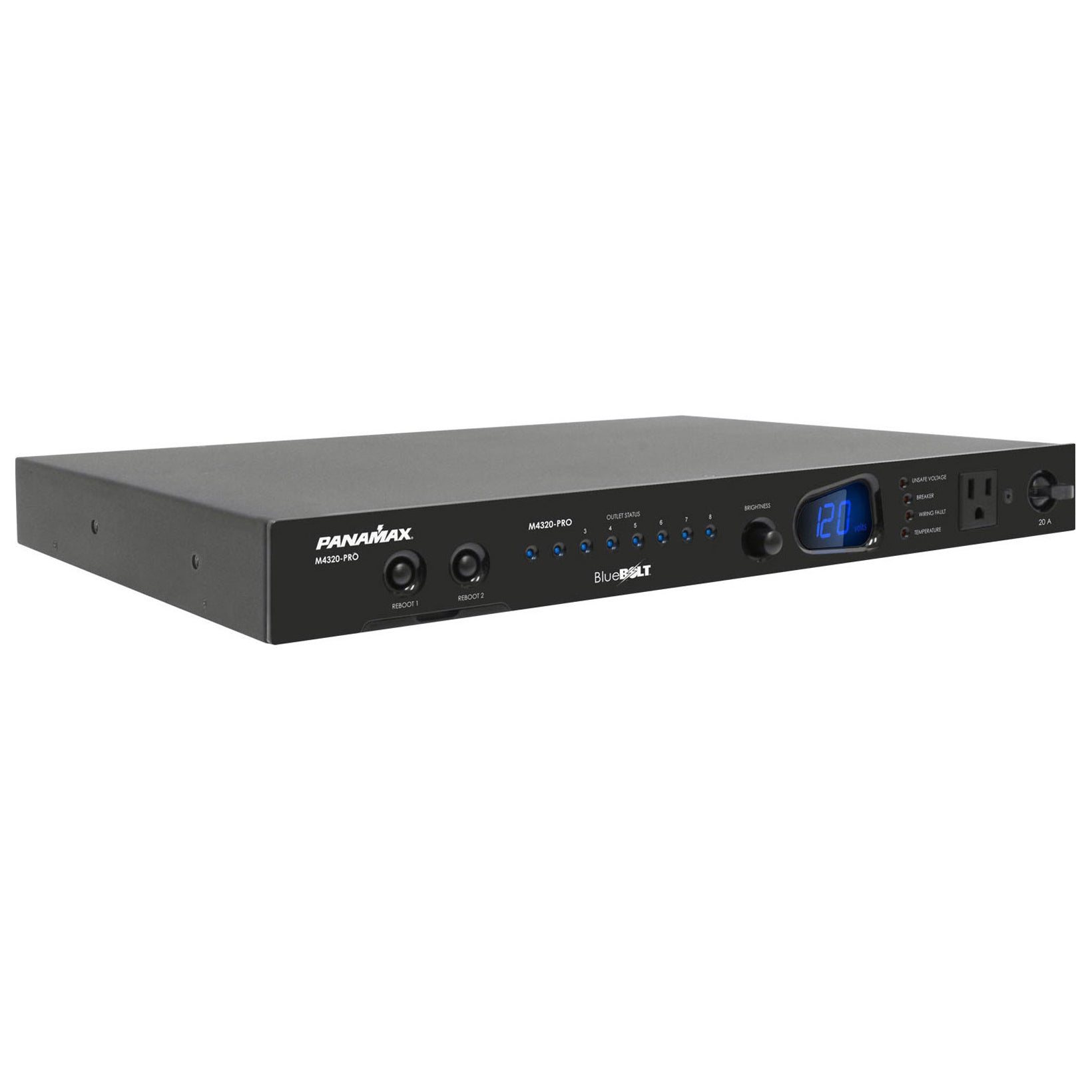

Panamax M4320-PRO, 9 Outlets Pro Series Programmable Power Management, Black

by Panamax
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Panamax M4320-PRO - 1 RU 20 AMP 8 BlueBOLT Programmable Outlets w/Auto Reset, 10Ft IEC Cord

The M4320-PRO features Panamax™ revolutionary Automatic Voltage Monitoring circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what we have come to expect from Panamax: uncompromised AC protection and purification. Advanced 20 amp power controller with top of the line Linear Noise Filtration, Automatic Voltage Monitoring and catastrophic surge protection. Outlets: all rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4320-PRO.

  • Power Management with Control System Interactive Functionality.
  • 20 Amp Capacity M4320-PRO
  • 8 Individually Controllable Rear Panel Outlets
  • Fully Programmable
  • TCP/IP (BlueBOLT™) Installed
  • RS-232 Card (Included, not installed)
  • Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz - 250 kHz), 46 db (250 kHz - 1 MHz)
  • One Isolated Filter Bank for High Current Devices, 60db (5 kHz - 450 kHz), 46 db (450 kHz - 1 MHz)
  • Front Panel Circuit Breaker
  • Removable Front Rack Ears
  • 12 Volt Input Triggering
  • Detachable 10 ft. Power Cord - 20A plug
  • AVM & Protect-or-Disconnect Circuitry
Total AC Outlets 9
High-Current Outlets 2
USB Connections 1
RF-EMI Filtering Yes
Joule Rating 2125
Powerline Network Compatible No
Line Voltage 120VAC, 60 Hz
Width (inches) 17
Height (inches) 4-1/8
Depth (inches) 14-3/4
Weight (pounds) 12
