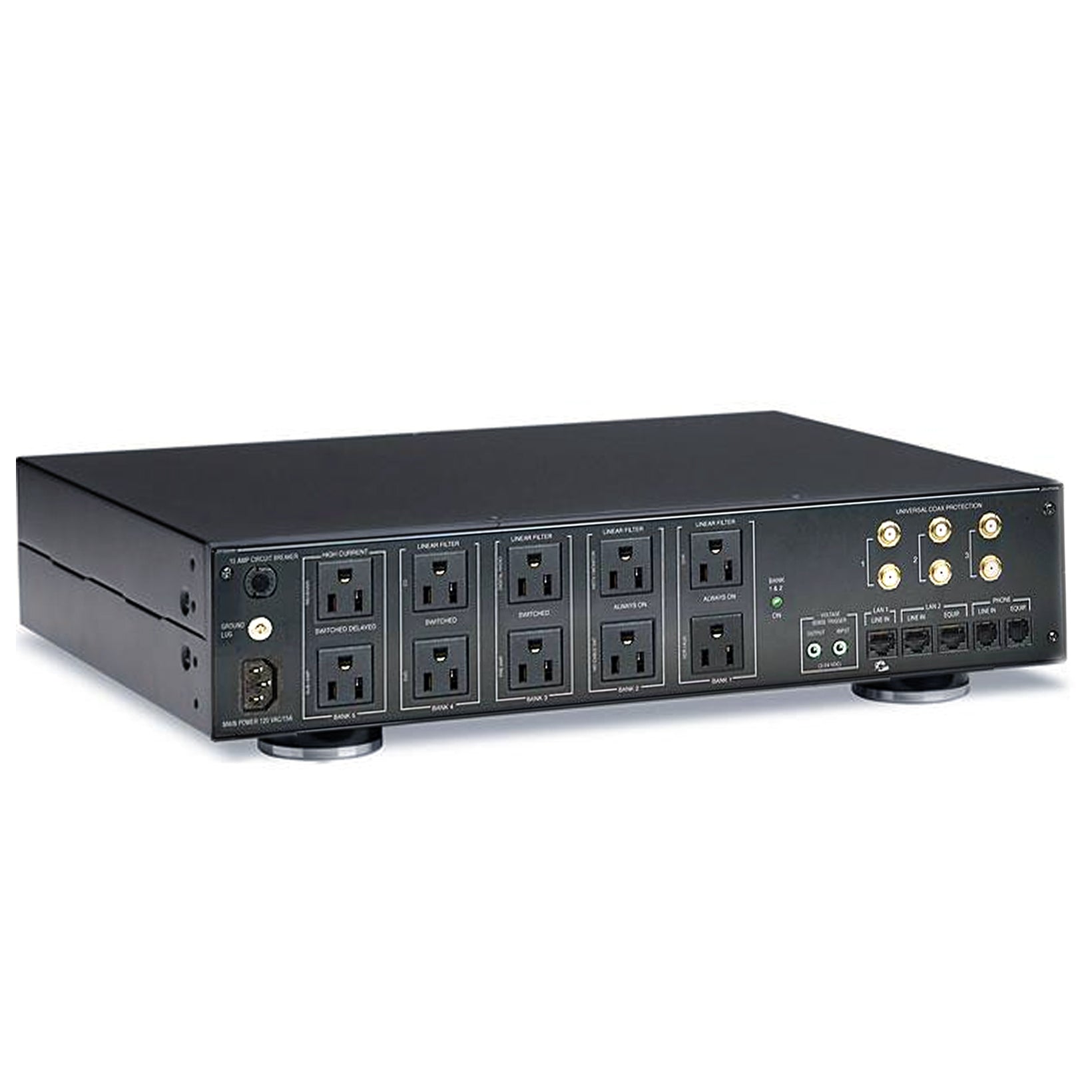

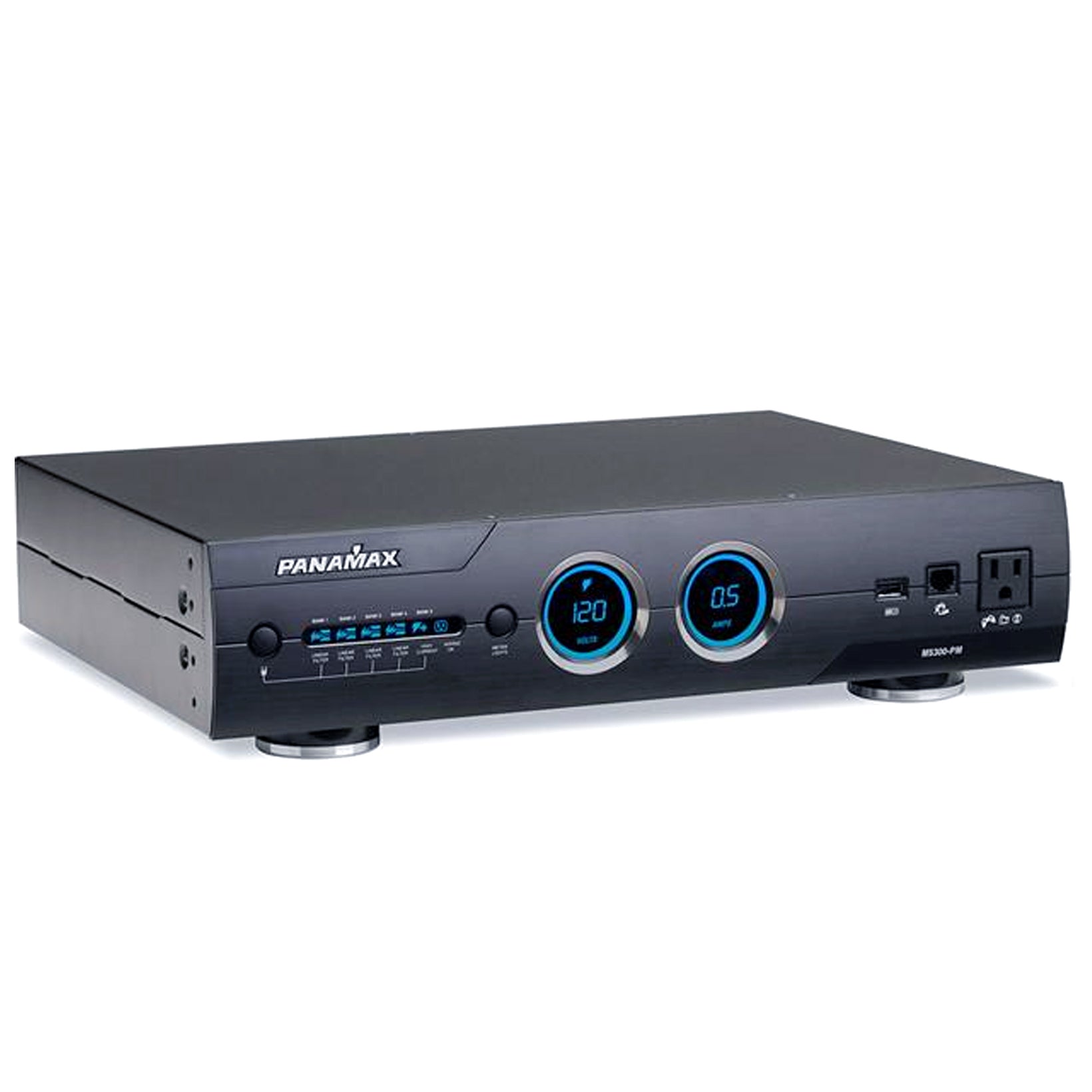

Panamax M5400PM, 11 Outlets Power Management, Black
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Panamax M5400PM, 11 Outlets Power Management, Black is backordered and will ship as soon as it is back in stock.
Description
Description
Panamax Max 5400 Power Management w/ Voltage Regulation, 2RU, 11 Outlets
The Panamax M5400-PM delivers high-level protection for your audio/video system. It guards against harmful spikes and maintains outgoing current at a consistent, optimal level, giving you pure, noise-free picture and sound. The 5400-PM can safeguard up to 11 components, and it includes a protected front-panel USB charger for your MP3 player, cell phone or another portable electronic device.
Features
- 11 AC outlets with 5 isolated banks:
- two isolated banks of two switched outlets
- two isolated banks of two always-on outlets
- one isolated bank of two switched high-current outlets with delayed on/off
- one front-panel convenience outlet
- front-panel USB charger
- voltage regulation circuitry ensures that your system receives a consistent, optimal amount of power
- surge and over- and under-voltage protection
- filtration circuitry virtually eliminates line noise
- three sets of coaxial RF connections for cable/satellite/TV antenna
- two sets of RJ-45 Ethernet line inputs and outputs, including one front-panel connection
- RJ-11 phone line input and output
- 12-volt trigger input for delayed outlets
- front-panel digital voltmeter and ammeter
- 2125-joule surge protection
- maximum current rating: 15 amps
Specs
Total AC Outlets | 11 |
---|---|
High-Current Outlets | 2 |
USB Connections | 1 |
RF-EMI Filtering | Yes |
Joule Rating | 2125 |
Powerline Network Compatible | No |
Connected Equipment Guarantee | $5.000.000 |
Width (inches) | 17 |
Height (inches) | 4-1/8 |
Depth (inches) | 14-3/4 |
Weight (pounds) | 20 |
