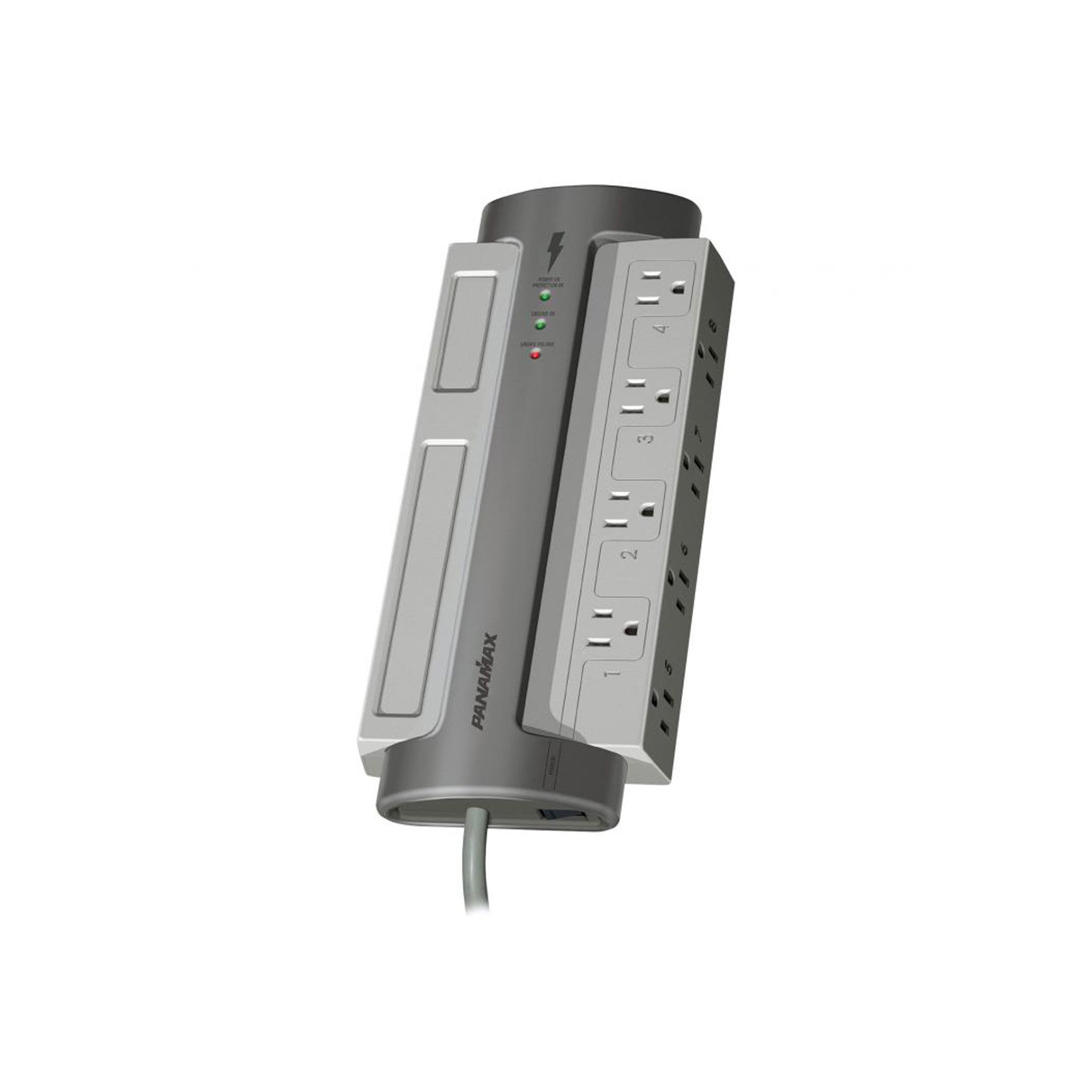

Panamax M8-EX 8 AC Outlet Surge Protector, Silver

by Panamax
SKU PNM8EX
ID: 12961372864584




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Panamax M8-EX- MAX 8 AC Only

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accommodate System Expansion
  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation:1650 Joules
  • Response Time: 1ns
  • Peak Impulse Current: 52,000 Amps
  • Patented Power Management Circuit: Yes
AC Protection Technology

Protect or Disconnect
Automatic Voltage Monitoring
L-N, L-G, N-G Protection Modes
Thermal Fusing

Automatic Voltage Shutoff yes
Undervoltage Shutoff 90 VAC ± 6 VAC
Over-Voltage Shutoff 144 VAC ± 8 VAC
Maximum Current Rating 15 (Amps)
Initial Clamping Level 200V Peak
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) 500V
Width (inches) 2.4
Height (inches) 13
Length(inches) 9.9
Weight (pounds) 3.5
