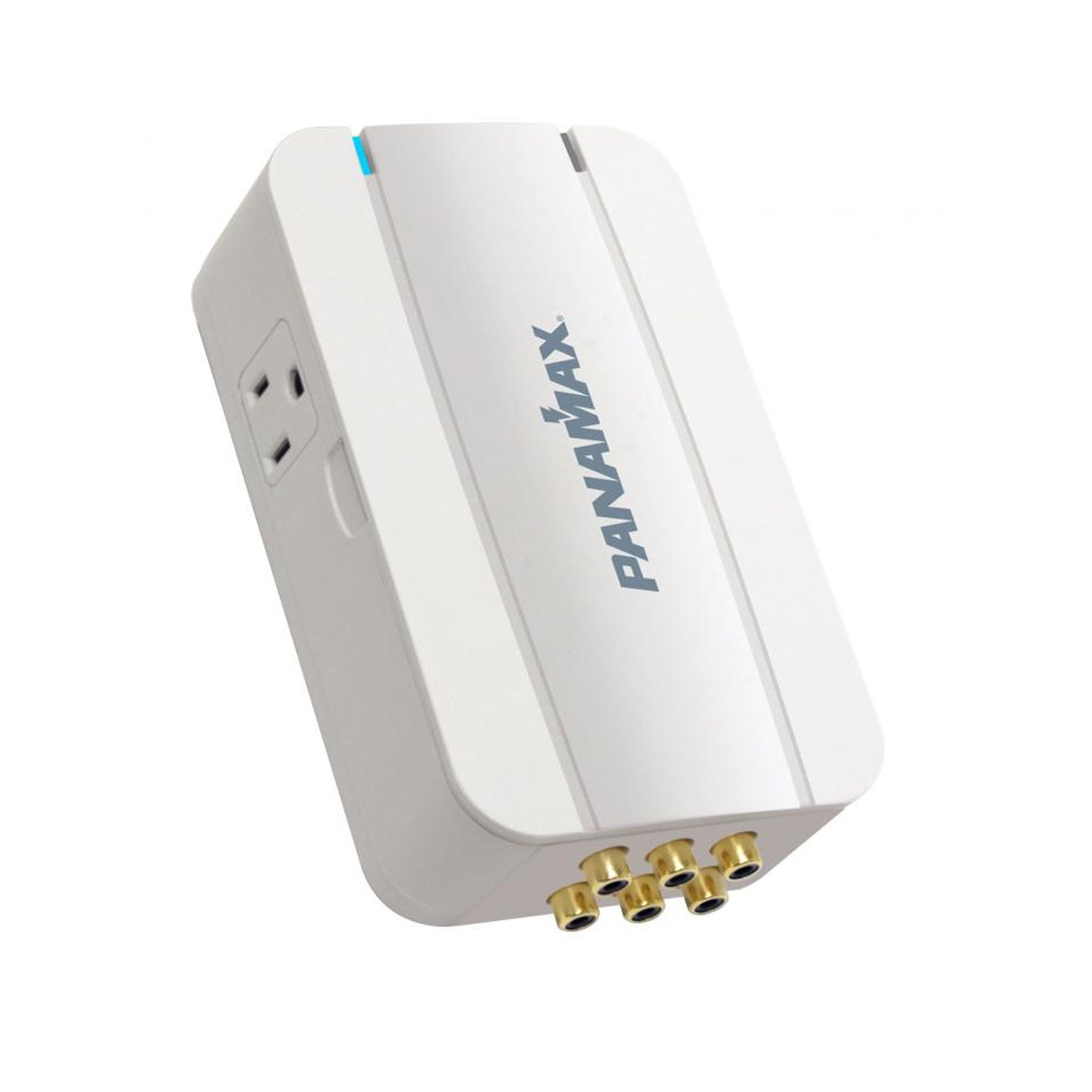

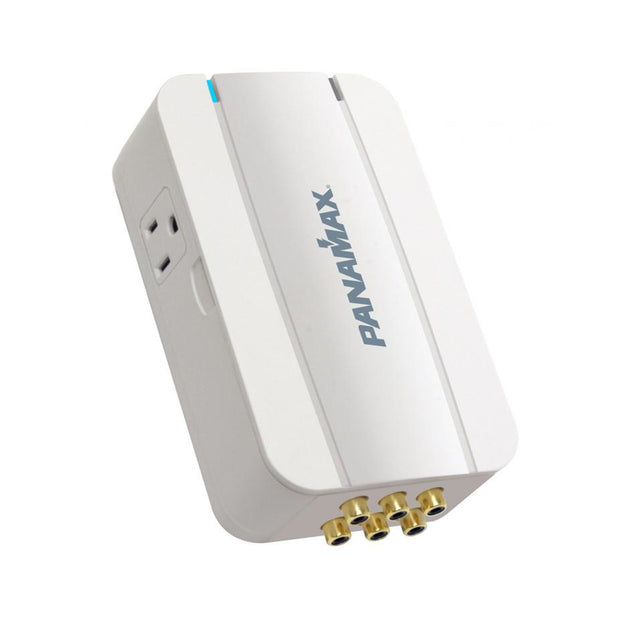

Panamax MD2-AV 2 Outlet End-to-End Surge Protector Kit for Remote Subs/Equip. (Replaces MD2-RCA)

by Panamax
SKU PNMD2AV
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

MD2-AV - 2 Outlet End-to-End Surge Protector Kit for Remote Subs/Equip. (Replaces MD2-RCA)

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Noise Filtration Circuit

EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

RCA Line Level Protection

Protects equipment from electrical surges that travel over low voltage RCA lines.

Panamax MD2-AV Features at a Glance

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry
  • 3 Circuits RCA Input/Outputs.
  • Removable, paintable cover ensures seamless fit with any décor.

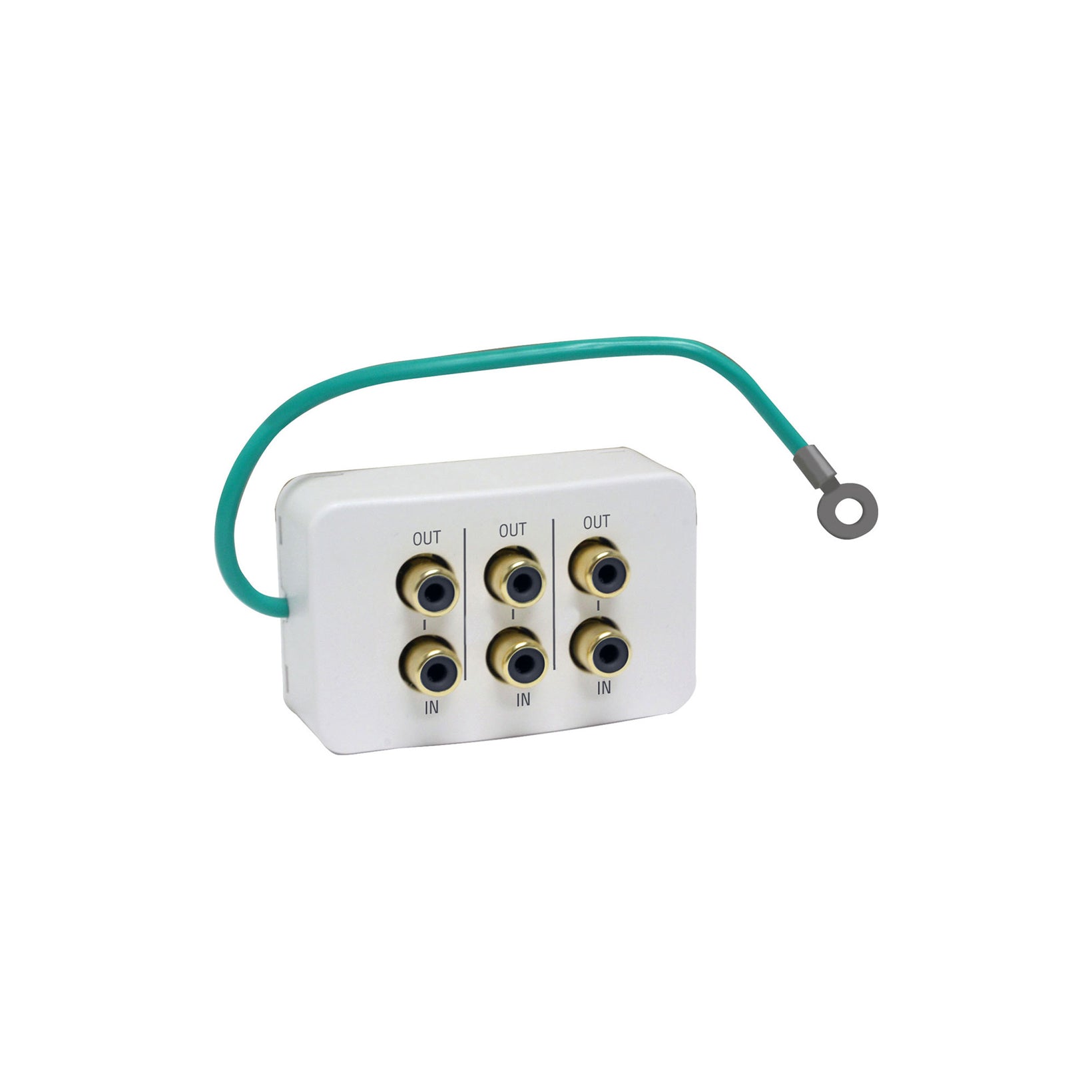

  • Includes module to deliver signal from source component to MD2-AV to remote AV equipment.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile - Only 1.5" inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights.
Dimensions 3.25 in. W X 1.625 in. D X 5.25 in. H
Weight 0.65 lb.
Protect or Disconnect™ Circuitry Yes
Line Voltage 120 VAC, 50/60 Hz
Initial Clamping Level 200V
UL 1449 Suppression Rating 330V
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) L-N 400V, L-G 500V, N-G 400V
Protection Modes L-N, L-G, N-G
Nominal Discharge Current 3,000 A
Maximum Current Rating 15A (1800 W)
EMI/RFI Noise Filtration 50 dB (100 kHz - 1 MHz)
Response Time <1 ns
Single Pulse Energy Dissipation 1350 Joules
Peak Impulse Current 60,000 A
Catastrophic Surge Circuit Yes
Thermal Fusing Yes
Clamping Level 8V
Attenuation 0.06dB from 10Hz-6MHz
Connectors RCA, Female
UL® 1449 Rating 330V
Product Warranty Lifetime
Connected Equipment Protection Policy Up to $100,000
Lightning Protection Yes
Safety Agency cULus
