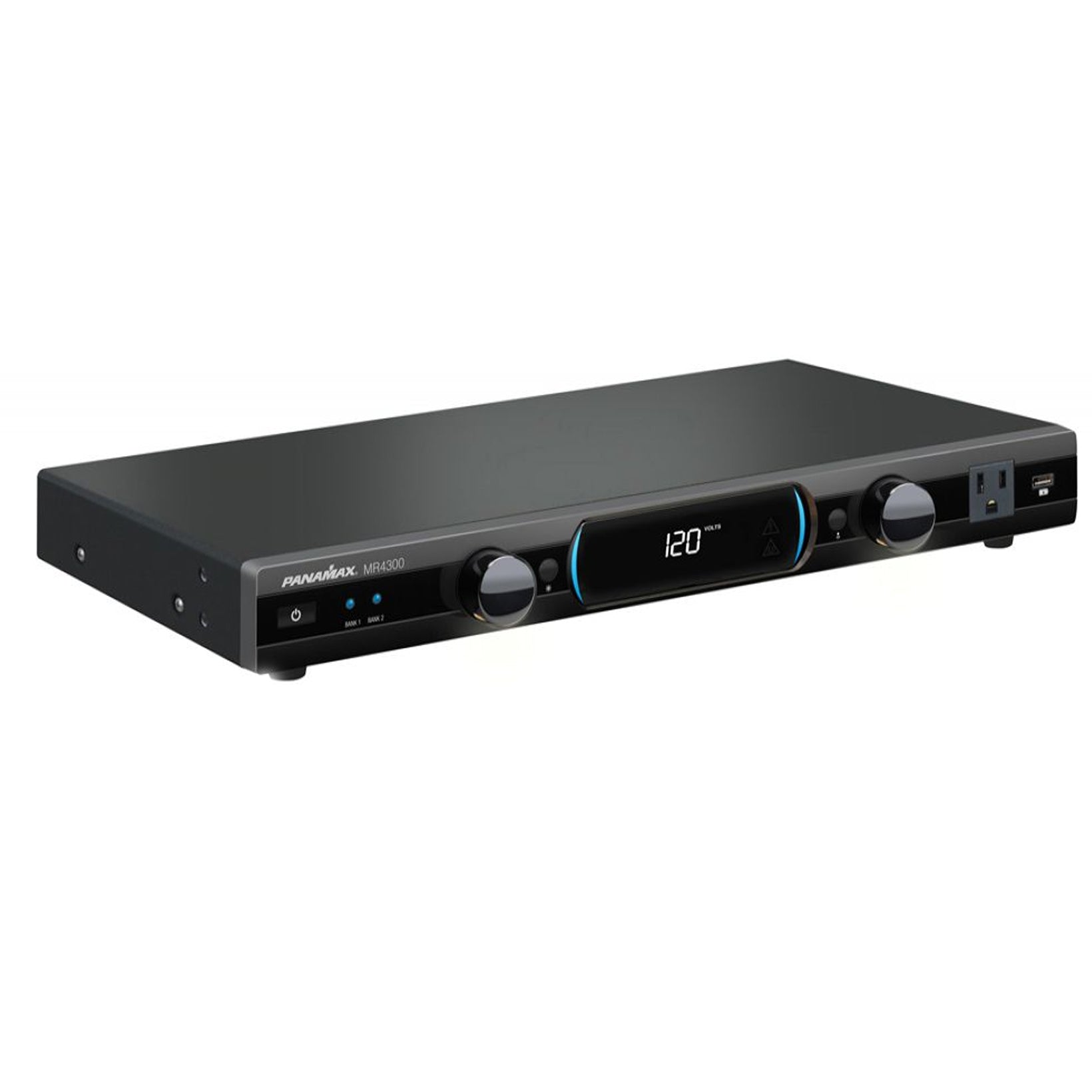

Panamax MR4300 Power Management

The Panamax MR4300 will protect your audio/video system from damaging power spikes as well as the minor day-to-day current fluctuations that can compromise your system's performance over time. It can safeguard up to nine components, and it also provides a protected front-panel USB charger for your smartphone, tablet or other portable device. Two front-panel lamps let you illuminate your equipment rack when making adjustments.

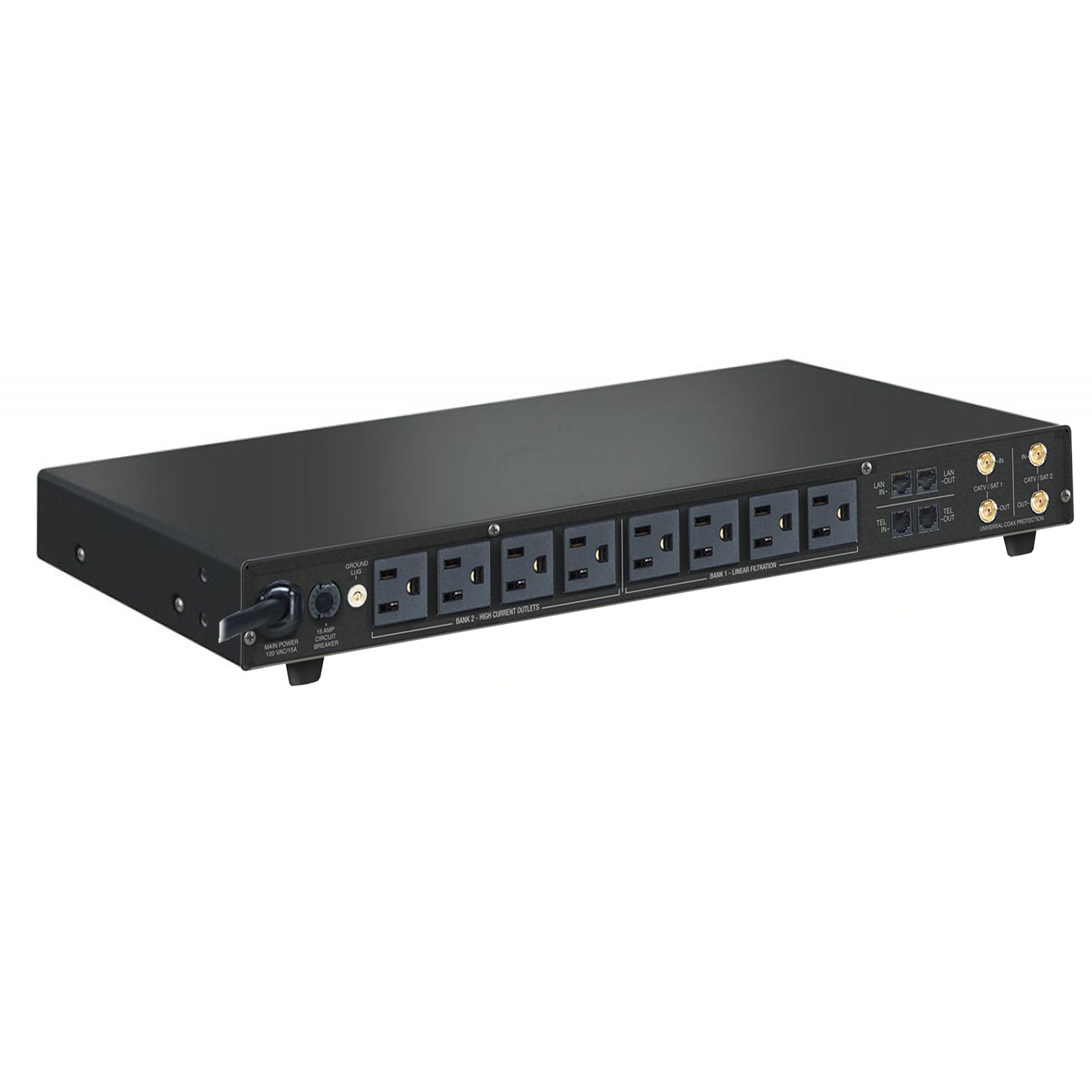

  • total of 9 surge-protected, noise-filtered AC outlets — 8 rear, 1 front:
    • one isolated bank of four switched outlets with two-stage noise filtering
    • one isolated bank of four switched high-current outlets with delayed on/off
    • one front-panel always-on convenience outlet
  • front-panel USB charger port for Apple® and Android® smartphones, or other USB-equipped devices
  • Automatic Voltage Monitoring (AVM) technology continuously monitors incoming AC power to protect against over- and under-voltage situations
  • Protect or Disconnectâ„¢ technology disconnects AC power to equipment in the event of a catastrophic surge or spike
  • Linear Level 3 EMI/RFI noise filtration circuitry virtually eliminates line noise
  • two sets of in/out coaxial RF connections for cable/satellite/TV antenna
  • one set of in/out RJ-45 LAN connections
  • one set of in/out RJ-11 phone line connections
  • front-panel digital voltmeter
  • two rotatable front-panel lamps to illuminate an equipment rack
  • 1575-joule surge protection
  • maximum current rating: 15 amps
  • 8-ft. power cord with low-profile plug
Total AC Outlets 9
High-Current Outlets 4
USB Connections 1
RF-EMI Filtering Yes
Joule Rating 1575
Powerline Network Compatible No
Connected Equipment Guarantee $5,000,000
Width (inches) 17
Height (inches) 2-1/8
Depth (inches) 9-1/8
Weight (pounds) 6.5
