Platinum Tools  |  SKU: PT202050J

Platinum Tools 202050J Connector; ezEX44; Shielded; RJ45; Internal Ground; 50 Pc Jar

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.


Description

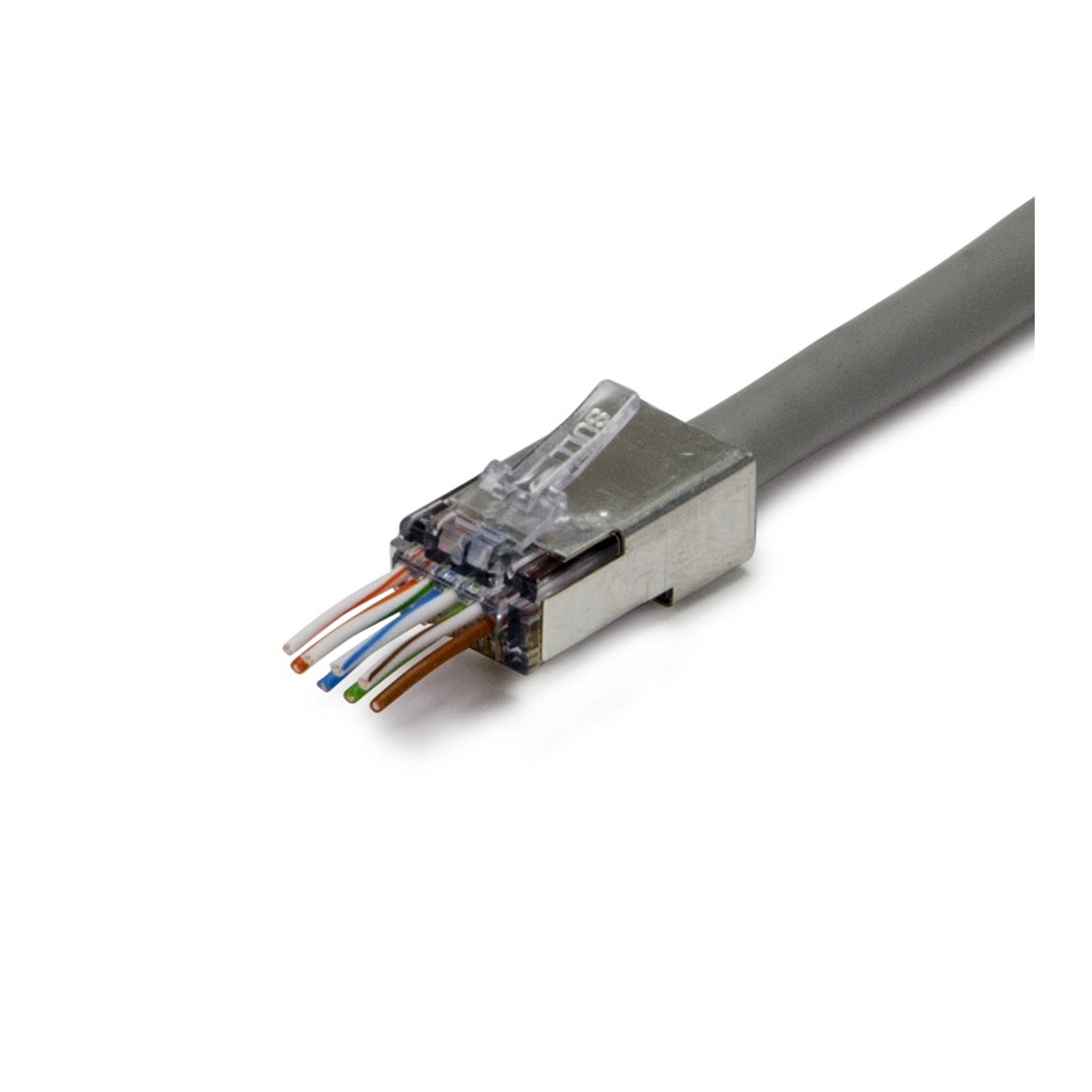

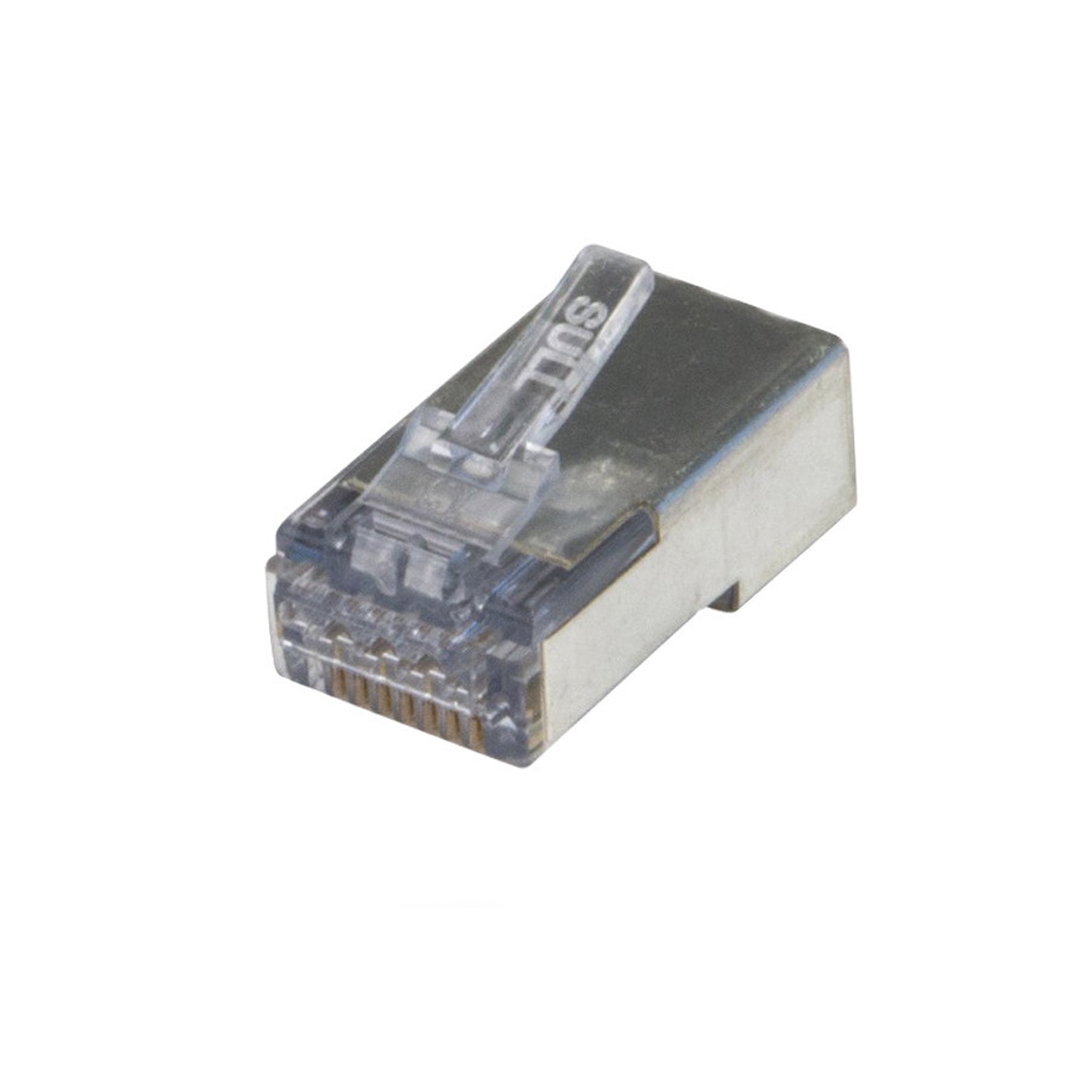

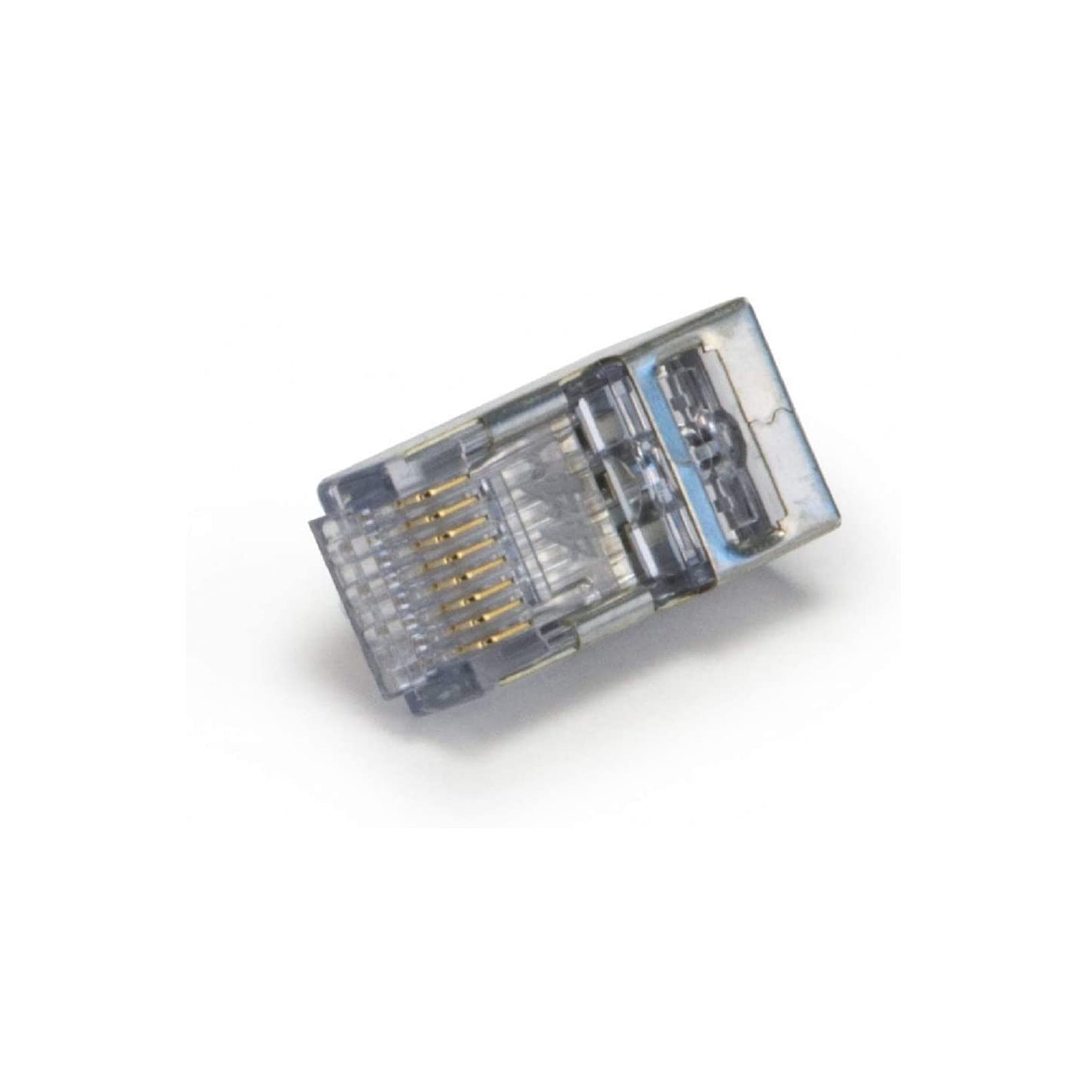

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

Features
  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
  • Max Outer Diameter: 0.280” (7.1mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
Specs
Part Number 202050J
Item Weight 0.8 ounces
Package Dimensions 4.5 x 2.5 x 1.0 inches
Pack 50 Pcs
Weight 1 lb
