Platinum Tools 202052J ezEX48 SHEILDED CAT5E/6/6A CONNECTOR 50 Pcs

SKU PT202052J
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

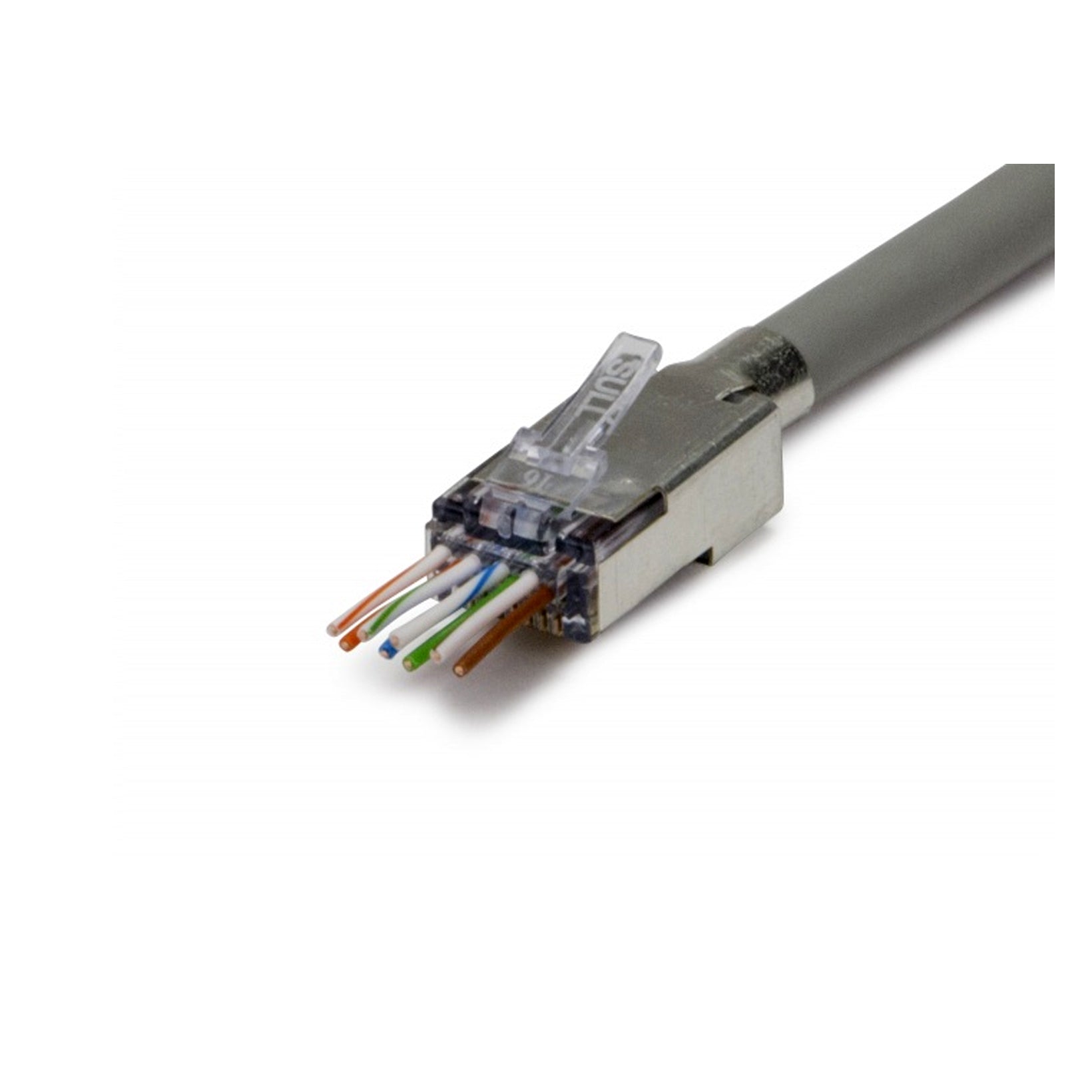

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.043” – 0.048” (1.09 –1.22mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • Solid or Stranded 23-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
Part Number 202052J
Item Weight 0.8 ounces
Package Dimensions 4.5 x 2.5 x 1.0 inches
Pack 50 Pcs
Weight 1 lb
