Acegear POE-2606-4WP, Weather-Proof Box with a 4 PoE Gigabit Ports +1 uplink. Build in 125w, - New Arrival
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear POE-2606-4WP, Weather-Proof Box with a 4 PoE Gigabit Ports +1 uplink. Build in 125w, - New Arrival is backordered and will ship as soon as it is back in stock.
Description
Description

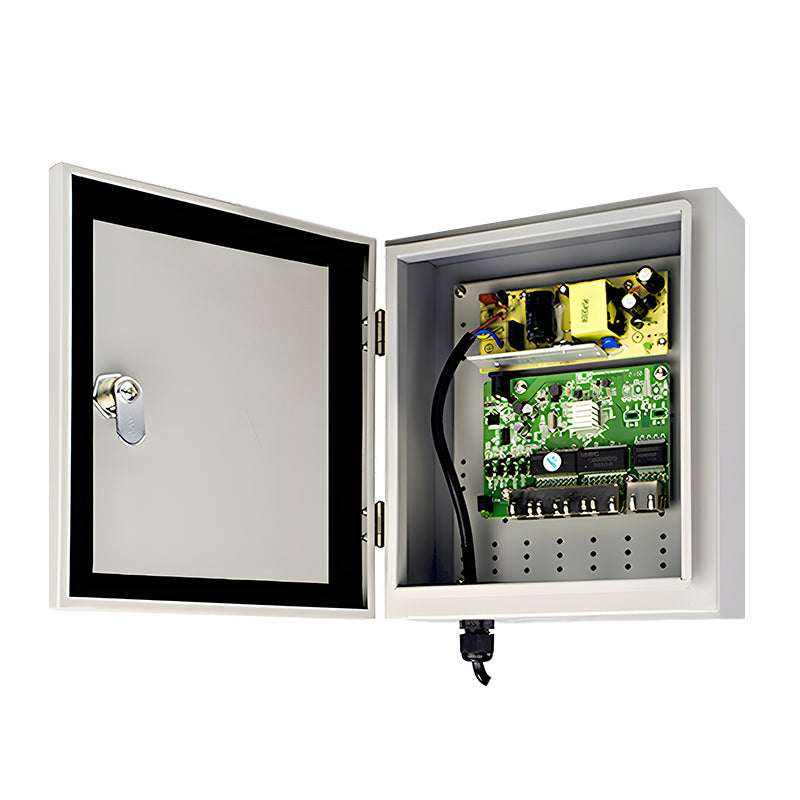

enThis is a high-performance. ow-power 4 POE ports Outdoor Waterproof BOX Switch. is the primary choice forsmall and medium-sized LANs.
it is full 100Mbps or full gigabit switch, uplink ports optional 2RJ45 or 1RJ45 or1RJ45+1SFP.
Features
- Meet IEEE 802.3i, IEEE 802.3u and IEEE 802.3ab standards
- 4 10m100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix
- Support 1-4K MAC address
- Support EEPROM configuration
- Support IEEE 802.3af/at PoE protocol
- Support switch speed limit function
- All ports support 3KV lightning protection
- Support stack and Qos
- Line speed forwarding, inte1ligent recognition
- Optical and electrical uplink port
- All ports support IEEE 802.3x half-duplex flow control and full-duplex back pressure mode
- Non-blocking switching architecture, full line speed forwarding and maximum throughput filtering packets
- Support MAC address learning, automatically adjust transmission mode and transmission rate
- LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting
Specifications
|
Item
|
Description
|
||
|
4 10/100Mbps PoE port Waterproof box Ethernet Switch
|
4 10/100/1000Mbps PoE port Waterproof box Ethernet Switch |
||
|
Power
|
Power Supply
|
Built DC 52V 65W power
|
Built DC 52V 65W power
|
|
Voltage Range
|
100VAC to 240VAC, 50/60Hz
|
100VAC to 240VAC, 50/60Hz
|
|
|
Switch Consumption
|
< 6W
|
< 6W
|
|
|
Ethernet
|
Speed |
4 10/100Mbps RJ45 port Optional uplink: ① 2 10/100Mbps RJ45 port ② 1 10/100Mbps RJ45 port |
4 10/100/1000Mbps RJ45 port Optional uplink: ① 1 gigabit RJ45 port ② 2 gigabit RJ45 port ③ 3 gigabit port: 2RJ45 + 1SFP |
|
Transmission Distance
|
RJ45 port: 100meter
|
RJ45 port: 100meter SFP port: Depending on the fiber module used |
|
|
Ethenet Standard
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
|
||
|
Switching capacity
|
1 or 1.2Gbps
|
10 or 12 or 14Gbps
|
|
|
Transfer Rate
|
10Mbps: 14880pps
100Mbps: 148800pps |
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
|
|
Network Switch |
MAC Address
|
1K ~ 4K
|
|
|
Function
|
Extend switch on
|
PoE port is forced to 10Mpbs extend to 250 meters |
Optional
|
|
Link/Act
|
Green on
|
The port is connecting
|
|
|
Green blinks
|
The port is receiving or transmitting data
|
||
|
Green off
|
The port is not linked successfully with the device
|
||
|
PoE(12,36)
|
Orange on
|
PD is connected
|
|
|
Orange off
|
No PD is connected or power forwarding fails
|
||
|
Working Environment |
working Temperature
|
-10℃ ~ 45℃ (14℉ ~ 113℉)
|
|
|
Storage Temperature
|
-30℃ ~ 70℃ (-22℉ ~ 158℉)
|
||
|
Humidity
|
10% ~ 90%(Non condesing)
|
||
|
Mechanical
|

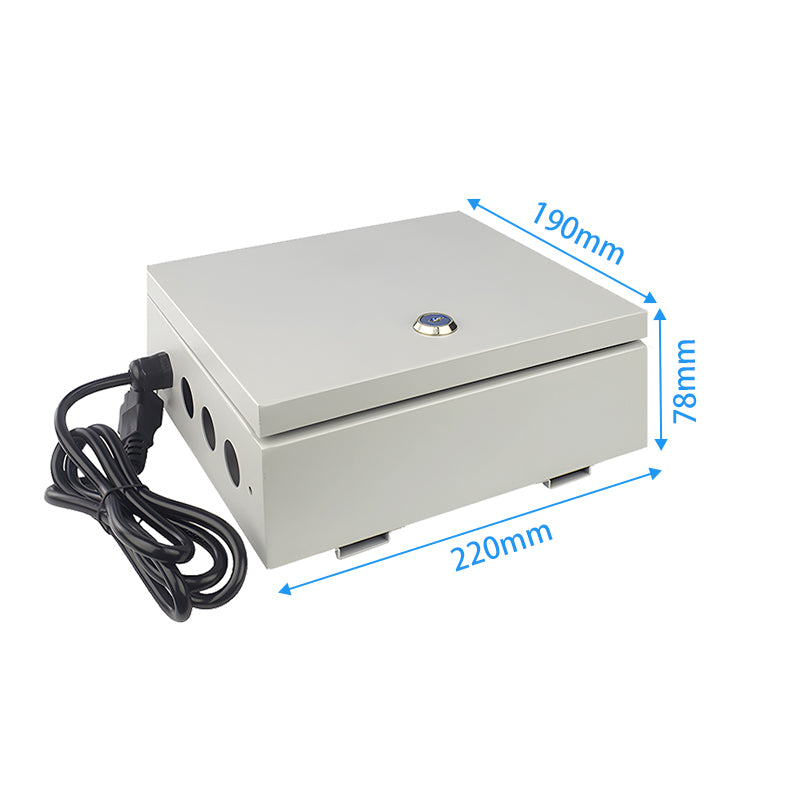

Dimension L*W*H
|
220x190x78mm
|
|
|
Color
|
White grey
|
||
