Acegear POE-2610-8WP, Weather -Proof Box With a 8 PoE Gigabit Ports +2 uplink. Build in 125w, - New Arrival
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear POE-2610-8WP, Weather -Proof Box With a 8 PoE Gigabit Ports +2 uplink. Build in 125w, - New Arrival is backordered and will ship as soon as it is back in stock.
Description
Description
This is a high-performance, low-power 8 PoE ports Outdoor Waterproof BOX Switch, is the primary choice forsmall and medium-sized LANs. it is full 100Mbps or full gigabit switch, uplink ports optional 2RJ45 or 1RJ45 or1RJ45+1SFP.
Features
- Meet IEEE 802.3i, IEEE 802.3u and IEEE 802.3ab standards
- 8 10m100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix
- Support 2-8K MAC address
- Support EEPROM configuration
- Support IEEE 802.3af/at PoE protocol
- Support switch speed limit function
- All ports support 3KV lightning protection
- Support stack and Qos
- Line speed forwarding, inte1ligent recognition
- Optical and electrical uplink port
- All ports support IEEE 802.3x half-duplex flow control and full-duplex back pressure mode
- Non-blocking switching architecture, full line speed forwarding and maximum throughput filtering packets
- Support MAC address learning, automatically adjust transmission mode and transmission rate
- LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting
Specifications
Item |
Description |
||
8 10/100Mbps PoE port Waterproof box Ethernet Switch |
8 10/100/1000Mbps PoE port Waterproof box Ethernet Switch |
||
Power |
Power Supply |
Built DC 52V 125W power |
Built DC 52V 125W power |
Voltage Range |
100VAC to 240VAC, 50/60Hz |
100VAC to 240VAC, 50/60Hz |
|
Switch Consumption |
< 6W |
< 6W |
|
Ethernet |
Speed |
8 10/100Mbps RJ45 port Optional uplink: ① 2 10/100Mbps RJ45 port ② 3 gigabit port: 2RJ45 + 1SFP |
8 10/100/1000Mbps RJ45 port Optional uplink: ① 2 gigabit RJ45 port ② 3 gigabit port: 2RJ45 + 1SFP |
Transmission Distance |
RJ45 port: 100meter SFP port: Depending on the fiber module used |
RJ45 port: 100meter SFP port: Depending on the fiber module used |
|
Ethenet Standard |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af |
||
Switching capacity |
2 or 7.6Gbps |
20 or 22Gbps |
|
Transfer Rate |
10Mbps: 14880pps 100Mbps: 148800pps |
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps |
|
|
Network Switch |
MAC Address |
2K ~ 8K |
|
Function |
Extend switch on |
PoE port is forced to 10Mpbs extend to 250 meters |
Optional |
Link/Act |
Green on |
The port is connecting |
|
Green blinks |
The port is receiving or transmitting data |
||
Green off |
The port is not linked successfully with the device |
||
PoE(12,36) |
Orange on |
PD is connected |
|
Orange off |
No PD is connected or power forwarding fails |
||
|
Working Environment |
working Temperature |
-10℃ ~ 45℃ (14℉ ~ 113℉) |
|
Storage Temperature |
-30℃ ~ 70℃ (-22℉ ~ 158℉) |
||
Humidity |
10% ~ 90%(Non condesing) |
||
Mechanical |

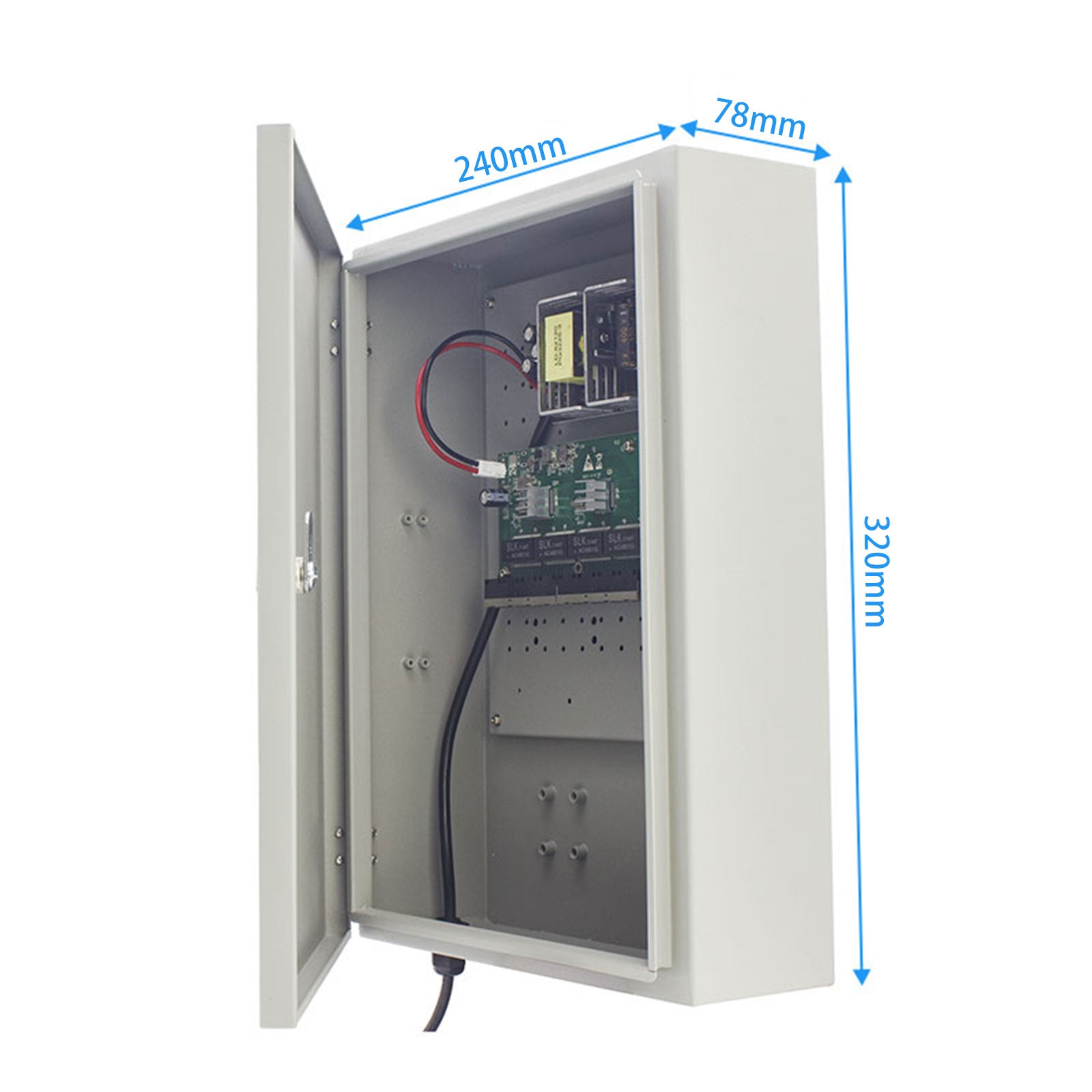

Dimension L*W*H |
320x240x78mm |
|
Color |
White grey |
||
