Acegear | SKU:
CPPS-DC10A09HD

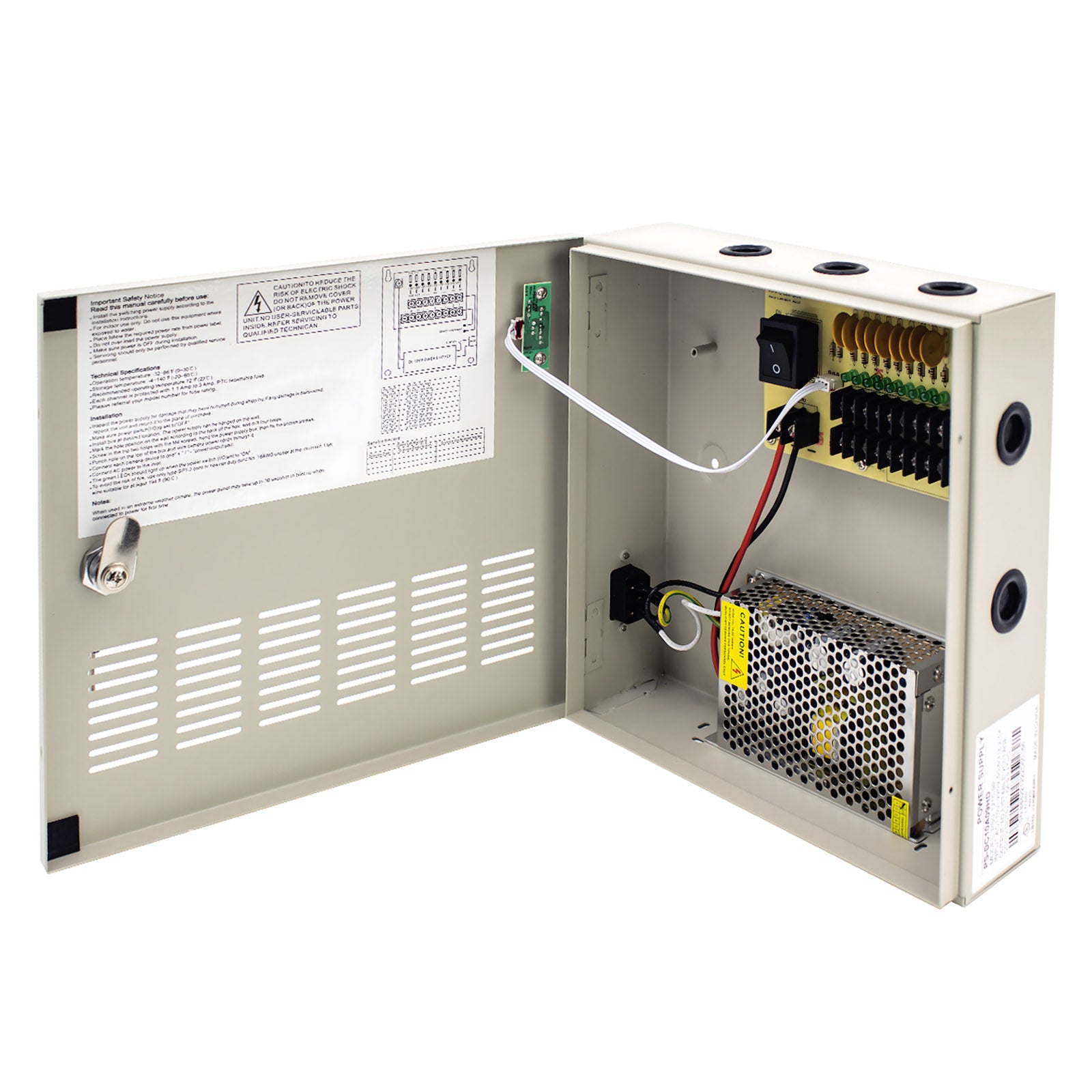

Acegear PS-DC10A09HD, Power Box 9CH,10A UL Listed
MPN: PS-DC10A09HD
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear PS-DC10A09HD, Power Box 9CH,10A UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
- 100~240V universal AC Input Range
- Each output has a resettable fuse
- Fuse Type: PTC Fuse 2.5A
- Short circuit protection
- Individual status LED indicator for each output
- Over-temperature protection
- Overcurrent and overload protection
- Overvoltage and undervoltage protection
- Auto-reset on all fault conditions
- Wide operating temperature range
Specifications
Model Number |
PS-DC10A09HD |
ltem |
CCTV Power Supply Box |
Input Voltage |
AC110-240V, 50~60HZ |
Output |
DC 12V 10A（MAX）9Channel |
Efficiency |
≥80% |
Fuse Type |
PTC Fuse |
Fuse Rating |
2500mA |
Operating Temperature |
-10~40℃ |
Carton Dimension |
44*29*28.5cm |
Carton Weight |
5 pcs/carton |

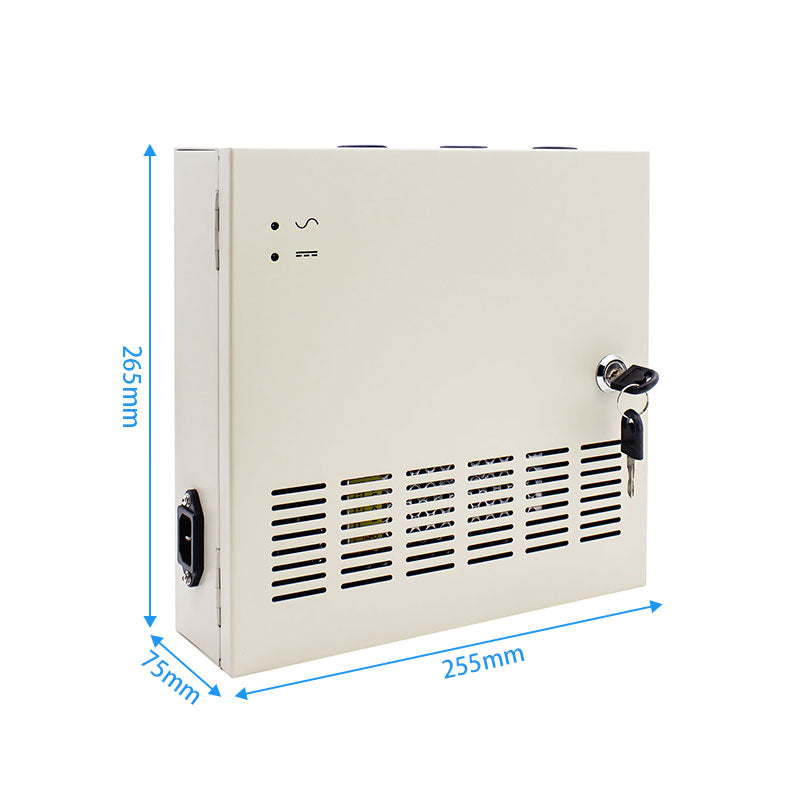

Size |
265*255*75mm |
Color |
White or Blue or Black |
Load regulation |
A ±5% |
life |
10000 hours |
