Acegear | SKU:
CPPS-DC8A8P

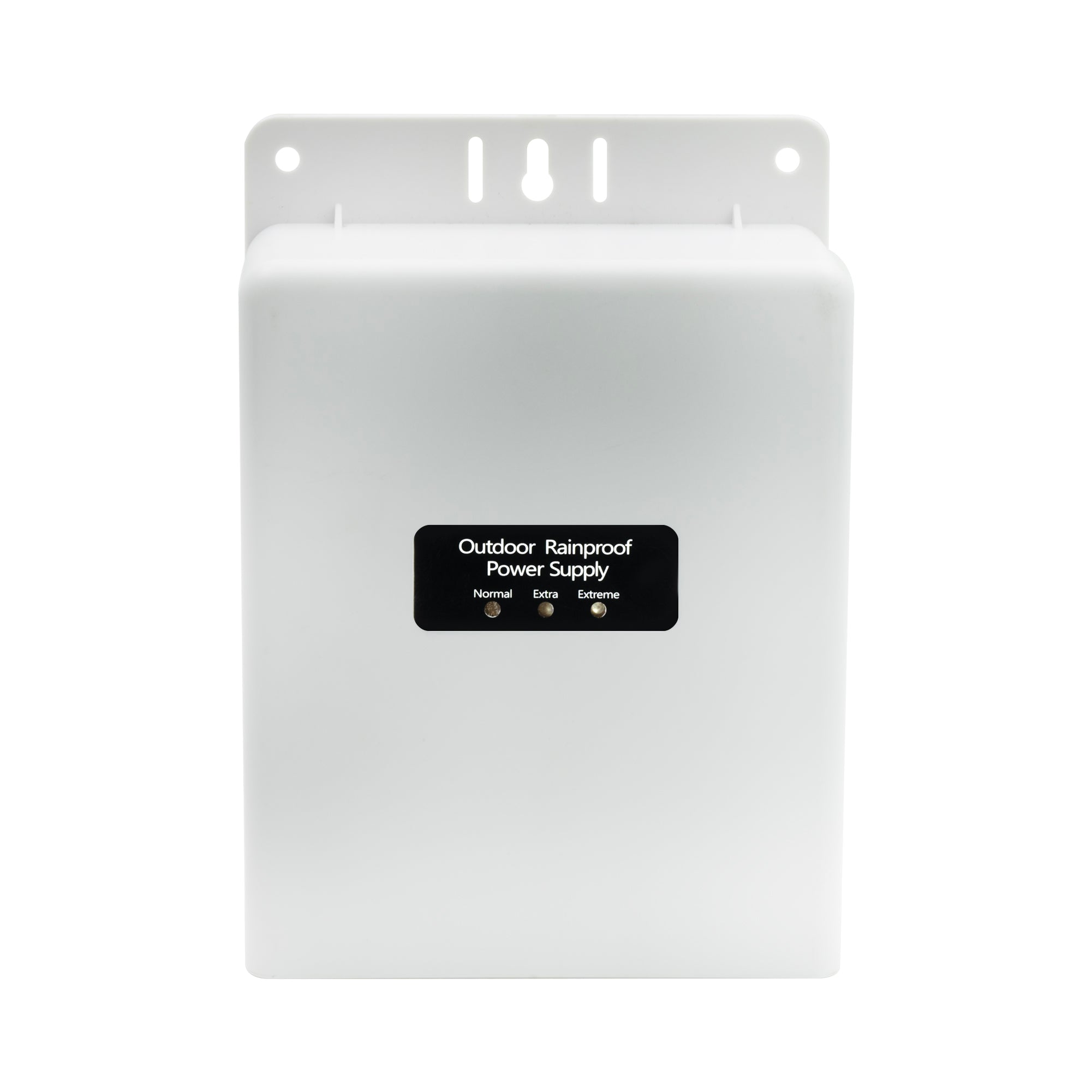

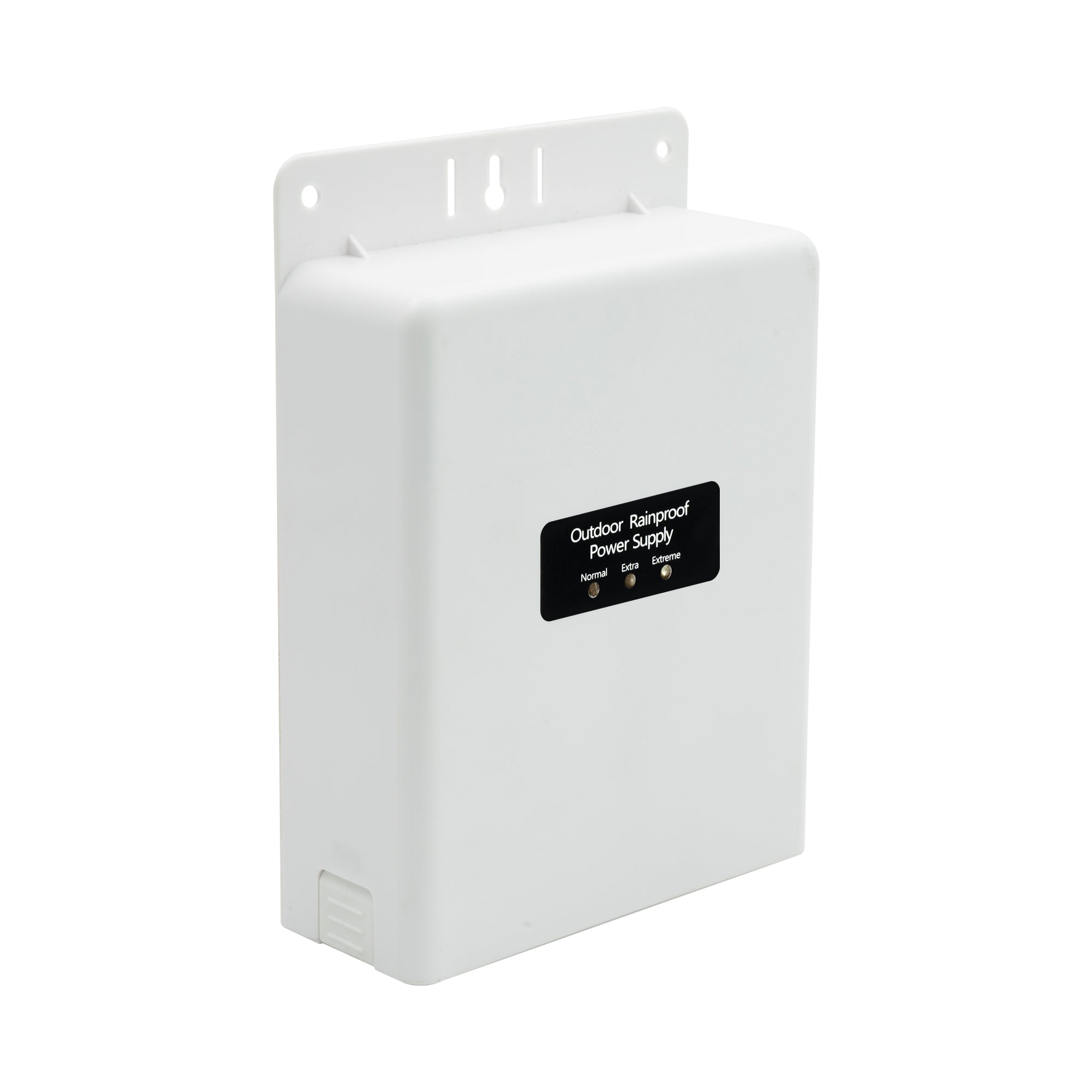

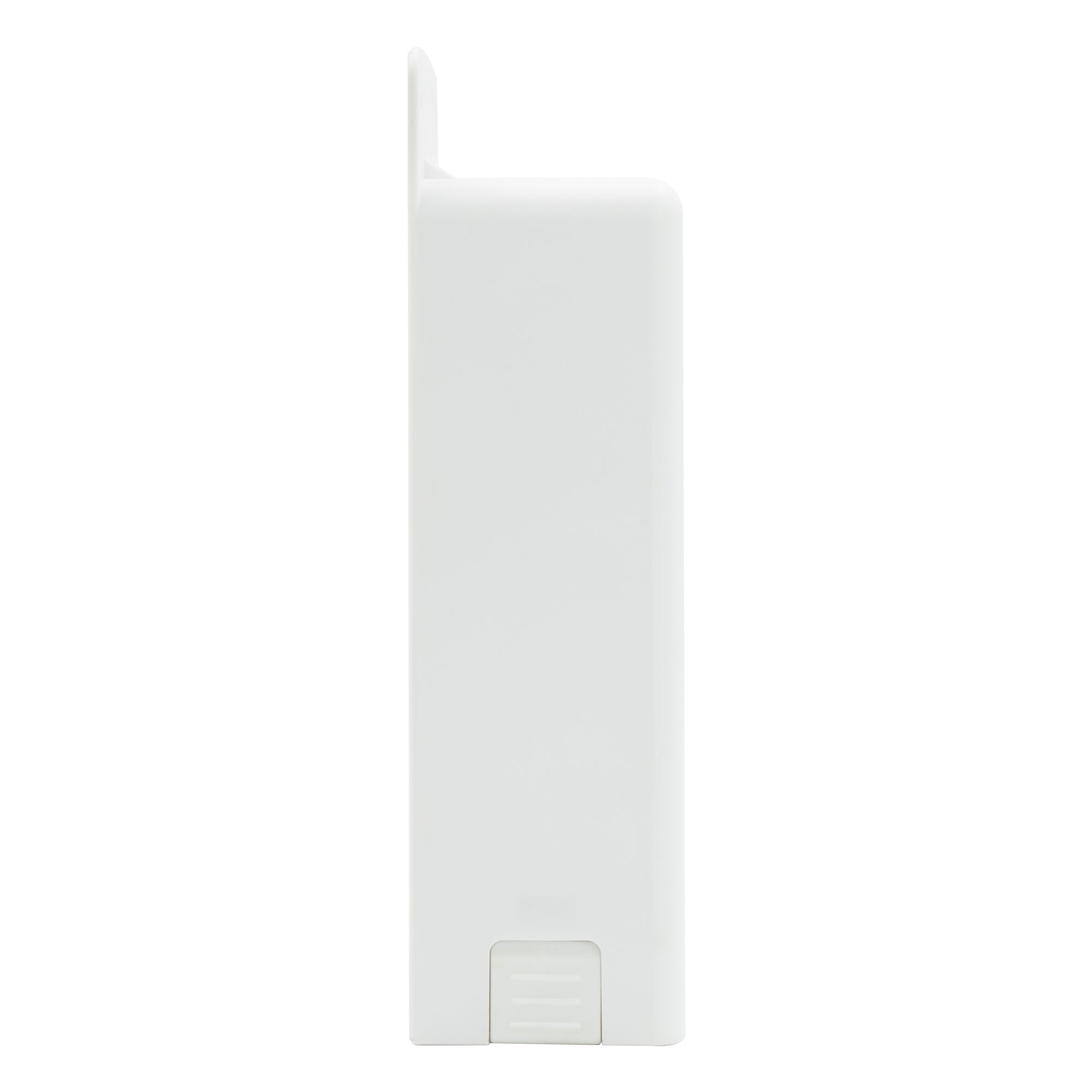

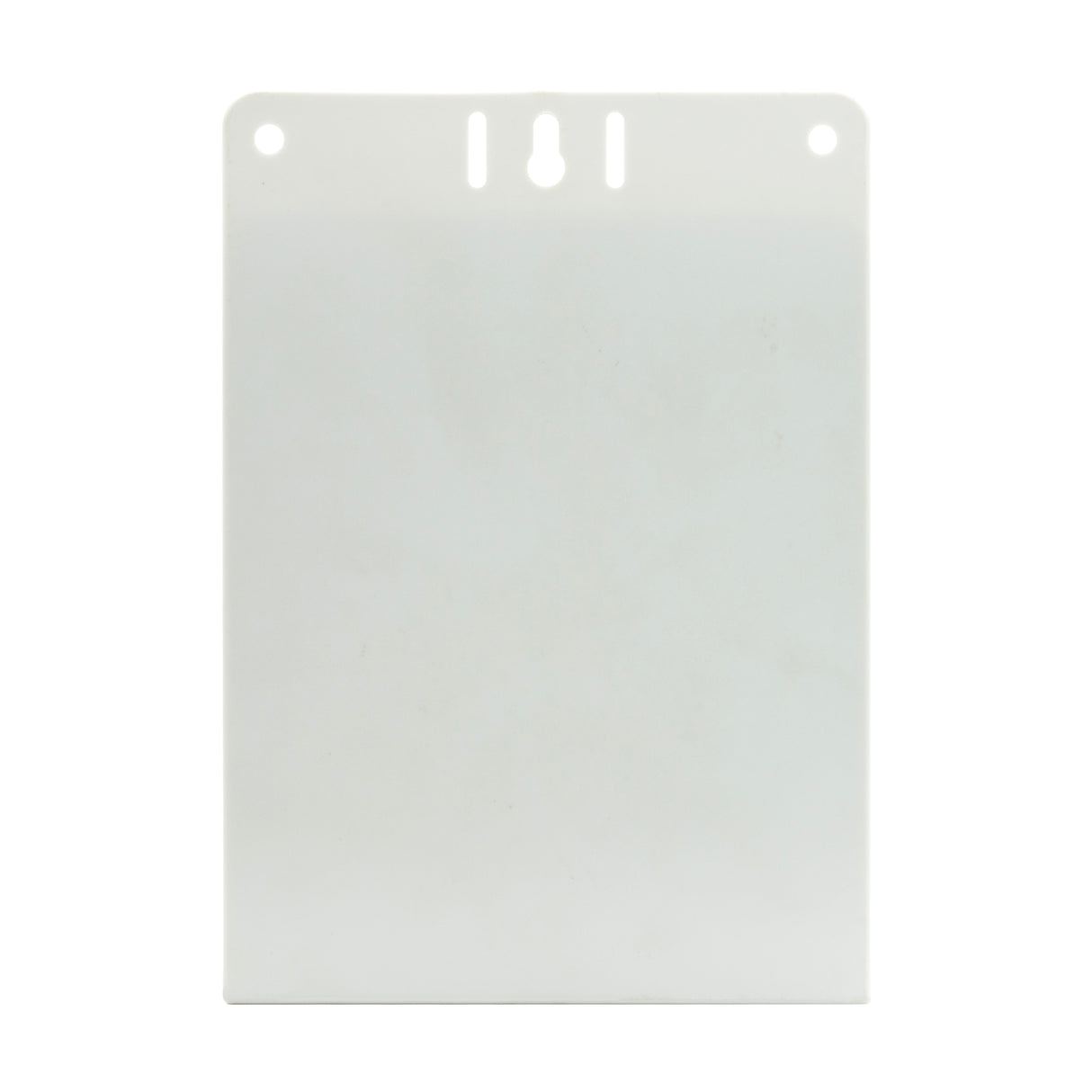

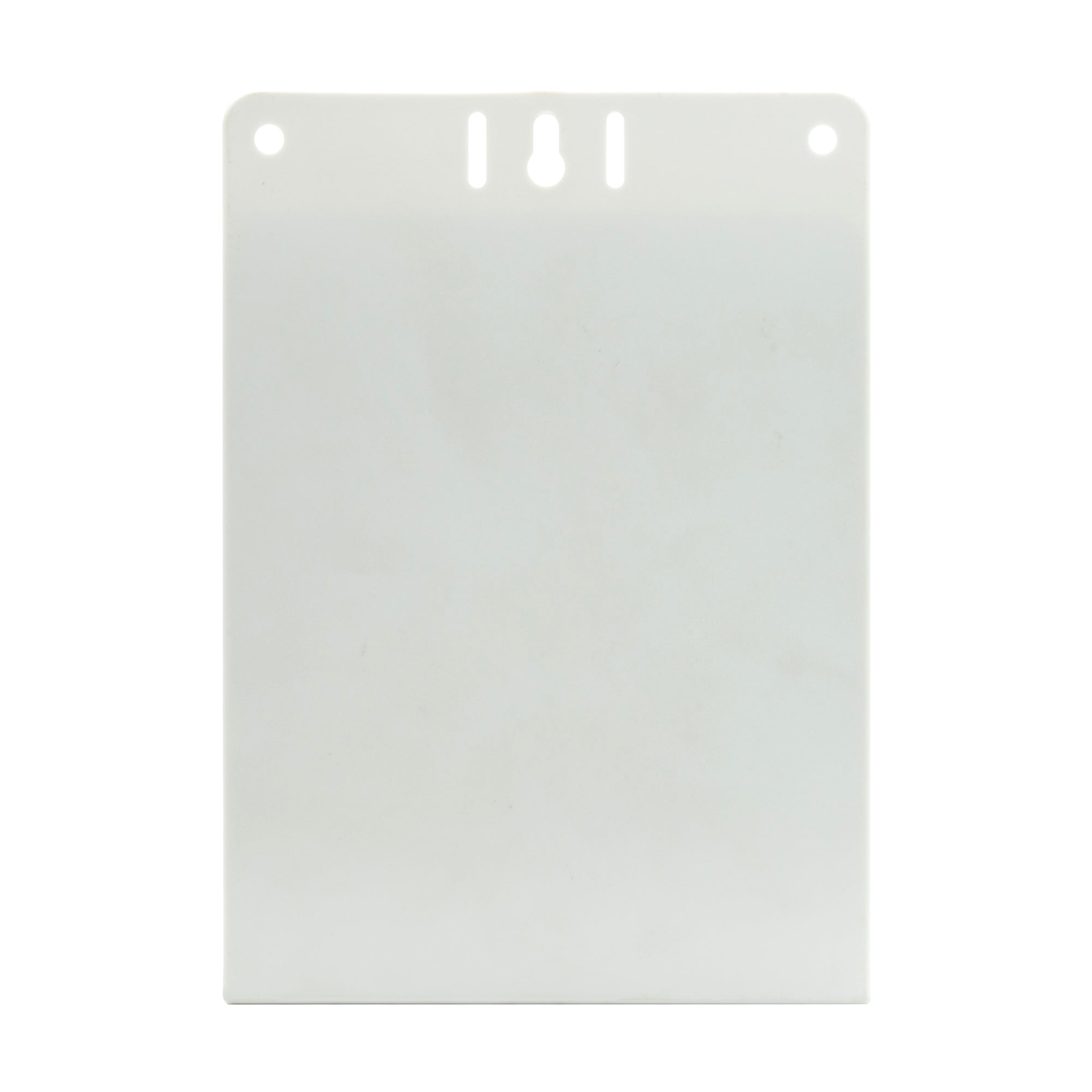

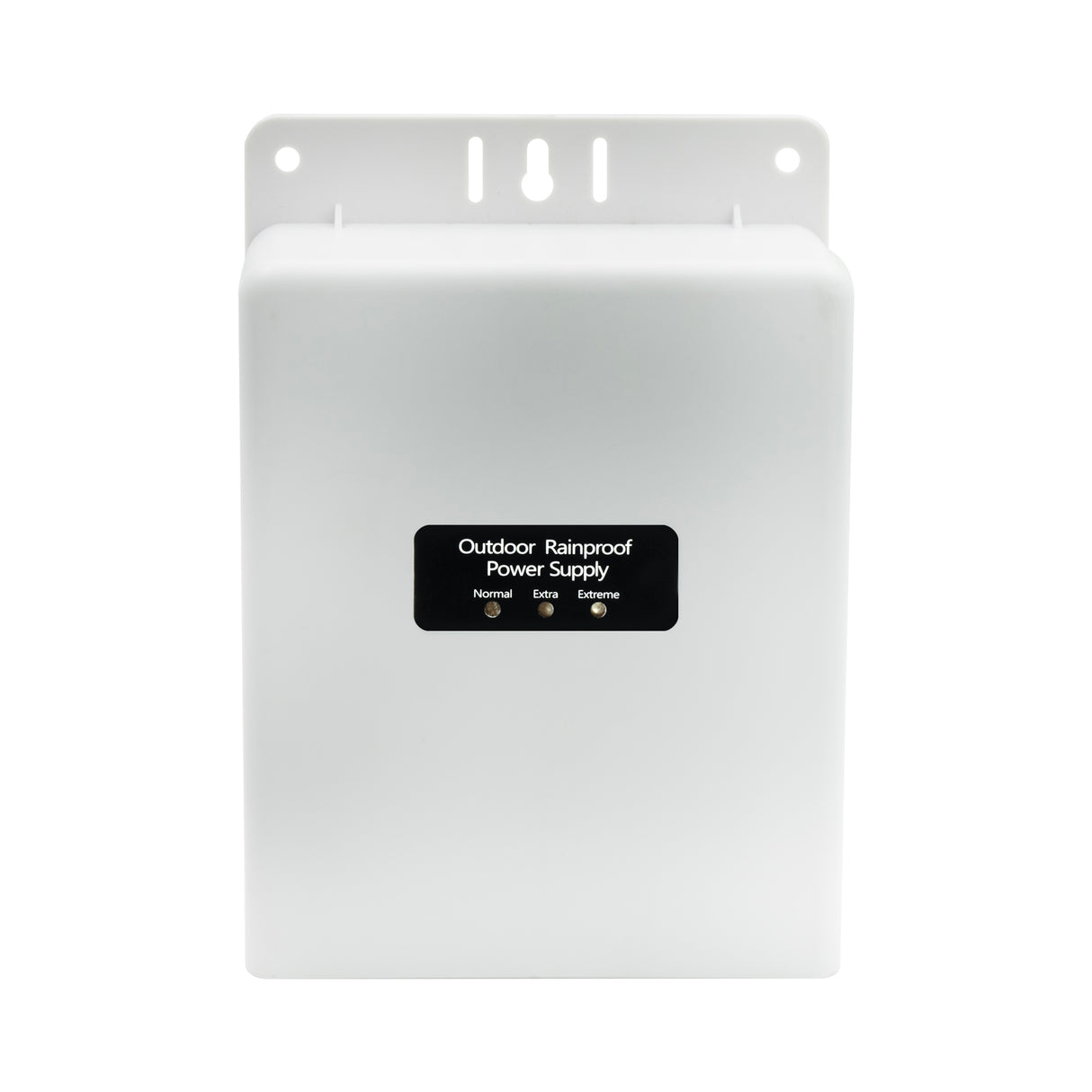

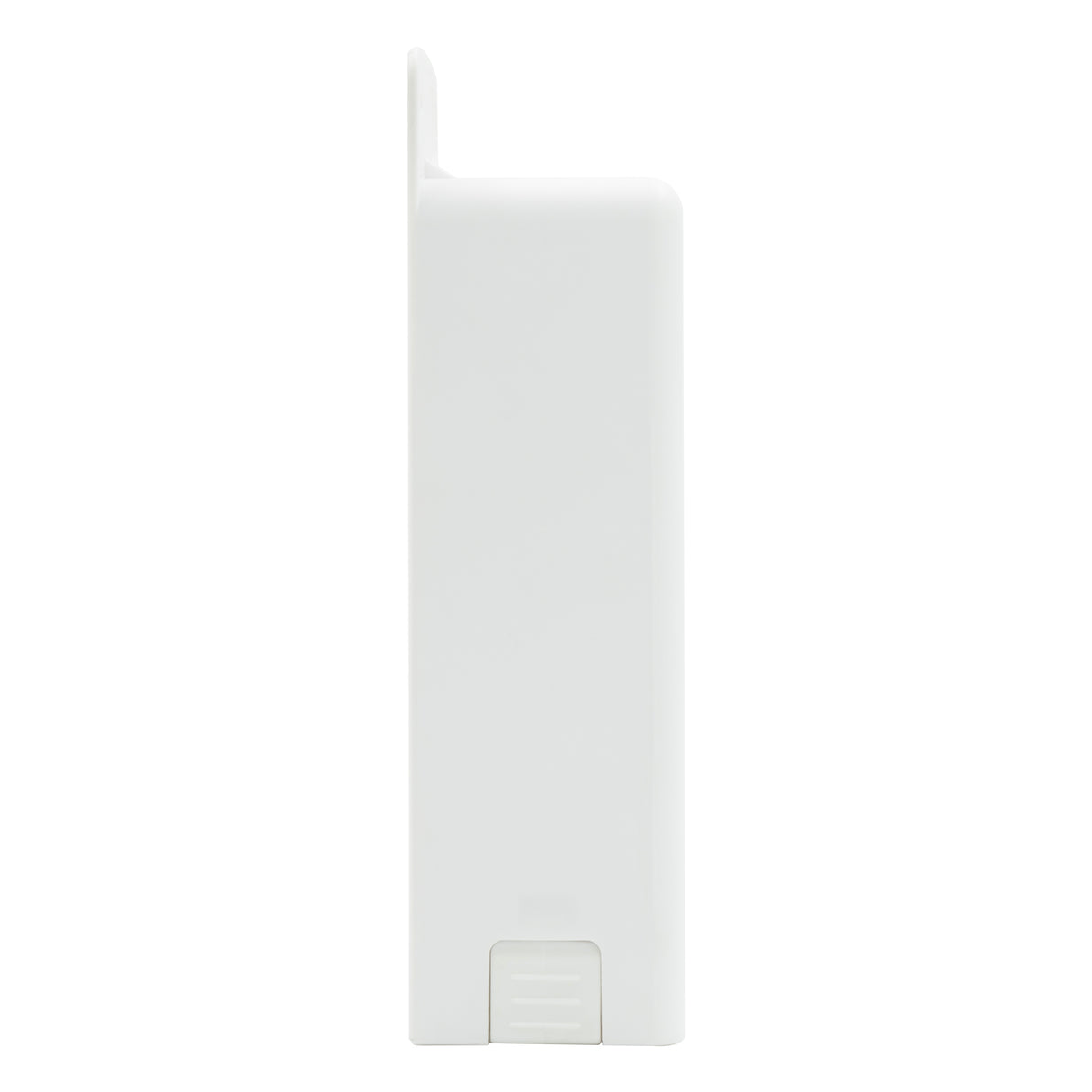

Acegear PS-DC8A8P, Compact Power Box Rain Proof, 8CH, 8AMP, - New Arrival
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear PS-DC8A8P, Compact Power Box Rain Proof, 8CH, 8AMP, - New Arrival is backordered and will ship as soon as it is back in stock.
Description
Description
PS-DC8A8P is a DC12V/13.8V/15V 8A8CH outdoor rainproof power adaptor, DC12V output can be compatible with most security equipment on the market.
Features
- Outdoor Rainproof Power Adaptor
- Input AC 100V ~ 240V, 50~60Hz
- Adjustable output voltage, switch control
- Each voltage has LED indications
- DC 12V / 13.8V / 15V 8A 8CH power supply
- PTC fuse output protection for each port
- PTC rated value: 30V1.35A
- Individual status LED indicator for each output
- Short circuit protection
- Over-temperature protection
- Overcurrent and overload protection
- Overvoltage and undervoltage protection
- Auto-reset on all fault conditions
- Wide operating temperature range
Specifications
| Item | Description | ||
|
Power Input |
Input Voltage | AC input, 100V ~ 240V, 50~60Hz | |
| Input Fuse Rating | 3.15A250V | ||
| Consumption | <0.6W | ||
| Power Output | Output Voltage | DC 12V or 13.8V or 15V,switch control, Each voltage has LED indications | |
| Total Output Current | 8A | ||
| Output channel number | 8 channel | ||
| Each ch output current | 1.35A max, PTC fuse output protection for each port | ||
| Product quality | Efficiency | Efficiency larger than 80% when DC output full loading with 230VAC input voltage | |
| Over temperature protection | When the inside temperature of PSU rise to100~120℃,The PSU will shutdown and latch off until inside temperature of PSU drop to 70℃，then it will restart automatically. | ||
|
Short Circuited Protection |
When the output terminal is short circuit, the power supply will be protected, will not result in fire, electric shock or damage the power supply | ||
| Over load Protection | When the load rate of PSU is up to 105 to 150% ,The PSU will be in the hiccup mode, then it will recover automatically while the load is down to the standard | ||
| Feature | High efficiency, long life and high practicality, natural cooling | ||
| Efficiency | >80% | ||
| Noise & ripple | <200mV | ||
| MTBF | >10000 hours | ||
| Load regulation | A ±5% | ||
| Environmental | Operating temperature | -10℃to 45℃ | |
| Storage temperature | -20℃to 75℃ | ||
| Operating humidity | 20% to 80% relative humidity, non-condensing | ||
| Storage humidity | 10% to 90% relative humidity, non-condensing | ||

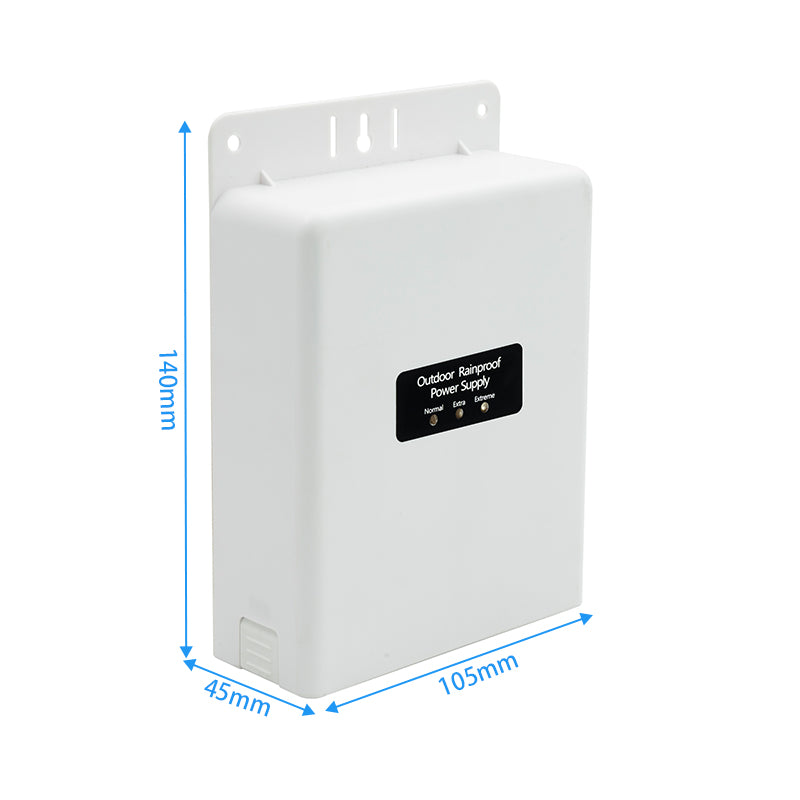

| Physical | Case dimensions | 140mm(5.51in) X 105mm(4.13in) X 45mm(1.77in) | |
| Case Color | White Rainproof Shell | ||
