Rhino Mounts F3770E Fixed 37"-70" Economy Mount, Black
Click or scroll to zoom
Tap or pinch to zoom
by Rhino Mounts
SKU RMF3770E

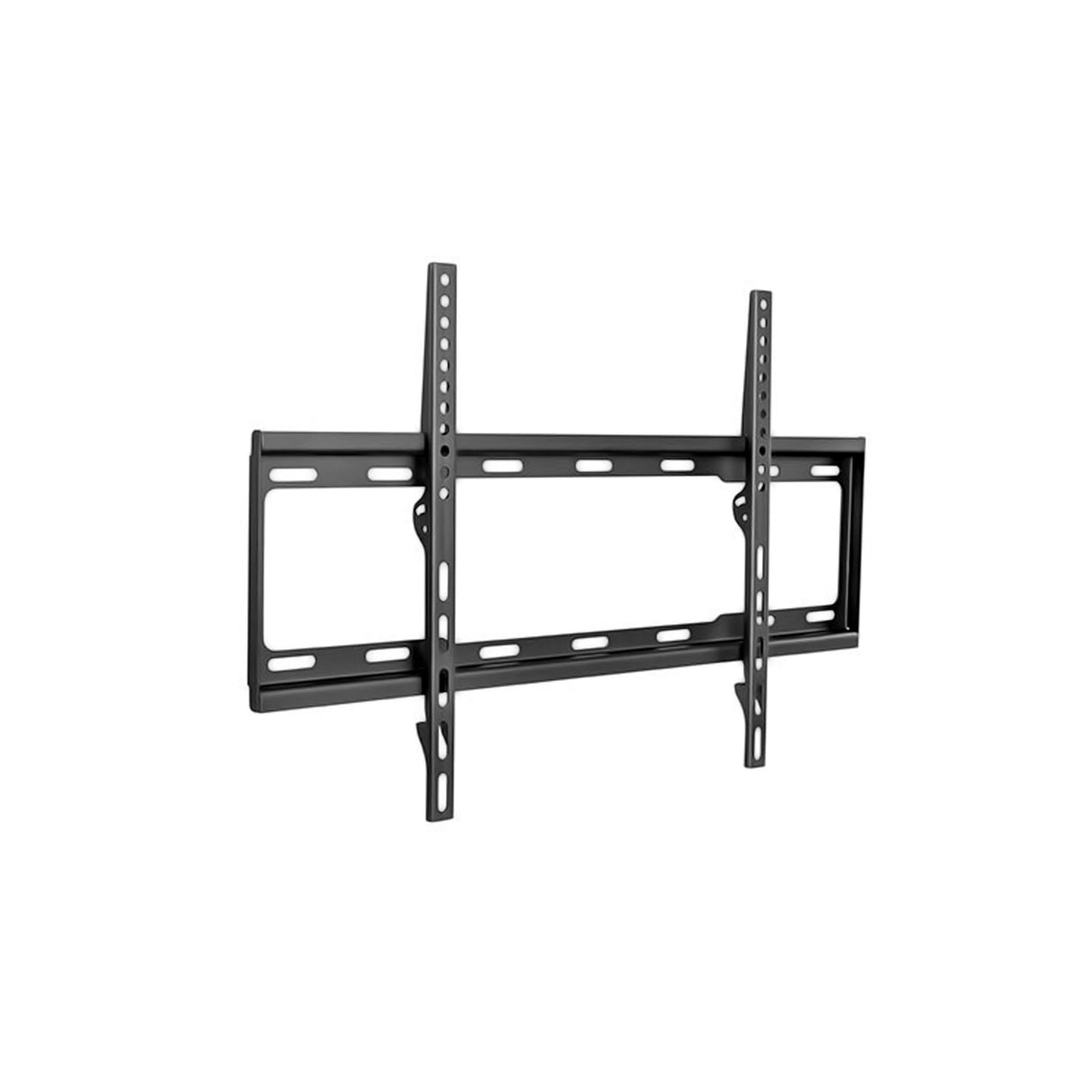

Rhino Mounts F3770E Economy Low Profile Fixed Wall Mount
Easy to use and install, the popular model F3770E is designed to fit any 37"-70" Flat Panel TV up to 88lb. Simple construction allow easy installation. 1.8mm thickness steel make the bracket more strong and durable.
- Open architecture provides increased ventilation and easier access to wires
Product Category:
TV wall mount
Rank:
Standard
Material:
Steel, Plastic
Metal Sheet Thickness:
1.8mm (0.071")
Surface Finish:
Powder Coating
Color:
Slate Black

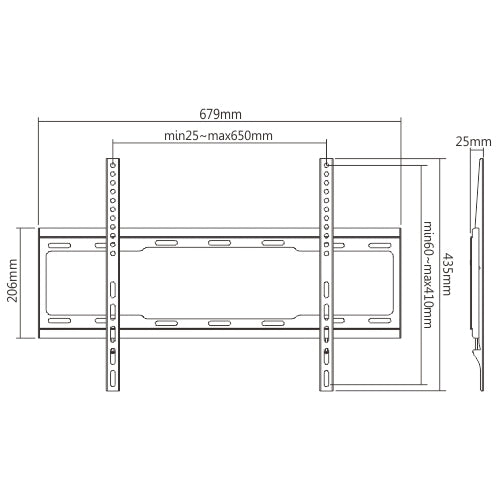

Dimensions:
25X679X435mm (0.98"X26.7"X17.1")
Fit Screen Size:
37"-70"
Weight Capacity:
(88lbs)
Strength Tested:
4 Times Approved
Mounting Hole Pattern:
Universal
VESA Compatible:
200x200 ,300x300 ,400x200 ,400x400 ,600x400
Max. VESA:
650X410
Panel Type:
Detachable Panel
Tilt Range:
No
Swivel Range:
No
Screen Level:
No
Screen Rotation:
No
Profile:
25mm (0.98")
Installation:
Single Stud
Wall Plate Type:
Fixed Wall Plate
By Function:
Fixed
Bubble Level Mount:
Accessory
Instruction Manual Included:
Yes
Certification:
UL
Patent:
No
Click or scroll to zoom
Tap or pinch to zoom
by Rhino Mounts
SKU RMF3770E
Rhino Mounts F3770E Economy Low Profile Fixed Wall Mount
Easy to use and install, the popular model F3770E is designed to fit any 37"-70" Flat Panel TV up to 88lb. Simple construction allow easy installation. 1.8mm thickness steel make the bracket more strong and durable.
- Open architecture provides increased ventilation and easier access to wires
| Product Category: | TV wall mount |
|---|---|
| Rank: | Standard |
| Material: | Steel, Plastic |
| Metal Sheet Thickness: | 1.8mm (0.071") |
| Surface Finish: | Powder Coating |
| Color: | Slate Black |
| Dimensions: | 25X679X435mm (0.98"X26.7"X17.1") |
| Fit Screen Size: | 37"-70" |
| Weight Capacity: | (88lbs) |
| Strength Tested: | 4 Times Approved |
| Mounting Hole Pattern: | Universal |
| VESA Compatible: | 200x200 ,300x300 ,400x200 ,400x400 ,600x400 |
| Max. VESA: | 650X410 |
| Panel Type: | Detachable Panel |
| Tilt Range: | No |
| Swivel Range: | No |
| Screen Level: | No |
| Screen Rotation: | No |
| Profile: | 25mm (0.98") |
| Installation: | Single Stud |
| Wall Plate Type: | Fixed Wall Plate |
| By Function: | Fixed |
| Bubble Level Mount: | Accessory |
| Instruction Manual Included: | Yes |
| Certification: | UL |
| Patent: | No |
