Rhino Mounts FDM2355, Motorized Flip Down Ceiling Mount 23" - 55" , Controled by Tuya APP, Up to 66lbs / Profile: 4.3".

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

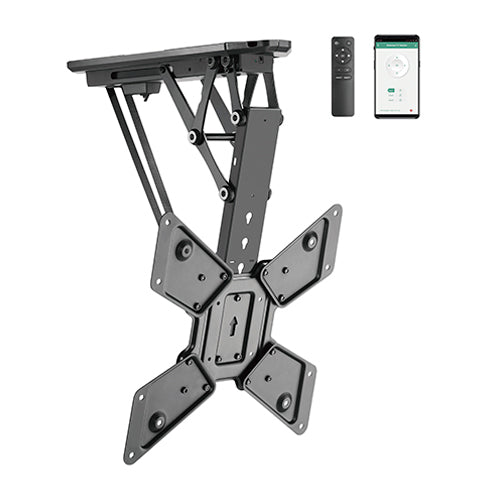

Rhino Mounts FDM2355 Smart Flip Down TV Ceiling Mount is a perfect choice to save space or for room with low ceiling.

A quality motor holds TVs up to 23" ~ 55" and lowers and retracts TVs smoothly and quietly, completely controllable by remote or Tuya app (AI series).

A balanced mechanism prevents any ceiling vibrations when the TV is in motion. There are convenient memory settings as well — a brilliant choice for public or home TV viewing installations!

  • Powerful Motor: more stable, strong and durable

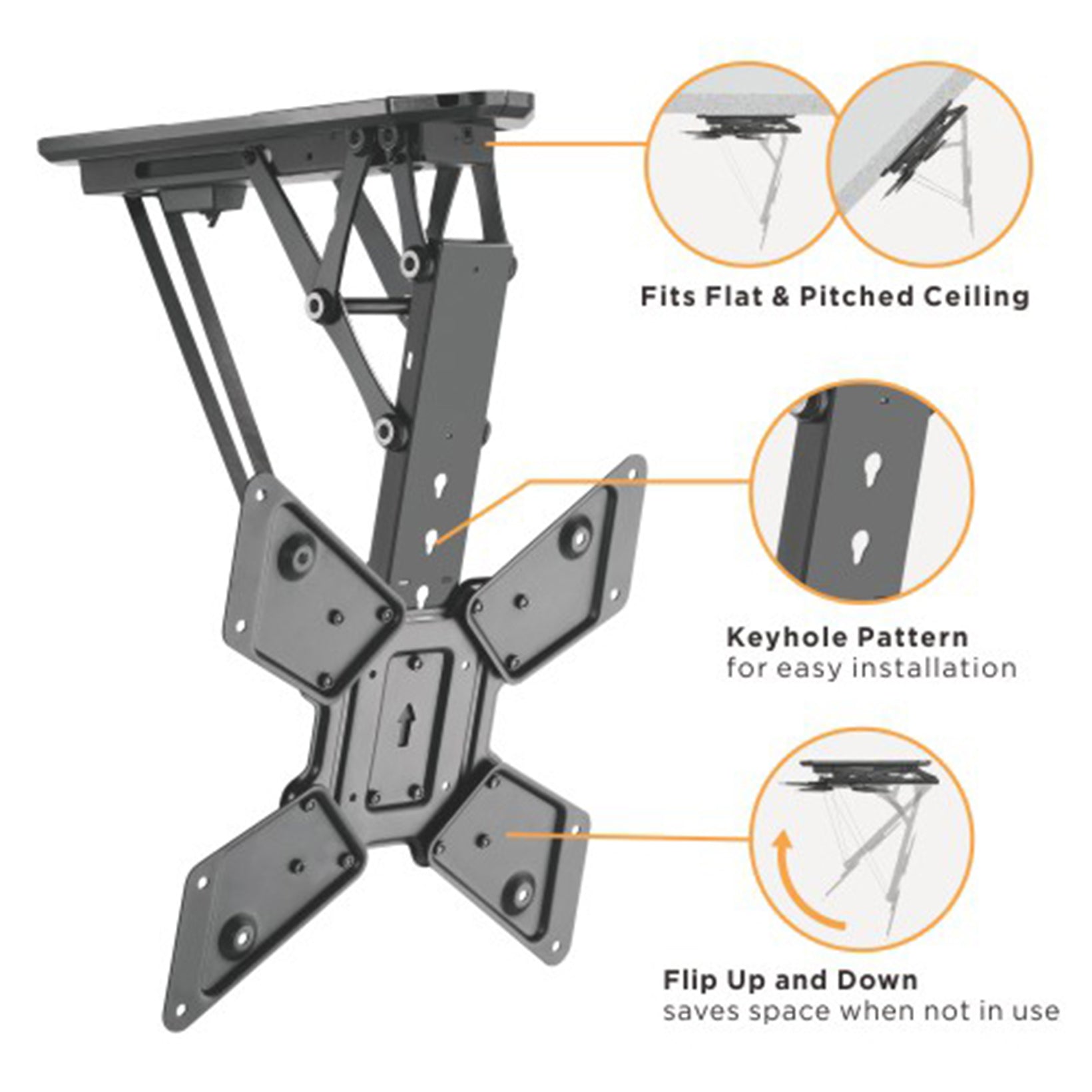

  • Leveling adjustments: allow TV to be perfectly positioned after hanging
  • Flip Down Design: allows for easy storage, cleared up space and out-of-way safety

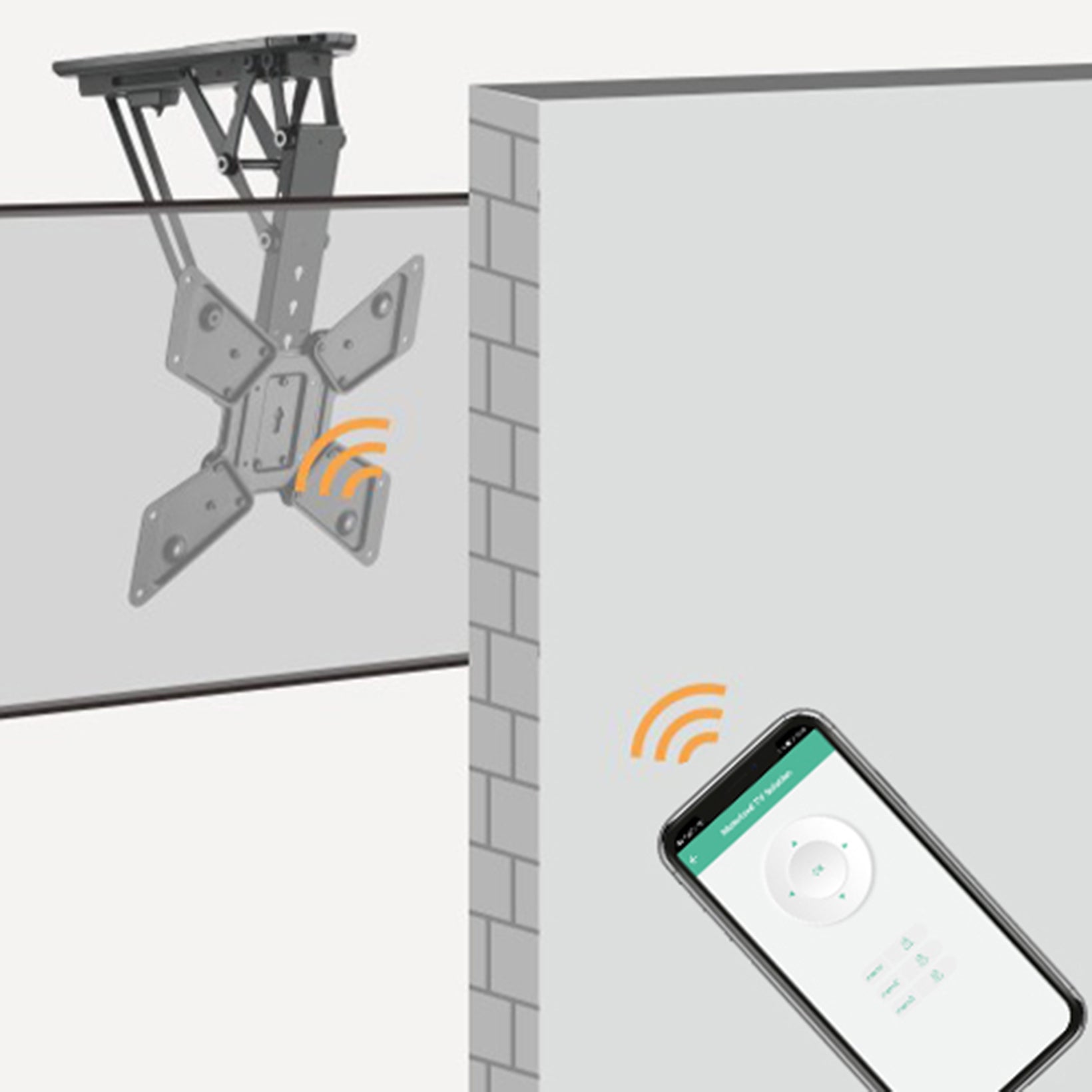

  • App Remote Control: remote powered by Tuya App
Product Category: Motorized TV Ceiling Mount
Rank: Standard
Material: Steel,Plastic
Metal Sheet Thickness: VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (Wall Plate THK=0.079" cold-rolled sheet,VESA Panel THK=0.079" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black,Matte White

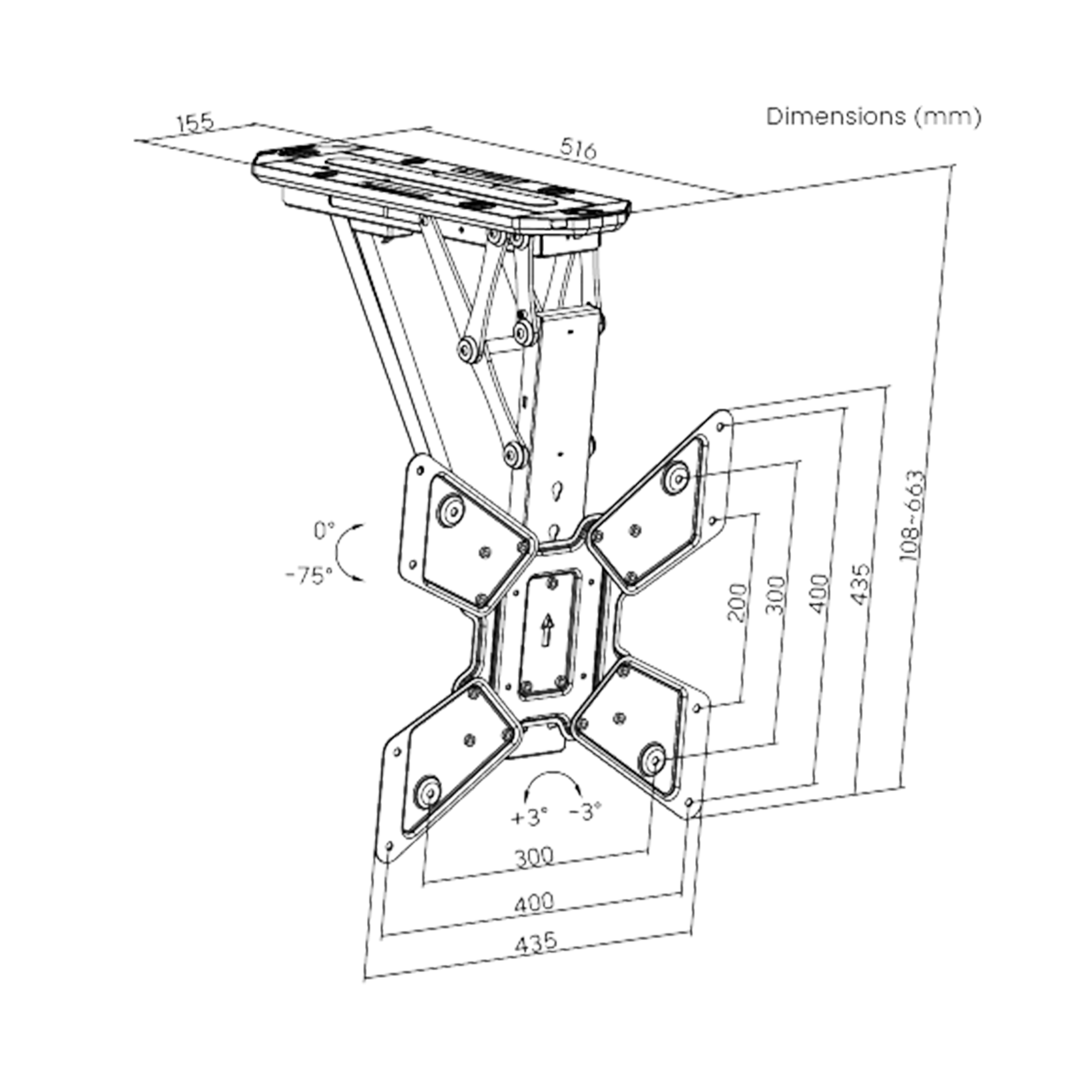

Dimensions: 557x435x108mm (21.9"x17.1"x4.3")
Fit Screen Size: 23"-55"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Only
VESA Compatible: 100x100,200x200,400x200,300x300,400x400
Max. Mounting Hole: 400x400
Weight Capacity: 30kg (66lbs)
Strength Tested: 3 Times Approved
Profile: 108mm (4.3")
Tilt Range: 0~-75°
Screen Level: +3°~-3°
Screen Freely Tilting: No
Installation: Ceiling Mounted
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: No
Cable Management: Yes
Anti-theft: No
Power Supply: Input:AC 100~240V,50/60Hz;Output:DC 24V, 1.5A
Power Cord Length: 1.5m (4.9ft)
Controller Type: Application Control,Radio Frequency(RF) Remote
Bubble Level: No
Accessory Kit Package: Compartment Polybag
Certification: CE,FCC,RoHS
