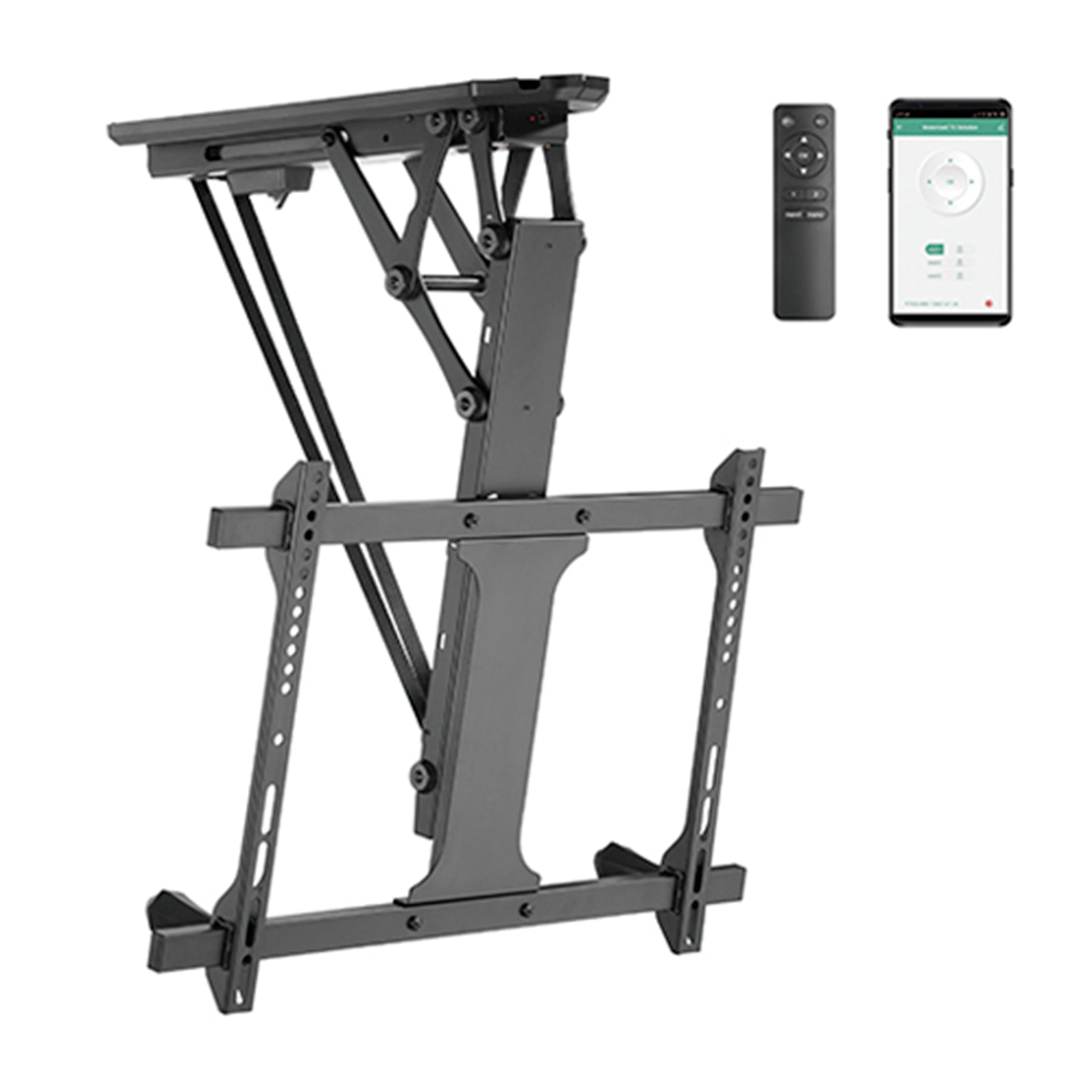

Rhino Mounts FDM3270, Motorized Flip Down Ceiling Mount 32" - 70" , Controled by Tuya APP, Up to 77lbs / Profile: 4.3".

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Many customers choose to mount their TV over a fireplace mantel due to the convenient and central room location. Fixed mounts don’t offer the best experience, so having the ability to pull the TV down and out for viewing and later retracting it back above the mantel when not in use provides a cleaner look and more efficient use of living space for the homeowner.

To meet these needs, Rhino Mount has designed the FDM3270, offering consumers a solid and affordable choice for over the mantel TV mounting options. A quiet motorized mechanism provides long life with smooth positioning and motion. For the ultimate couch potato, the FDM3270 includes a remote that allows the mounted TV to be controlled from across the room. Memory settings on the remote allow you to save settings and automatically have the mount move the TV to a previously saved viewing position, giving you time to pop more popcorn.

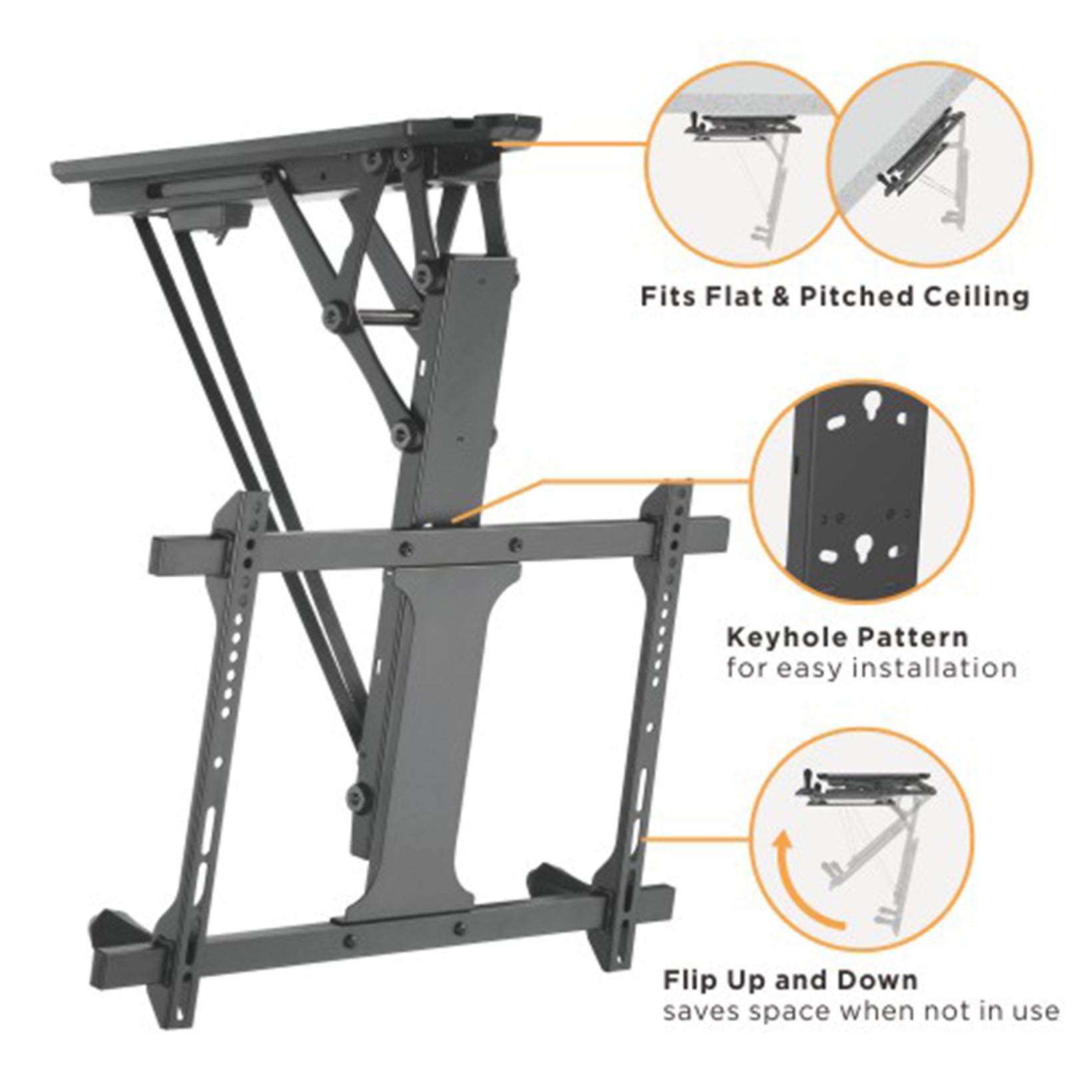

  • Powerful Motor: more stable, strong and durable
  • Programmable Position Memory Function: records the position you like
  • Leveling adjustments: allow TV to be perfectly positioned after hanging
  • Remote Control Included: for easy movements
  • Swivel Ability: for multiple screen viewing angles
  • Cable Management: keeps everything organized
Material: Steel,Plastic
Metal Sheet Thickness:

Bracket Arm THK=2.5mm pickling sheet,VESA Panel THK=2mm

cold-rolled sheet,Wall Plate THK=3mm pickling sheet

(Bracket Arm THK=0.098" pickling sheet,VESA Panel THK=0.079"

cold-rolled sheet,Wall Plate THK=0.12" pickling sheet)

Surface Finish: Powder Coating
Color: Matte Black

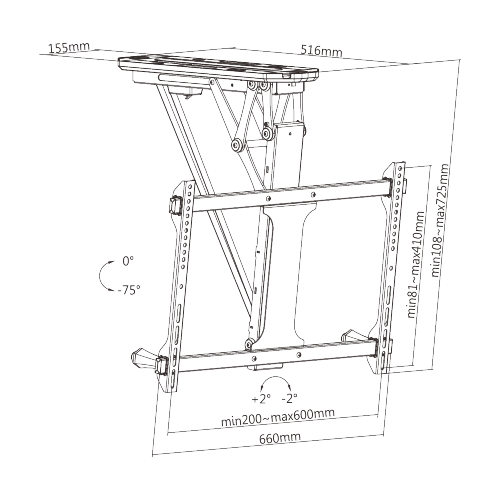

Dimensions: 485x650x559mm (19.1"x25.6"x22")
Fit Screen Size: 37"-70"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x100,200x200,300x200,400x200,300x300,400x300,400x400,600x400
Max. Mounting Hole: 600x400
Weight Capacity: 35kg (77lbs)
Strength Tested: 2 Times Approved
Profile: 153~485mm (6"~19.1")
Swivel Range: +25°~-25°
Screen Level: +3°~-3°
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: Yes
Anti-theft: No
Power Supply: Input:AC 100~240V,50/60Hz;Output:DC 29V, 1.8A
Power Cord Length: 1.5m (4.9ft)

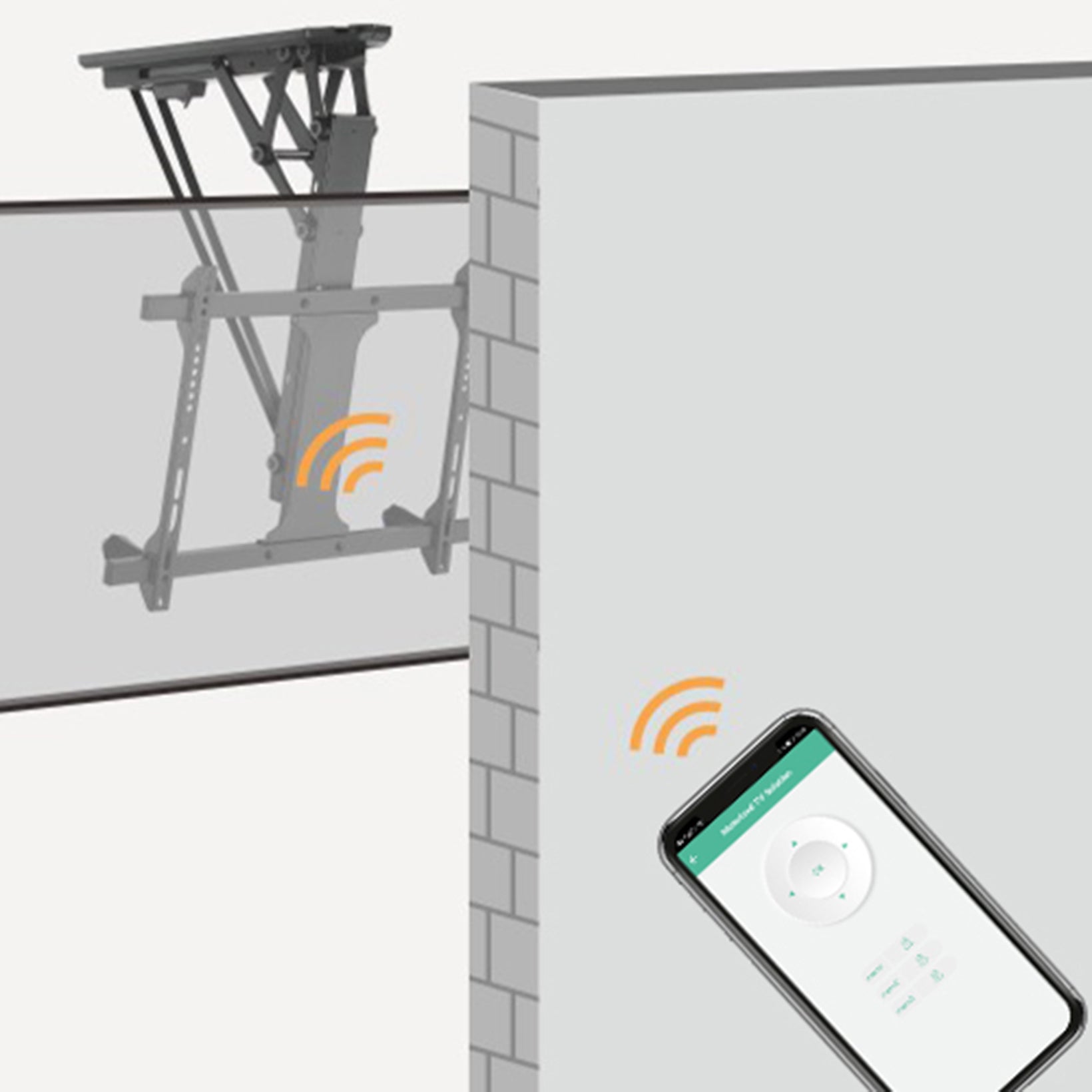

Controller Type: Radio Frequency(RF) Remote
Bubble Level: No
Accessory Kit Package: Compartment Polybag
Certification: CE
