Rhino Mounts UF3770 UltraFlat 37"-70" Fixed Mount, Black
Click or scroll to zoom
Tap or pinch to zoom
Click or scroll to zoom
Tap or pinch to zoom
by Rhino Mounts
SKU RMUF3770

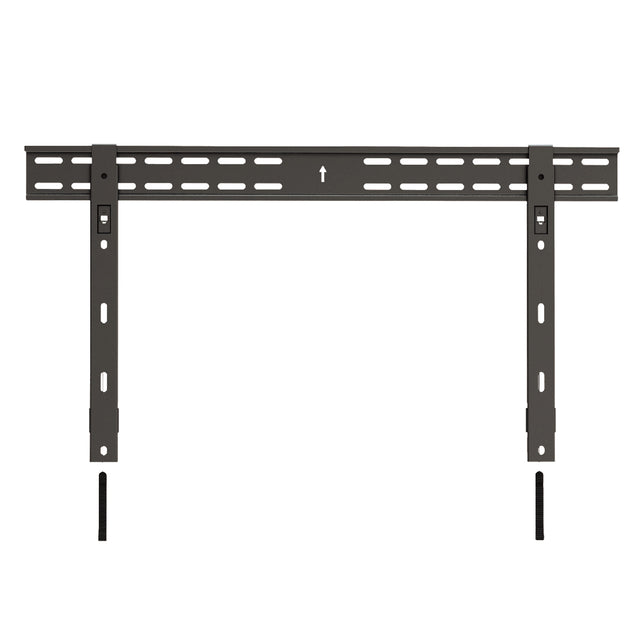

Rhino Mounts UF3770 Ultra Slim Fixed Wall Mount

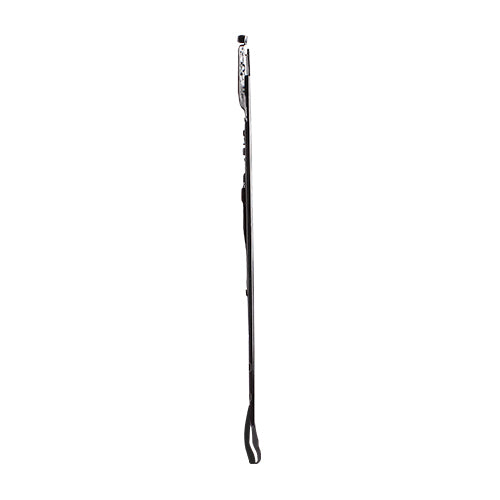

With an impressively low 0.39" (10mm) mounting profile, the UF3770 is a super slim mount perfectly suited for those applications where seamless integration counts most. It supports most 37’’-70’’ flat panel TVs up to 88 lbs. The new series is part of the Ultra Low Profile Series of fixed mounts offering a sleek and slim design together with simple installation.
- Ultra-slim design
- Automatically click-in spring lock helps TV brackets snap into place for added safety
- Direction Indicator: assures correct installation
- Open architecture provides increased ventilation and easier access to wires
Product Category:
TV wall mount
Rank:
Standard
Material:
Steel
Color:
Black
Dimensions:

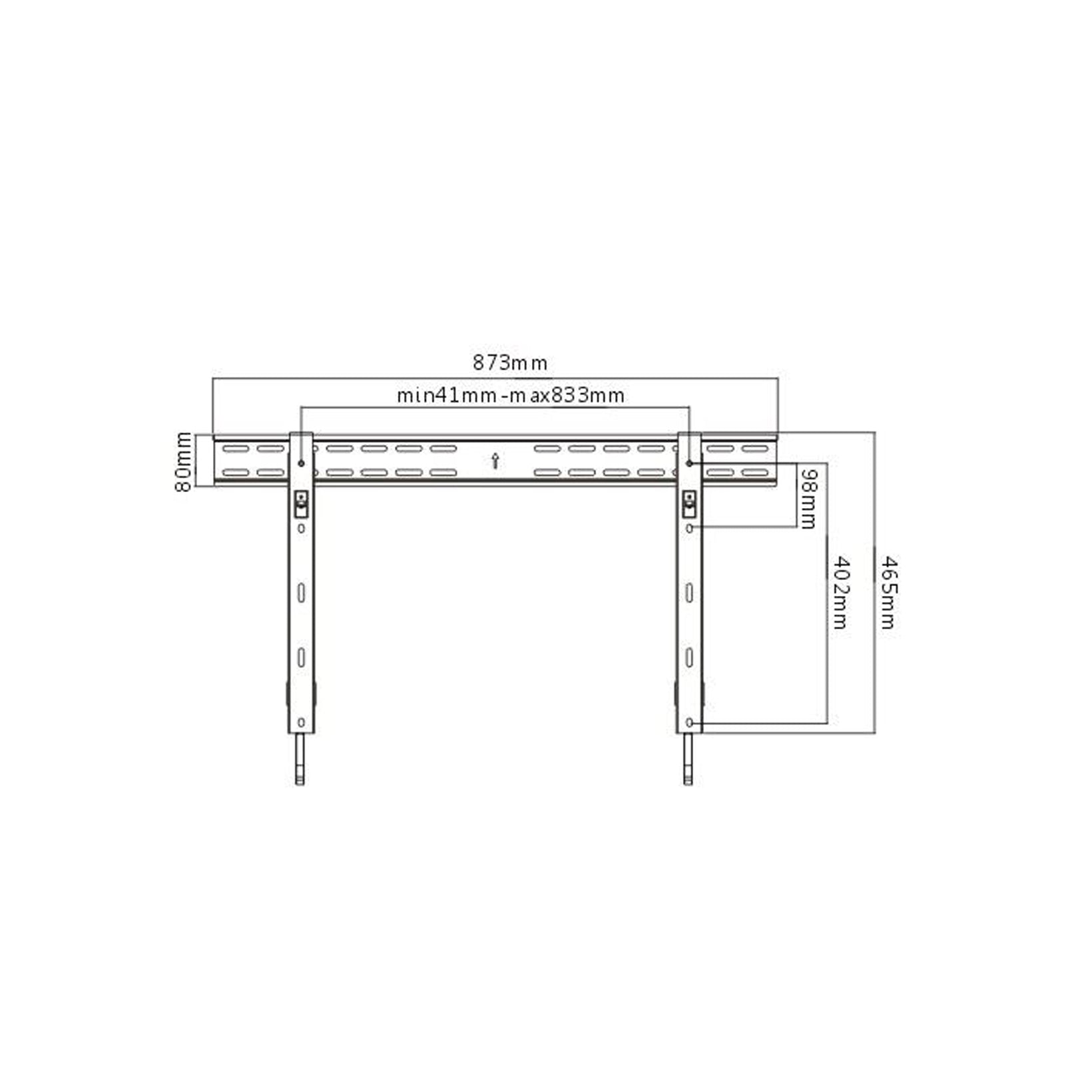

10 x 873 X 461.5mm (0.39"x 34.4" x 18.2")
Fit Screen Size:
37"-70"
Weight Capacity:
40kg (88lbs)
Strength Tested:
4 Times Approved
Mounting Hole Pattern:
Universal
VESA Compatible:
200x200, 300x300, 400x200, 400x400, 600x400, 800x400
Max. VESA:
833 x 402mm
Panel Type:
Detachable Panel
Screen Freely Tilting:
No
Profile:
10mm (0.39")
Installation:
Solid wall, Double Stud
Wall Plate Type:
Fixed Wall Plate
Cable Management:
No
Anti-theft:
No
Motorized:
No
By Function:
Fixed
Instruction Manual Included:
Yes
Patent:
No
Click or scroll to zoom
Tap or pinch to zoom
Click or scroll to zoom
Tap or pinch to zoom
by Rhino Mounts
SKU RMUF3770
Rhino Mounts UF3770 Ultra Slim Fixed Wall Mount
With an impressively low 0.39" (10mm) mounting profile, the UF3770 is a super slim mount perfectly suited for those applications where seamless integration counts most. It supports most 37’’-70’’ flat panel TVs up to 88 lbs. The new series is part of the Ultra Low Profile Series of fixed mounts offering a sleek and slim design together with simple installation.
- Ultra-slim design
- Automatically click-in spring lock helps TV brackets snap into place for added safety
- Direction Indicator: assures correct installation
- Open architecture provides increased ventilation and easier access to wires
| Product Category: | TV wall mount |
|---|---|
| Rank: | Standard |
| Material: | Steel |
| Color: | Black |
| Dimensions: | 10 x 873 X 461.5mm (0.39"x 34.4" x 18.2") |
| Fit Screen Size: | 37"-70" |
| Weight Capacity: | 40kg (88lbs) |
| Strength Tested: | 4 Times Approved |
| Mounting Hole Pattern: | Universal |
| VESA Compatible: | 200x200, 300x300, 400x200, 400x400, 600x400, 800x400 |
| Max. VESA: | 833 x 402mm |
| Panel Type: | Detachable Panel |
| Screen Freely Tilting: | No |
| Profile: | 10mm (0.39") |
| Installation: | Solid wall, Double Stud |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | No |
| Anti-theft: | No |
| Motorized: | No |
| By Function: | Fixed |
| Instruction Manual Included: | Yes |
| Patent: | No |
