Russound 860Mini Surface IR Receiver
Click or scroll to zoom
Tap or pinch to zoom
by Russound
SKU RS860PHANTONBK

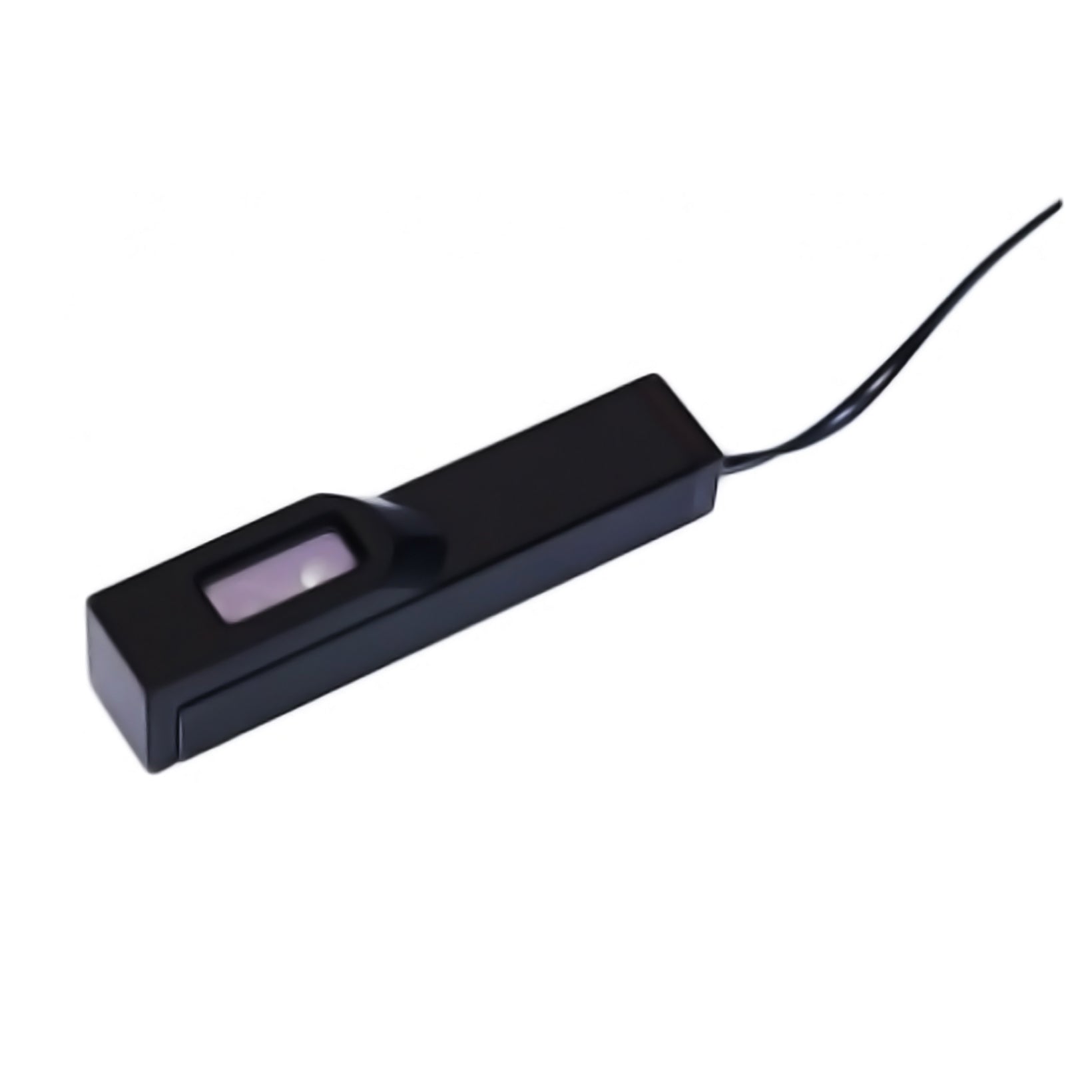

Russound 860 Phantom SaphIR Receiver - Black
The SaphIR 860 Phantom is a compact surface-mount IR receiver that can be located almost anywhere. Available in white or black, the 860 Phantom blends unobtrusively, allowing placement where you need it.
With wideband sensitivity and wide-angle reception, the 860 Phantom reliably accepts commands from most IR remote controls. It also provides excellent rejection of interference form IR sources like compact fluorescent lights. A blue LED provides clear visual confirmation when receiving IR signals.
- Receives commands from most brands of remote controls for seamless integration
- Compact low-profile design allows installation in a variety of locations
- Unique SaphIR blue LED provides clear visible confirmation of signal reception
- Wide-band, wide-angle reception assures outstanding pickup range
- Russound's own IR circuit design includes automatic gain control for significantly reduced interference
Shipping Dimensions
2.0" (W) x 1.5" (H) x 4.5" (D)
Shipping Weight
0.4 lbs
Connector(s)
Screw terminal strip (included)
Cord Length
6.5'
Frequency Range
IR Receive: 36 kHz-58 kHz
IR Transmit: 40 kHz and 56 kHz
Indicators
Blue signal confirmation LED
Power Requirement(s)
12 VDC 31 mA max
Range
On axis: 55-80 feet
30° off axis: 30-55 feet
Sensitivity Adjustment
Automatic gain control
