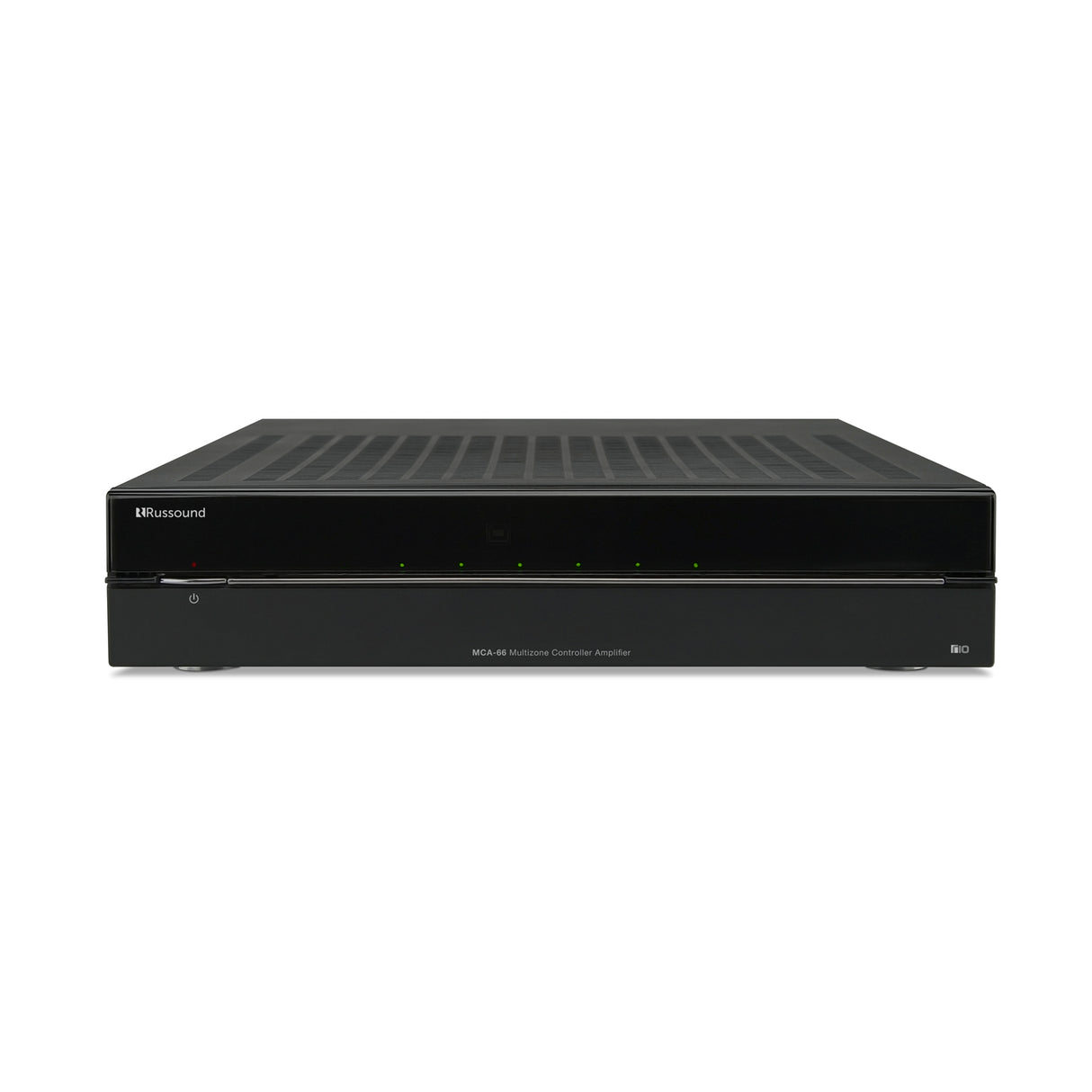

Russound MCA-66 6 Zone, 6 Source Controller Amplifier - Black

SKU RSMCA66
ID: 12961388167240




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

MCA-66 -  6 SOURCE 6 ZONE CONTROLLER AMPLIFIER

The Russound MCA-66 Digital multi-zone controller amplifier provides up to six zones of distributed audio. Scalable to 36 zones, the MCA-66 provides numerous options to tailor every room in residential or light commercial distributed audio systems. A variety of input options have been engineered into the MCA-66 to connect up to 6 sources. AV source input options include 6 Analog, 3 Digital (up to 3 coax, or 2 coax and 1 optical), 1 paging and 1 Bluetooth extender connection. The Bluetooth connection allows the installation of the MCA-88 in an equipment rack while remotely locating the optional Russound BTC-1X Bluetooth receiver up to 300’ away. Additionally, the BTC-1X improves audio quality through the high performance APTx audio codec. An RNET link allows for metadata transmission, linking multiple MCA controllers and connection to all Russound RNET Smart Sources like the ST1 AM/FM external tuner.

  • 6 Amplified Zones @20W/ch
  • Fixed/Variable Line Out for Zones 1 and 2
  • Up to 6 Line-Level Stereo Inputs, 3 Digital Coaxial and 1 Optical
  • RS232 and IP Controllable
  • 6 Routed IR Outputs, plus 1 Global IR Output
  • Home Theater 12v Trigger In/Out for Shared Sources
  • Global 12v Trigger Output
  • Removable Screwless Speaker Connectors
  • Expandable to up to 36 Zones
  • Supports Bluetooth® with Optional BTC-1X
  • Paging System Support with Dedicated 12v Trigger Input
  • Supports KNX® with Optional KNX-RIO-1
  • Rackmountable with Rack Mount Ears Included
  • Two-Year Limited Warranty
Shipping Dimensions 21.0" (W) x 8.4" (H) x 21.7" (D)
(53.3 x 21.3 x 55.1 cm)
Shipping Weight 0.0 lbs (0.0 kg)
Audio Output(s) 6 Speaker Level 20W/ch (2 Line Level, fixed or variable selectable)
Audio Source Inputs 6 stereo RCA Line-Level, 3 coax, 1 optical
(maximum of 6 total inputs)
Communication Ports USB (firmware update only)
1 Serial RS-232, 19.2 kHz baud rate
1 Ethernet RJ-45, 10/100 Base T
2 RJ-45 RNET Links In/Out
Frequency Response 20Hz-20kHz +/- 1 dB at 1W output into 8 ohms
Fuse Rating 100-120V/T3.15A 250V US and Canada (MCA-66)
220-240V/T1.25A 250V International (MCA-66i)
Home Theater Trigger Input In/Out, 12VDC (pass-through)
IR Outputs 6 routed, 1 common
Keypad Ports 6 detachable 4 pole connectors
Paging Trigger In, 12VDC
Power Output 20W RMS into 8 ohms
Power Supply 100-120 VAC, 60Hz (MCA-66)
220-240 VAC, 50Hz (MCA-66i)
Signal to Noise Ratio 93 dB unweighted, 96 dB A-weighted
Speaker Connection(s) 6 detachable 4 pole connectors
Total Harmonic Distortion <0.10%
