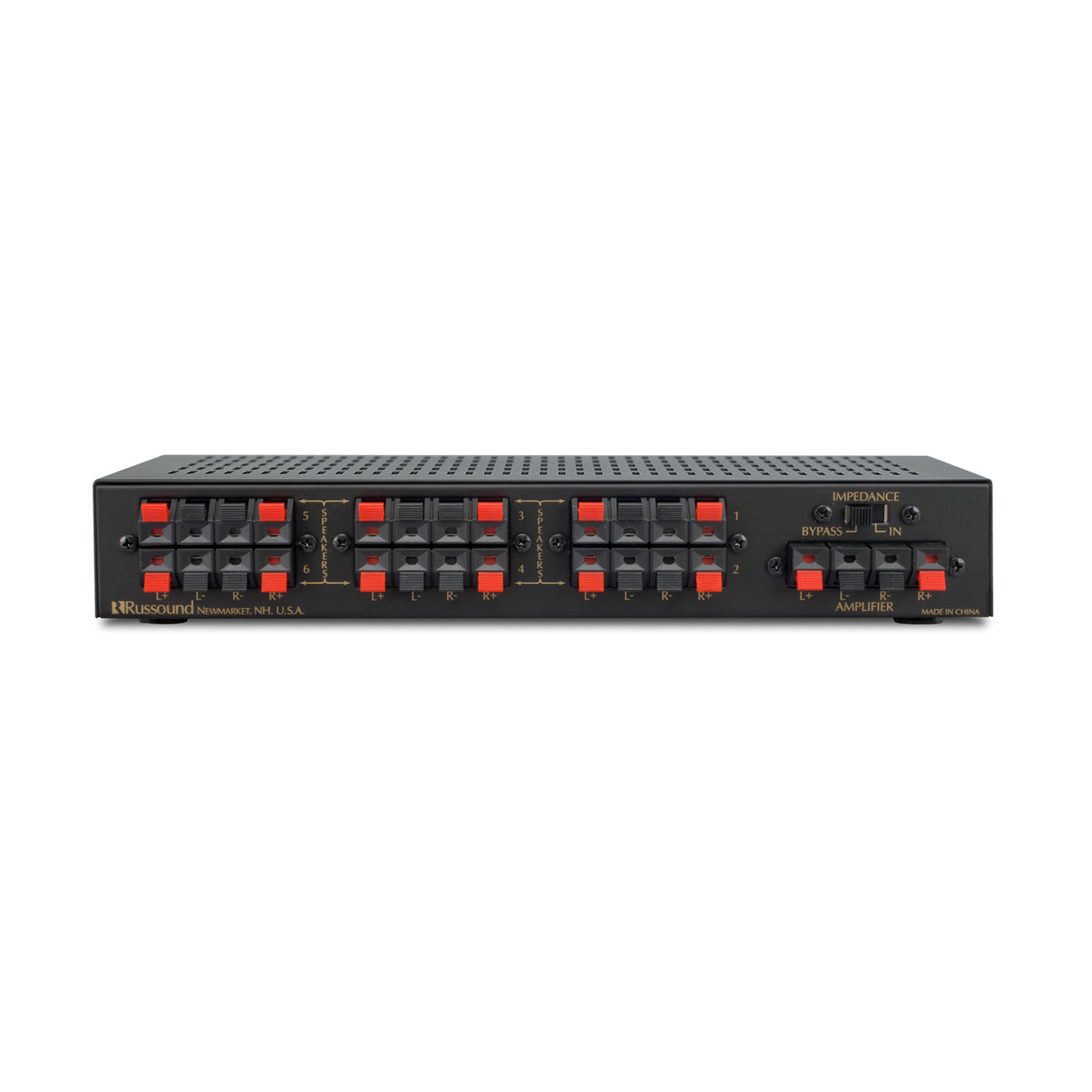

Impedance Matching Protection: When used with multiple speaker pairs, the impedance matching circuitry lets you operate the system safely with automatic overload protection. When connecting more than one pair of 8 ohm speakers to the speaker selector, the rear panel impedance switch should be placed in the "In" position. If using impedance matching volume controls.
Amplifier Requirements: When using internal impedance matching (switch set to "In") a 4-ohm stable amplifier is required. When using external impedance matching volume controls (switch set to "Bypass"), a 4 to 8 ohm stable amplifier may be used. You should use only the Amplifier "A" speaker outputs when the SS-6.2 is used. "B" speaker outputs should not be used.
Connections: The SS-6.2 features spring clip speaker terminals that can accommodate up to 12-gauge wire. For most applications, stranded 16-gauge speaker wire is recommended. For runs of over 100 feet, 14-gauge is recommended, while 12-gauge can be used for runs of up to 200 feet.
Performance: The speaker selector is designed for use with amplifiers with a power output of up to 100 watts per channel RMS (200 watts per channel peak. The frequency response is 20Hz to 20kHz (+/- 0dB).

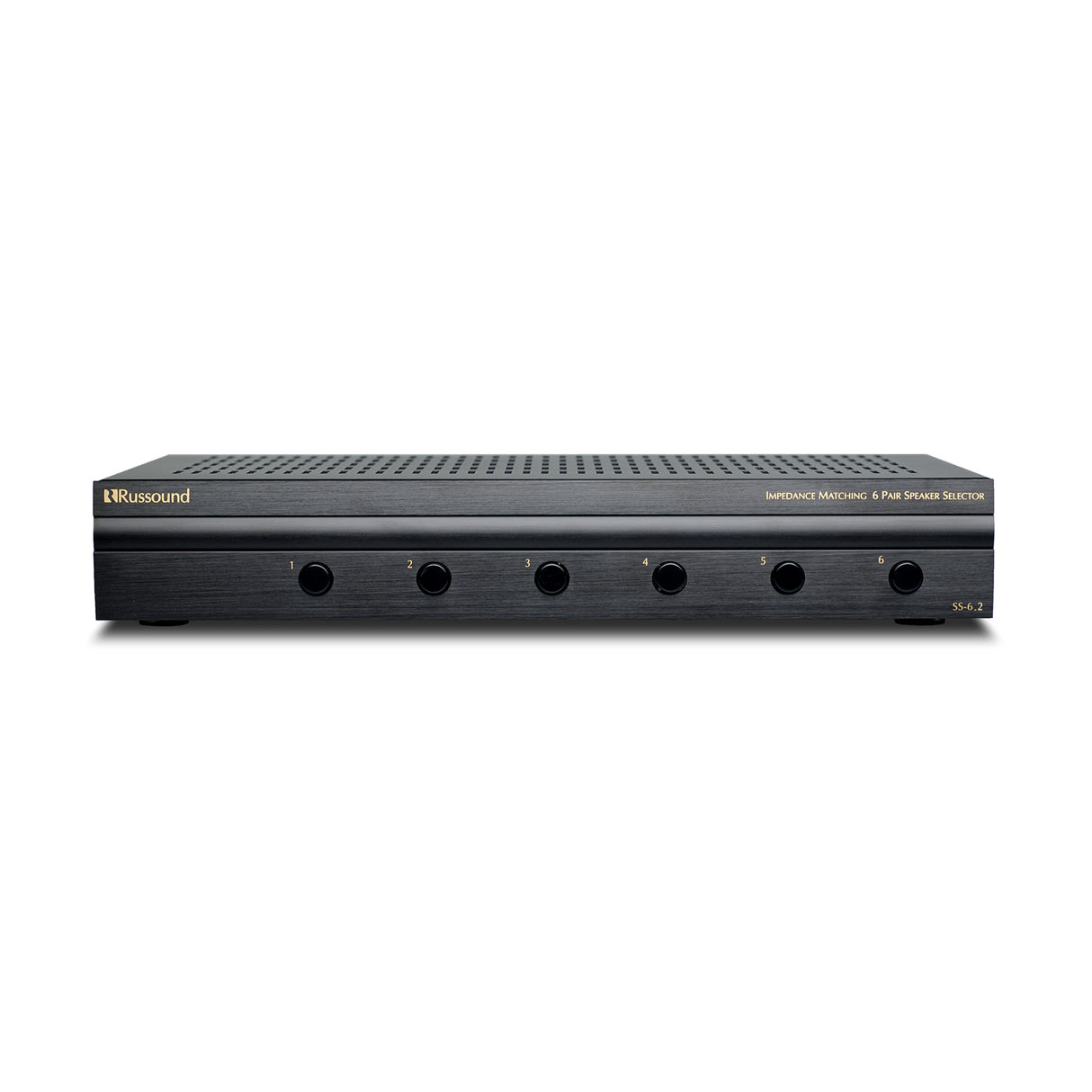

Room Labels: The SS-6.2 comes with a sheet of non-adhesive room labels which slide into a groove in the front panel. A total of 52 labels and 8 blanks are included.
