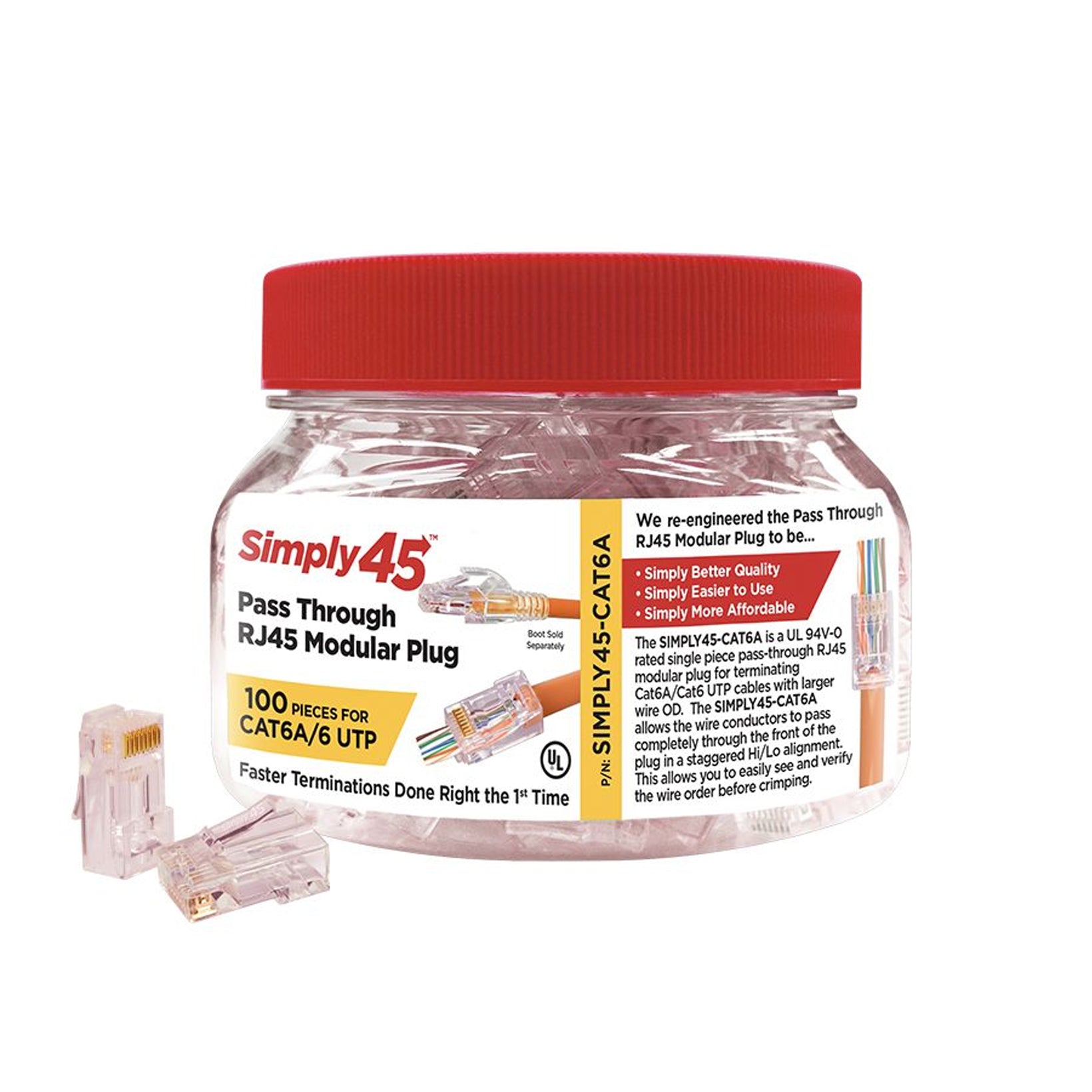

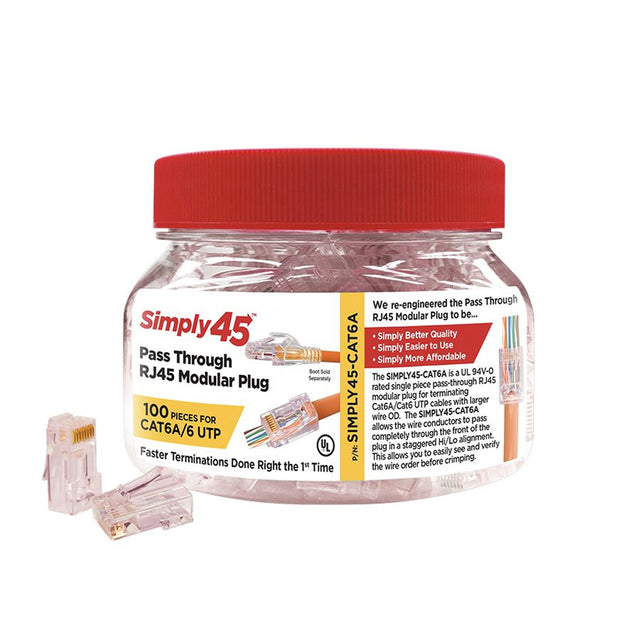

Simply45 CAT6/6A UTP (S45-1700) PASS THROUGH, RJ45 Modular Plug, Tint Hi/Lo Stagger with Cap45™ - (100pcs/Jar)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Simply45, rj45 pass through mod plugs for 23awg (large od 1.05-1.10mm) cat6a utp/cat6 utp cables, staggered hi/lo wire alignment, ul94 v0 cmp/cmr/cm/lszh-b2ca to eca - 100 pcs/per plastic jar

Pass Through RJ45 Modular Plug - Faster Terminations Done Right the 1st Time.

Simply45 re-engineered the Pass Through RJ45 Modular Plug to be...

  • Simply Better Quality
  • Simply Easier to Use
  • Simply More Affordable

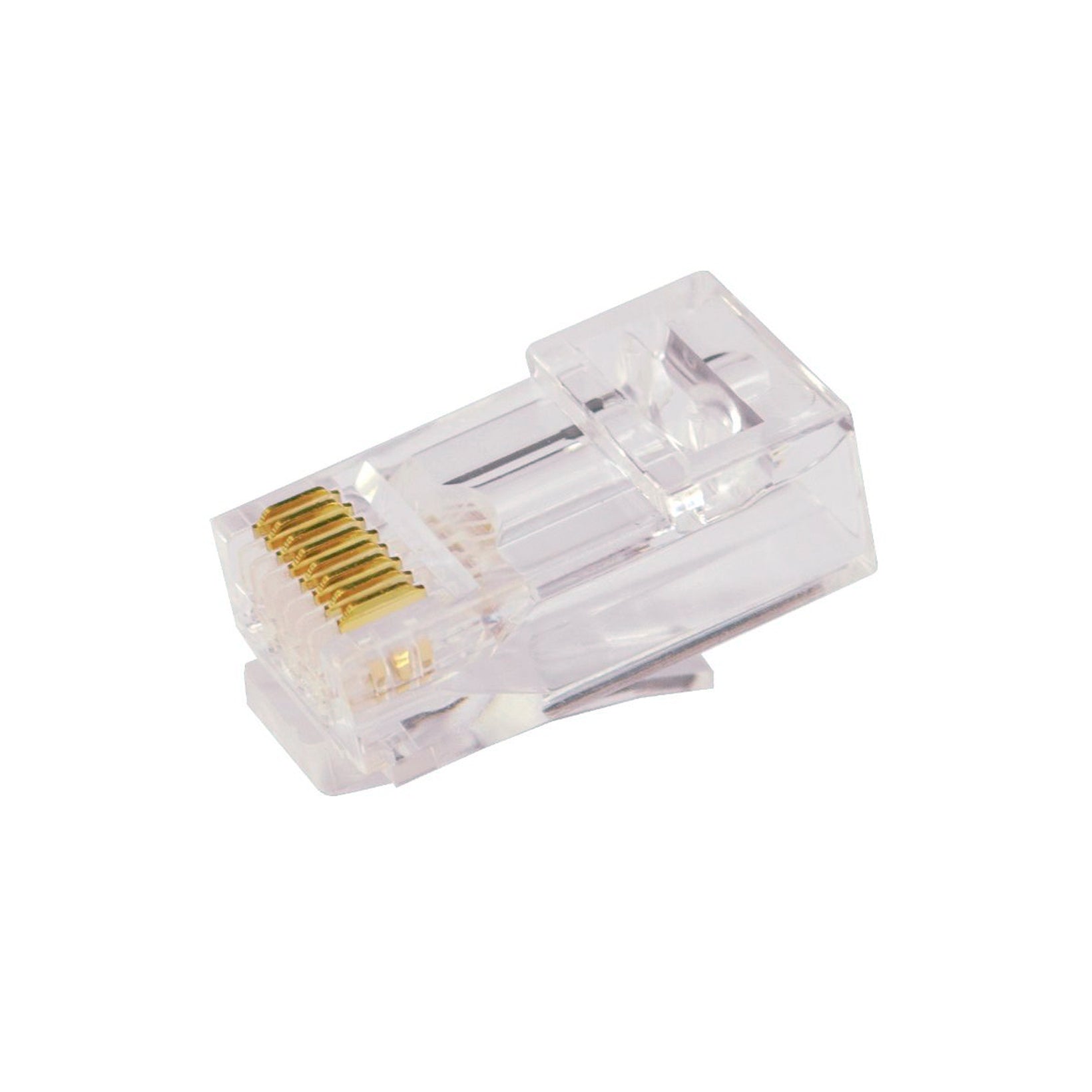

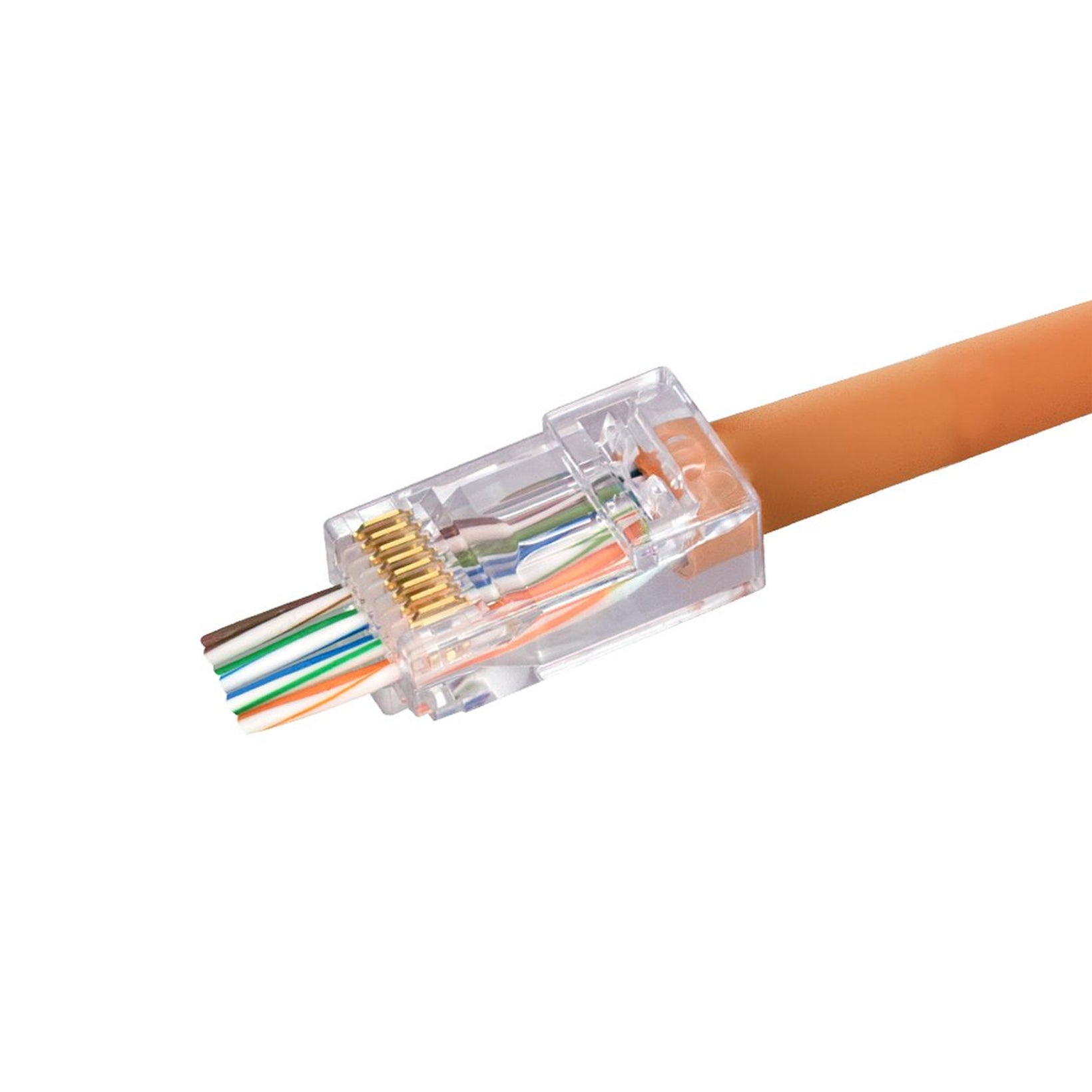

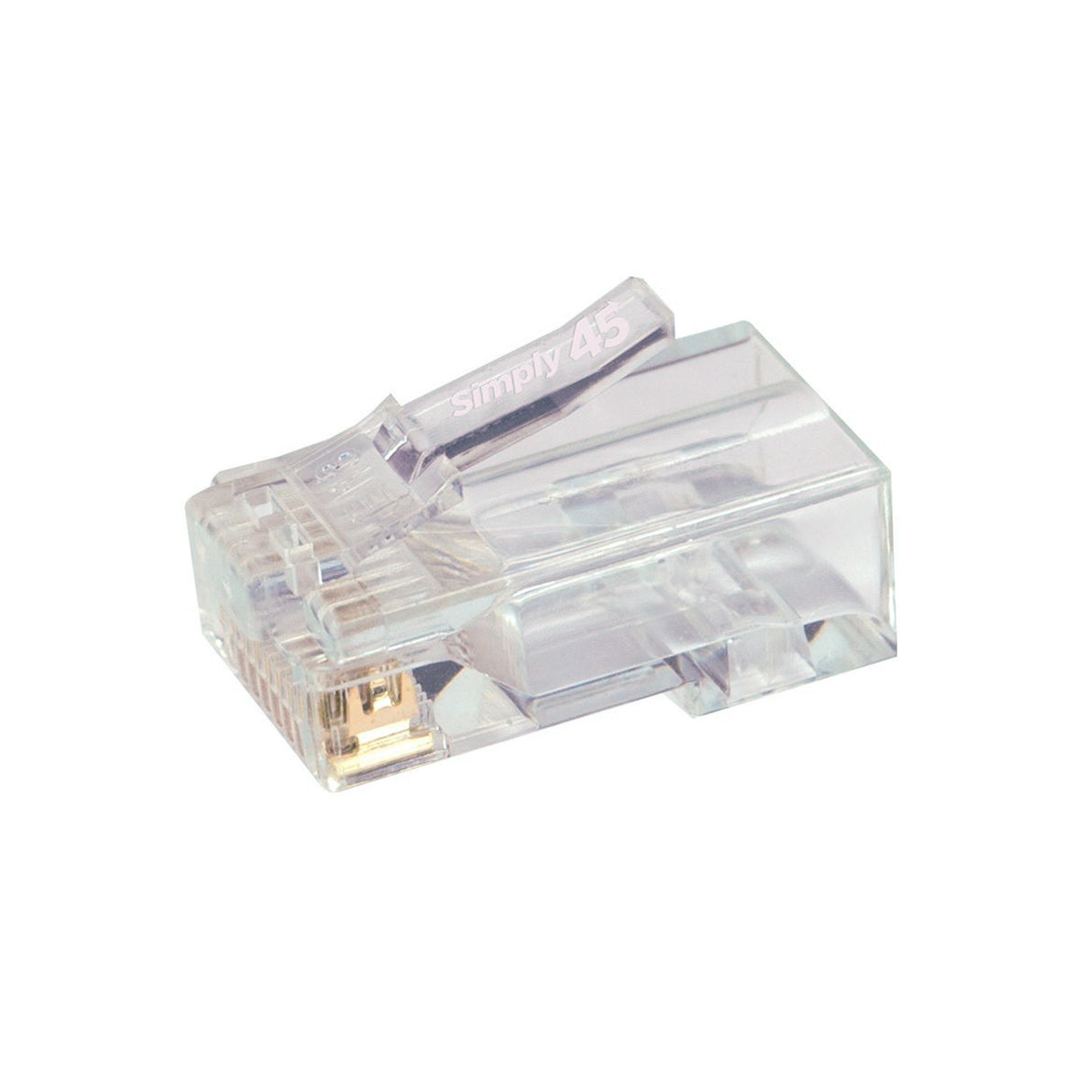

The SIMPLY45™ is a translucent single piece RJ45 that allows Cat6 twisted pair wire conductors to completely pass through the plug and out the front.

This allows you to easily see and verify the wire alignment order before crimping.

Performance Meets or Exceeds ANSI/TIA 568-C.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
Cat6A/6 UTP Wire Cond(s) OD 23AWG, Up to 0.043"-0.045" (1.1mm-1.15mm)
Max Cable Outer Diameter 0.291'' (7.4mm)
Supports PoE/PoH Yes
Cable Fire Resistance Ratings CMP Plenum, CMR, CM, CMX, LSZH EN50575:2014 up to B2ca-s1a,d1,a1
Flame Autoextinguish UL94 V0, IEC 60695-11-10
Contact Material  Phosphor Bronze - .012" thick
Contact Plating Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Plug Material Polycarbonate
Plug Tolerances and Dimensions Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Conductor Type(s) Solid and Stranded
Operating Temperature -40º C to +70º C
Insertion/Extraction Life 2000 Minimum Cycles
Contact Resistance 20 Milli-Ohms max
Current/Voltage 30 VAC/42 VDC at 1.5 Amps
Compliance UL Listed, RoHS, FCC, NEC
