Simplified  |  SKU: SMARCEX

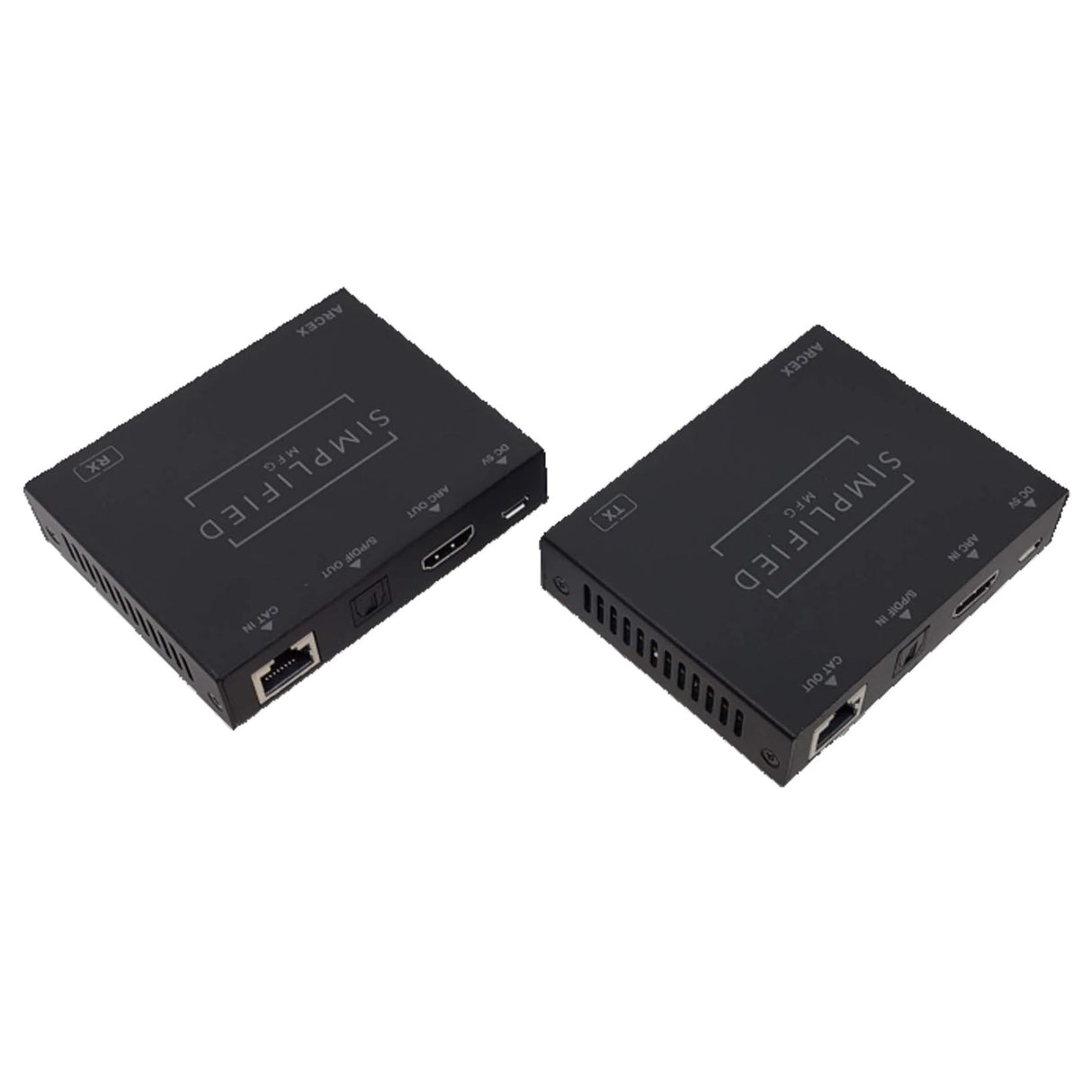

Simplified ARCEX, ARC only Audio Extender with CEC

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Simplified ARCEX, ARC only Audio Extender with CEC is backordered and will ship as soon as it is back in stock.

Loading location-specific inventory...

Description

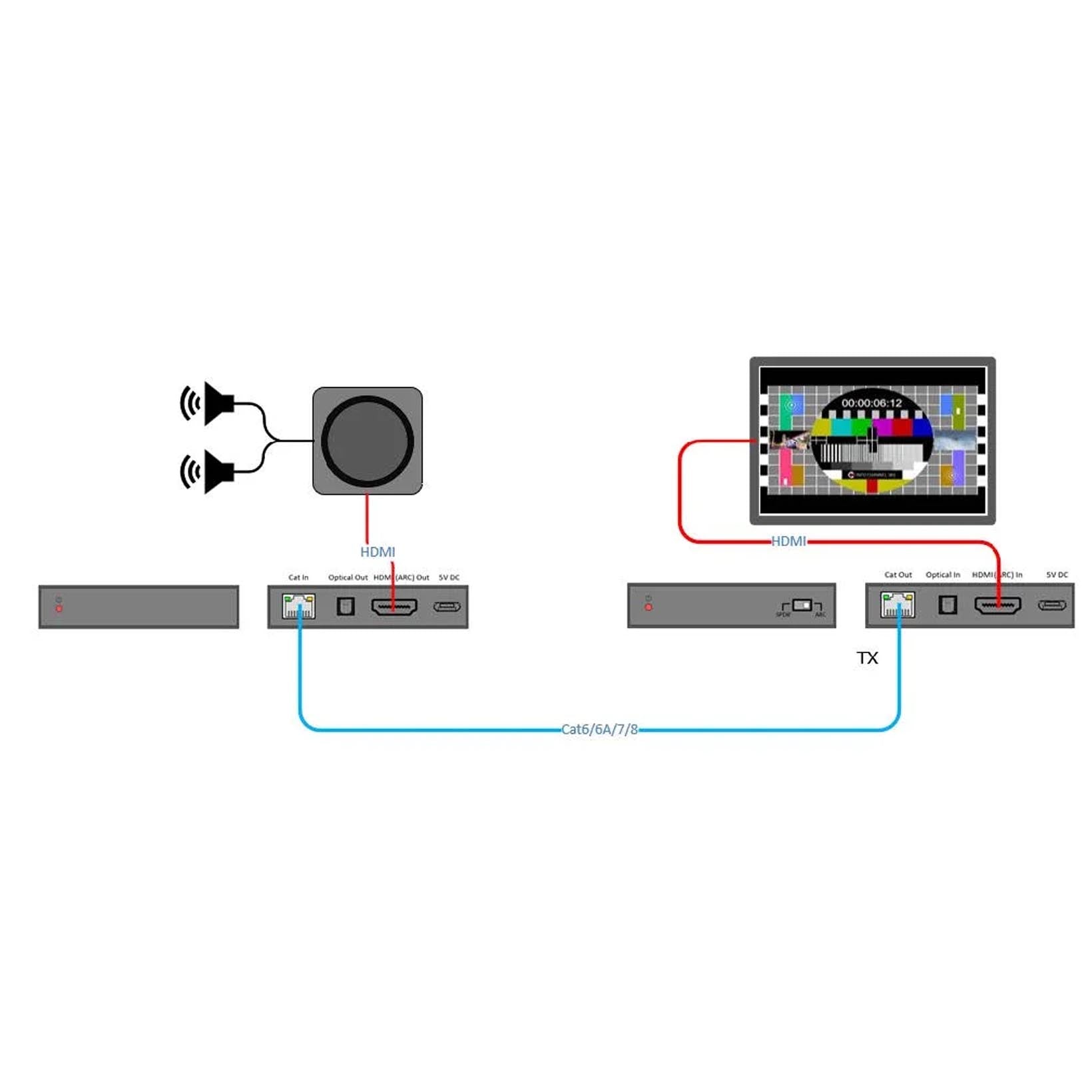

The ARCEX is a 90m digital audio extender that extends ARC up to 90m/295ft. to ARC capable audio devices. The units are powered via supplied USB power supplies. Power can be attained from display as the current draw of the TX device is abour 1/3 of a Watt. RX current draw is 0.7W. CEC and all ARC formats are supported from display back to rack/AVR/ARC capable amplifier.

The ARCEX can also operate as an optical to optical extender as well (S/PDIF). There is a switch on the TX portion that will switch the unit to optical mode, this will disable ARC mode. The optical does not output on the HDMI ARC.

Features

  • Use your smart TV as your audio source where your amplifier or other ARC enabled audio device is remote

  • Supports al ARC formats

  • 90m/295ft via ARC, 150m/495ft. via optical

  • Powers via USB Micro and draws very little current so display USB ports can be used

  • USB Power Supplies are also included

  • CEC functions are retained so that TV's remote wil control the ARC enabled audio device's volume

Specifications
Distance by bit rate  ARC Mode 90m/295ft. Optical mode 150m/495ft.
Digital to digital audio formats  PCM, Dolby 5.1
Sample rates (ARC)  32kHz., 44.1kHz., 48kHz., 88.2kHz., 96kHz., 176.4kHz. & 192kHz.
Sample rates (Optical)  32kHz., 44.1kHz., 48kHz., 88.2kHz. & 96kHz.
ESD Protection: Human Body Model

+/- 8 kV (air-gap discharge)

+/- 4 kV (contact discharge)

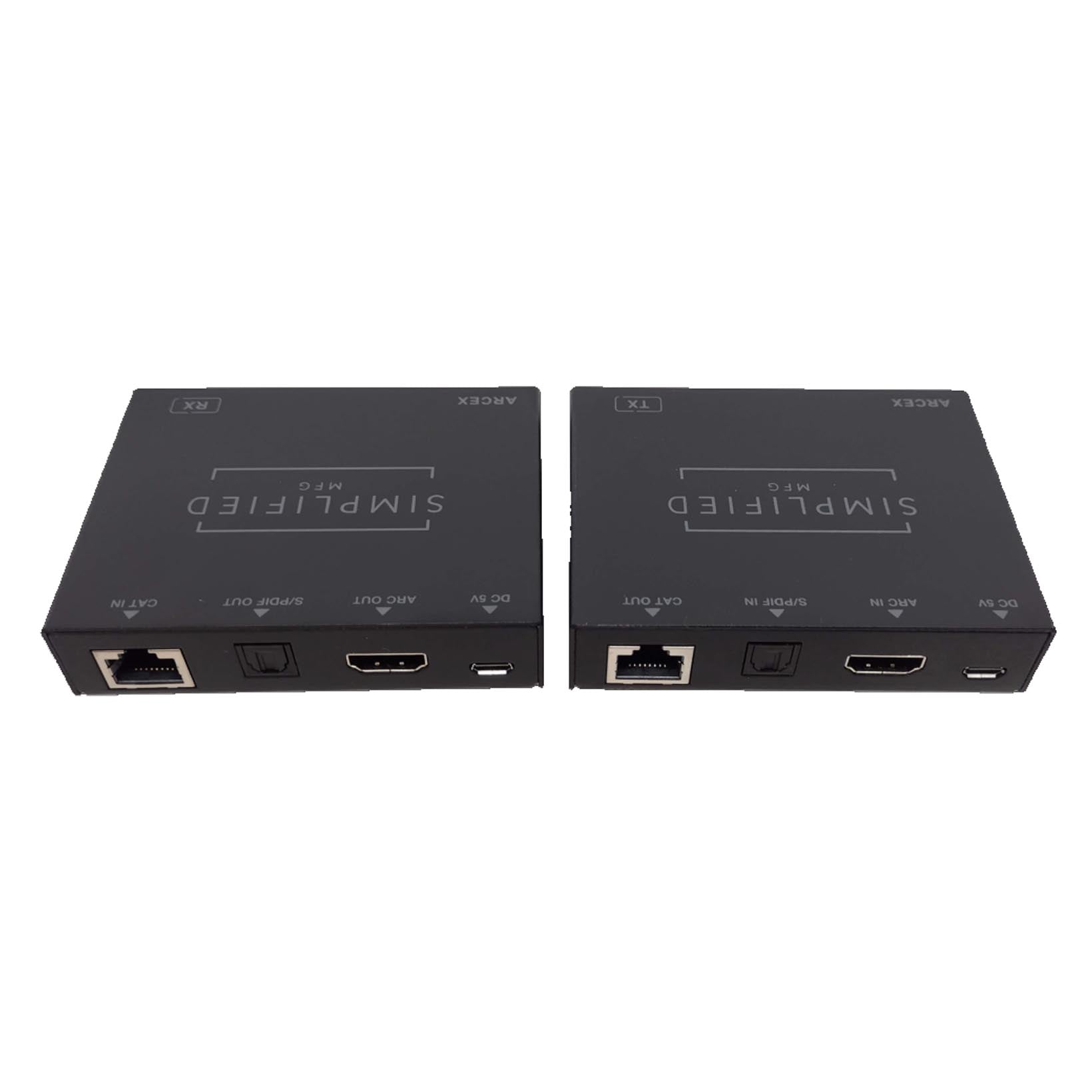

TX Connections  In: 1xHDMI, 1xOptical, & 1 USB Micro. Out: 1x RJ-45
RX Connections  In: 1xRJ-45 & 1x USB Micro. Out: 1xHDMI & 1 Optical
Housing  Metal enclosure
Dimensions  90mm (3.54”) [W] × 73mm (2.875”) [D] × 20mm (.79”) [H]
Weight  RX and TX 175g/6.175oz.
Power Supply  (2) 5V1A DC at each device via Micro USB port (can use available USB port)
Power Consumption  TX - 0.35W / RX - 0.7W
Operation Temperature  32~104 °F
Storage Temperature  -4 ~140 °F
Relative Humidity  20~90 % RH (no condensation)
