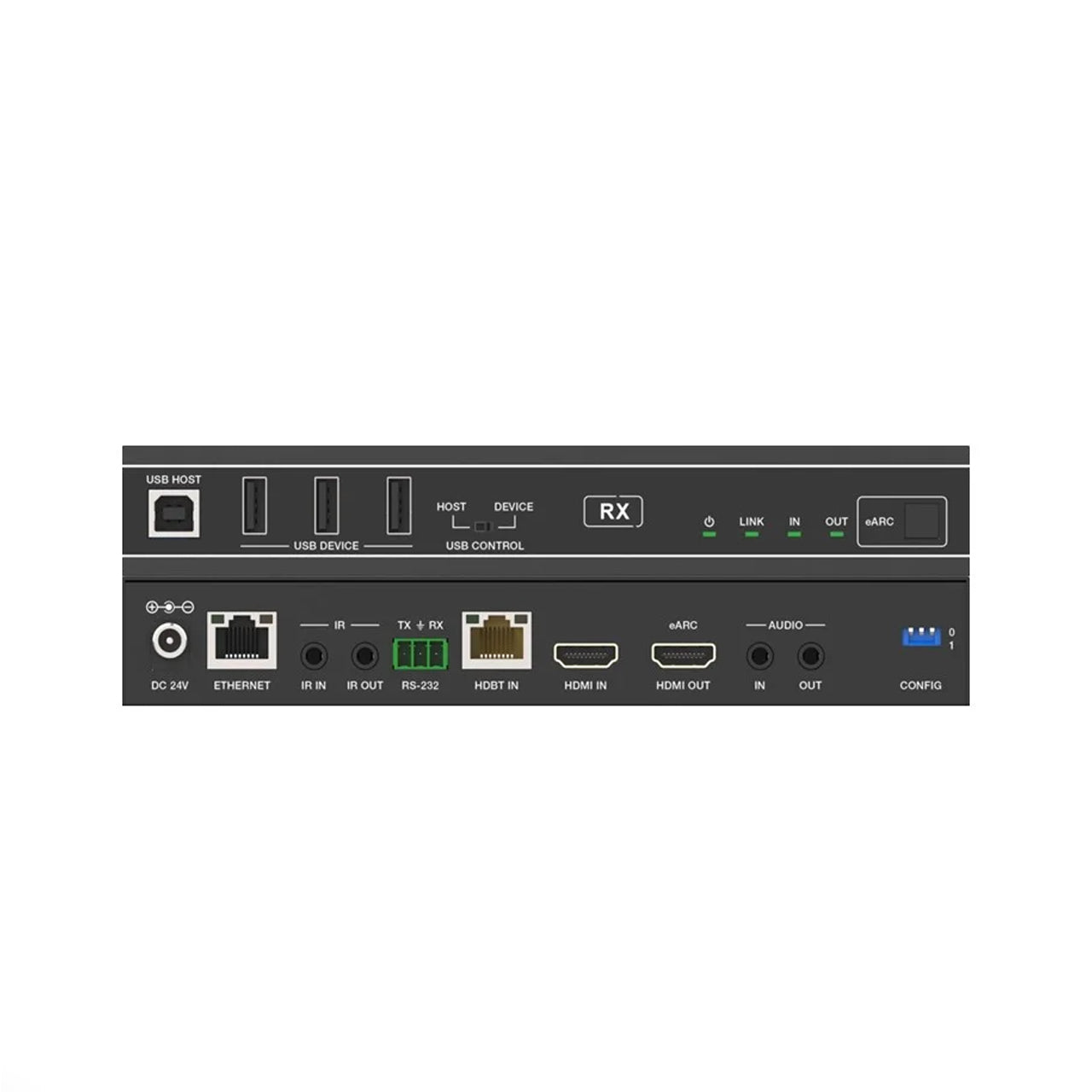

Simplified EX3-8K, HDMI Extender 8K or 4K over Cat6 with eARC, USB2.0
HDMI 2.1 (40Gbps) Extender over Cat6A
The EX3-8K Extender is a device which can extend your 8K or 4K@120Hz. HDMI signal over 295ft/90meters to a compatible 8K/4K display. The EX3-8K also supports eARC, 1Gbps Etherenet pass-thru, USB 2.0, 2-Way IR, RS-232, and a separate stereo audio pass-thru. This is the most capable 8K on category cable HDMI extender on the market. Other advanced features include, EDID management, configurable RS-232 functions (can reset extender with a command), and even a 1080p @24Hz video return ability.
Primary Use: Extending High bandwidth 8K or 4K@120Hz. HDMI AV and a myriad of control (including USB) and audio functions up to 295ft on category cable. The EX3-8K will operate on Cat 6 at a shorter distance (50-60m).
-
HDMI 2.1 (40Gbps), HDCP 2.3/HDCP2.2, HDCP1.4 and DVI compliant
-
Video resolutions up to 8K2K@50/60Hz (YUV444) / 4K 120Hz. (YUV444)
-
Uncompressed eARC support
-
USB 2.0 (Client or Server from either end)
-
1Gbps Ethernet Pass-Thru
-
Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)
-
Bidirectional 5V or12V Infrared control signal together with the HDMI signal
-
Transfer Bidirectional RS232 control signal together with the HDMI signal
-
Separate stereo pass-through (both directions)
-
RS-232 pass through can be routed to the extender to update and do basic commands, like a reset.
-
eARC/ARC bandwidth can be used for 1080p @24Hz video return
-
Transmission distance: Over CAT6A cable
-
90 meters (Cat6A/7), 50m (Cat6)
-
-
8K x 4K HDR/DolbyVision YUV 444 HDMI 2.1 40Gbps)
-
-
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3, HDCP 2.2, and HDCP 1.4 |
| Video Bandwidth | 40 Gbps |
| Video Resolutions | up to 8K4K@50/60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI Audio Format (Passthrough) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| POE Format | 24V |
| ESD Protection |
Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 160mm/6.3" [W] x 96mm/3.78" [D] x 28mm/1.1" [H] |
| Weight | 470g/16.57oz. each |
| Power Supply Input | AC100 - 240V 50/60Hz |
| Power Supply Output | DC 24V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 24W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
