Simplified M1616, Matrix Scaling HDMI to HDMI 16x16 HDMI 2.0b (18Gbps) Scaling Matrix

Simplified M1616, Matrix Scaling HDMI to HDMI 16x16 HDMI 2.0b (18Gbps) Scaling Matrix
by Blue Star Wholesale Distributors | Miami | Orlando
SKU SMM1616
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

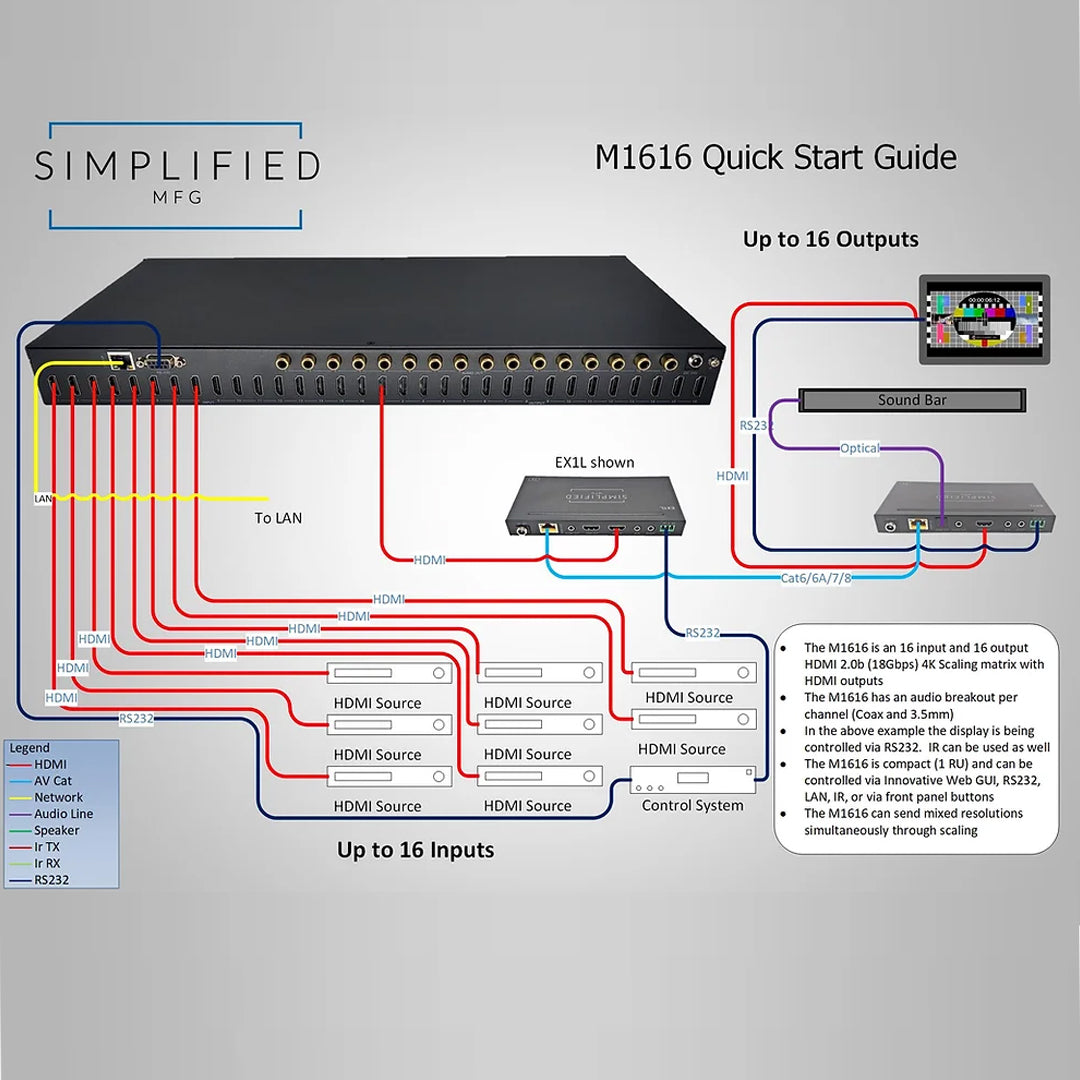

The M1616 HDMI Matrix features 16 HDMI inputs and 16 HDMI Scaling outputs. The M1616 supports video resolutions up to 2160p@60Hz Ultra HD 4:4:4 and supports high resolution audio formats such as LPCM7.1, Dolby TrueHD, Dolby Digital Plus, Atmos, and DTS-HD Master Audio.

The M1616 will also pass HDR8/10/10+ High Dynamic Range information as well as Dolby Vision. Each output can be set to scale independently of the other. ARC audio is supported when used with EXeARC1 extender sets.

The innovative web GUI can also allow for setting up presets video switching, outputting ARC from displays, scaling and controlling sources and displays with CEC. The M1616 is a space saving 1 RU in size.

  • HDMI2.0, HDCP2.2/HDCP1.4 compliant

  • Supports video formats up to 4k2k@60Hz with 24bit RGB/YCbCr 4:4:4YCbCr4:2:2, and up to 4k2k@60Hz with 12bit YCbCr 4:2:0

  • Supports RGB, YCbCr 4:4:4, YCbCr 4:2:2 and xvYCC video formats

  • Innovative Web GUI

  • ARC can be routed to S/PDIF outputs

  • Supports HDR8/10/10+ and Dolby Vision

  • Supports high resolution VESA mode video formats up to QSXGA@60Hz

  • Audio formats supported: PCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby TrueHD, Atmos, 7.1, and 5.1 formats

  • Simultaneous HDMI and COAX S/PDIF (S/PDIF can be assigned to ARC output

  • Smart EDID management

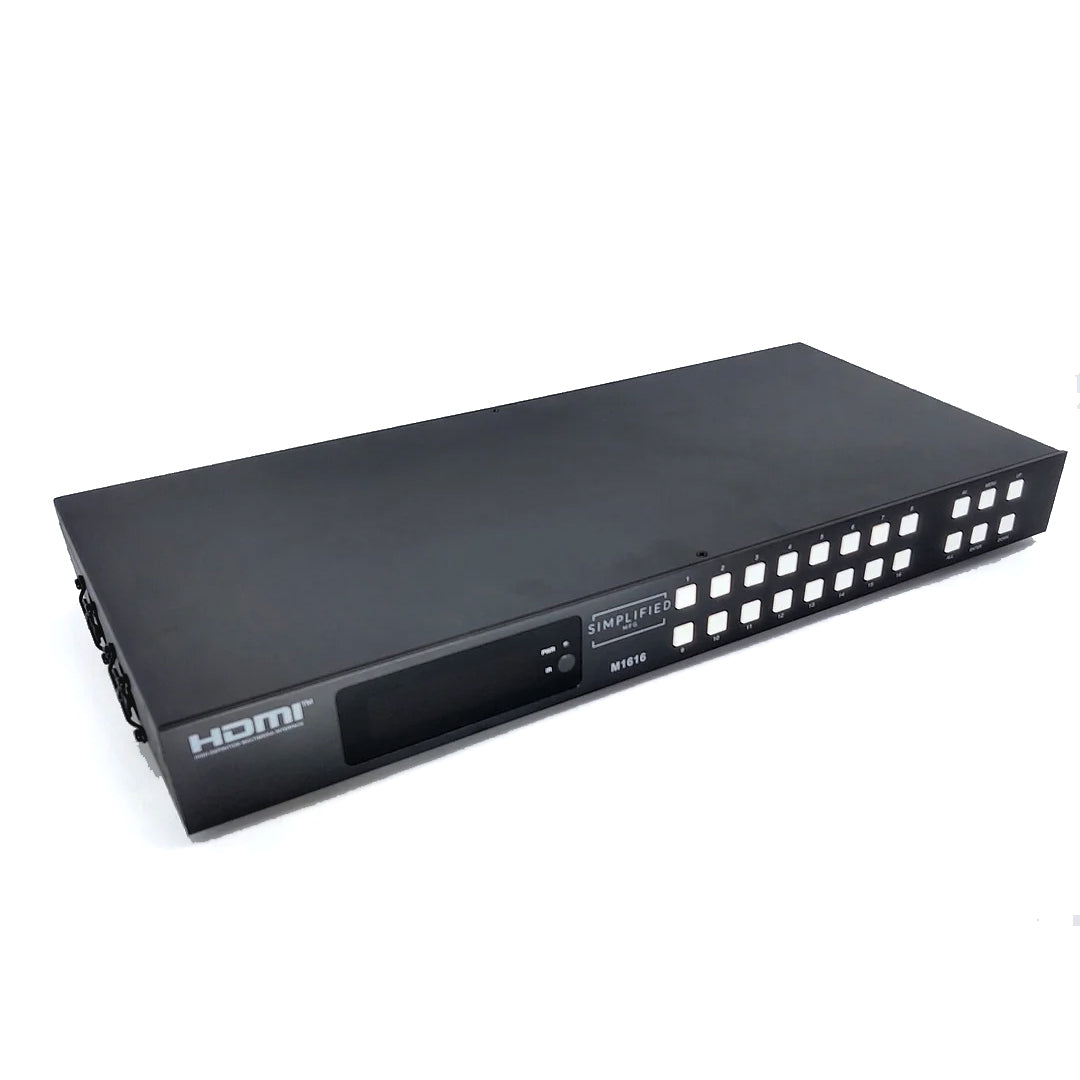

  • Control of the M1616 can be accomplished via IR Remote Control, on-panel control, RS232, and TCP/IPControl (RS232 and IP for third party control)

  • 3 Year Warranty

Video Bandwidth  594 kHz. (18Gbps)
Video Resolutions  480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/50/60, 2160p24/25/30/50/60
Transmission Distance  HDMI Output Distance varies based on Extender used
ESD Protection: Human Body Model ±8kV (air-gap discharge)
Inputs  16 Type-A [19-pin] HDMI

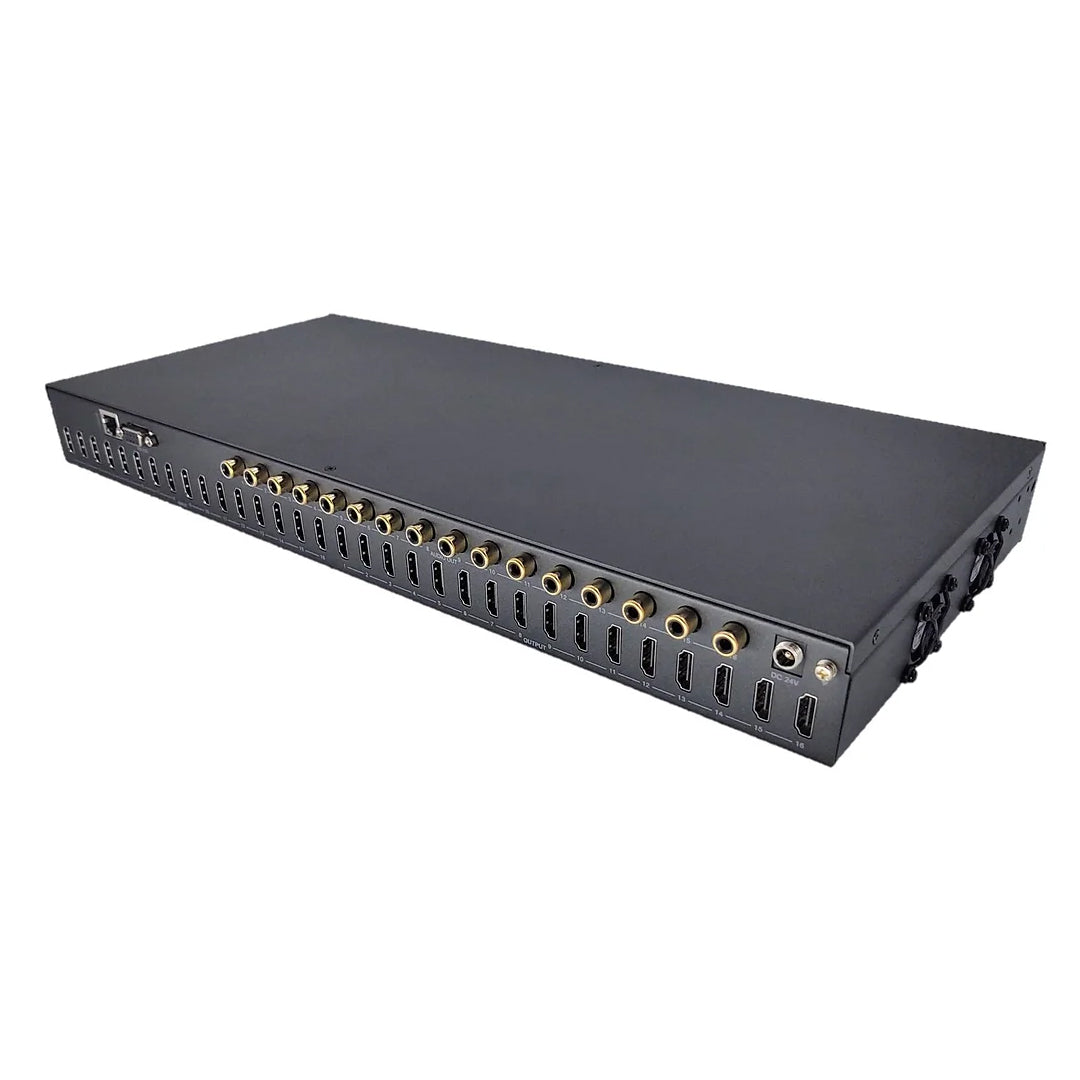

Outputs  16 Type-A [19-pin] HDMI, 16 Coaxial S/PDIF
Control  1 TCP/IP [RJ-45], 1 RS232 [DB9]
Housing  Metal Enclosure
Color  Black Matte
Dimensions  440mm (17.32”) [W] ×200mm (7.87”) [D] ×44mm (1.75”) [H]
Weight  3.1kg (6Lbs, 13 Oz.)
Power Consumption  76.8W
Operating Temperature  -10°C ~ 45°C / 14°F ~ 113°F
Storage Temperature  -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity  20~90% (non-condensing)
