Scaling 50m 4K 4x4 HDMI Matrix Kit over CAT5e/6/7

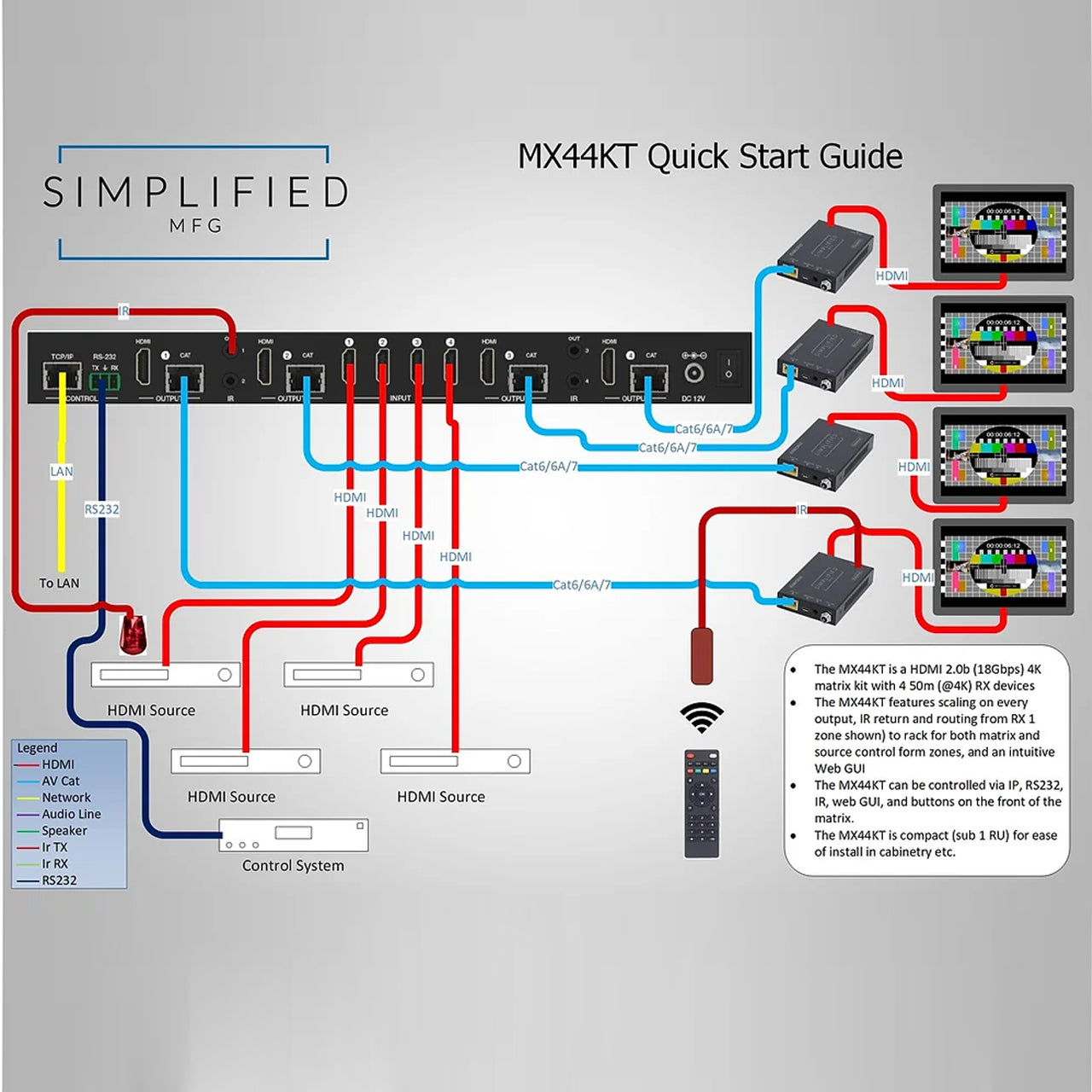

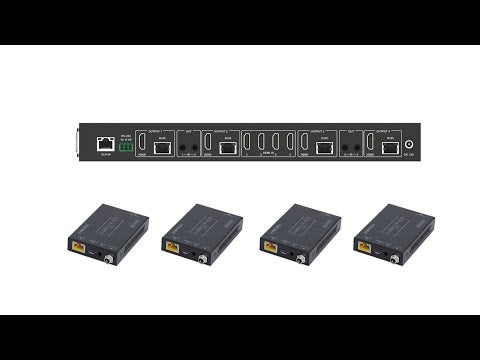

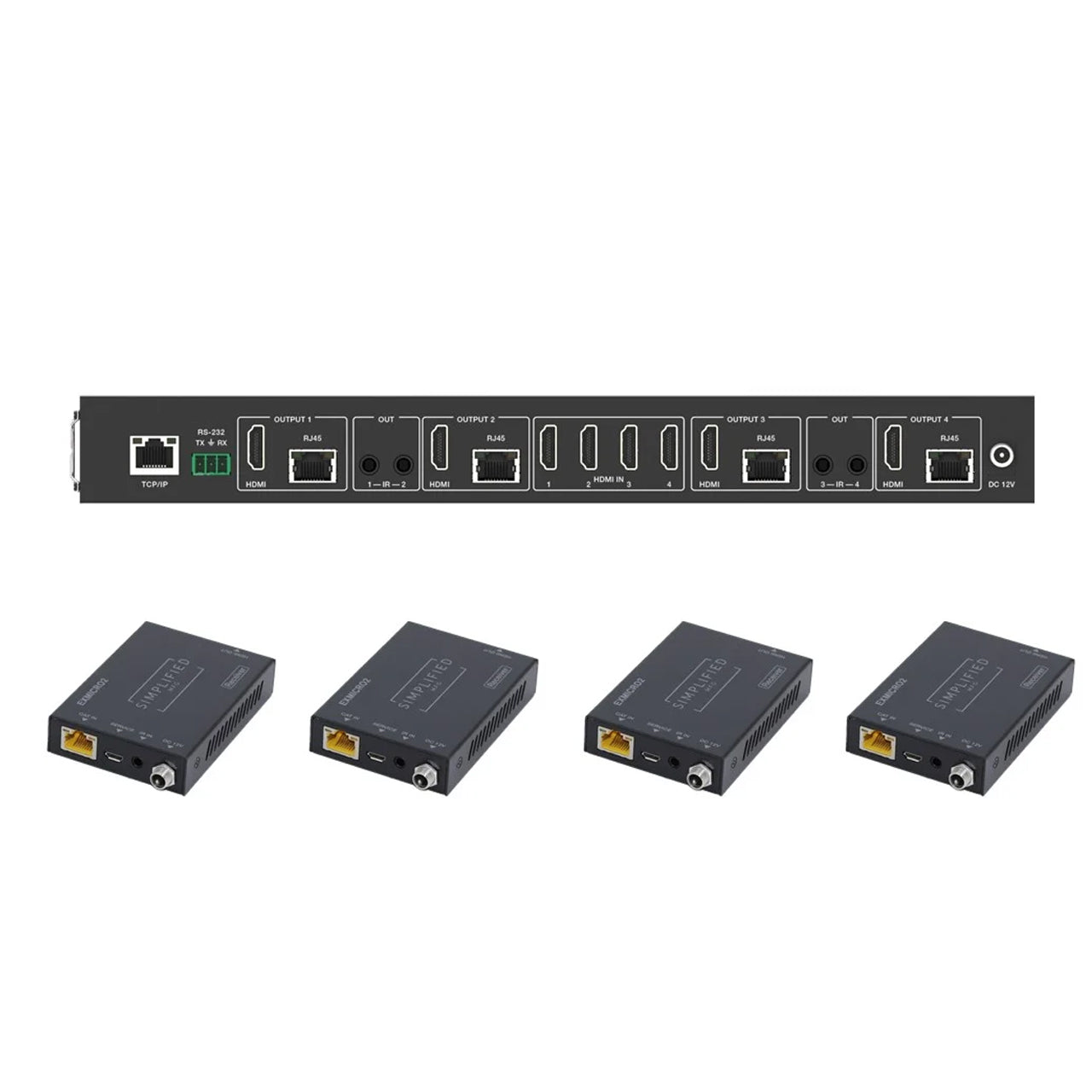

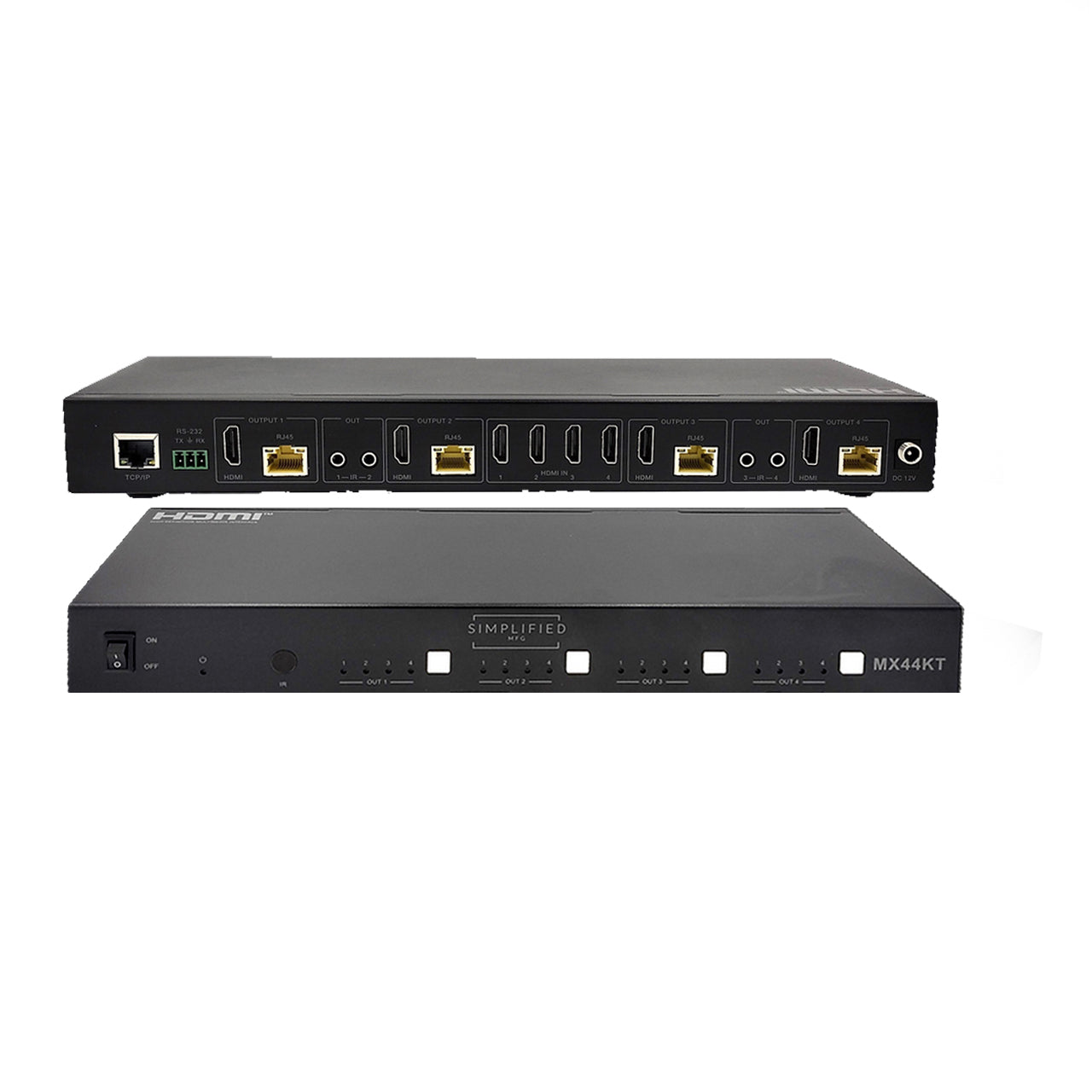

The MX44KT is a Scaling HDMI 2.0b HDBaseT 18Gbpsgbps 4x4 HDMI Matrix with included 70m HDMI 1080p (50m 4K) over category cable receivers. This matrix switch features simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources up to eight displays (two mirrored per output channel).

Each output can scale independently. Output 1 can be one resolution without affecting the resolution of the other outputs. The MX44KT supports the transmission 4Kx2K@60Hz (4:4:4), and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Atmos and DTS-HD Master Audio. The compact receivers included in this kit will extend the HDMI signal up to 230ft/70m (1080p) or 165ft/50m(4K) for multi-room connectivity. This matrix also supports HDR8/10/10+/DolbyVisiontm (HDMI output only, category output supports up to HDR10+). Any source is accessible at all times by any display by selecting it via the supplied IR Remote Control, RS-232, TCP/IP or by using the selection buttons on the front panel. The innovative web GUI can be used to set scaling, and EDID settings for easy setup.

  • Supports RGB, YCbCr 4:4:4, YCBCr 4:2:2 and xvYCC video formats with deep color¬†

  • Supports video format up to 4k2k@30Hz with 24bit RGB/YCBCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:2:0¬†

    • Supports HDR8/10/10+/DolbyVision pass through (DolbyVision is only on HDMI output, not the UTP)

  • Auto Scaling on each channel to eliminate unlike resolutions from affecting the resolutions of superior displays

  • Supports high resolution VESA mode video format up to QSXGA@60Hz¬†

  • Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, Dolby+, Atmos, & DTS-X

  • Supports transmission distances up to 230ft/70m @1080p and 165ft/50m @ 4K through CAT5e/6/7 cable¬†

  • LED's at Matrix and RX indicate connection quality of HDMI and category cable connections.

  • RX Devices are powered by the matrix.

  • Supports wideband IR (30-60Khz), IR transport from RX to matrix can control both the matrix and the sources.

  • Support simultaneous category and HDMI outputs that scale together by channel¬†

  • Support RS-232, remote control, on-panel control and TCP/IP Control¬†

  • Support smart EDID management with live function via innovative web GUI

HDMI Compliance  HDMI 2.0b (18Gbps)
HDCP Compliance  HDCP2.2
Video Resolution   Up to 4Kx2K 50/60Hz 4:4:4
Color Space  RGB, YCbCr 4:4:4/4:2:2/4:2:0
Color Depth  8/10/12 Bit
HDMI Audio Formats  LPCM, Dolby Digital/Plus/Atmos, Dolby True HD, DTS, DTS-X, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
HDR Formats  HDR/HDR10/HDR10+/DolbyVision/HLG (DolbyVision on HDMI output only
Transmission distance  232ft/70m @1080p / 165ft/50m @4K
IR  12V
IR Frequency  Wideband 20KHz ~ 60KHz
Weight  Matrix 915g (2lbs ) / RX 155g (5.5oz)
Chassis Material  Metal
Matrix Dimensions¬† 320mm [12.6‚ÄĚ] (W) √ó 100mm [3.9‚ÄĚ] (D) √ó 36mm 1.42‚ÄĚ] (H) ¬†
RX Dimensions¬† 61mm [2.4‚ÄĚ] (W) x 88mm [3.5‚ÄĚ] (D) x 18mm [0.7‚ÄĚ] (H) ¬†
Power Consumption  19.68W Max
Operating Temperature¬† 0 ¬ļC~40 ¬ļC/32 ¬ļF~104 ¬ļF¬†
Storage Temperature¬† ‚ąí20 ¬ļC~60 ¬ļC/‚ąí4 ¬ļF~140 ¬ļF¬†
Relative Humidity  20~90 % RH (non-condensing)
