Simplified REX2.1, HDMI Extender 1080p over Cat5/6 up to 70 meters

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

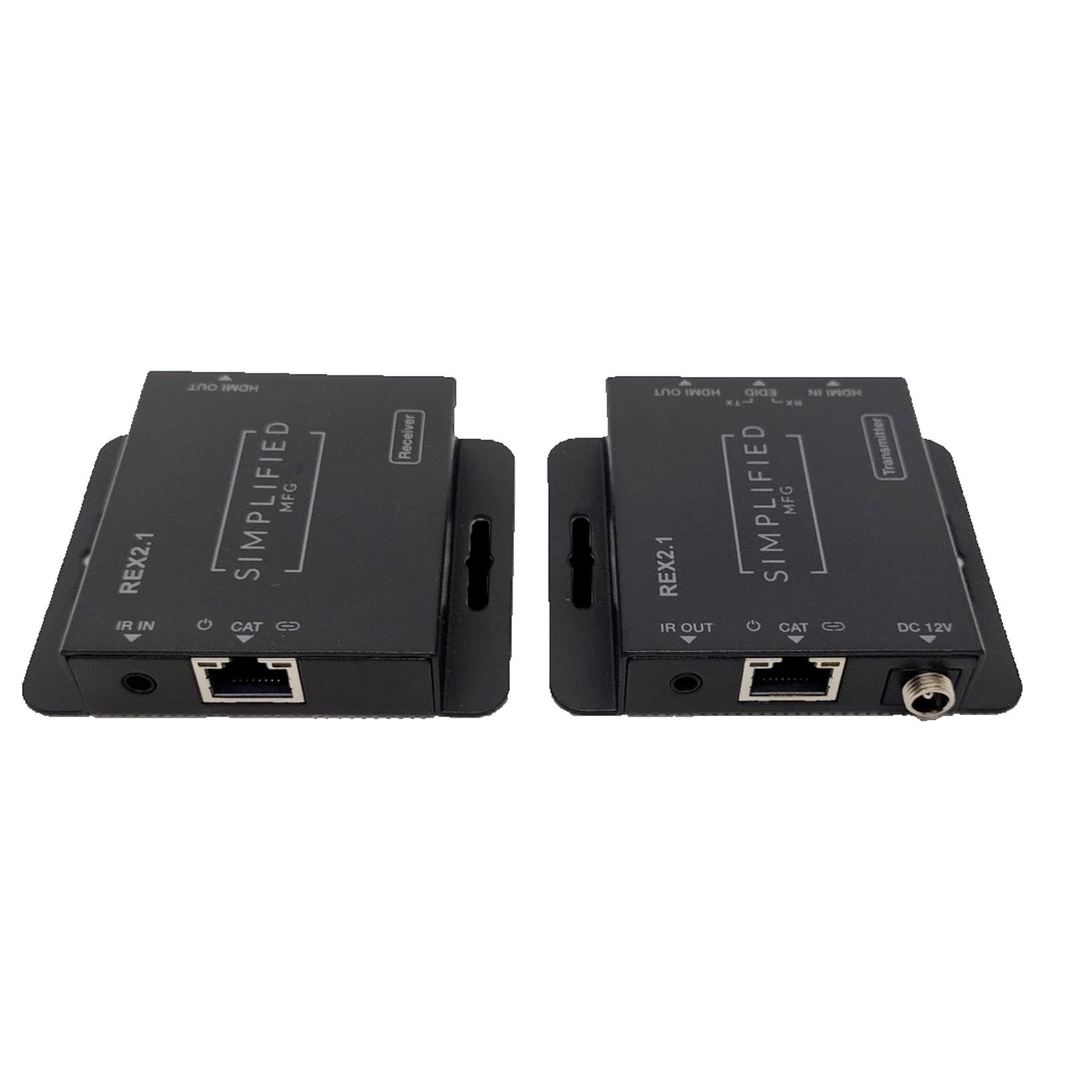

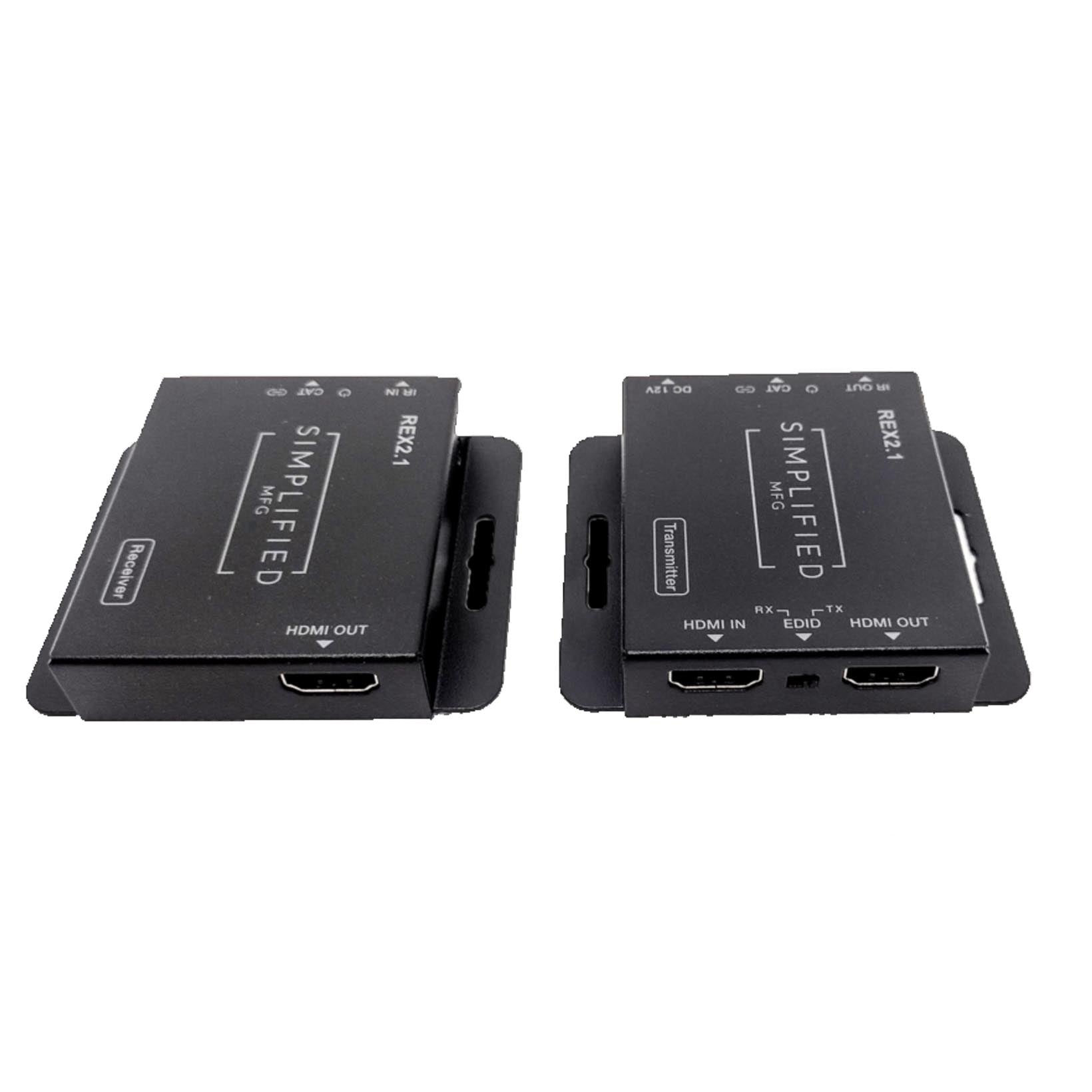

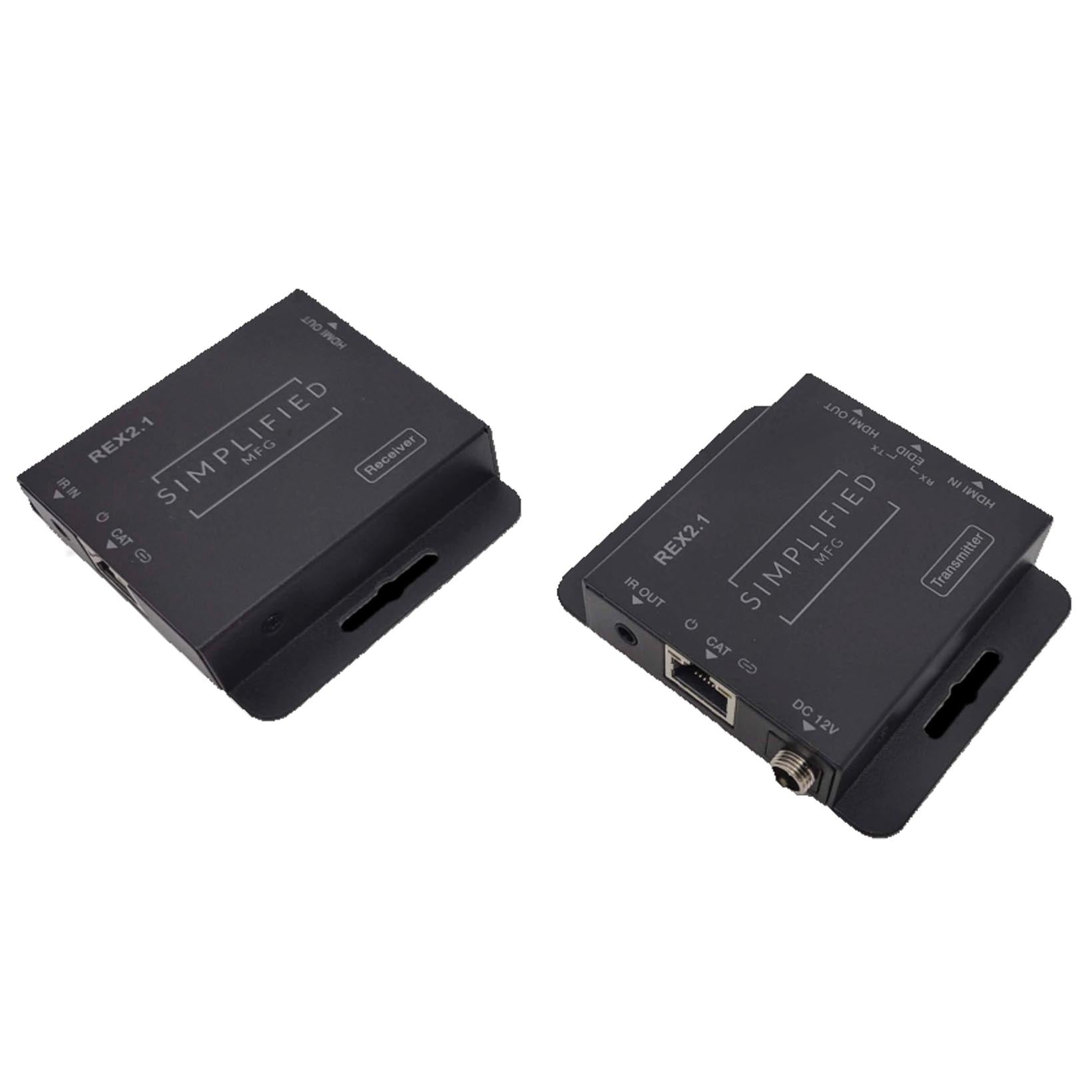

The REX2.1 is a compact 4K (24/25/30Hz.)/1080p (60Hz.) HDMI Extender kit over single Cat cable (50m/70m) 4K and 1080p respectively

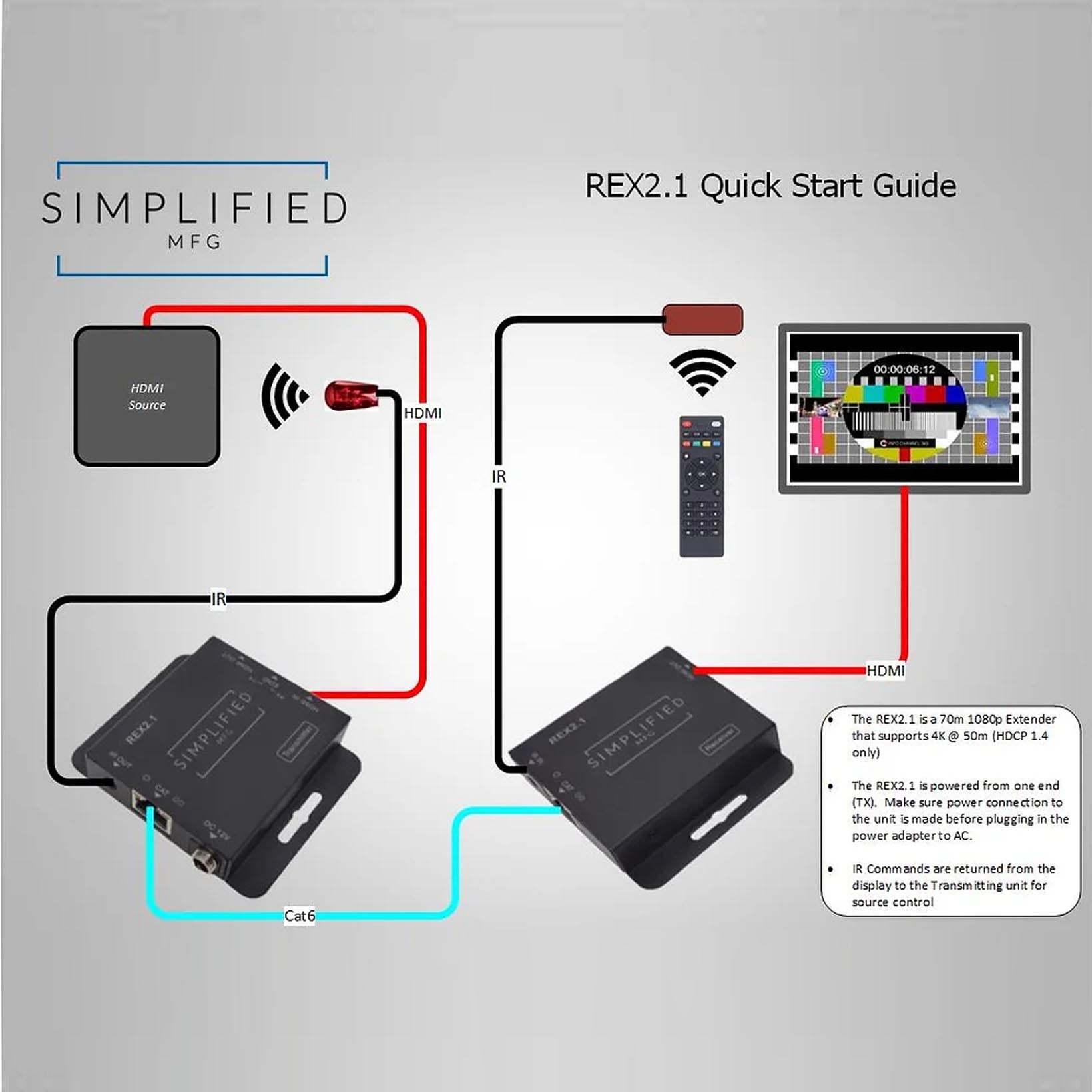

The REX2.1 is a HDMI/ HDCP 1.4 Extender over Single Cat5e/6 with IR extends high definition Audio/Video signals and IR, at a distance of up to 230ft/70m at 1080p and164ft/50m at 4K (24/25/30Hz., HDCP 1.4 Only) over a single Cat5e/6 cable.

The REX2 is small, and robust. The 10.2Gbps capability makes it a very reliable and powerful 1080p extender with the added benefit of supporting some 4K signals. In addition, the extender is also equipped with IR pass-through which allows for source control.

  • Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.

  • Supports copy EDID from receiver display or loop out display.

  • Allows for cascading via additional HDMI loop out port.

  • Supports 4K at 24/25/30Hz. (HDCP 1.4 Only)

  • Single power supply (TX)

  • Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.

  • Compact design for an easy and flexible installation.

Video Bandwidth  10.2Gbps
Video Support  480i/480p/720p/1080i/1080p @60/4K 24/25/30Hz.
Audio Support  Surround Sound (up to 7.1 ch) or stereo digital audio
Transmission Range  4K 30Hz. – up to 50m [164ft] 1080p up to 70m (230ft.)
Input TMDS Signal  3.3 volts
Input DDC Signal  5.0 volts/P-P
ESD Protection: Human Body Model

+/- 8 kV (air-gap discharge)

+/- 4 kV (contact discharge)

HDMI Connector  Type A 19 pin female
RJ-45 Connector  WE/SS 8P8C
3.5mm Connector  (TX and RX) IR Receiver/IR Blaster
Housing  Metal enclosure
Dimensions  60mm/2.375" [W] x 60mm/2.375" [D] x 17mm/0.67" [H]
Weight  90g/3.175 oz.
Power Supply  (1) 5V1A DC
Power Consumption  1.5 watts (TX); 1.0 watts (RX)
Operation Temperature  32~104 °F
Storage Temperature  -4 ~140 °F
Relative Humidity  20~90 % RH (no condensation)
