Simplified SLRX-4, RX Device for SL Matrices, 4pack

SKU SMSLRX-4
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

4K HDMI 120m/394 ft. on Cat6, 18Gbps Receiver (RX) for SL series of matrices and the SP18CAT120 splitter/extender

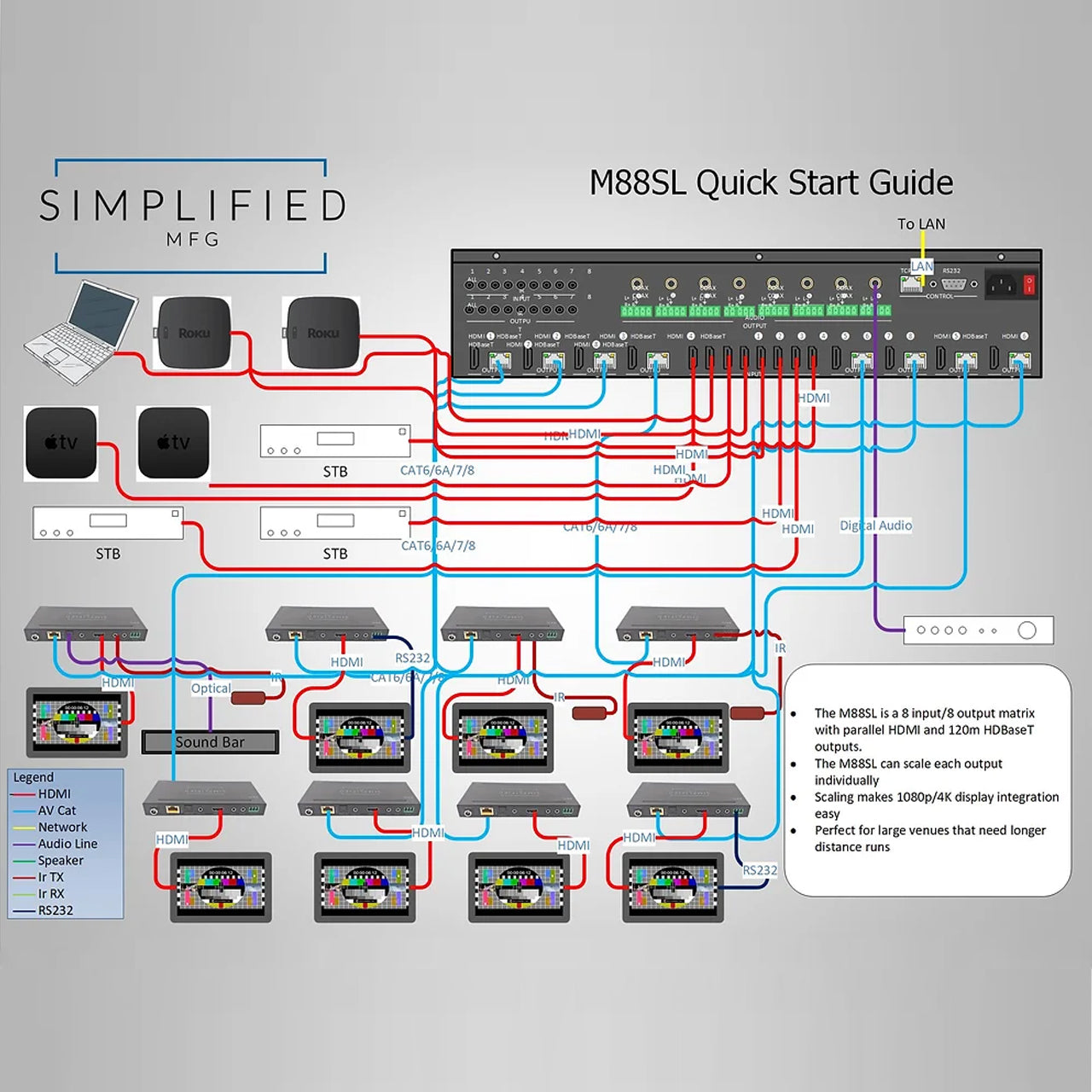

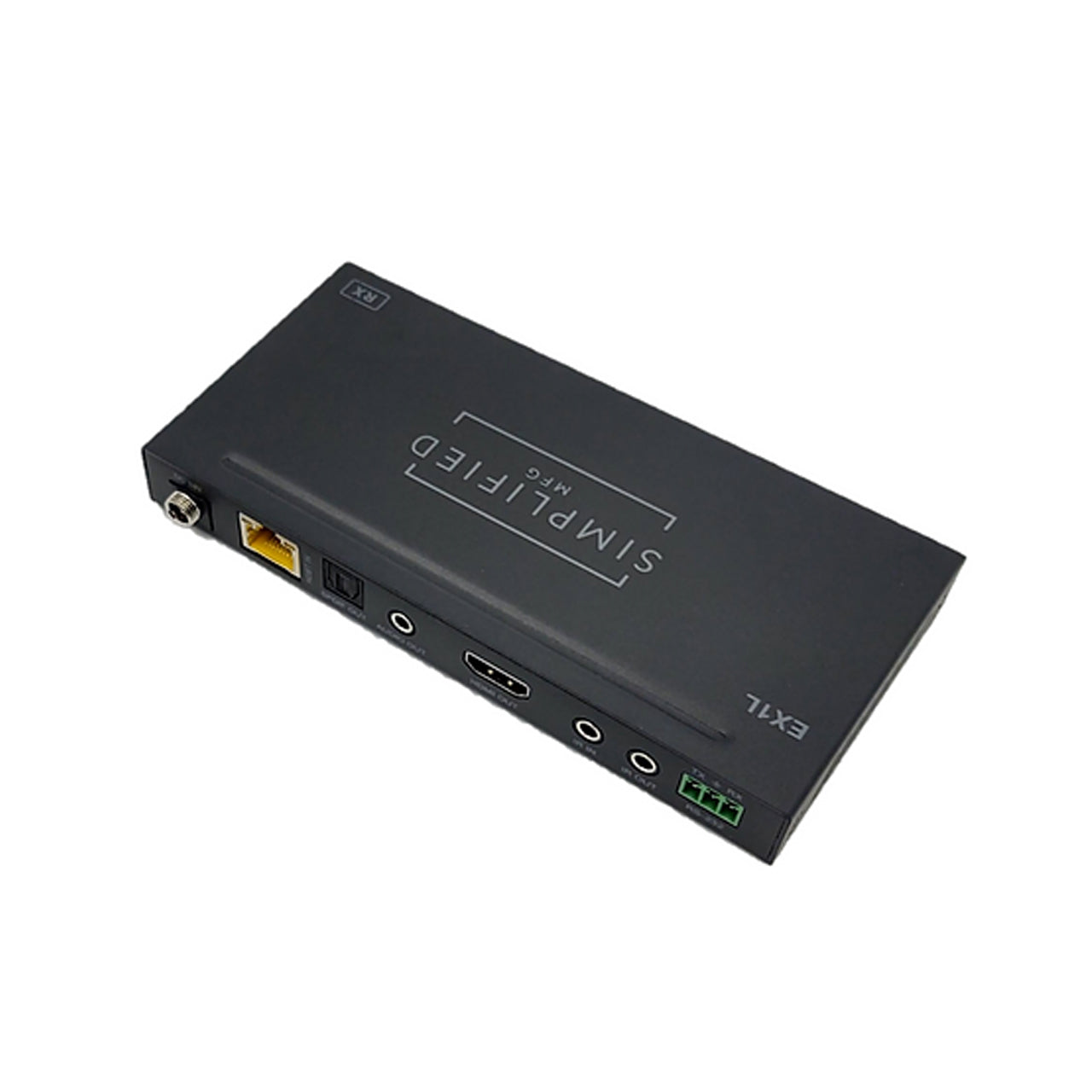

The SLRX 18Gbps HDMI RX is the optional receiver portion of the SL series of matrices and the SP18CAT120 splitter/extender. These are available in packs of four (SLRX-4) and packs of one (SLRX-1). This is the RX portion, the transmitter portion is already in the SL series of matrices and the SP18CAT120 splitter/extender.

  • HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

  • Video resolutions up to 4K2K@50/60Hz (YUV444)

  • HDR8/10/10+ pass through

  • Dolby Vision‚ĄĘ pass through

  • Supports HDMI High Bit Rate(HBR) audio pass through

  • Supports CEC bypass

  • Two way POE, either the TX or the RX can be powered to power the other end device (only one supply is needed)

  • Bidirectional 12V Infrared control signal together with the HDMI signal¬†

  • Transfer Bidirectional RS232 control signal together with the HDMI signal¬†

  • Transmission distance: Over CAT6 cable

    • 150m/ 492 ft.:

      • 1080P @60Hz36bit; 3D1080P@30Hz36bit;

    • 120m/394 ft.:

      • 4K x 2K@30Hz@24bit.

      • 4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444)

HDMI Compliance  HDMI 2.0b
HDCP Compliance  HDCP 2.2 and HDCP 1.4
Video Bandwidth  18 Gbps
Video Resolutions  up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
Color Space  RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth  8-bit, 10-bit, 12-bit
HDMI Audio Formats (Pass-through)  LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
POE Format  24V
ESD Protection¬† Human body model ‚ÄĒ ¬Ī8kV (air-gap discharge) & ¬Ī4kV (contact discharge)¬†
Inputs: Transmitter

1x HDMI Type A [19-pin female]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

1x Service [Mini-USB jack]

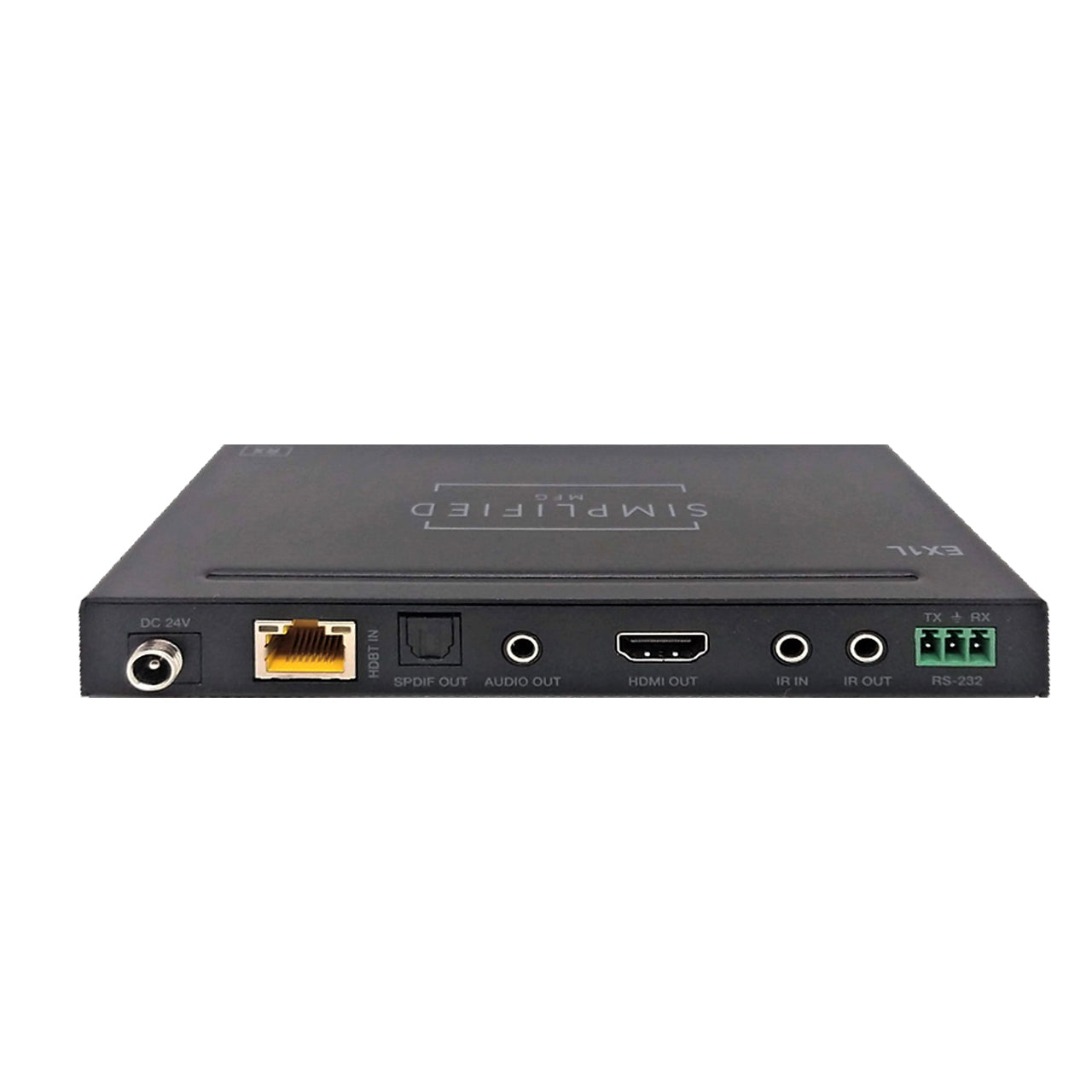

Inputs: Receiver

1x HDBaseT In [RJ45]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

1x Service [Mini-USB jack]

Outputs: Transmitter

1x HDBaseT Out [RJ45]

1x HDMI Type A [19-pin female]

1x IR OUTPUT [3.5mm Stereo Mini-jack]

Outputs: Receiver

1x HDMI Type A [19-pin female]

1x IR OUTPUT [3.5mm Stereo Mini-jack]

Housing  Metal Enclosure
Color  Black
Dimensions  5.5" (140mm) [W] x 2.5" (65mm) [D] x 0.7" (18mm) [H]
Weight  160g/5.64 oz.
Power Supply Input  AC100 - 240V 50/60Hz
Power Supply Output  DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption  24W (Max)
Operation Temperature¬† 32 - 104¬įF / 0 - 40¬įC¬†
Storage temperature¬† -4 - 140¬įF / -20 - 60¬įC¬†
Relative Humidity  20 - 90% RH (no condensation)
