Simplified  |  SKU: SMSP1:8

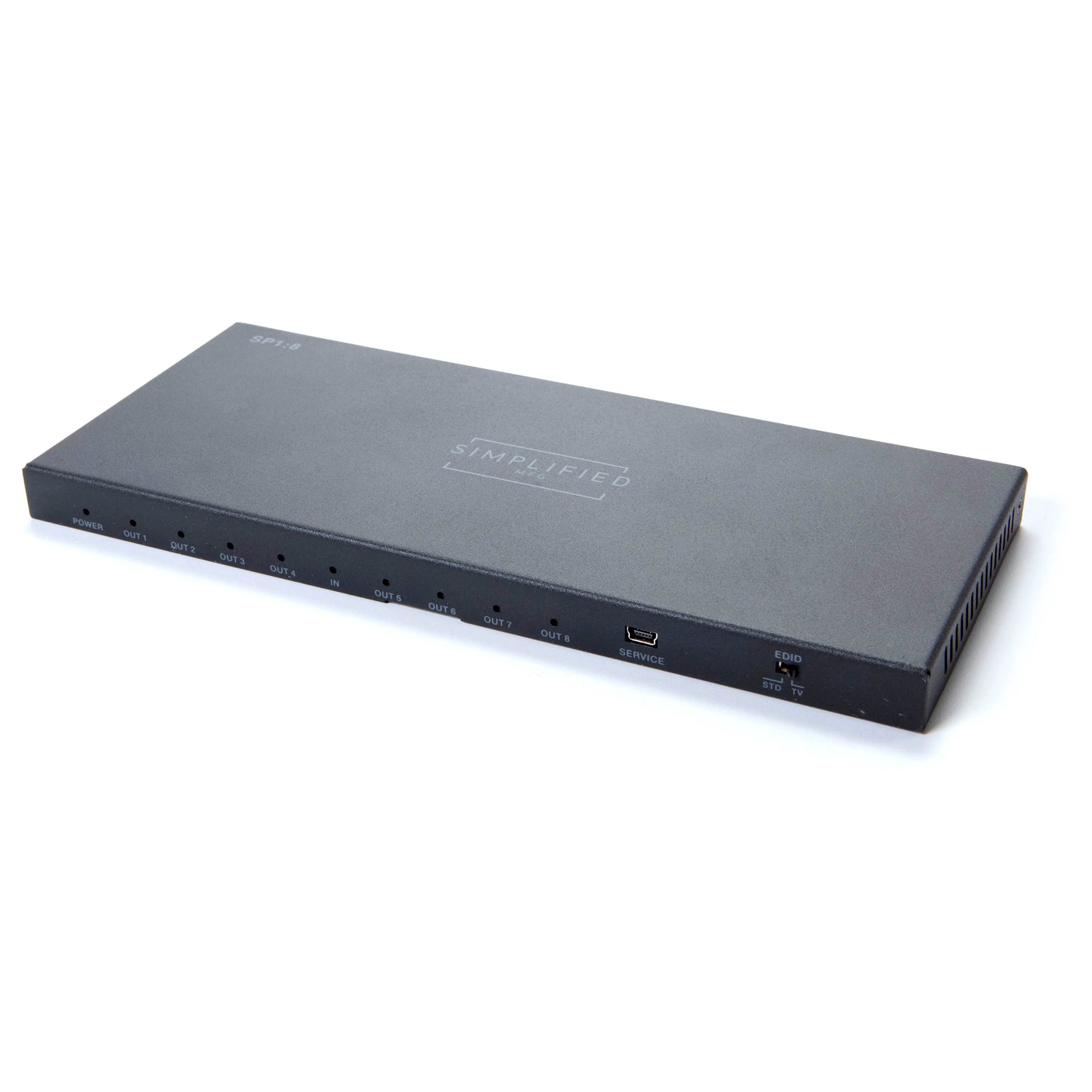

Simplified SP1:8, HDMI 4K, 1x8 Splitter

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Simplified SP1:8, HDMI 4K, 1x8 Splitter is backordered and will ship as soon as it is back in stock.

Description

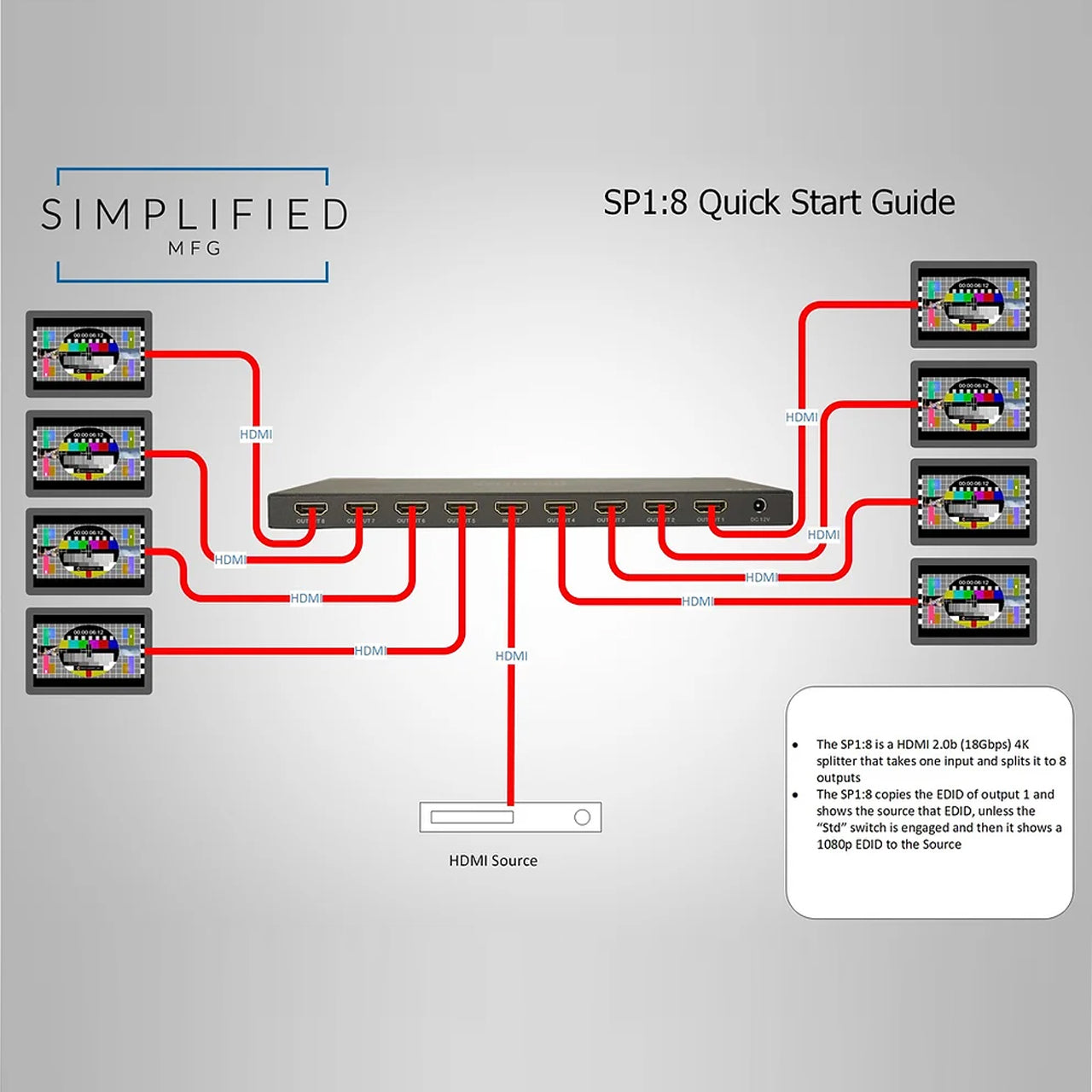

The SP1:8 is 1 by 8 HDMI 18gbps 4K/UHD Splitter with HDCP 2.2 is a solution for splitting a single HDMI input to eight HDMI outputs.

It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV444) resolution and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Supporting the all latest features of the most advanced HDMI 2.0b signals including HDR8/10/10+ and Dolby Vision

Features

  • Compliant with HDMI2.0, HDCP2.2 and DVI 1.0

  • Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4

  • Supports HDR8/10/10+ and Dolby Vision

  • EDID copy copies output 1 automatically

  • EDID switch changes all outputs to 1080p for troubleshooting

  • Supports high resolution VESA mode video format up to QSXGA@60Hz

  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

  • Supports smart EDID control

Specifications
Video Bandwidth  600MHz/18Gbps
Input Ports  1 × HDMI (Female type)
Output Ports  8 × HDMI (Female type)
Output Resolution  480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
ESD Protection: Human Body Model ±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply  12V/2.5A DC (US/EU standards, CE/FCC/UL certified)
Dimensions  245 mm/9.65" [W] x 105 mm/4.133" [D] × 16 mm/0.63" [H]
Weight  630g/1lb., 6.2oz.
Chassis Material  Metal
Operating Temperature  0 °C~40 °C/ 32 °F~104 °F
Storage Temperature  −20 °C ~ 60 °C/−4 °F ~140 °F
Relative Humidity  20~90 % RH (non-condensing)
Power Consumption (Max)  30W
