Simplified SP14S, HDMI 4K, 1X4 Splitter with Audio Breakout

SKU SMSP14S
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

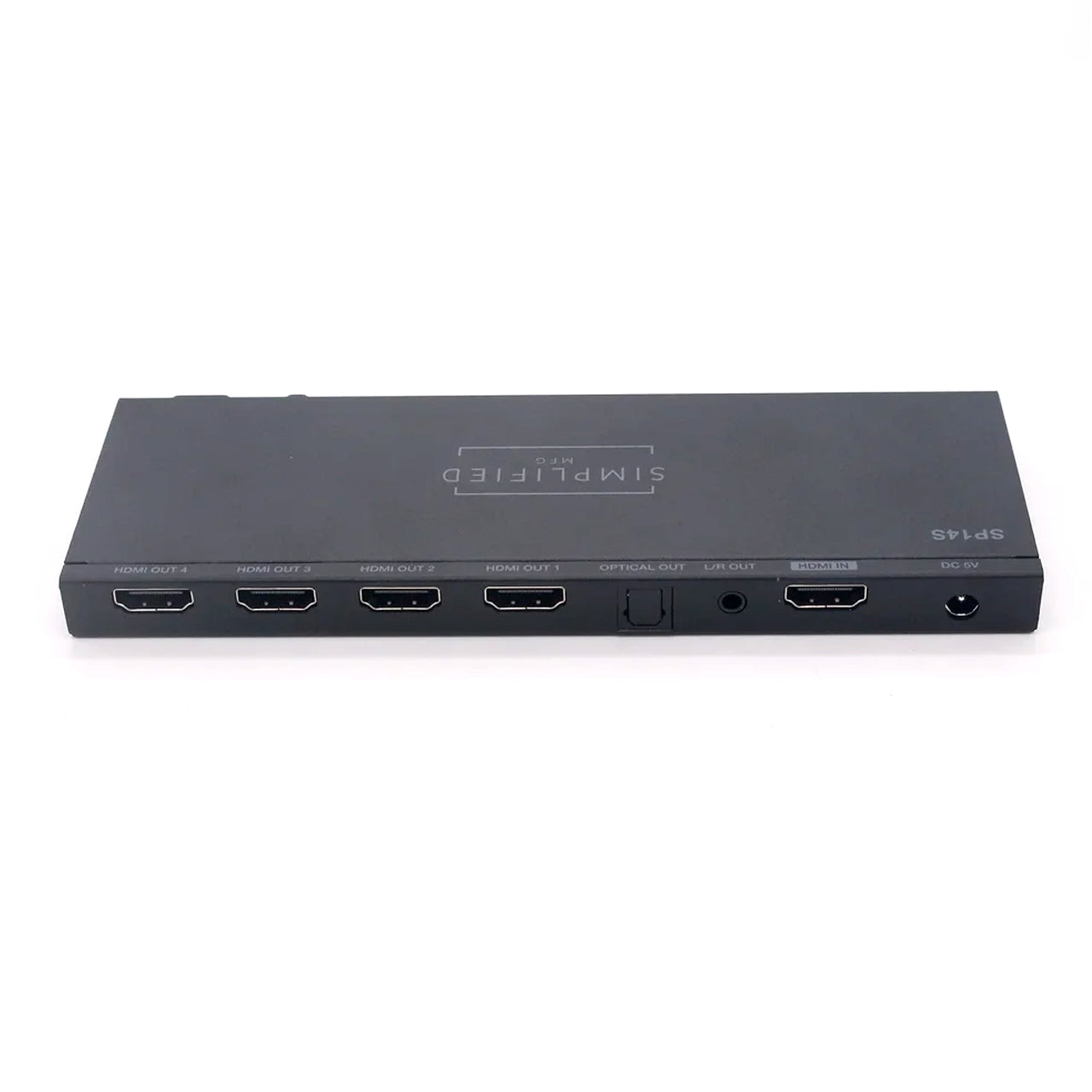

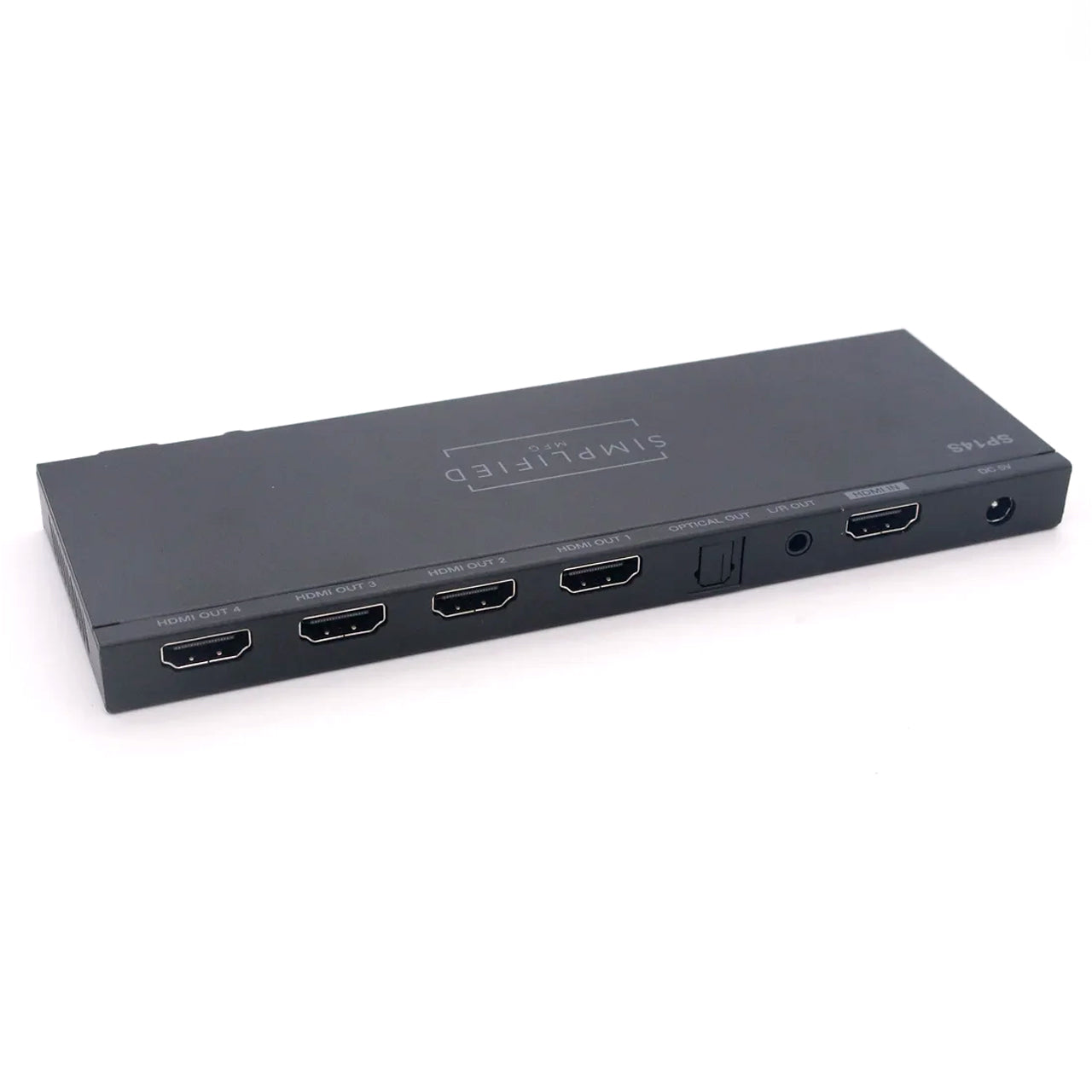

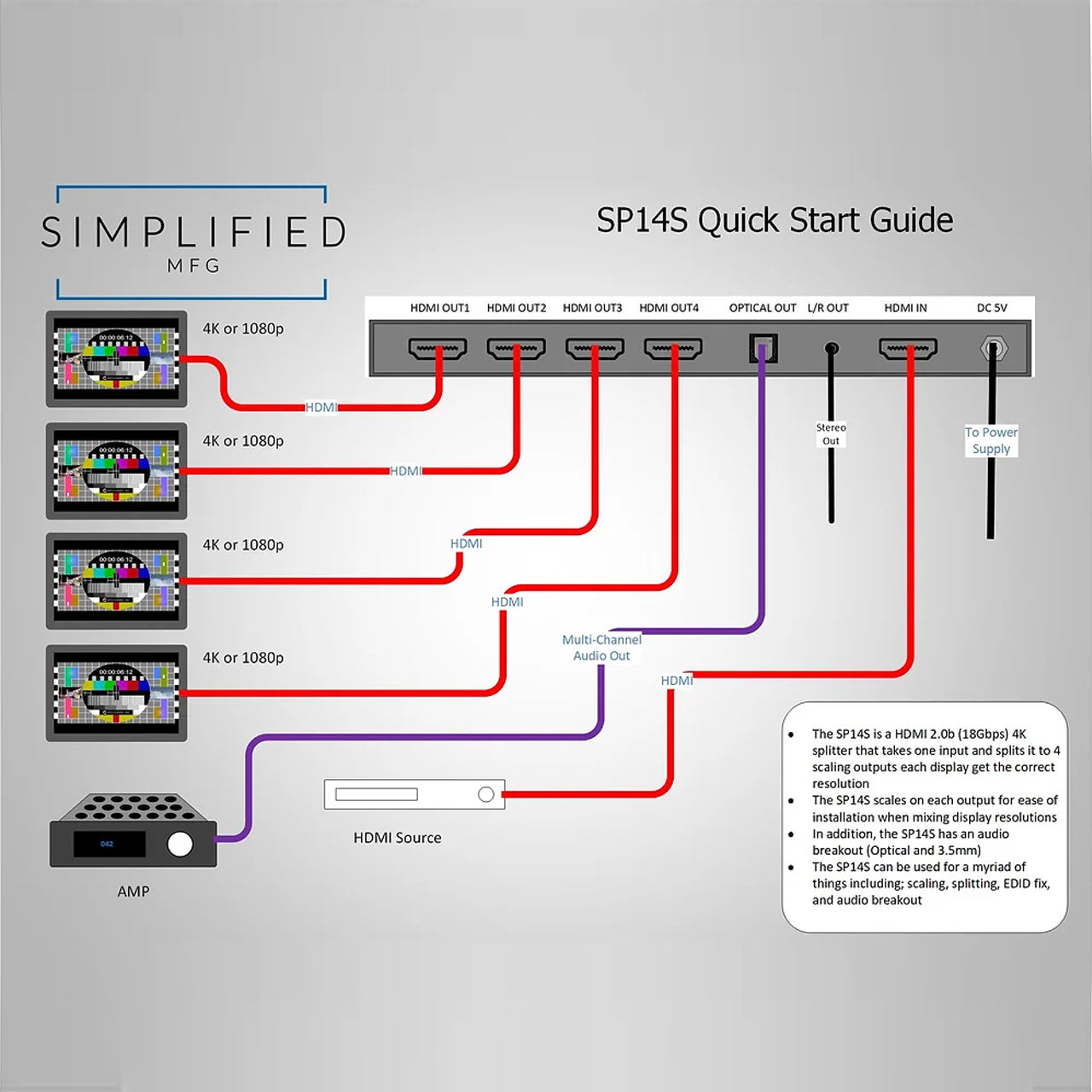

The SP14S is a 1 by 4 HDMI 18Gbps 4K/UHD Splitter with HDCP 2.2, Scaling, EDID, & an audio breakout. It is a solution for splitting a single HDMI input to four HDMI outputs whether they are identical or not. In cases of 1080p and 4K displays, any can receive the appropriate signal needed for each display.

EDID can be manipulated to help with multiple displays as well. In addition there is an optical SPDIF/3.5mm mini jack for audio breakout. The SP14S supports the latest features of the most advanced HDMI 2.0b signals including HDR8/10/10+ and Dolby Vision

  • Compliant with HDMI2.0, HDCP2.2 and DVI 1.0

  • Supports video formats up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2, and up to 4k2k@60Hz with 12bit YCBCR 4:4:4

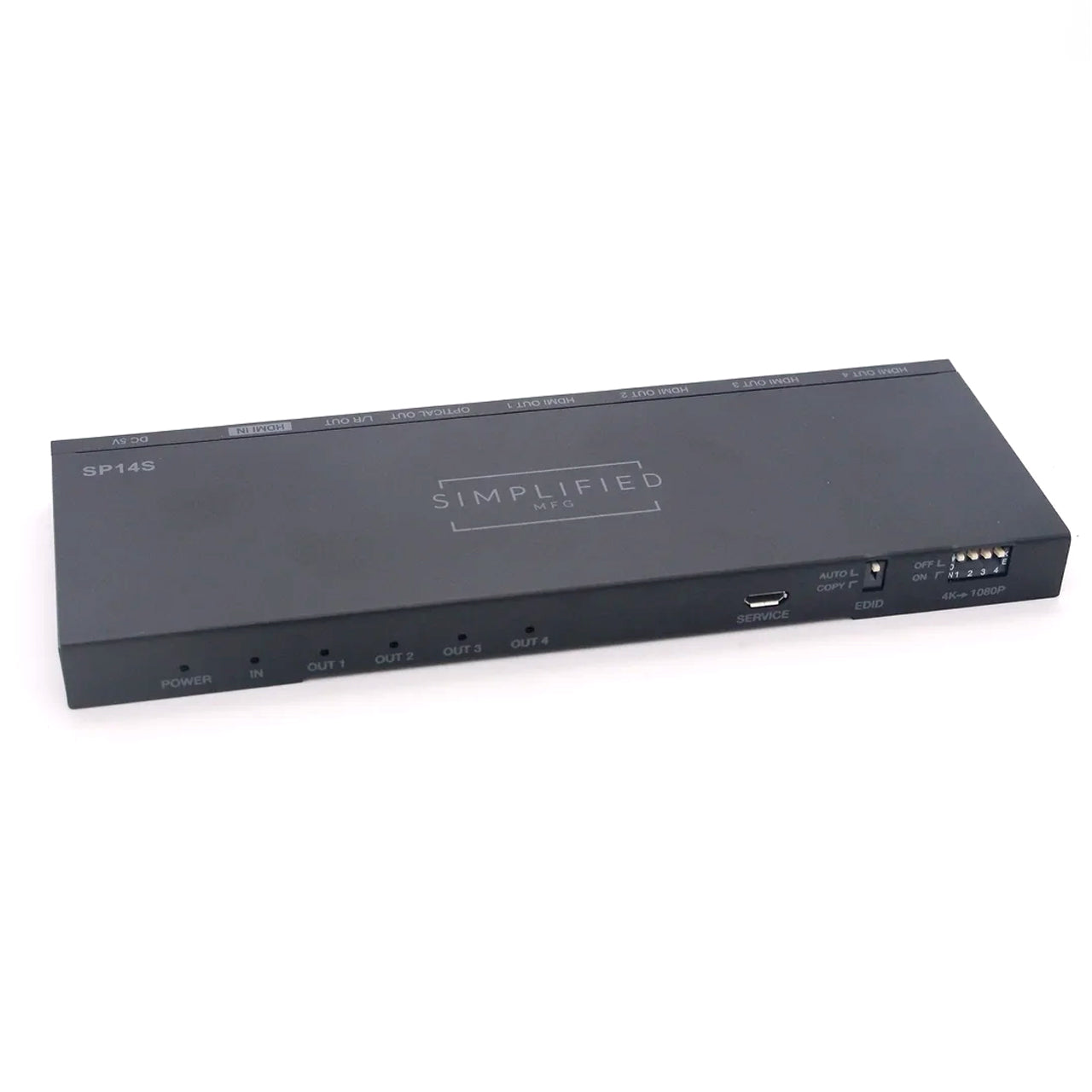

  • Selectable EDID setting (Copy output 1 or Mix)

  • Selectable Scaling will allow each output to either follow the EDID setting or scale to 1080p

  • Both SPDIF and 3.5mm Mini jack audio breakout

  • Supports HDR8/10/10+ and Dolby Vision

  • Supports high resolution VESA mode video format up to QSXGA@60Hz

  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

Video Bandwidth  600MHz./18Gbps
Input Ports  1 x HDMI [Type A female]
Output Ports  4 x HDMI [Type A female]
Output Resolution  480i~1080p 50/60Hz., 4Kx2K @ 24/25/30/50/60Hz
ESP Protection: Human Body Model¬† ¬Ī8 kV (air-gap discharge)¬†
¬Ī4 kV (contact discharge)¬†
Power Supply  5V 1A
Dimensions  130mm/5.12" [W] x 56mm/2.2" [D] x 16mm/0.63" [H]
Weight  230g/1.06oz.
Chassis Material  Metal
Operating Temperature¬† 0 ¬įC~40 ¬įC/ 32 ¬įF~104 ¬įF¬†
Storage Temperature¬† -20 ¬įC~60¬įC/ -4¬įF ~ 140¬įF¬†
Relative Humidity  20~90% (non-condensing)
Power Consumption (Max)  5W
