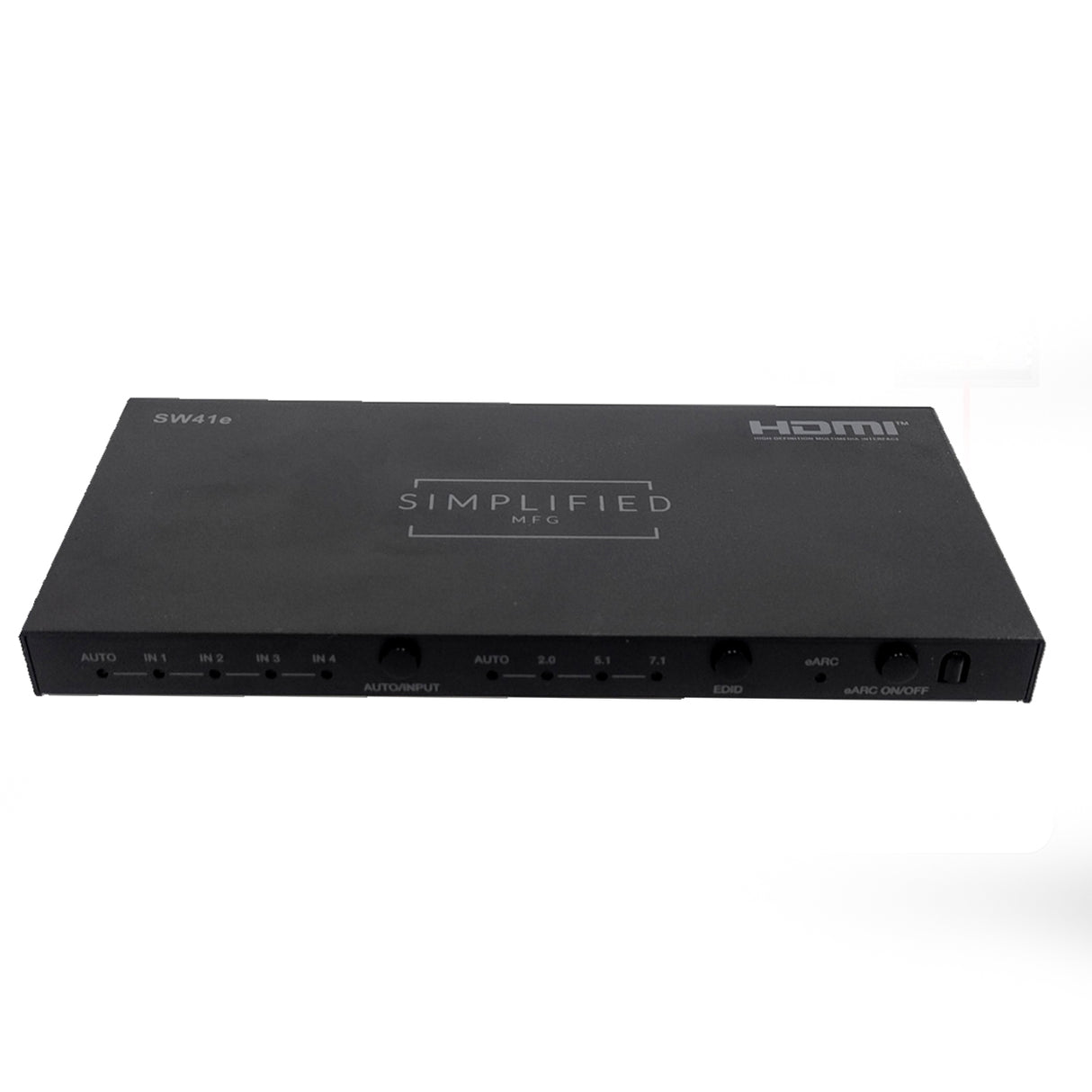

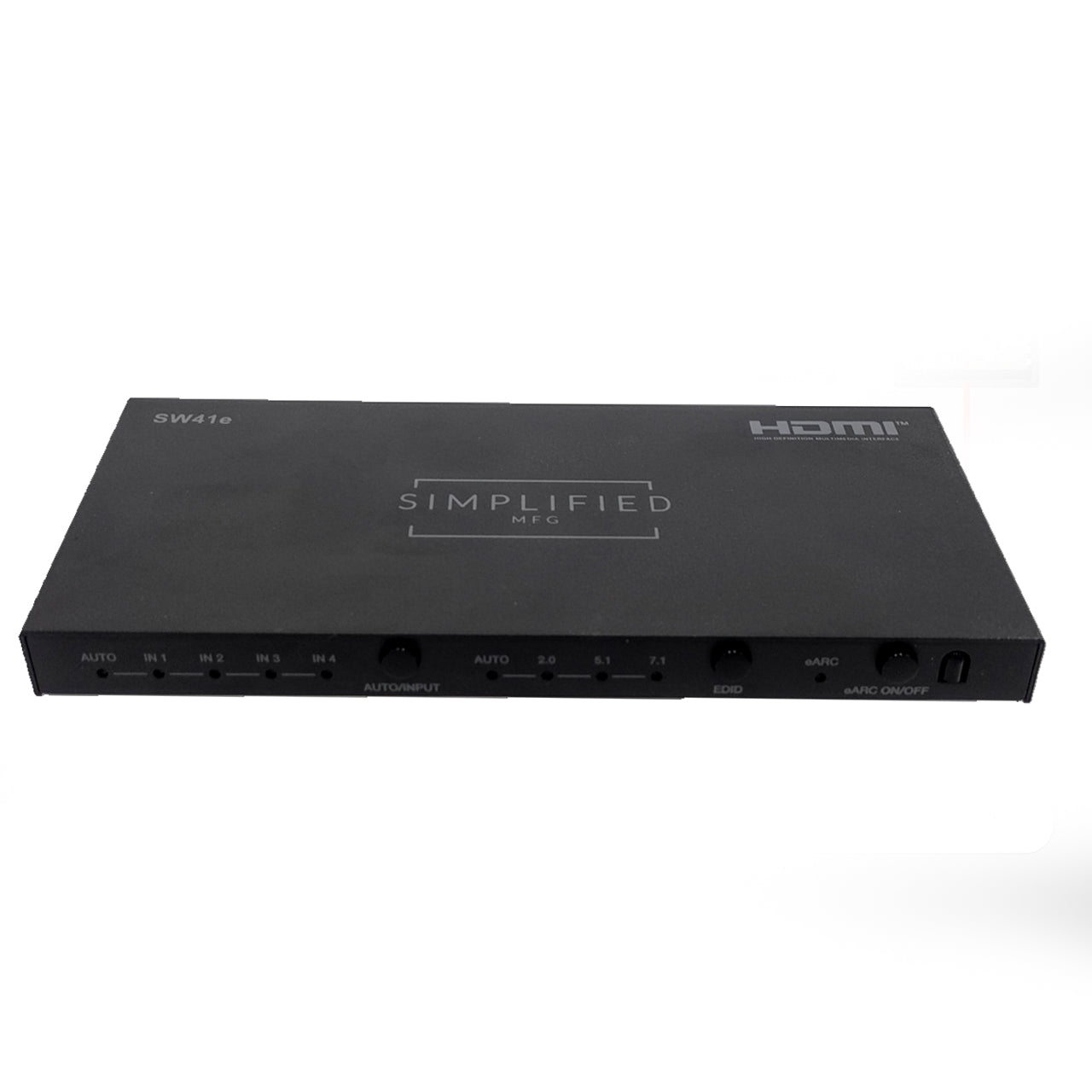

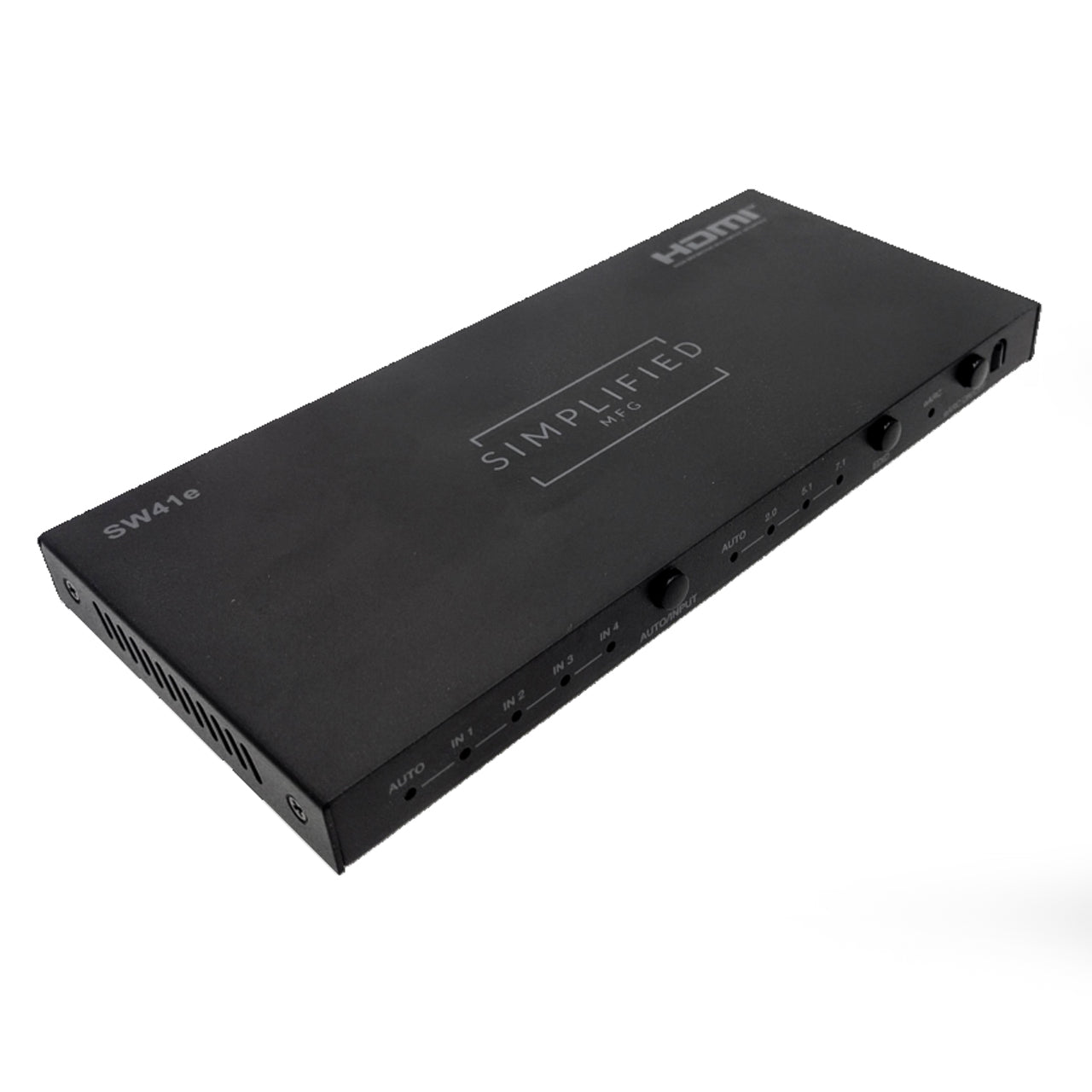

Simplified SW41e, ARC Based Auto Switch with eARC

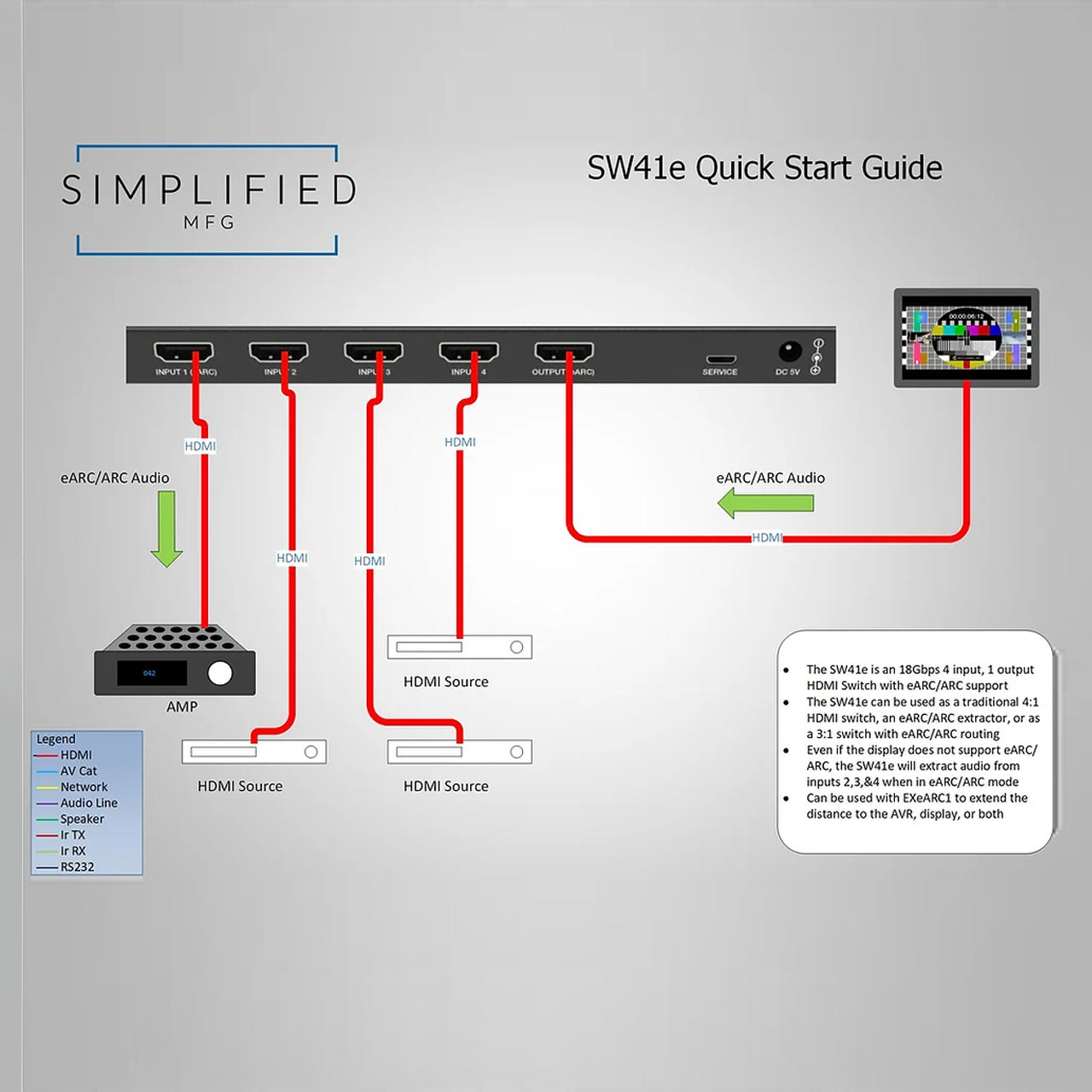

The SW41e a high-performance HDMI 4x1 switch that supports HDTV formats up to 4Kx2K@60Hz. In addition, it can rout eARC/ARC from display to Input1 for connection to soundbars, AVR's and other devices that support eARC/ARC. This eliminates one input making it a 3:1 switch in this configuration.
The SW41e supports HDCP repeater/CEC/eARC functions. Select any of the inputs by front panel button, Auto-Switch, or with supplied IR Remote, Auto-switch mode switches the input to the last source that is powered on. The corresponding LED on the front panel will indicate the selection and status.
-
Compliant with HDMI 2.0b (18gbps), DVI 1.0 standards
-
Supports HDR/HDR+/DolbyVisionTM
-
Supports eARC/ARC extraction and routing
-
Can be used in three modes: Traditional 4:1 switch/eARC or ARC extractor/3:1 switch with eARC or ARC
-
HDCP 2.2/1.xx compliant
-
Supports PCM, Dolby TrueHD, DTS-HD Master Audio, Dolby+, Dolby Atmos, and DTS-X
-
Audio extraction is through HDMI Input1
-
Smart EDID management (Auto/2CH/5.1CH/7.1CH selectable)
-
Supports input port auto switching or manual switching mode
-
Will extract audio from sources if display is not eARC/ARC compatible
| Frequency Bandwidth | 18Gbps |
| Input Ports | 4 HDMI Female ports |
| Output Ports | 1 HDMI Female port |
| DMI Audio Output | PCM2.1/5.1/7.1CH, Dolby5.1,DTS5.1, Dolby-TrueHD, DTS-HD, Dolby+, Atmos, DTS-X |
| ESD Protection: Human Body Model | ± 8kV (air-gap discharge) |
| ± 4kV (contact discharge) | |
| Dimensions | 180mm/7.08" [W] x 85mm/3.35" [D] x 11.6mm/0.46" [H] |
| Weight | 300g/10.6oz. |
| Power Consumption | Max 2.5W |
| Operating Temperature | 0˚C ~ 40˚C / 32˚F ~ 104˚F |
| Storage Temperature | -20˚C ~ 60˚C / -4˚F ~ 140˚F |
