Simplified TXIWKT, HDMI Extender 4K over Cat6 with Transmitter Wall Plate Kit

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

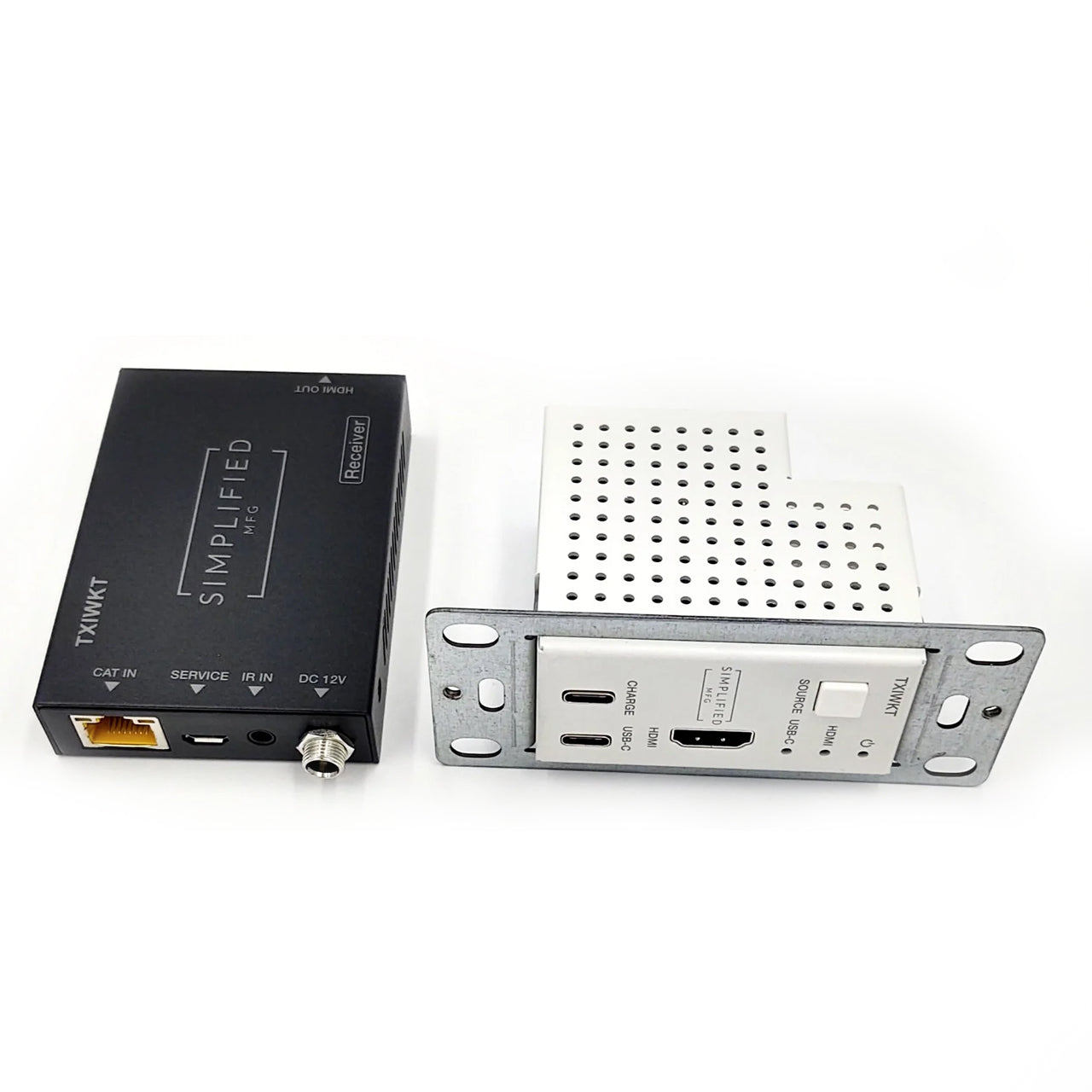

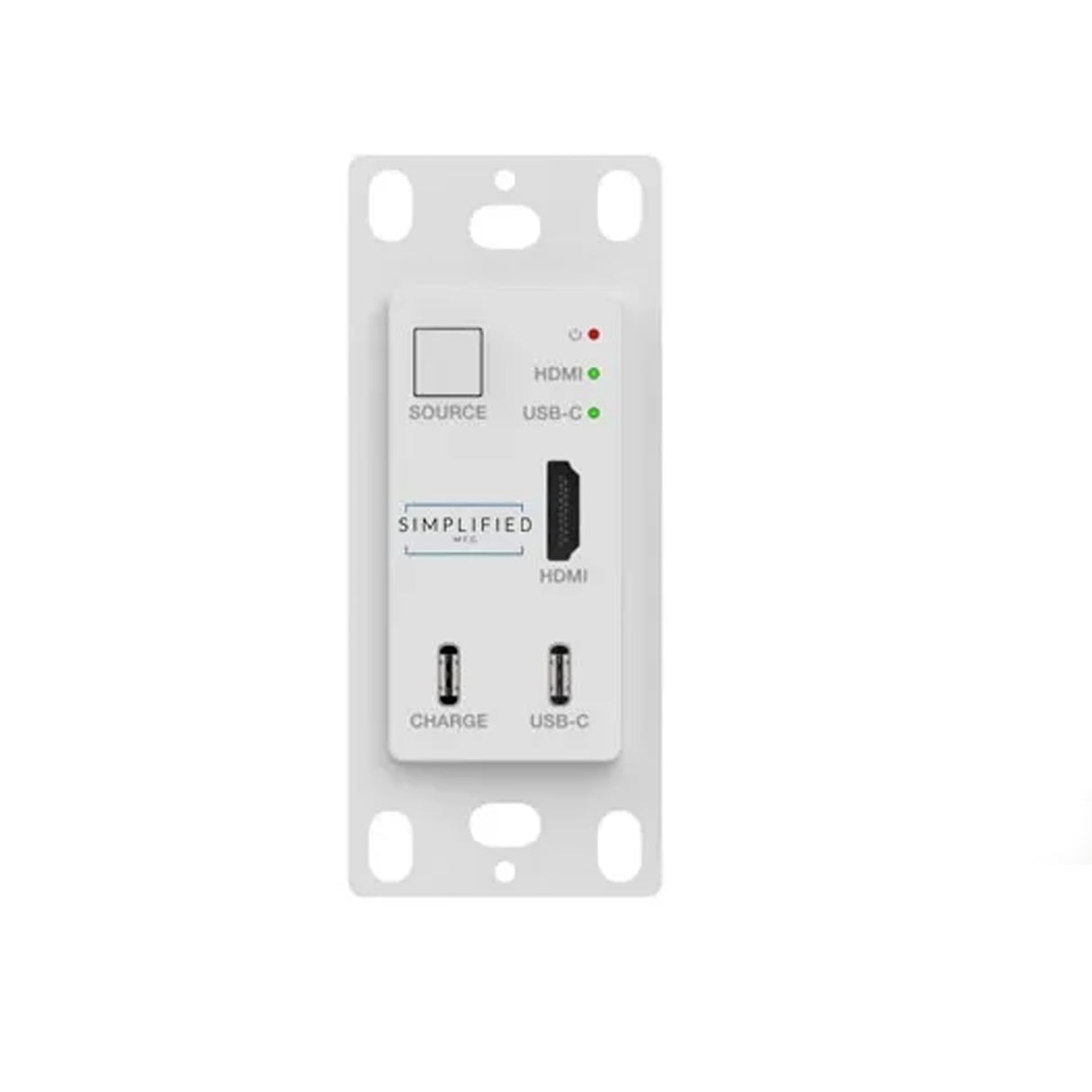

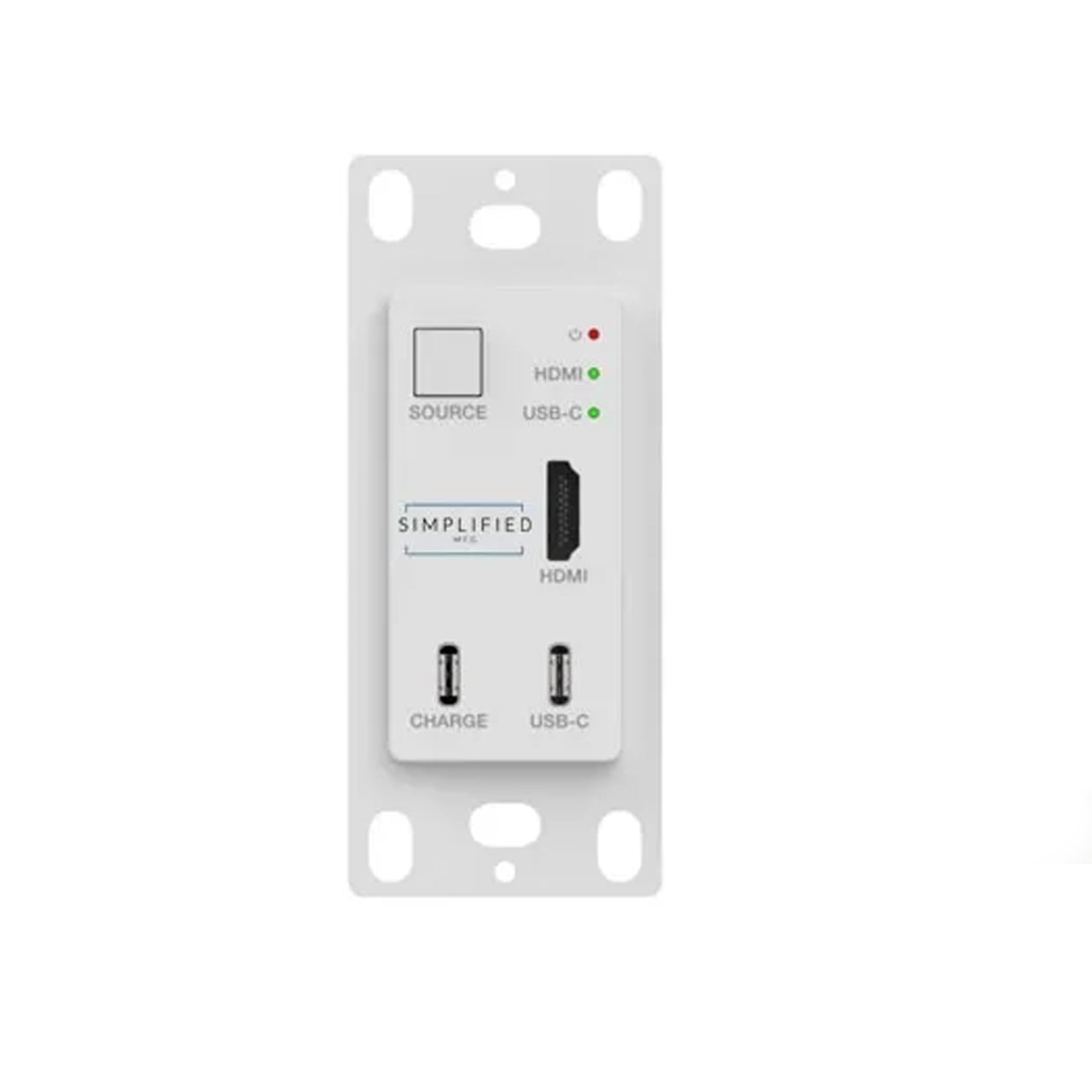

The TXIWKT is a kit consisting of a single gang Decora wall plate with a small footprint RX. Technology used in the TXIWKT is about 3 times more efficient than the typical extender. This means less heat, less energy used, and greater reliability. The TXIWKT has an HDMI Type-A input as well as a USB-C input.

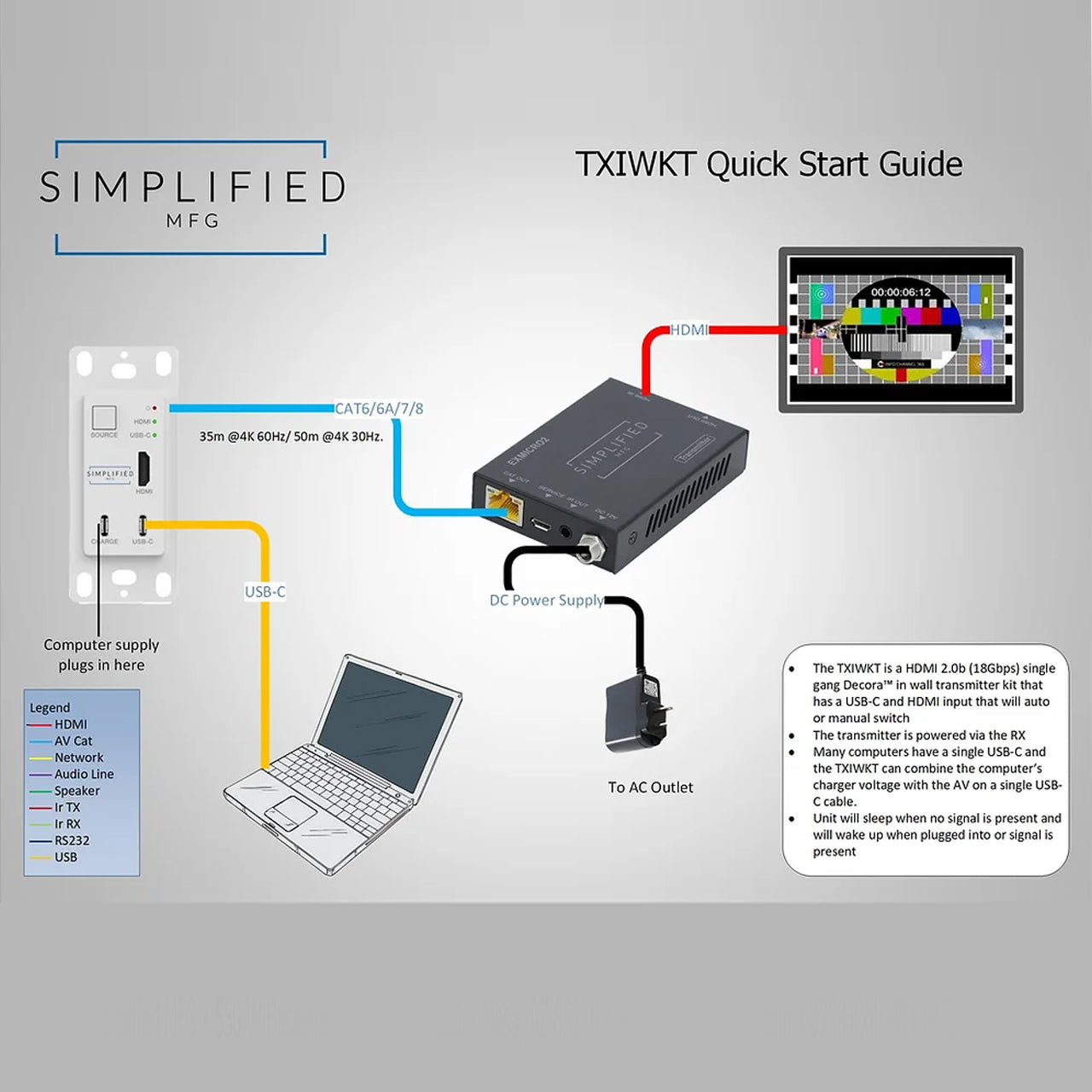

There is also a USB-C charging port. You simply connect your laptop power supply to the USB-C charge port and the power is then passed through the AV connection while presenting, back to your laptop or tablet. The sources are selected by a button on the front of the TX.

The RX powers the TX device. HDMI 2.0b is supported at @60Hz for 35 meters and at 30Hz, up to 50m. Perfect for K-12, higher ed, board room, podiums, and other applications where a HDMI port needs to be accessed.

  • Supports POE (Power Over Ethernet), the matched RX device powers the TX device

  • Transmission distance: over CAT6/6A cable

    • 50 meters:

      • 4K X 2K @30Hz36bit;

    • 35 meters:

      • 4K x 2K @ 60Hz.

  • Supports the entire HDMI 2.0b format at 60Hz/35m, up to 30Hz. at 50m

  • Compliant with the USB-C Video format

  • Single Gang Decora

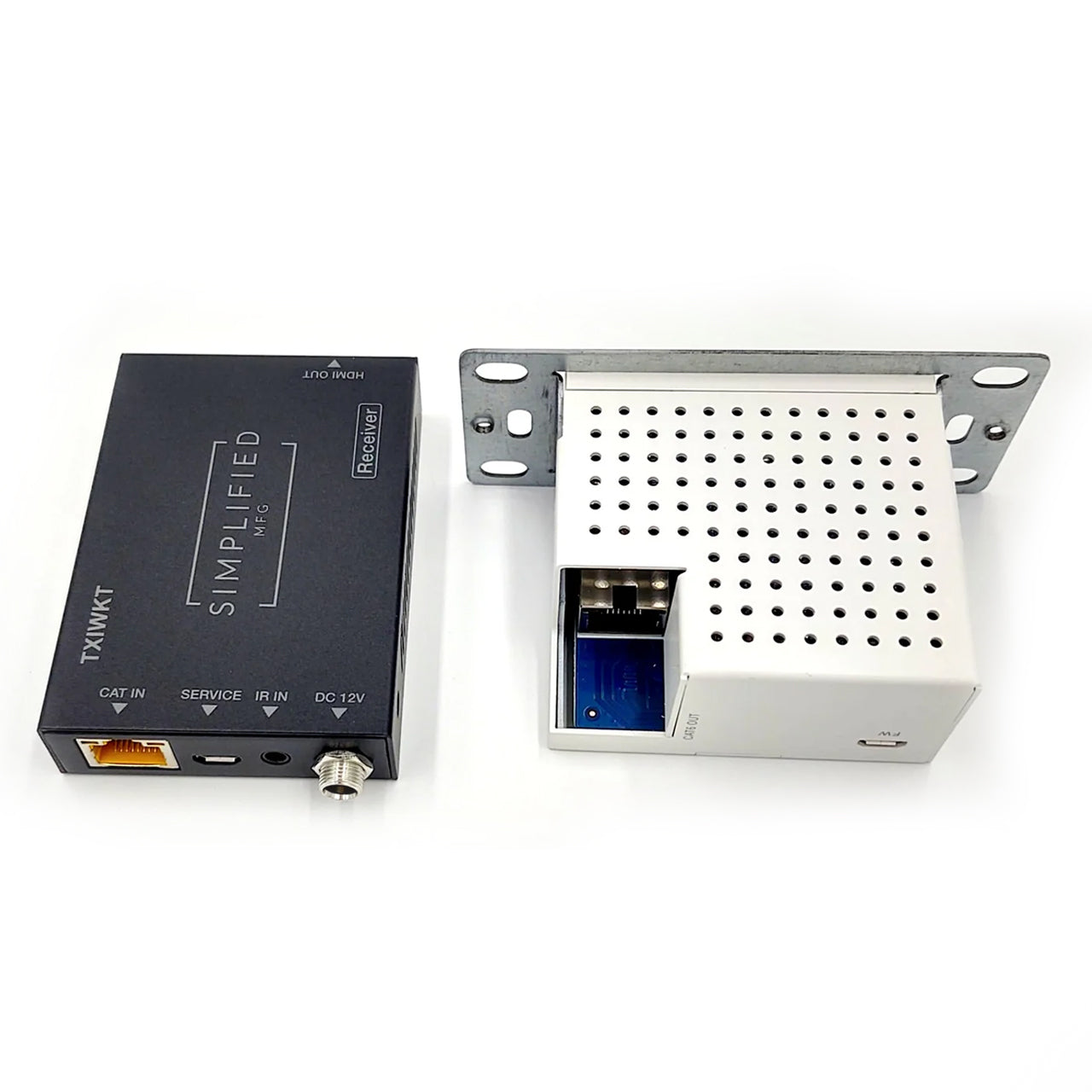

  • RX is about the footprint of a credit card and about half an inch thick

  • Supports all HDMI audio formats

HDMI Compliance  HDMI 2.0b
HDCP Compliance  HDCP 2.2 and HDCP 1.4
Video Bandwidth  18Gbps
Video Resolutions  4K x 2K 60/50/30/25/24 Hz., 1080p 60/50/30/25/24Hz.
Color Space  RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth  10-bit, 12-bit
HDMI Audio Formats (Pass-through)  LPCM 2/5.1/7.1CH and all Dolby+ formats, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio
ESD Protection: Human Body Model  ±8kV (air-gap discharge)
Inputs: TX

1x HDMI Type A [19-pin female]

1x USB-C Video input

1x USB-C Charging port

Inputs: RX  1x RJ45
Outputs: TX  1x RJ45
Outputs: RX  1x HDMI Type A [19-pin female]
Housing Metal Enclosure
Color  White
Dimensions: TX  68mm x 60mm x 33mm / 2.75"x2.5"x1.5" (single gang Decora)
Dimensions: RX  89mm x 60mm x 17.5mm /3.5" x 2.375" x 0.5"
Weight: TX  205g/7.25 Oz.
Weight: RX  146g/5.125Oz
Power Supply Input  AC100 - 240V 50/60Hz
Power Supply Output  DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 3.84W(Max)
Operation Temperature  32 - 104°F / 0 - 40°C
Storage temperature  -4 - 140°F / -20 - 60°C
Relative Humidity  20 - 90% RH (no condensation)
