Simplified TXIWKT, HDMI Extender 4K over Cat6 with Transmitter Wall Plate Kit

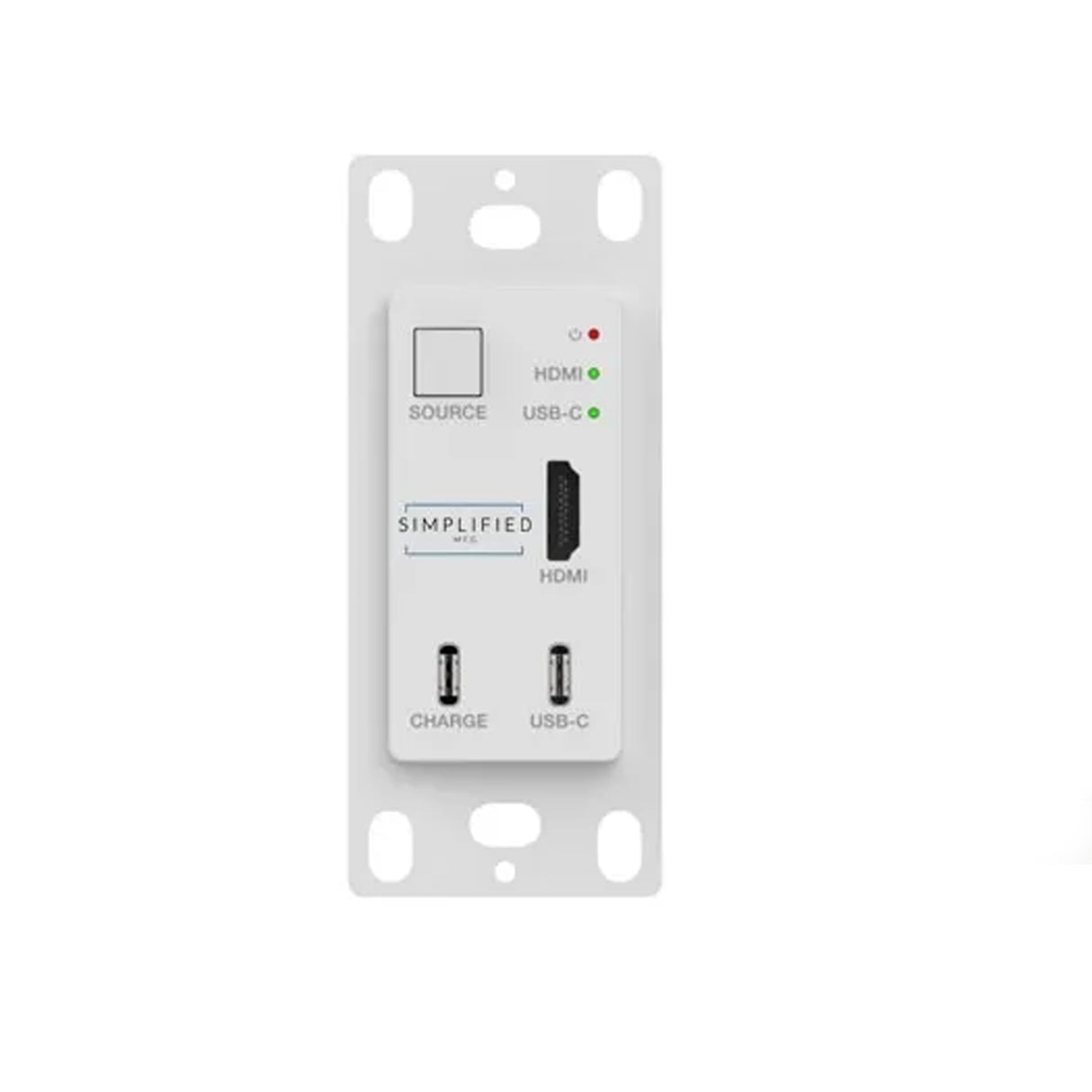

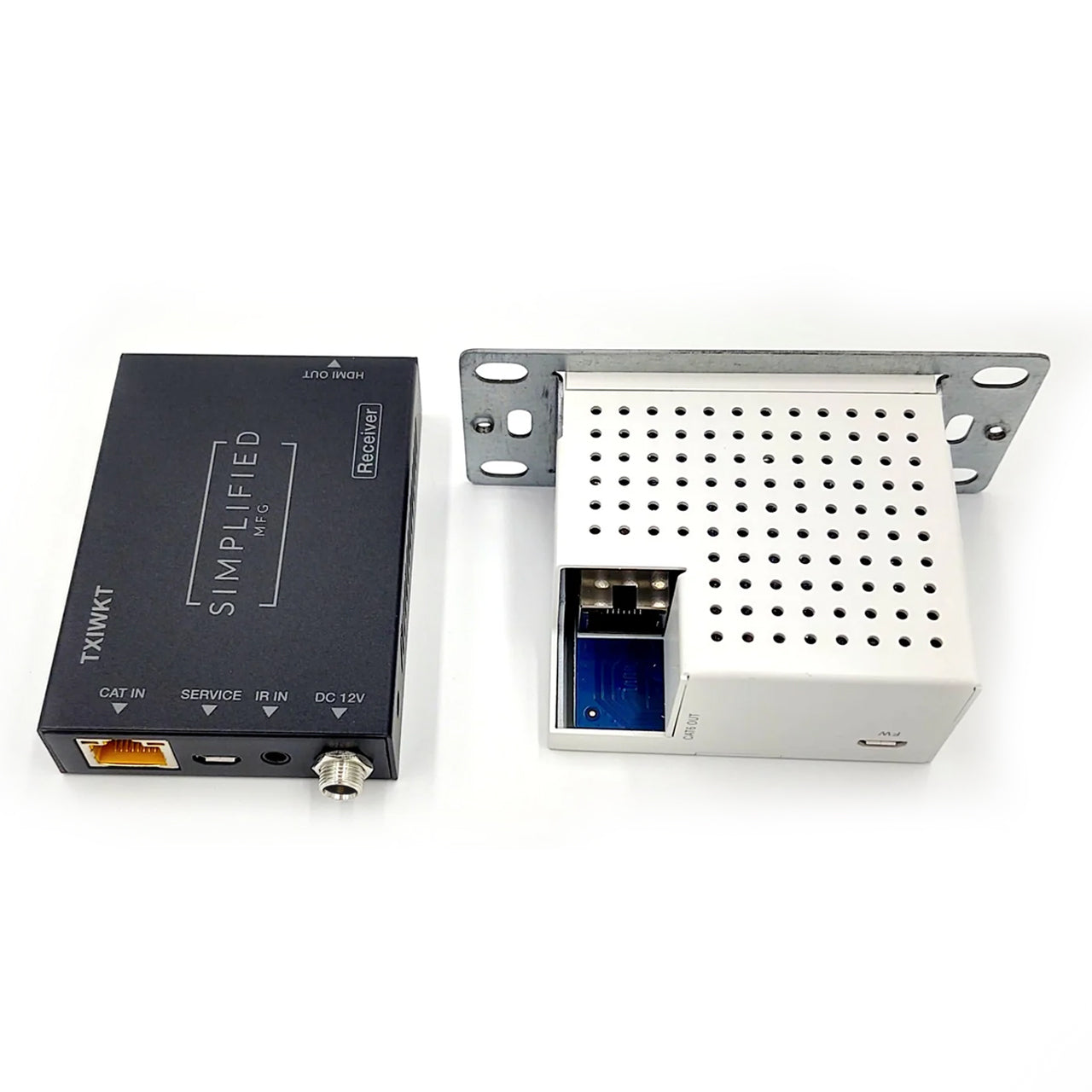

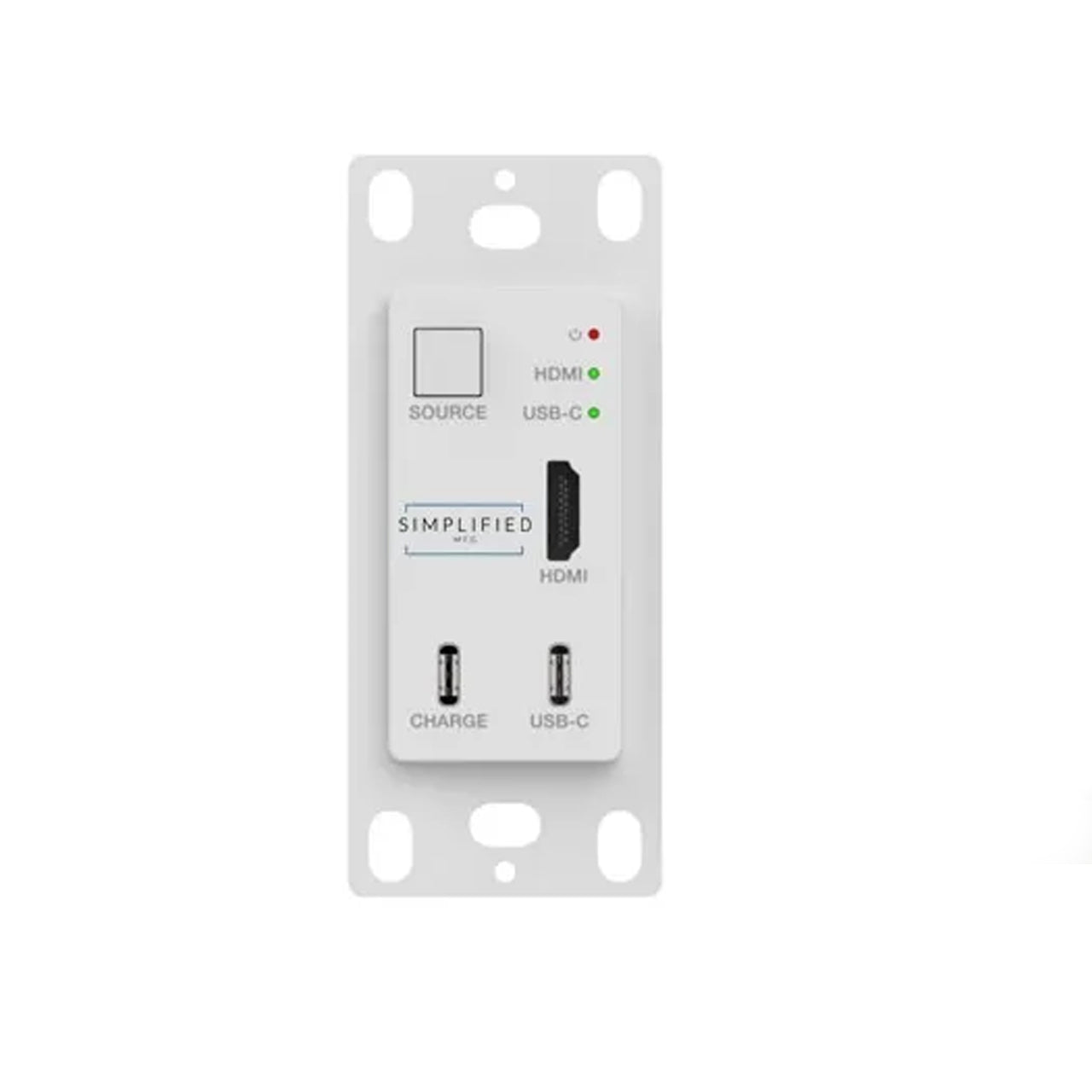

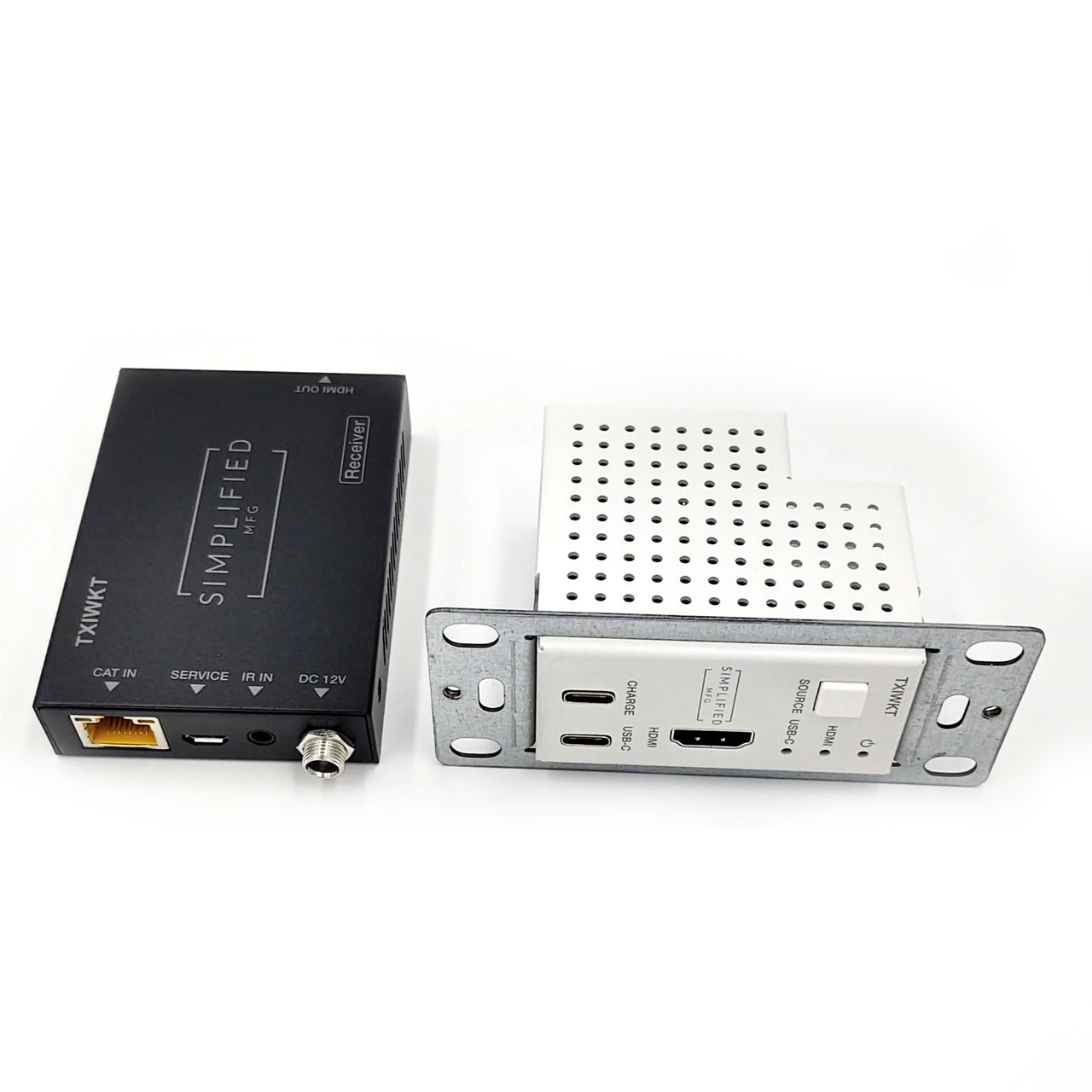

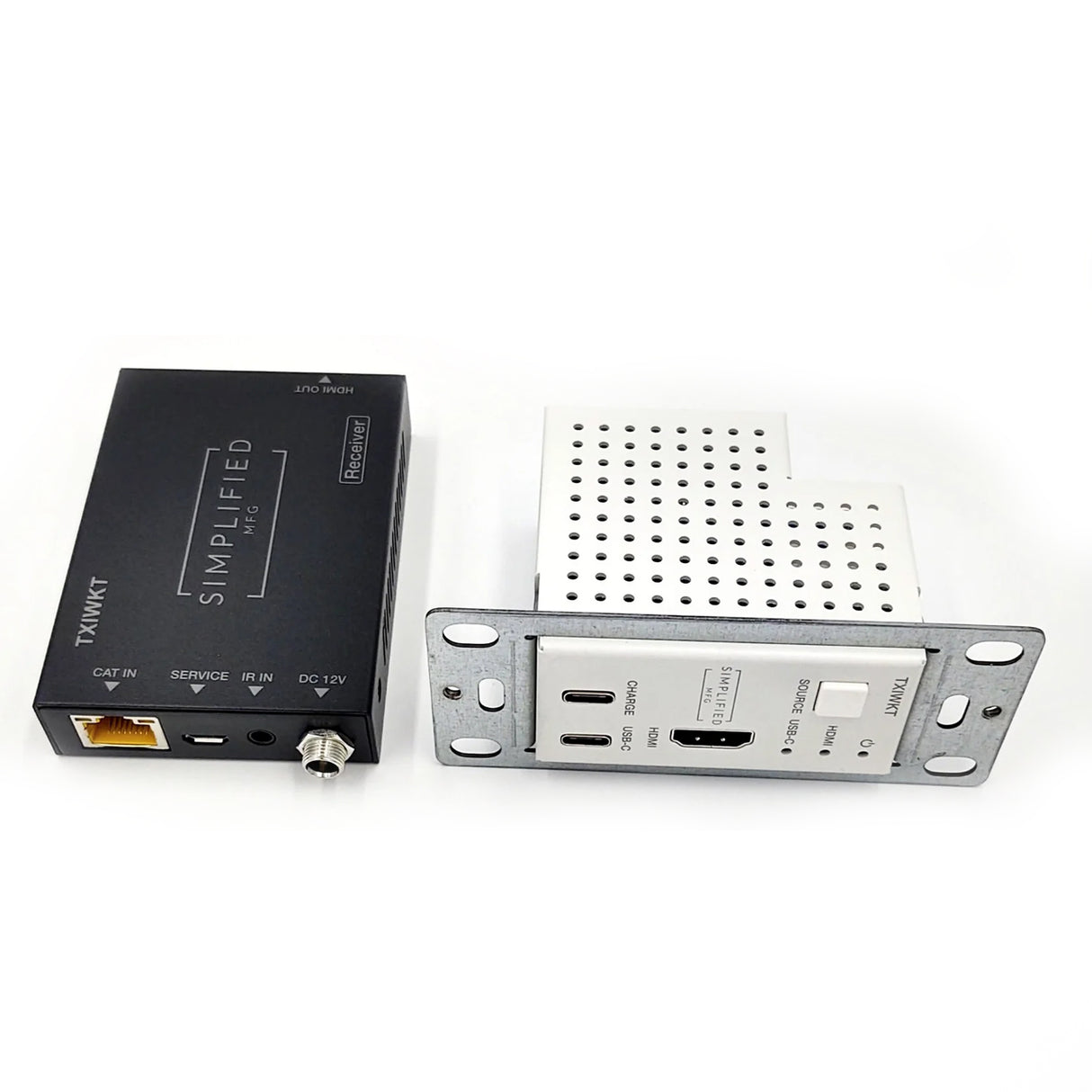

The TXIWKT is a kit consisting of a single gang Decora wall plate with a small footprint RX. Technology used in the TXIWKT is about 3 times more efficient than the typical extender. This means less heat, less energy used, and greater reliability. The TXIWKT has an HDMI Type-A input as well as a USB-C input.

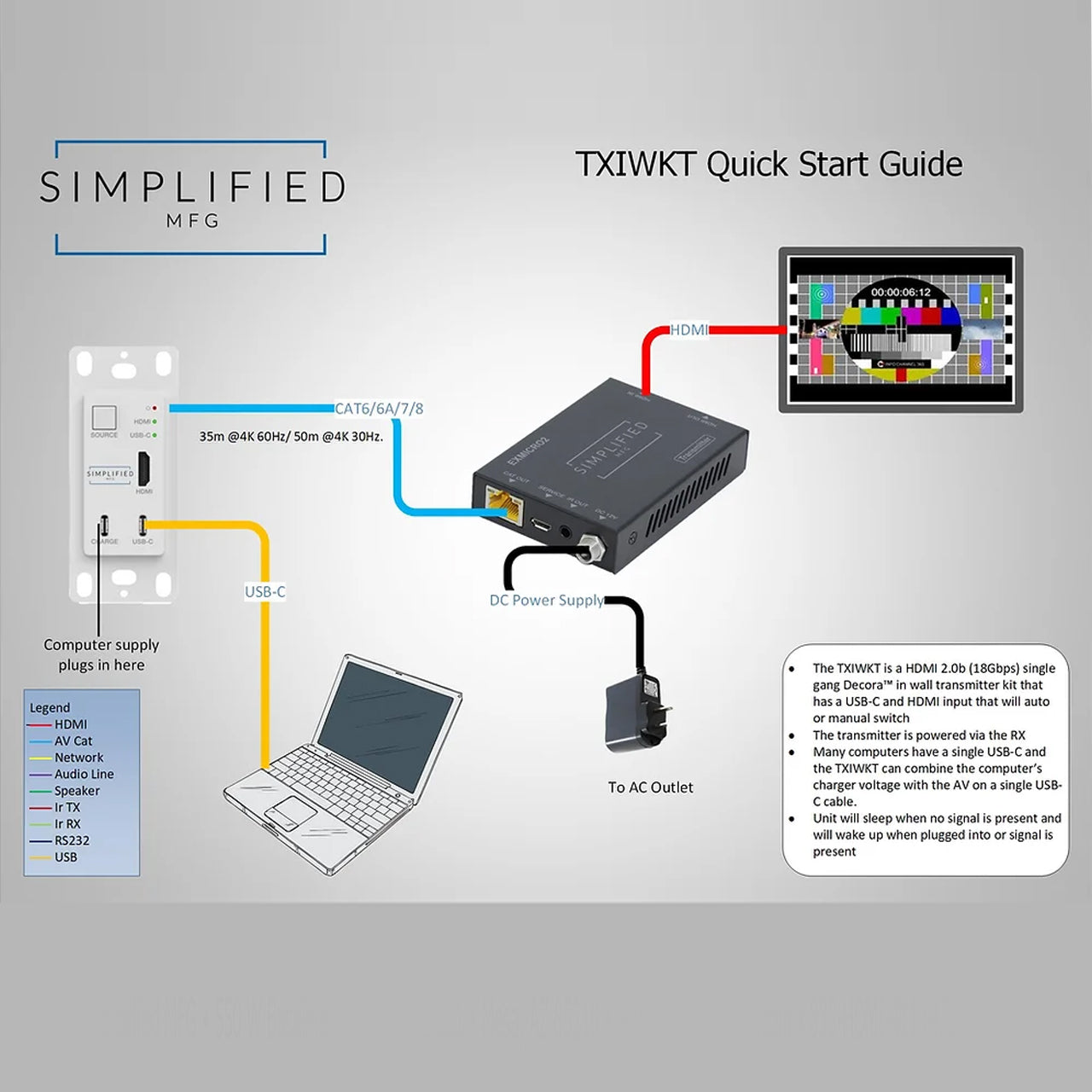

There is also a USB-C charging port. You simply connect your laptop power supply to the USB-C charge port and the power is then passed through the AV connection while presenting, back to your laptop or tablet. The sources are selected by a button on the front of the TX.
The RX powers the TX device. HDMI 2.0b is supported at @60Hz for 35 meters and at 30Hz, up to 50m. Perfect for K-12, higher ed, board room, podiums, and other applications where a HDMI port needs to be accessed.
-
Supports POE (Power Over Ethernet), the matched RX device powers the TX device
-
Transmission distance: over CAT6/6A cable
-
50 meters:
-
4K X 2K @30Hz36bit;
-
-
35 meters:
-
4K x 2K @ 60Hz.
-
-
-
Supports the entire HDMI 2.0b format at 60Hz/35m, up to 30Hz. at 50m
-
Compliant with the USB-C Video format
-
Single Gang Decora
-
RX is about the footprint of a credit card and about half an inch thick
-
Supports all HDMI audio formats
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | 4K x 2K 60/50/30/25/24 Hz., 1080p 60/50/30/25/24Hz. |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH and all Dolby+ formats, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio |
| ESD Protection: Human Body Model | ±8kV (air-gap discharge) |
| Inputs: TX |
1x HDMI Type A [19-pin female] 1x USB-C Video input 1x USB-C Charging port |
| Inputs: RX | 1x RJ45 |
| Outputs: TX | 1x RJ45 |
| Outputs: RX | 1x HDMI Type A [19-pin female] |
| Housing | Metal Enclosure |
| Color | White |
| Dimensions: TX | 68mm x 60mm x 33mm / 2.75"x2.5"x1.5" (single gang Decora) |
| Dimensions: RX | 89mm x 60mm x 17.5mm /3.5" x 2.375" x 0.5" |
| Weight: TX | 205g/7.25 Oz. |
| Weight: RX | 146g/5.125Oz |
| Power Supply Input | AC100 - 240V 50/60Hz |
| Power Supply Output | DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 3.84W(Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
