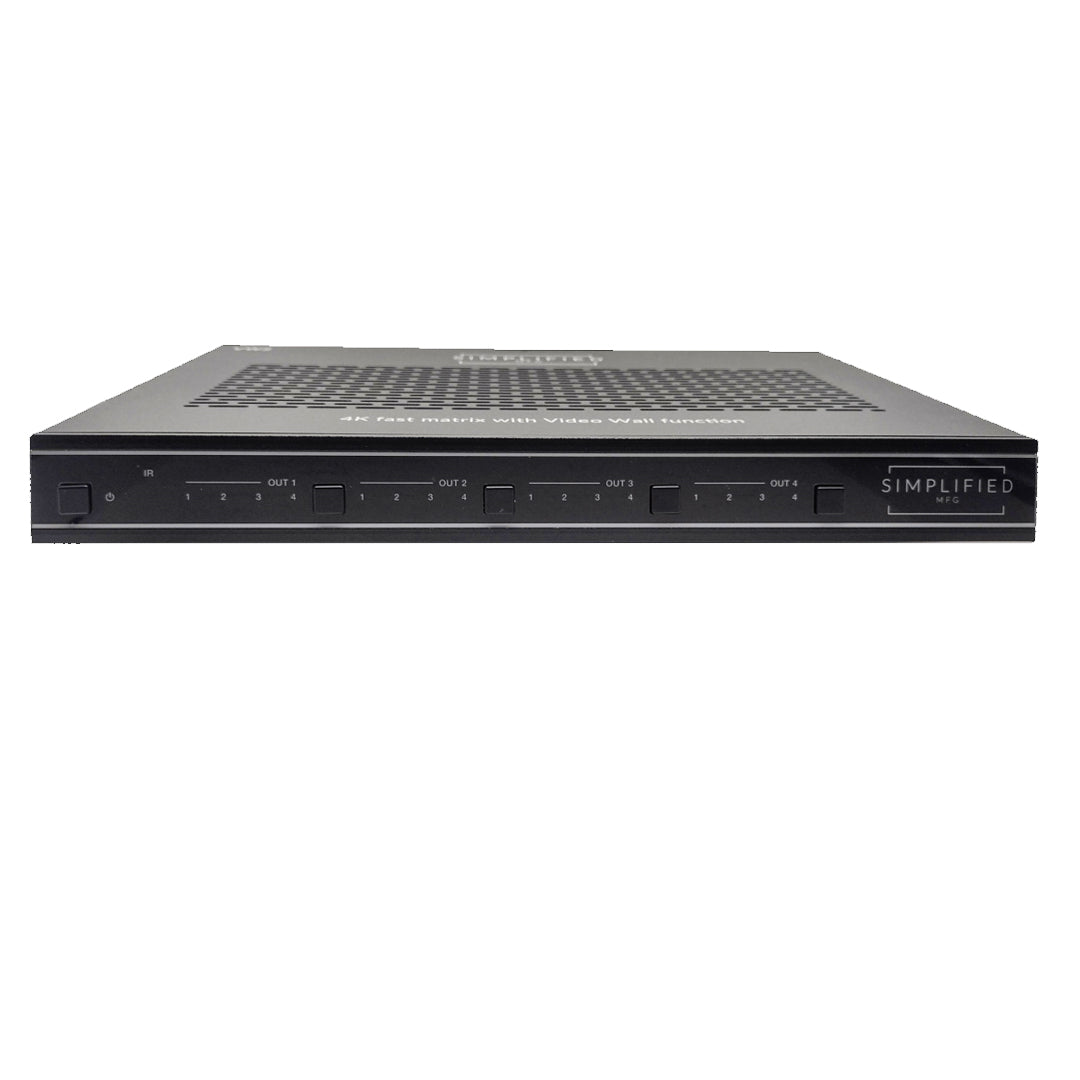

Simplified VM2, 4K Fast Switch Matrix with 4K Video Wall Functions
4k/UHD Fast switch thin mount matrix with video wall function.

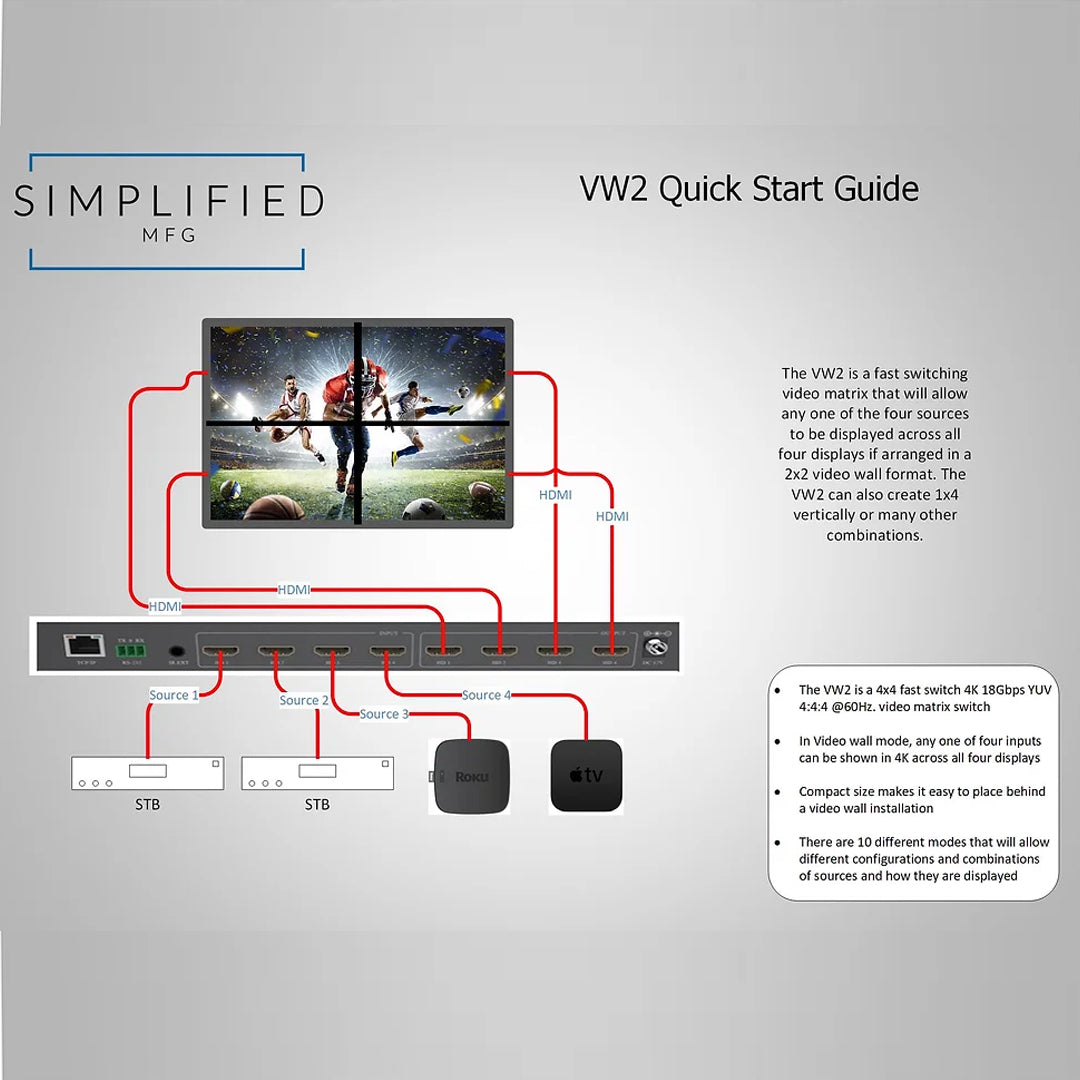

The VW2 was designed to be a 2x2 4K/UHD (or a myriad of other resolutions) matrix switch that allows you to put four individual pictures or on single picture across 4 displays. It is thin to accommodate mounting behind displays. The VW2 also has an intuitive web GUI for easy set up and even control of the device. The fast switching speed allows changing sources or functions to be done in a fraction of a second.
Primary Use: Create video walls for hospitality and digital signage applications.
4x4 Fast Switch with Video wall Function
4K 60Hz. (18Gbps, YUV4:4:4)
Image flip vertical and horizontal
1 image across all displays, or single image on each display
IP, RS232, and IR controllable
Thin mount for easier installation behind displays
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/ 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8, 10, & 12- bit |
| HDMI Audio Formats (Pass-through) | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio |
| ESD Protection: Human Body Model | ±8kV (air-gap discharge) |
| Inputs | 4x HDMI Type A [19-pin female], 1 VGA w/3.5mm mini, 1 Composite w/2 RCA audio inputs, and 1 USB |
| Outputs | 4x HDMI Type A [19-pin female] (one is multifunction) |
| Power | 1x5.5mm Locking Power Connector |
| Control | 1x RJ-45, 1x 3-Pin Phoenix connector (RS-232), & 1x 3.5mm IR input |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 270mm/10.63" [W] x 166mm/6.53" [D] x 30mm/1.18" [H] |
| Weight | 1165g/ 3lb,9.1oz |
| Power Supply | Input: AC100 - 240V 50/60Hz |
| Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) | |
| Power Consumption | 19.56W (Max) |
| Operation Temperature | 0°C~40°/32°F~104°F |
| Storage temperature | -20°C~60°C/-4°F~140°F |
| Relative Humidity | 20 - 90% RH (no condensation) |
