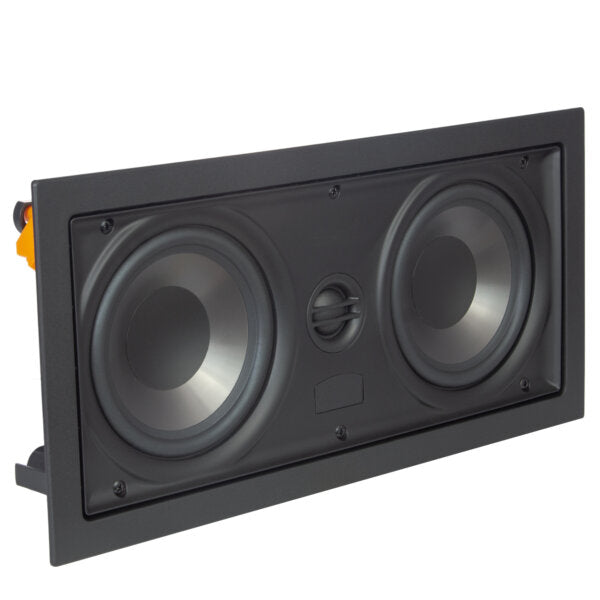

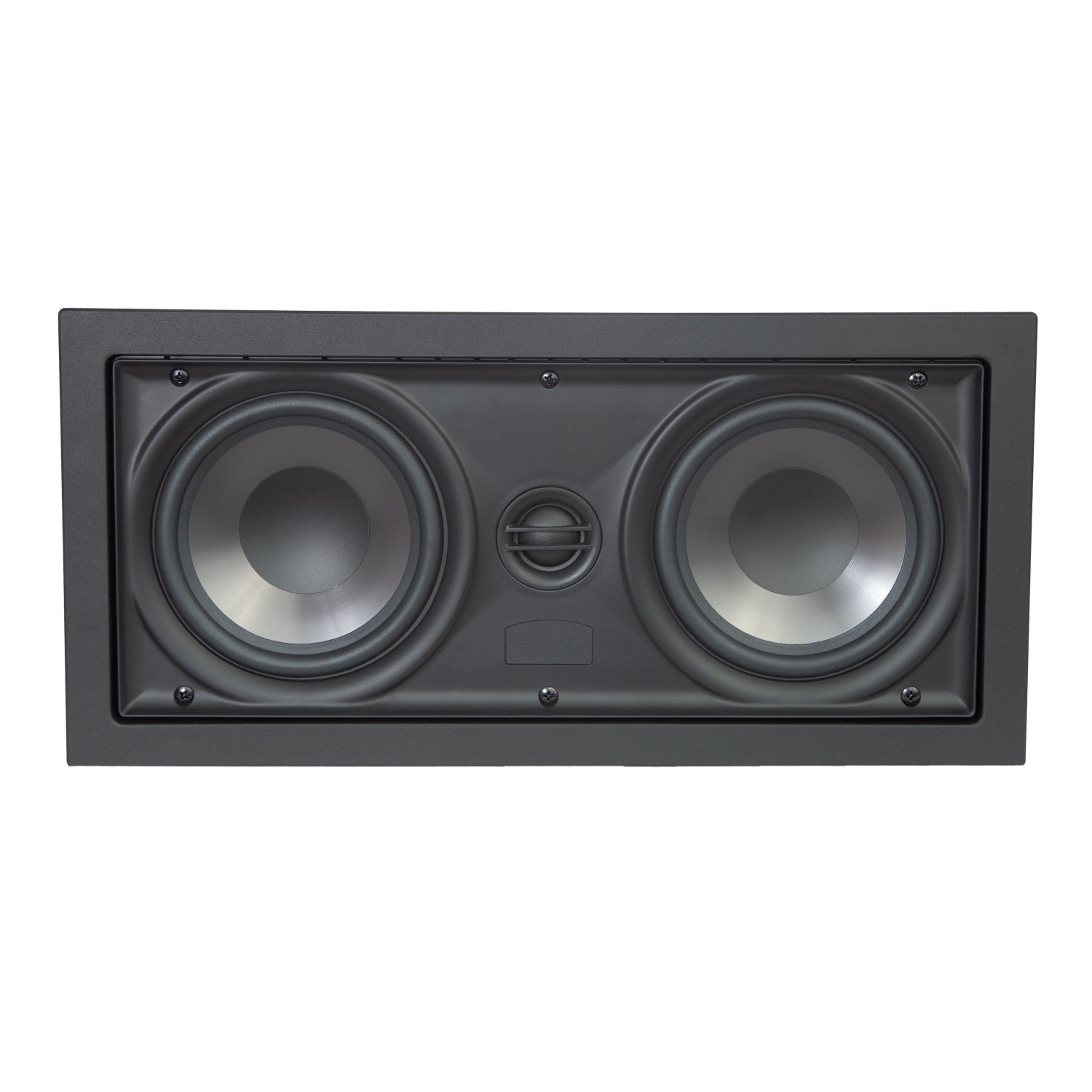

SpeakerCraft DX-FW5-LCR (DX-Stage F Series) 2 x 5 1/4 " In-Wall LCR Speaker- Dual Polypropylene Cones, 1" Pivoting Silk Tweeter, 110W (EACH)

SKU SC-DX-FW5-LCR
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

DX-Stage F Series- 2 x 5 1/4 ” In-Wall LCR Speaker- Dual IM Poly Cones, 1″ Pivoting Silk Tweeter (Each)

Feel the breath of the singer, the pick of the guitar, or the SFX of movies and games with crisp room-filling sound.

Featuring Two 5 1/4 -inch Injection Molded Poly Cones, and 1-inch aimable silk dome tweeter the DX-FW5-LCR is ideal for immersive music, movies and gaming applications where excellent performance and robust dynamics are required.

  • Two 5 1/4 Inch Injection Molded Polypropylene Woofers: The IM process yields stability, consistent performance for in wall LCR applications.

  • 1 Inch Aimable Silk Dome Tweeter: The pivoting tweeter can be aimed towards the ideal sweet spot position.

  • Low Profile Grill: A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into any décor

  • Easy-Grip Tweeter Bridge: Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

  • Precision Tooled Diffusion Baffle: scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.

  • Secure Connection: All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

  • Timber and Performance Matched: Expect consistent dynamic and detailed sound in every Stage F series speaker

Shipping Info
  • Length: 17.3 (Inches)
  • Width: 9.5 (Inches)
  • Height: 5.3 (Inches)
  • Weight: 7 (Lbs)
  • Unit of Measure: Each
  • UPC: 844039014535
Other Specifications
  • Woofer Size: Dual 5-1/4″ / 130mm
  • Woofer Construction: Injection Molded Polypropylene Cone
  • Tweeter: 1″ / 25mm Pivoting Silk Dome
  • Frequency Response: 48Hz-20kHz
  • Impedance: 8 (Ohms)
  • Power Handling: 110 (Watts)
  • Sensitivity: 90(dB)
  • Timbre: Timbre-Matched to all Focus Series Speakers
  • Dimensions: 15.6″ / 396mm Width x 7.76″ / 197mm Height x 3.9″ / 99mm Depth
  • Hole Cutout Dimensions: 6.2″ / 157.2mm Width x 14.5″ / 369mm Height
  • Mounting Depth: 3.8″ / 96mm
