SpeakerCraft DX-GC6 (DX-Grand Series) 6 1/2 " In-Ceiling Speaker - Graphite Injected Polypropylene Cone 1" Pivoting Aluminum Tweeter, 120W (PAIR)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

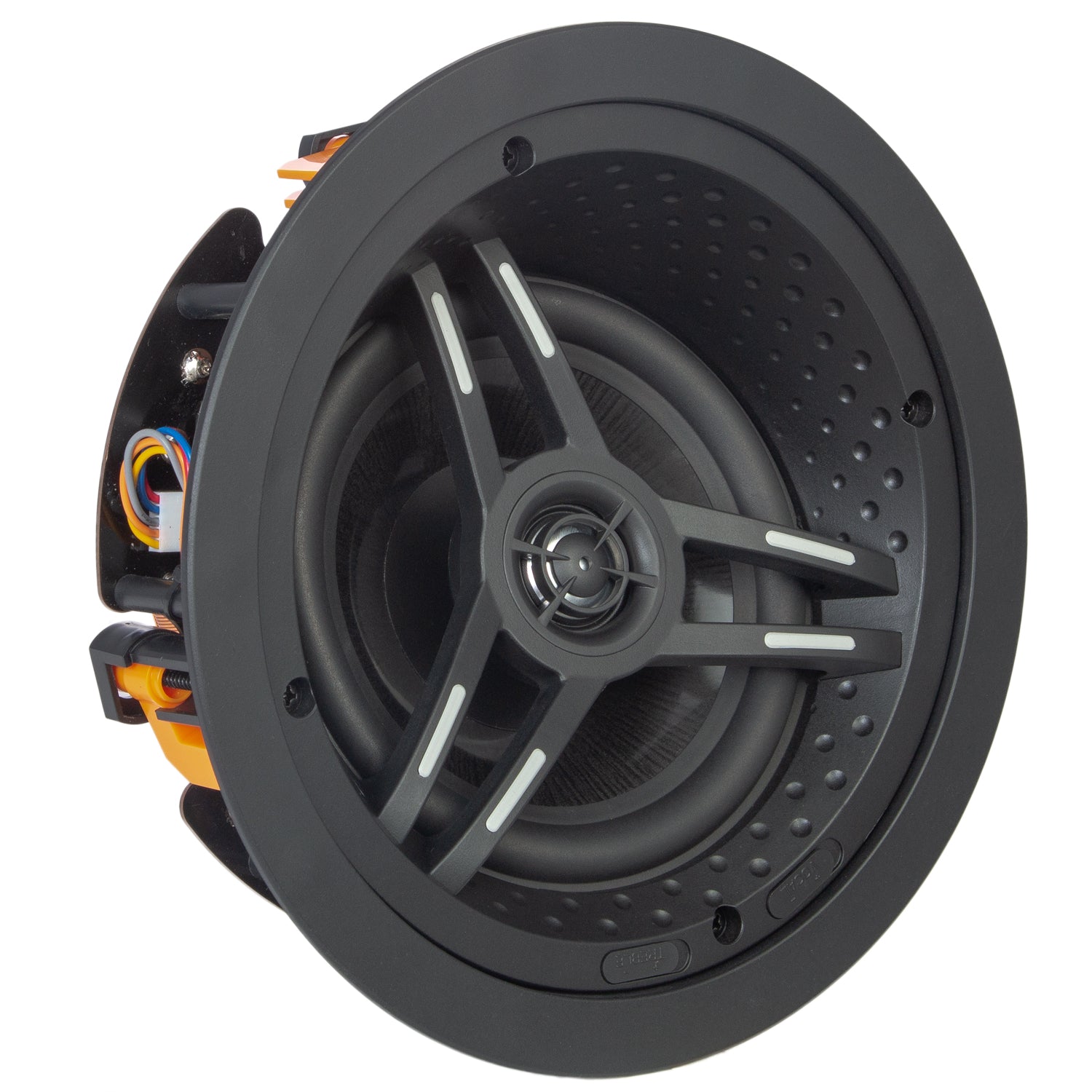

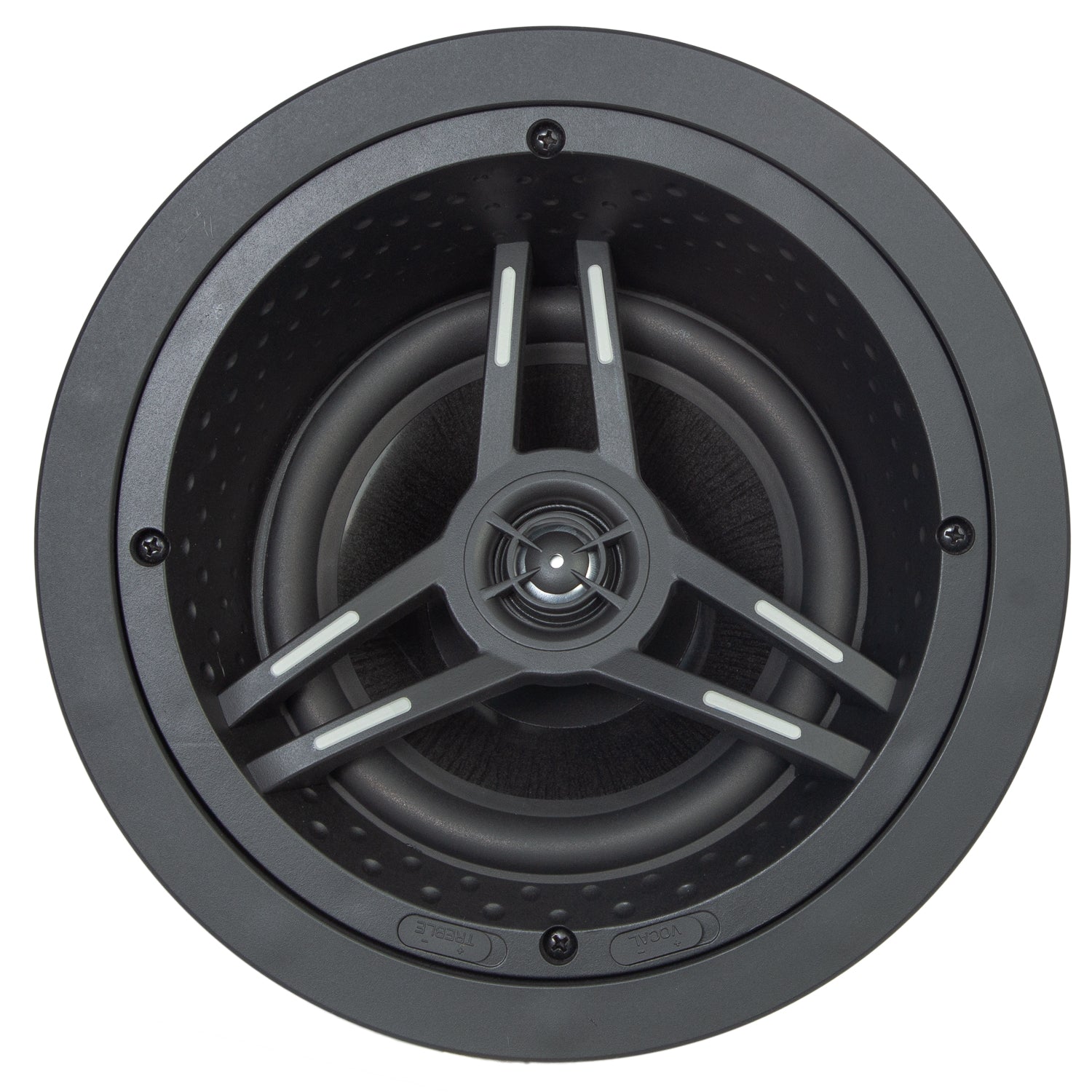

DX-Grand Series- 6 1/2 ” In-Ceiling Speaker (Pair)

Experience the best seats in the house with the Grand Stage Series. Explosive dynamics, immersive soundstage, and nuanced realism.

Whether it’s high-performance distributed audio or home theater, the DX-GC6 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved via a graphite-injected polypropylene cone woofer and 1″ aluminum dome tweeter.

Front-mounted vocal and tweeter enhancement switche enable increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance.


  • Quick, Responsive Highs: Aluminum dome tweeters are lightweight, strong and respond instantaneously to changes in music or movies

  • Tilt Tweeter: The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations

  • Low Profile Grill: A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, Blends discreetly into any décor

  • Easy-Grip Tweeter Bridge: Installing speakers above your head requires a sturdy grip point and the SpeakerCraft Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes

  • Precision Tooled Diffusion Baffle: scattered concavities reduce reflection and disperse the sound evenly for a natural room filling experience.

  • Secure Connection: All SpeakerCraft speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling

  • Timber and Performance Matched: Expect consistent dynamic and detailed sound in every Grand Stage series speaker

Shipping Info

  • Length: 10.6 (Inches)
  • Width: 10.6 (Inches)
  • Height: 5.9 (Inches)
  • Weight: 6.17 (Lbs)
  • Unit of Measure: Pair
Other Specifications
  • Woofer Size: 6-1/2″ / 160mm
  • Woofer Construction: Graphite Injected Polypropylene Cone
  • Tweeter: 1″ / 25mm Pivoting Aluminum Dome
  • Frequency Response: 50Hz-20kHz
  • Impedance: 8 (Ohms)
  • Power Handling: 120 (Watts)
  • Sensitivity: 88 (dB)
  • Timbre: Timbre-Matched to all Grand Stage Series Speakers
  • Dimensions: 9-5/8″ / 237mm Diameter x 4.6″ / 117 mm Depth
  • Hole Cutout Dimensions: 8-1/4″ / 210 mm Diameter
  • Mounting Depth: 4.5″ / 115mm
