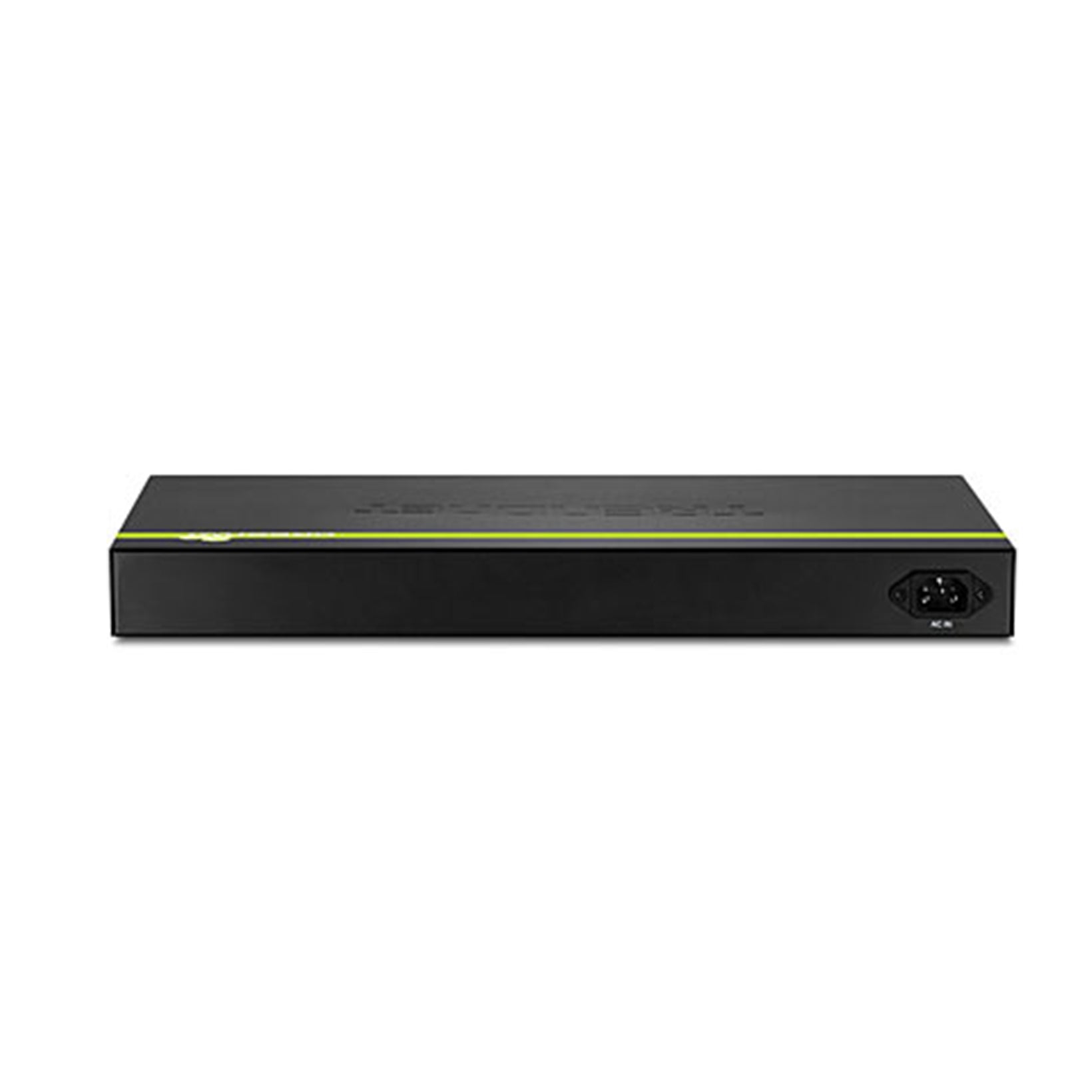

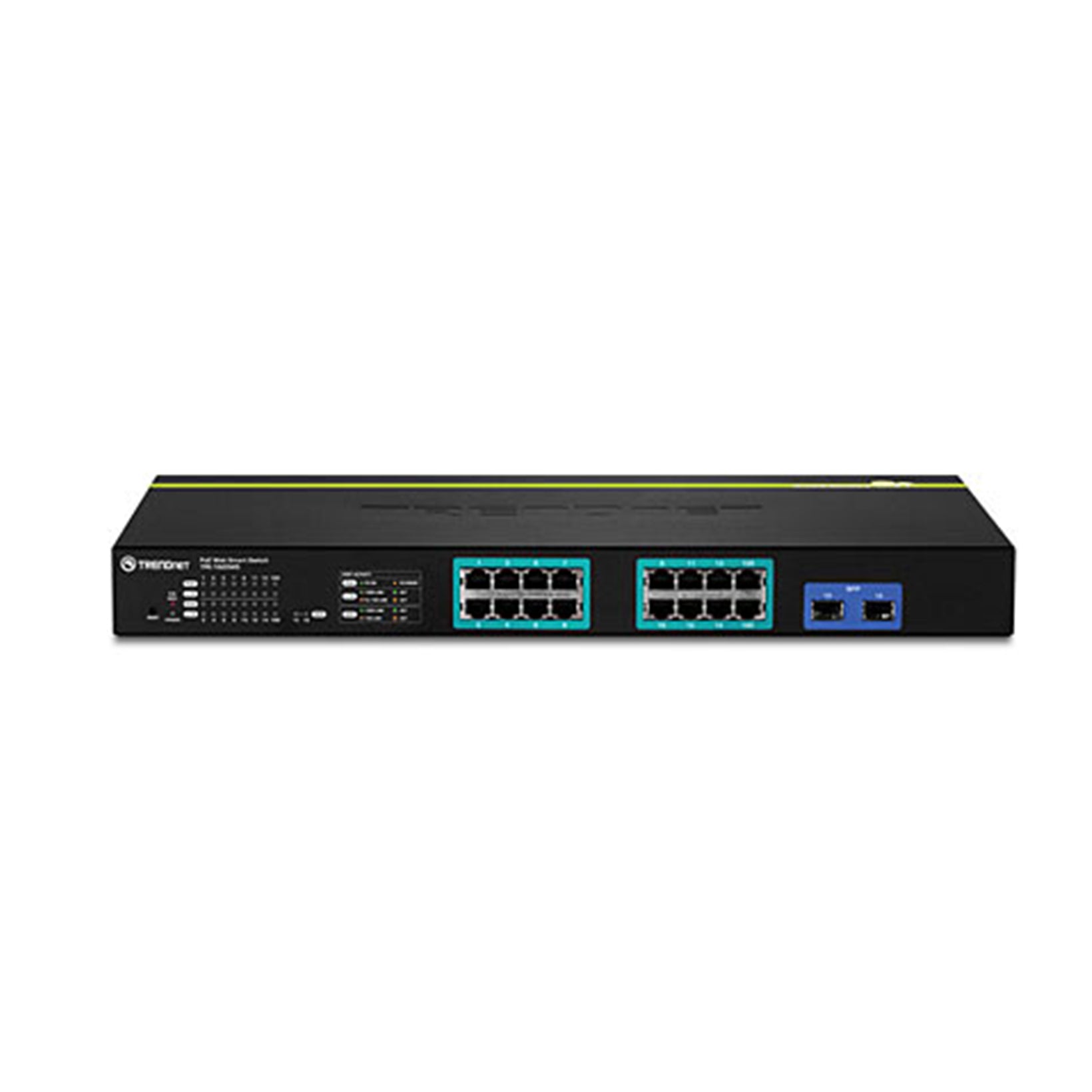

TRENDnet 1620WS 16-port Gigabit Web Smart PoE+ Switch w/ 2 Shared Mini-GBIC Slots (16 PoE+, 2SFP)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Gigabit PoE Injector / TPE-113GI (Version v3.0R)

  • Full Duplex Gigabit speeds
  • Supplies PoE (15.4W)
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Converts a non-PoE Gigabit port to a PoE Gigabit port
  • Save on installation and equipment costs
  • IEEE 802.3af compliant

The TPE-113GI Gigabit PoE Injector from TRENDnet enables users to create an integrated PoE and non-PoE Gigabit network. It delivers up to 15.4W of PoE at distances up to 328'. Short circuit protection ensures that your equipment will remain safe.

  • Plug-and-play operation in remote locations
  • Enables you to install a PoE device where a power outlet is unavailable
  • Create an integrated PoE and non-PoE Gigabit network
  • IEEE 802.3ab Gigabit and 802.3af PoE compliant
  • 1 x 10/100/1000M Auto-MDIX data in port
  • 1 x 10/100/1000M PoE Auto-MDIX data out port
  • Safeguards network devices with short circuit protection
  • Reduces installation and network equipment costs by not requiring a PoE switch for operation
  • Power port
  • LED indicator for power
  • Wall mounting points
  • Lightweight at only 1.6 ounces
  • FCC and CE certified
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
Device Interface
  • 1 x Gigabit Data In port
  • 1 x Gigabit Data & Power out port
  • 1 x Power Input
  • LED indicator
Special Features
  • Wall-mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
PoE Delivery
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
  • Input: 100 – 240V AC, 50/60Hz, 0.6A max.
Power Consumption
  • Max. 15.4W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
  • 67 x 51 x 25mm (2.6 x 2 x 1 in.)
  • 38g (1.34 oz.)
  • CE
  • FCC
  • 3 year
