TRENDnet TEG-30262 24-port Gigabit Switch with 2x 10G SFP+Slots

SKU TNTEG-30262
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

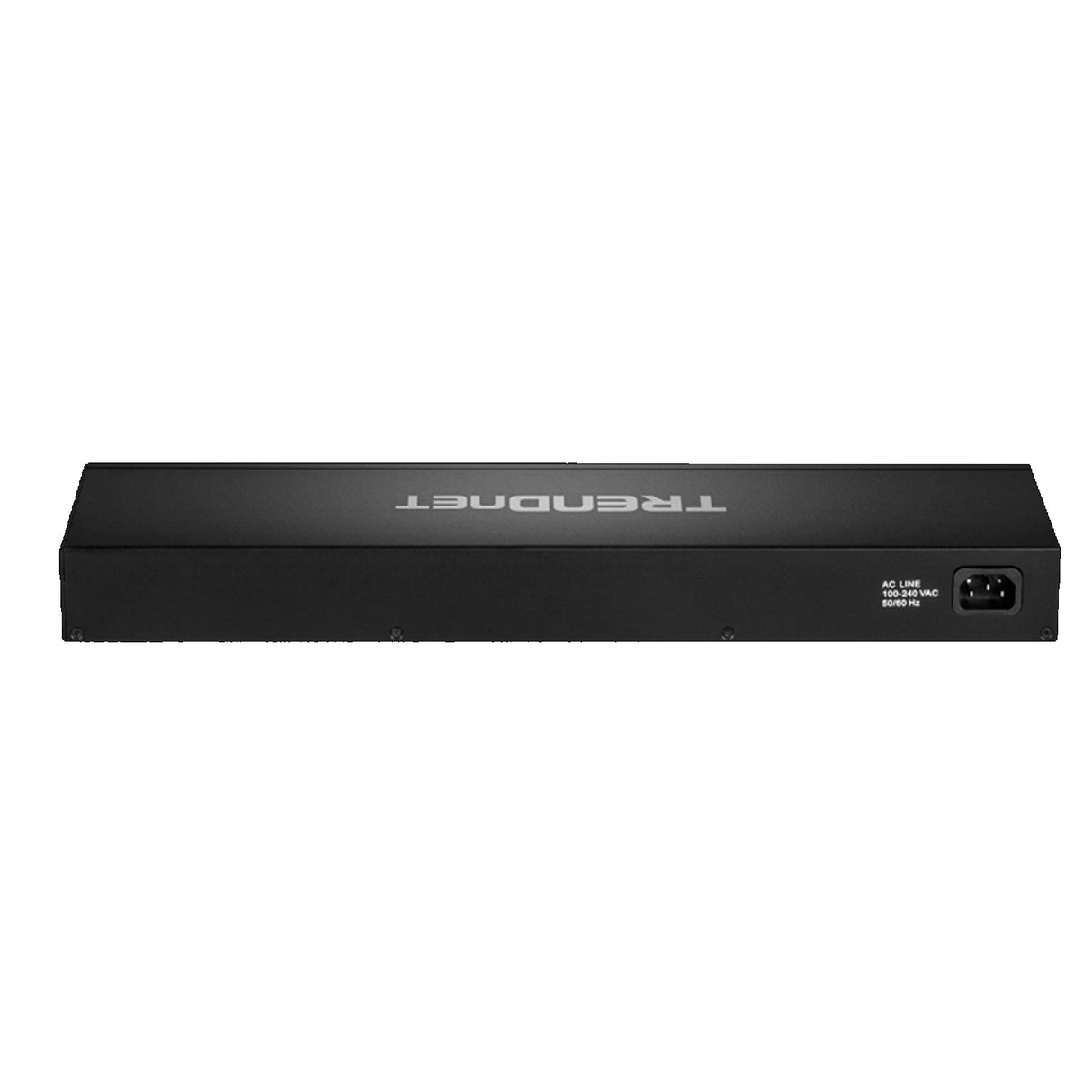

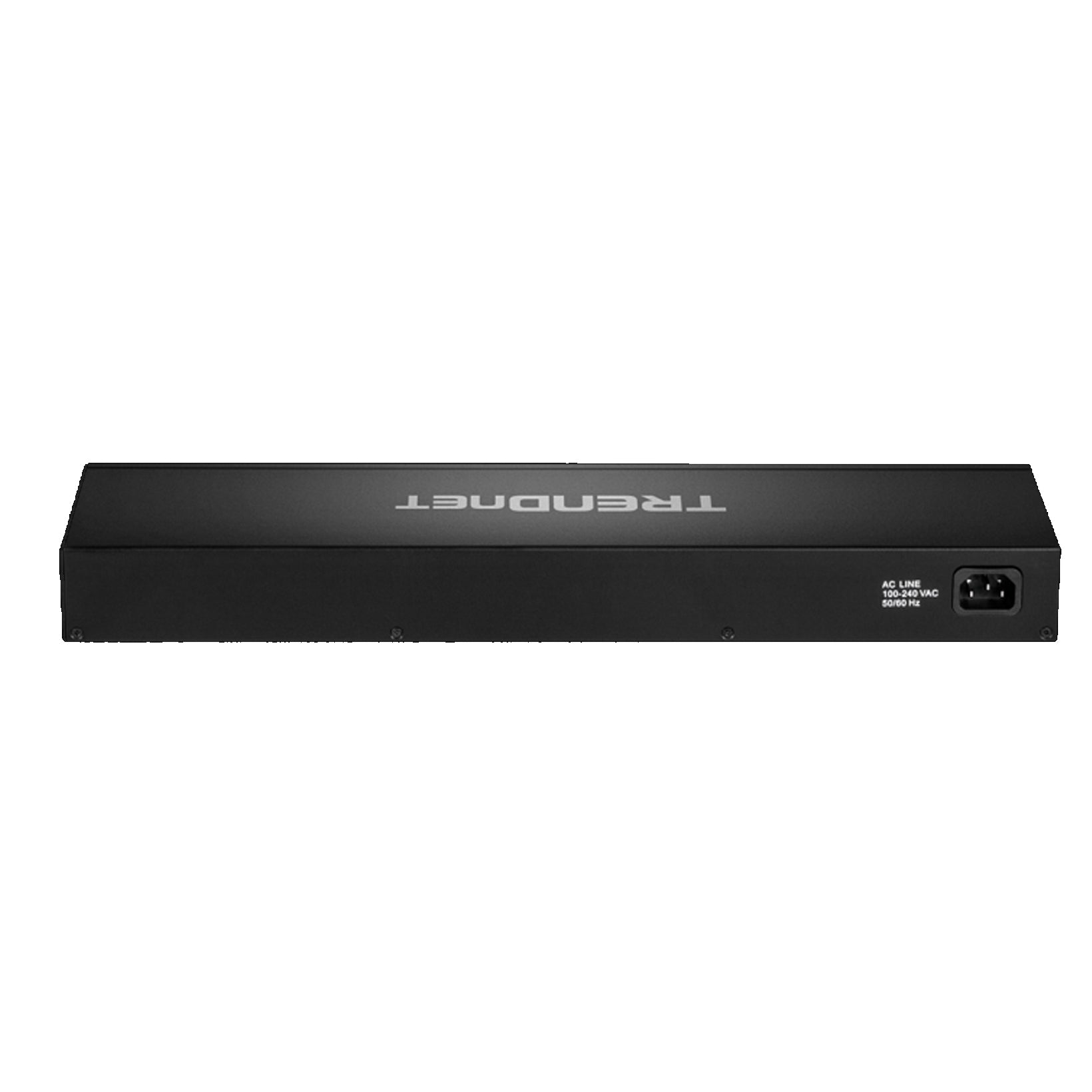

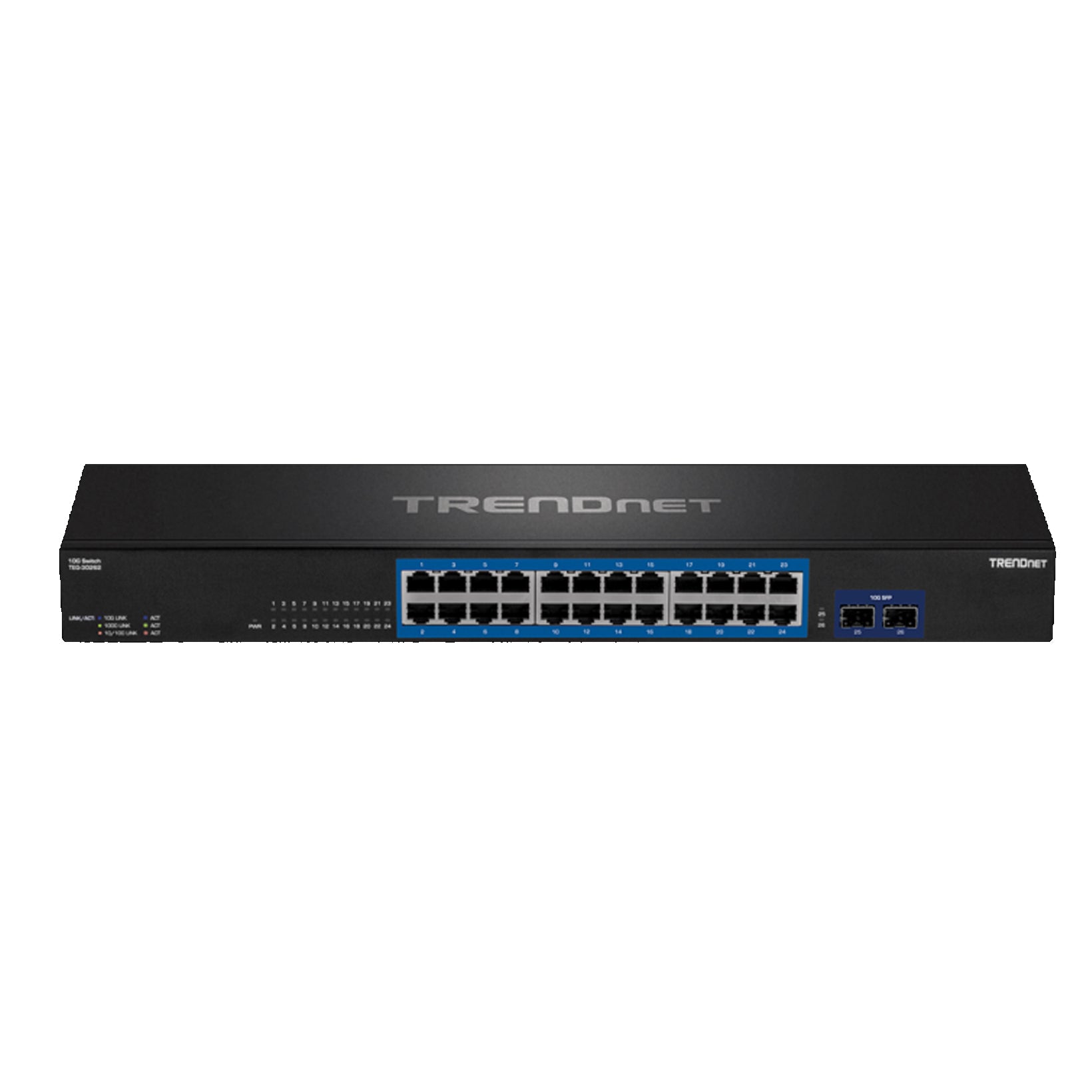

24-Port Gigabit Switch with 2 x 10G SFP+ Slots / TEG-30262 (Version v1.0R)

  • 24 x Gigabit ports
  • 2 x 10G SFP+ slots
  • 88Gbps switching capacity
  • 1U rack mountable (brackets included)
  • Fanless Design

TRENDnet's 24-Port Gigabit Switch with 2 x 10G SFP+ Slots, model TEG-30262, provides high bandwidth performance, ease of use, and reliability. This 10G SFP switch offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. With a sturdy metal housing and included rackmount brackets, the 10G SFP switch is well-suited for 19” 1U rack installations.

  • Residential Delivery - A residential delivery charge applies to shipments to a home or private residence, including locations where a business is operated from a home, or to any shipment in which the shipper has designated the delivery address as a residence.
  • Inside Delivery - When requested, freight carrier unloads shipments from or to areas that are not next to the trailer, such as shopping malls or office buildings. An elevator must be available to provide service to floors above or below the trailer.
  • Liftgate - Freight carrier provides liftgate service, if needed, to load and unload a shipment when loading/unloading docks are not available.
  • Limited Access Locations - A limited access location is a site where pickup or delivery is restricted or limited.
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3ae
  • IEEE 802.3az
Device Interface
  • 24 x Gigabit ports
  • 2 x 10G SFP+ slots
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
  • 10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
  • Switching Capacity: 88Gbps
  • RAM Buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 65.5Mpps (64-byte packet size)
  • Jumbo Frames: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 18.9W
Fan/Acoustics
  • Fanless design
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 130 x 44mm (1.57 x 5.1 x 1.73 in.)
Weight
  • 1.935kg (4.27 lbs.)
Certifications
  • CE
  • FCC
  • ETL
