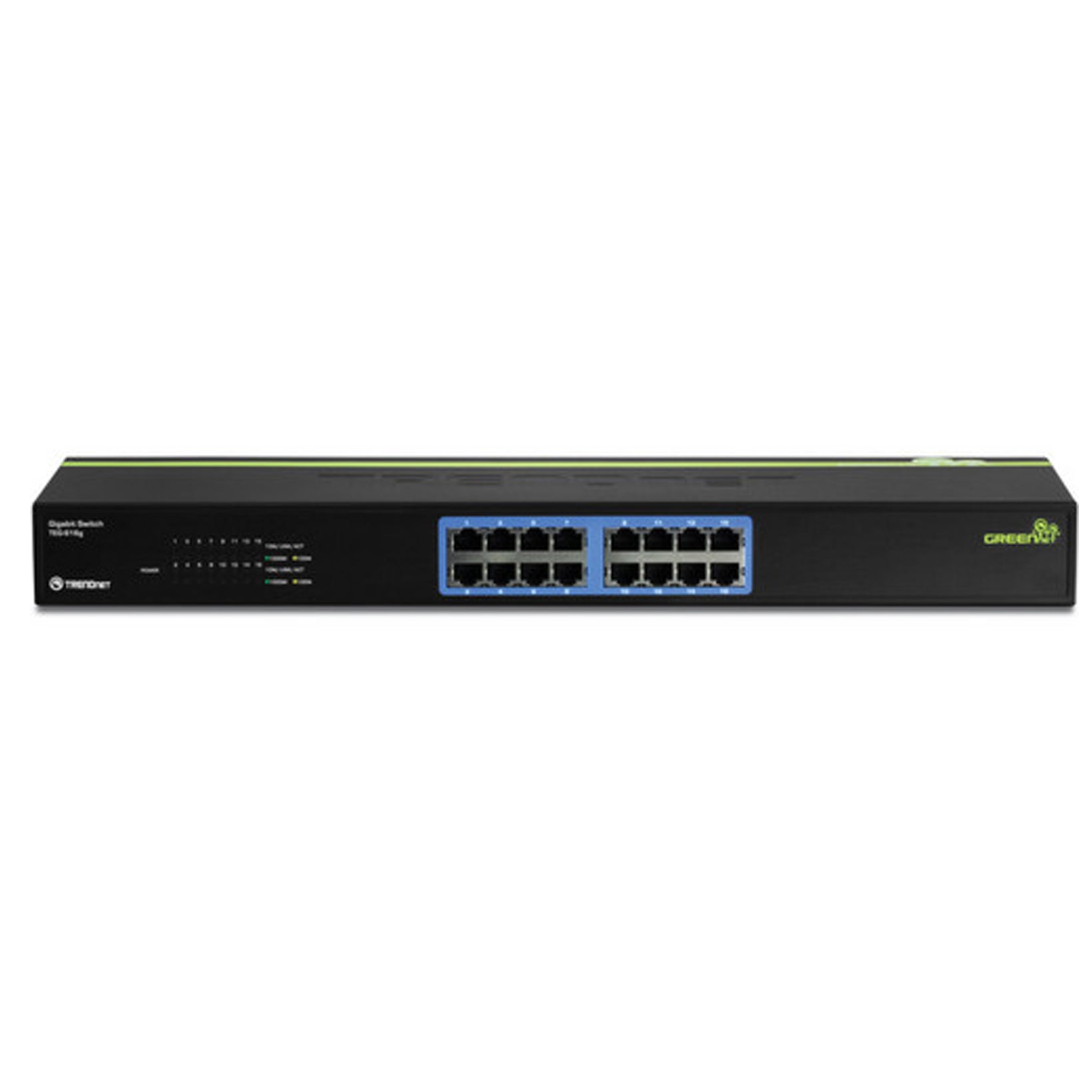

TRENDnet TEG-S16g 16-port Gigabit GREENnet Switch(Rack Mount)

SKU TNTEG-S16g
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

16-Port Gigabit GREENnet Switch / TEG-S16g (Version v2.0R)

  • GREENnet technology reduces power consumption by up to 70%*
  • 16 x Gigabit RJ-45 ports
  • Sturdy rackmount metal switch with built-in power supply
  • 32 Gbps forwarding capacity
  • Lifetime Warranty*

The 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.

Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32 Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

  • Total of sixteen 10/100/1000 Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
  • GREENnet technology reduces power consumption in four different scenarios:
    a. Ethernet port is not in use
    b. Connected device is turned off
    c. Connected device is in power-saving mode
    d. Based on Ethernet cable length

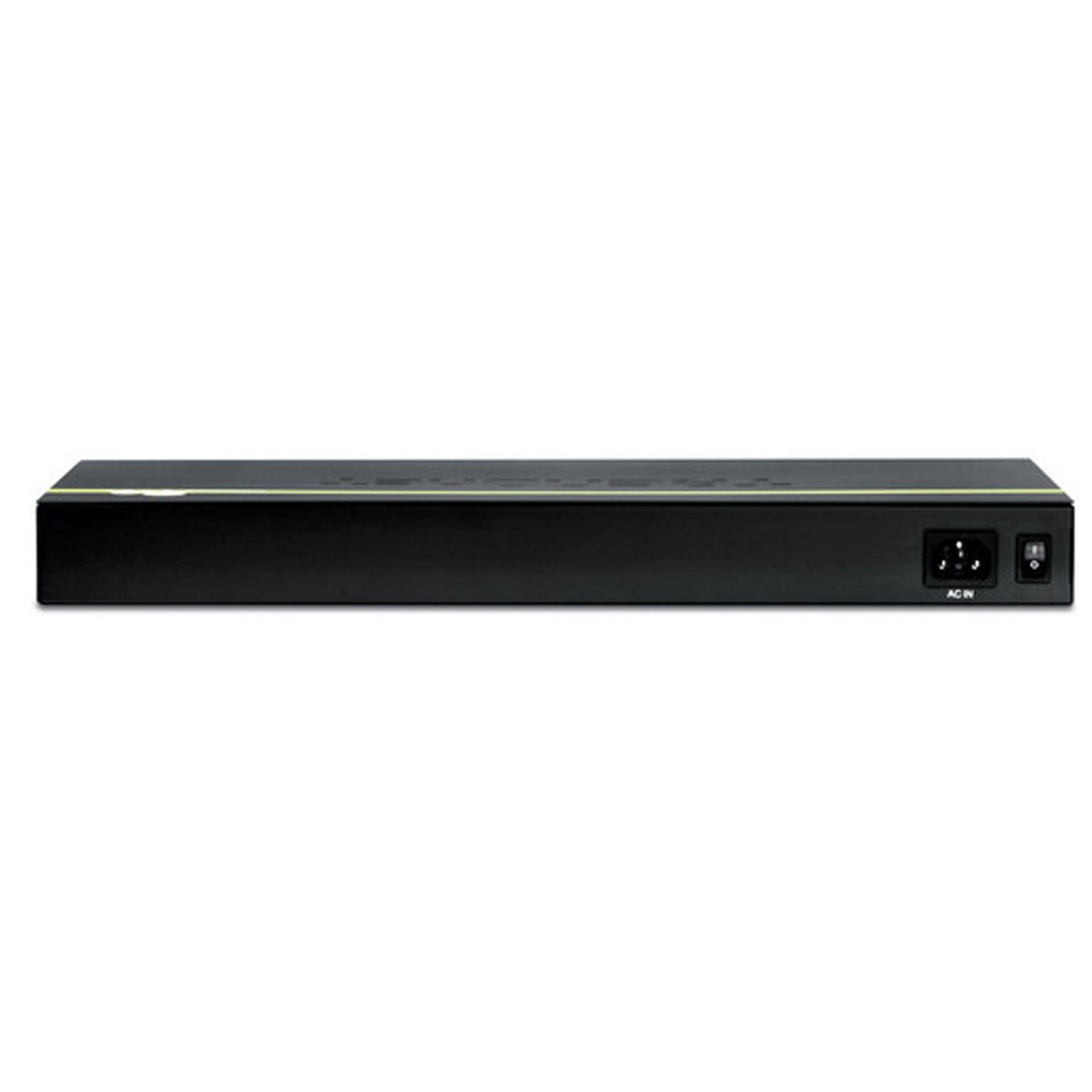

  • On / Off power switch
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • Integrated address look-up engine with an 8K MAC address table
  • 2Mbits RAM data buffer
  • Operates and maximizes packet filtering and forwarding rate
  • Jumbo Frame support up to 9216 Bytes
  • Rackmount hardware included
  • Sturdy metal housing

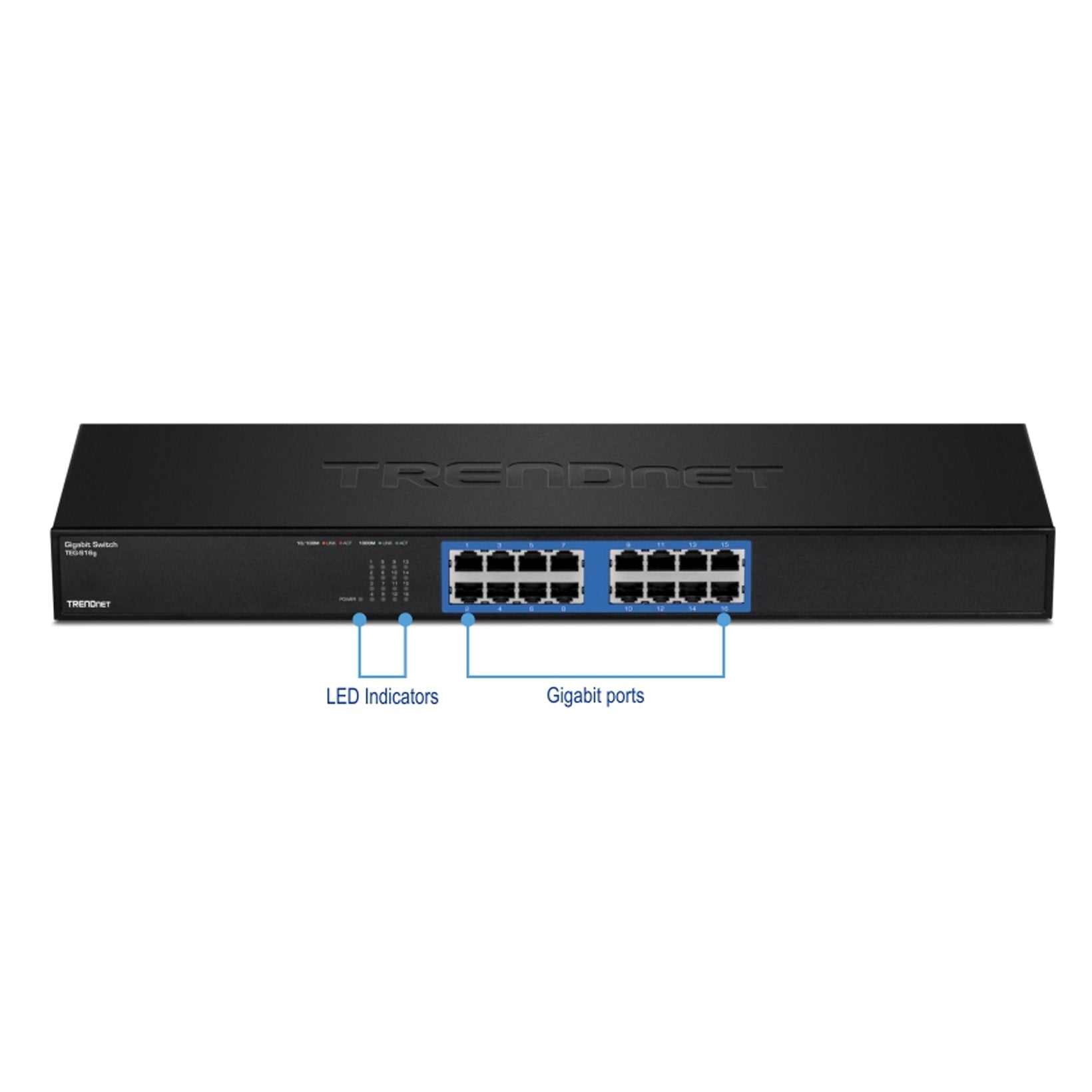

  • Diagnostic LEDs show the Power, Link/ACT, and Speed status for all sixteen ports
  • Plug-and-play support allows you to connect to the switch and begin immediately
  • Compatible with Windows, Linux, and Mac operating systems
  • 3-year limited warranty
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Network Media
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5 and 5e up to 100 m
  • Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
  • Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
  • Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
  • Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
  • CSMA / CD, Star
Power Consumption
  • 10.1 Watts (max.)
Switch Fabric
  • 32 Gbps
Interface
  • 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
  • 512 KB
Filtering Table
  • 8 K entries
Jumbo Frame Support
  • Up to 10 KB
Diagnostic LED
  • Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
Power
  • 100~240 VAC, 50/60 Hz Internal universal switching power
Dimension
  • 440 x 140 x 44 mm (17.3 x 5.5 x 1.75 in.)
Weight
  • 1.8 kg (3.8 lbs.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC
