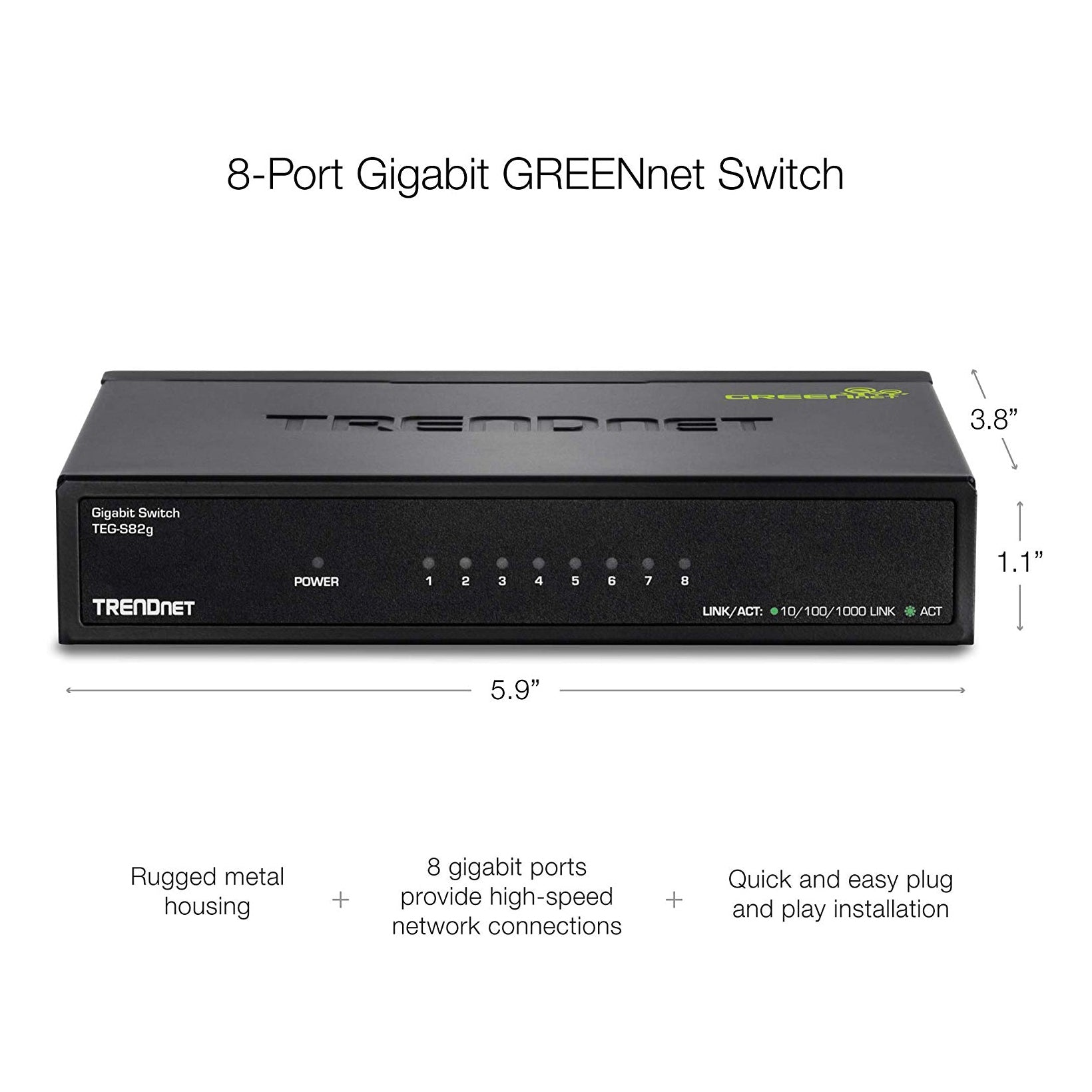

TRENDnet TEG-S82g 8-port Gigabit GREENnet Switch /w metal case

SKU TNTEG-S82g
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

TRENDnet TEG-S82g 8-port Gigabit GREENnet Switch /w metal case

  • 8 x Gigabit Auto-MDIX RJ-45 Ports
  • Gigabit Ethernet Data Speeds
  • 16 Gbps Forwarding Capacity
  • 256 K Bytes Data RAM Buffer

Hardware Design

Fanless rack mountable 1U metal housing features 16 gigabit ports and 4 shared gigabit ports (RJ-45/SFP).

Switching Capacity

16Gbps switching capacity

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Troubleshooting

A convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Ports

8 x Gigabit Ethernet ports

Easy Setup

Simply power up the switch and plug in connected devices

Fanless

Fanless design lowers energy consumption and eliminates operating noise

The TEG-S82g 8-Port Gigabit GREENnet Switch from TRENDnet features eight Gigabit Ethernet ports for fast, secure transfer of data. Take advantage of enhanced data transfer speeds of up to 2,000 Mbps in full-duplex mode providing sufficient network bandwidth for activities such as streaming HD content, transferring large files, streaming music and more.

  • GREENnet Technology reduces power consumption
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode

Specs

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit ports

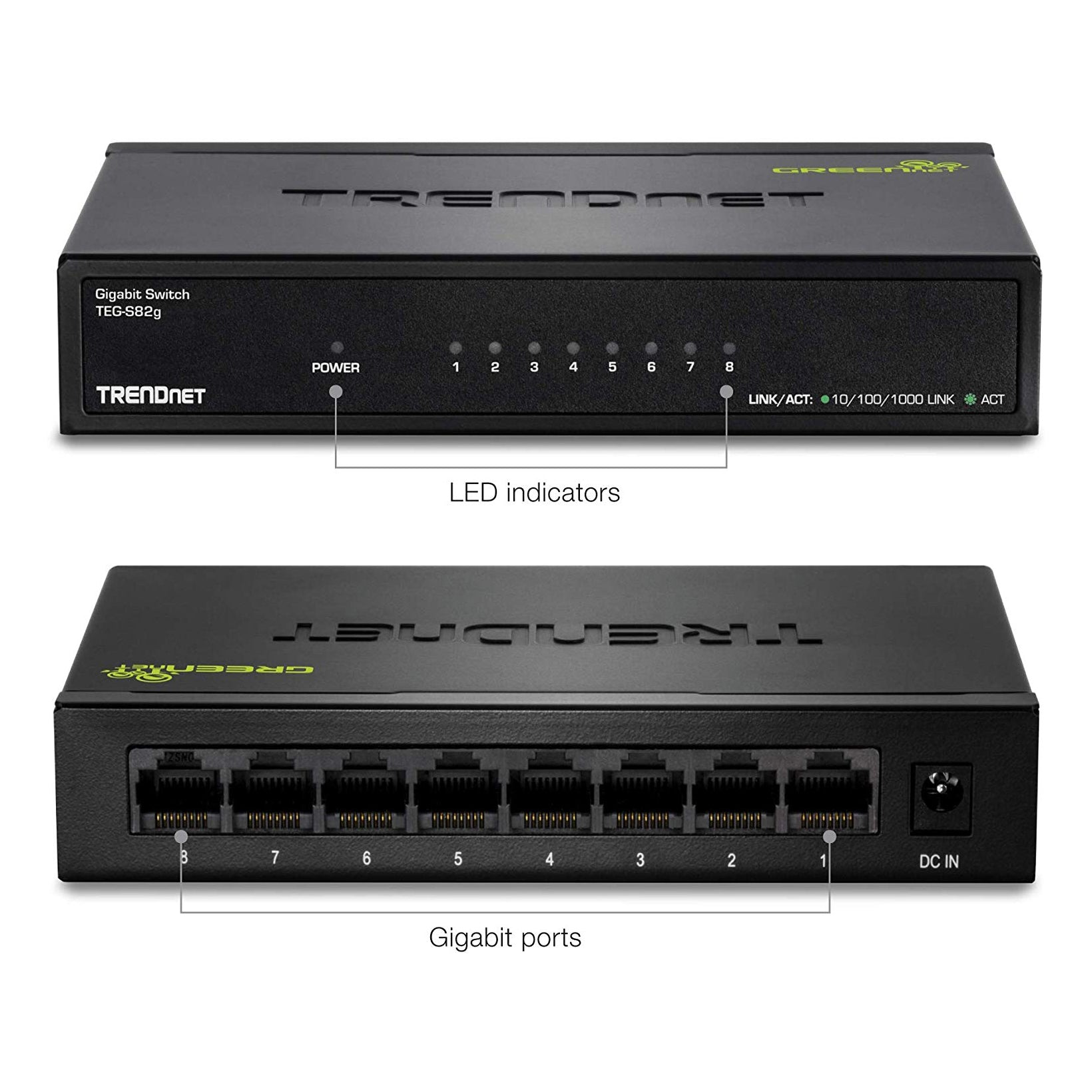

  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM buffer: 192KB
  • Switch fabric: 16Gbps
  • MAC address table: 4K
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo frame: 9KB
Special Features
  • GREENnet energy saving technology
  • Metal enclosure
  • Wall Mountable
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.15A
  • Output: 5V DC, 1A external power adapter
  • Max. consumption: 4W
Fan/Acoustics
  • Fanless design
MTBF
  • 2,082,116 Hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 97 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight
  • 365g (12.9 oz.)
Certifications
  • CE
  • FCC
