TRENDnet TEW-831DR AC1200 Dual Band WiFi Router

SKU TNTEW-831DR
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

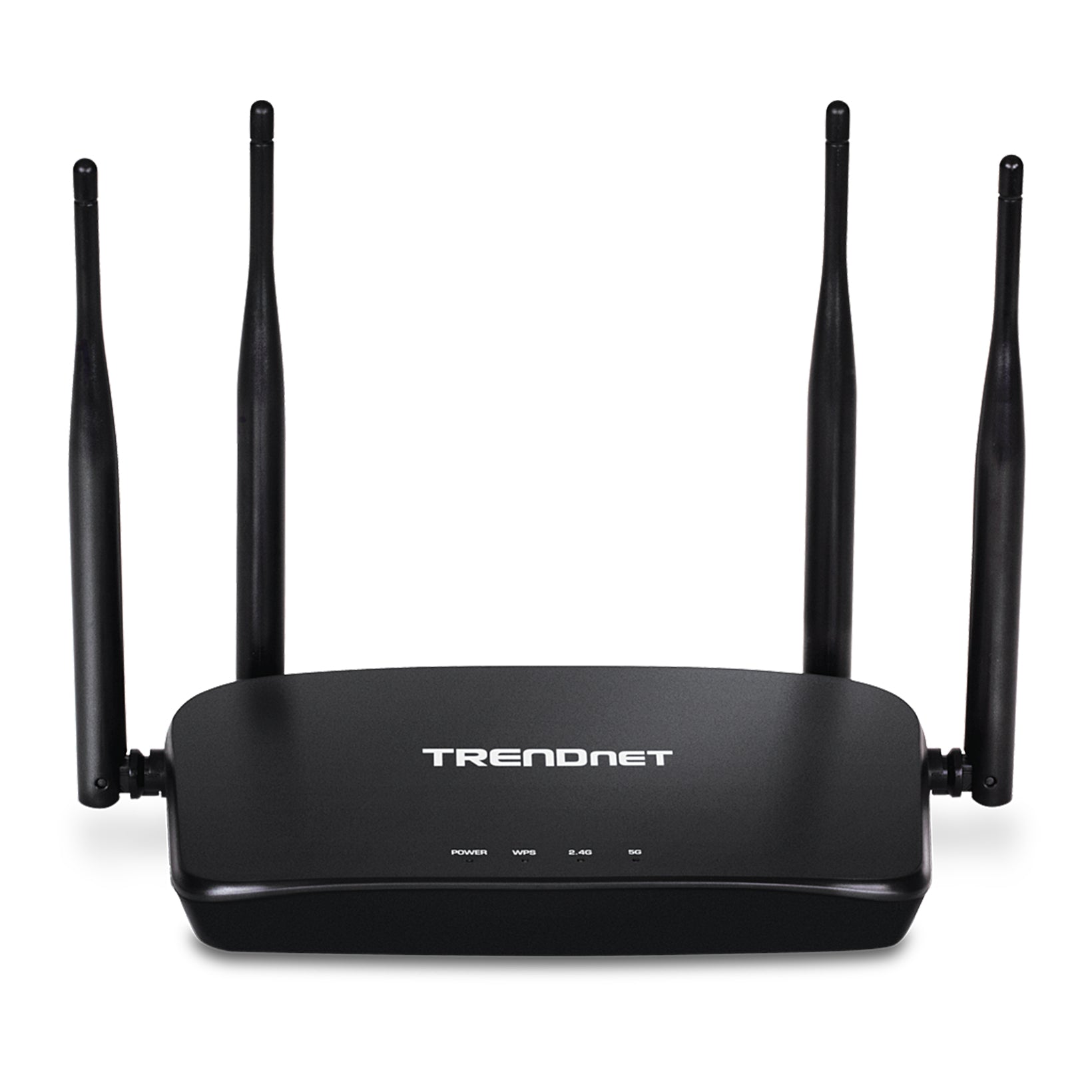

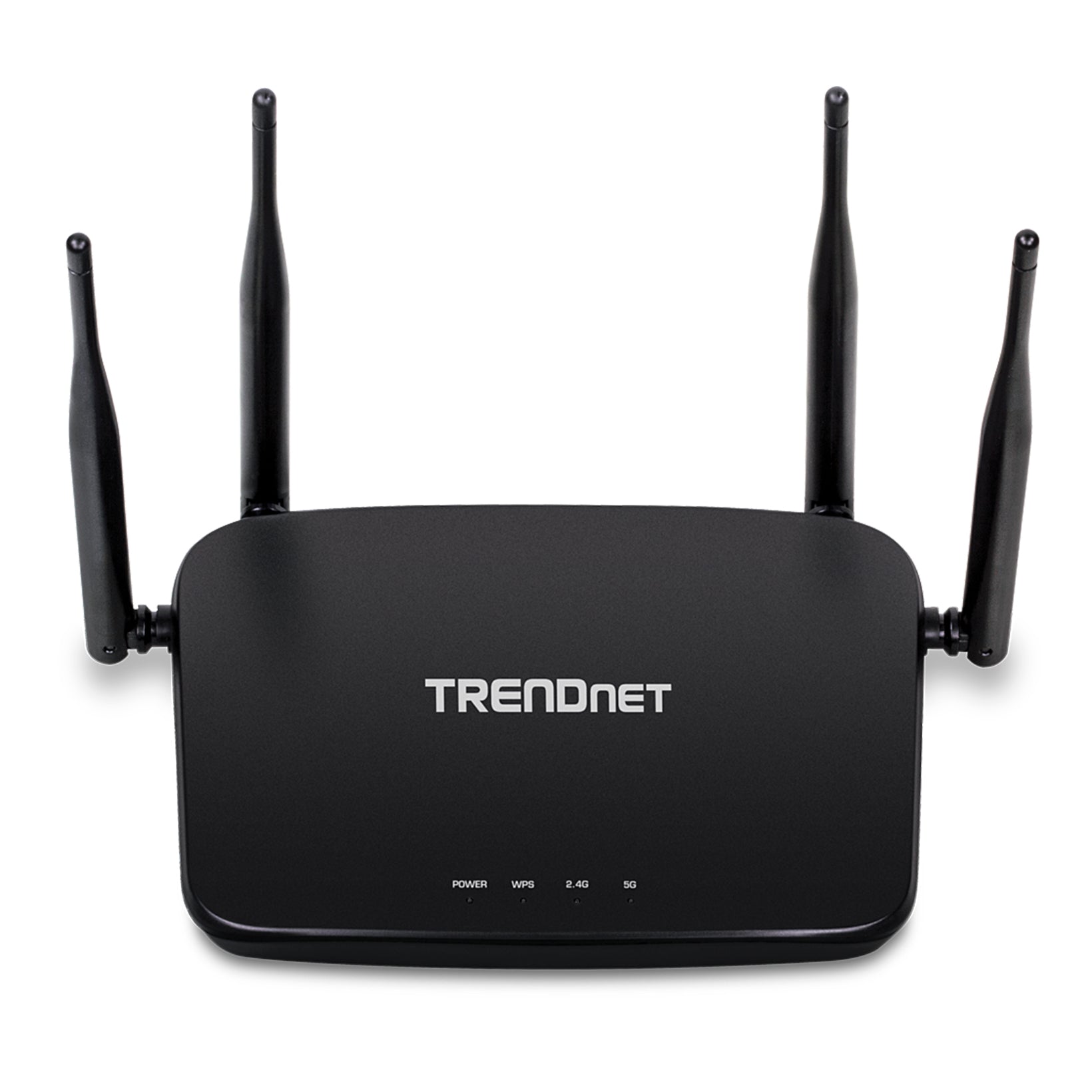

AC1200 Dual Band WiFi Router / TEW-831DR (Version v1.0R)

  • AC1200: 867Mbps Wireless AC + 300Mbps Wireless N
  • 1 x Gigabit WAN port
  • 3 x 10/100Mbps LAN ports
  • 4 x 5 dBi dual band antennas
  • Internet bandwidth controls
  • Pre-encrypted for your convenience
  • One touch network connection with the WPS button
  • LAN/WAN IPv6 Support
  • Multi-User MIMO (MU-MIMO) support

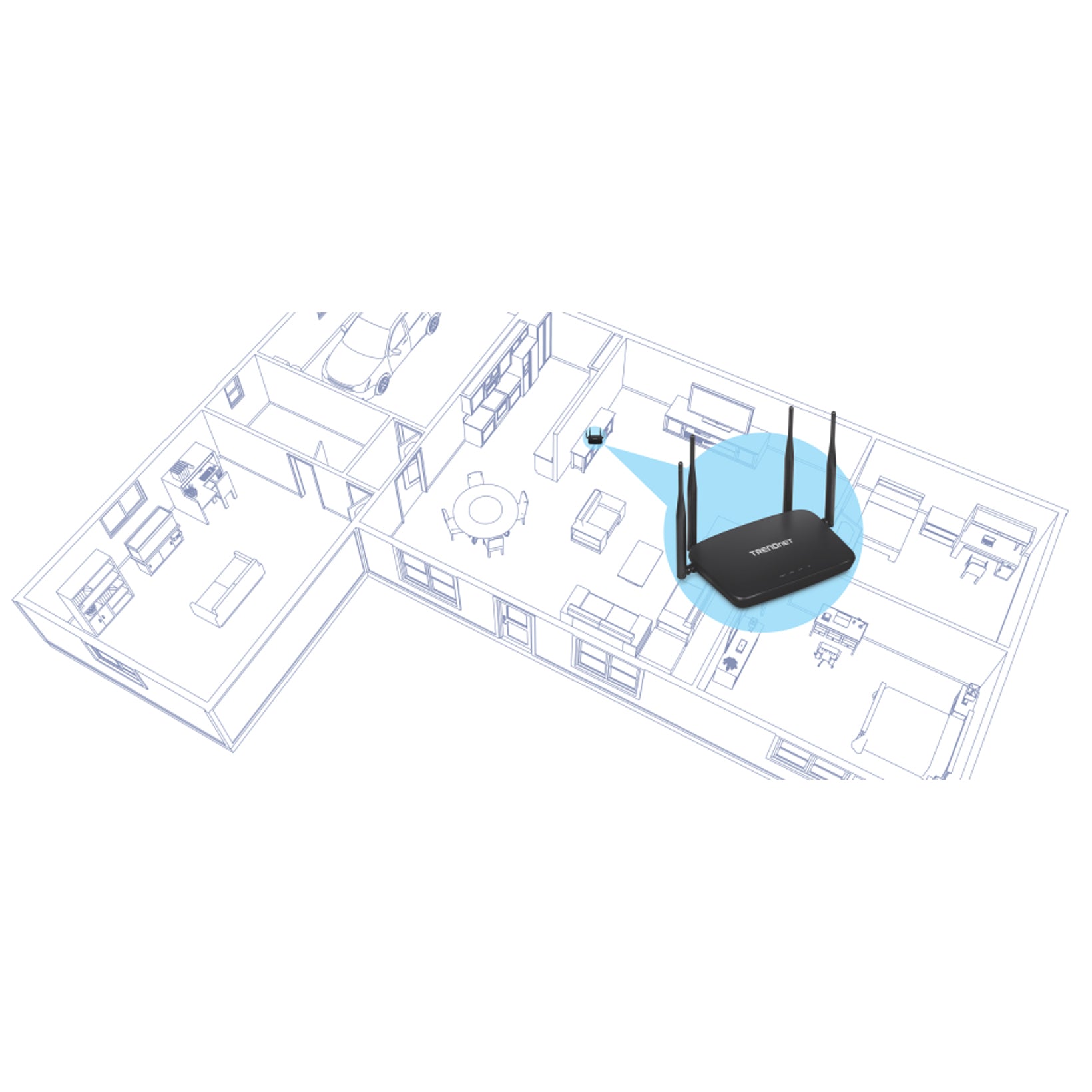

TRENDnet's AC1200 Dual Band WiFi Router, model TEW-831DR, is a high-speed wireless ac router designed to handle multiple HD streams in a busy connected home.

This dual band wireless ac router creates two concurrent wireless networks—a high performance 867Mbps wireless AC network, and a 300Mbps wireless N network for wireless device connections. For added convenience, the wireless networks are pre-encrypted out of the box.

  • Pre-Encrypted

For your convenience, the wireless networks are pre-encrypted with unique passwords.

  • 5dBi External Antennas

4 x 5dBi external antennas provide extended wireless coverage.

  • Internet Bandwidth Controls

Control access to the internet and manage bandwidth for devices connected to the wireless ac router.

Easy Setup

Install in minutes with the intuitive setup

One Touch Connection

Connect to the wireless ac router using the Wi-Fi Protected Setup (WPS) button

Pre-Encrypted

For your convenience, the wireless network is pre-encrypted with its own unique password

Access Controls

Control access to specific websites and manage which devices can access the internet

Fast Ethernet Ports

10/100 Mbps Ethernet ports connect up to three devices

Wireless Coverage

4 x 5dBi antennas on this wireless ac router provide extended wireless coverage

IPv6

IPv6 network support

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300Mbps)*
  • IEEE 802.11ac (up to 867Mbps)*

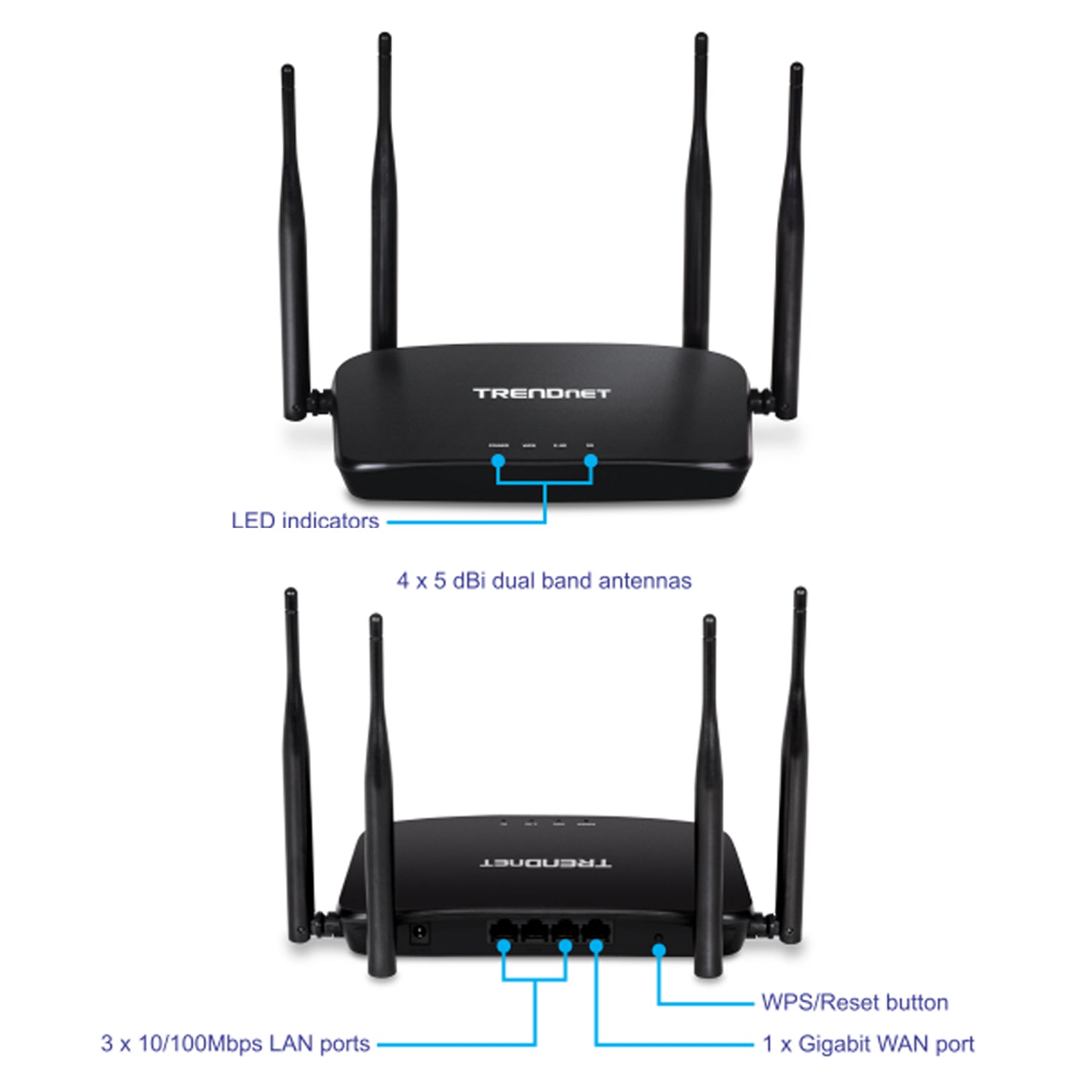

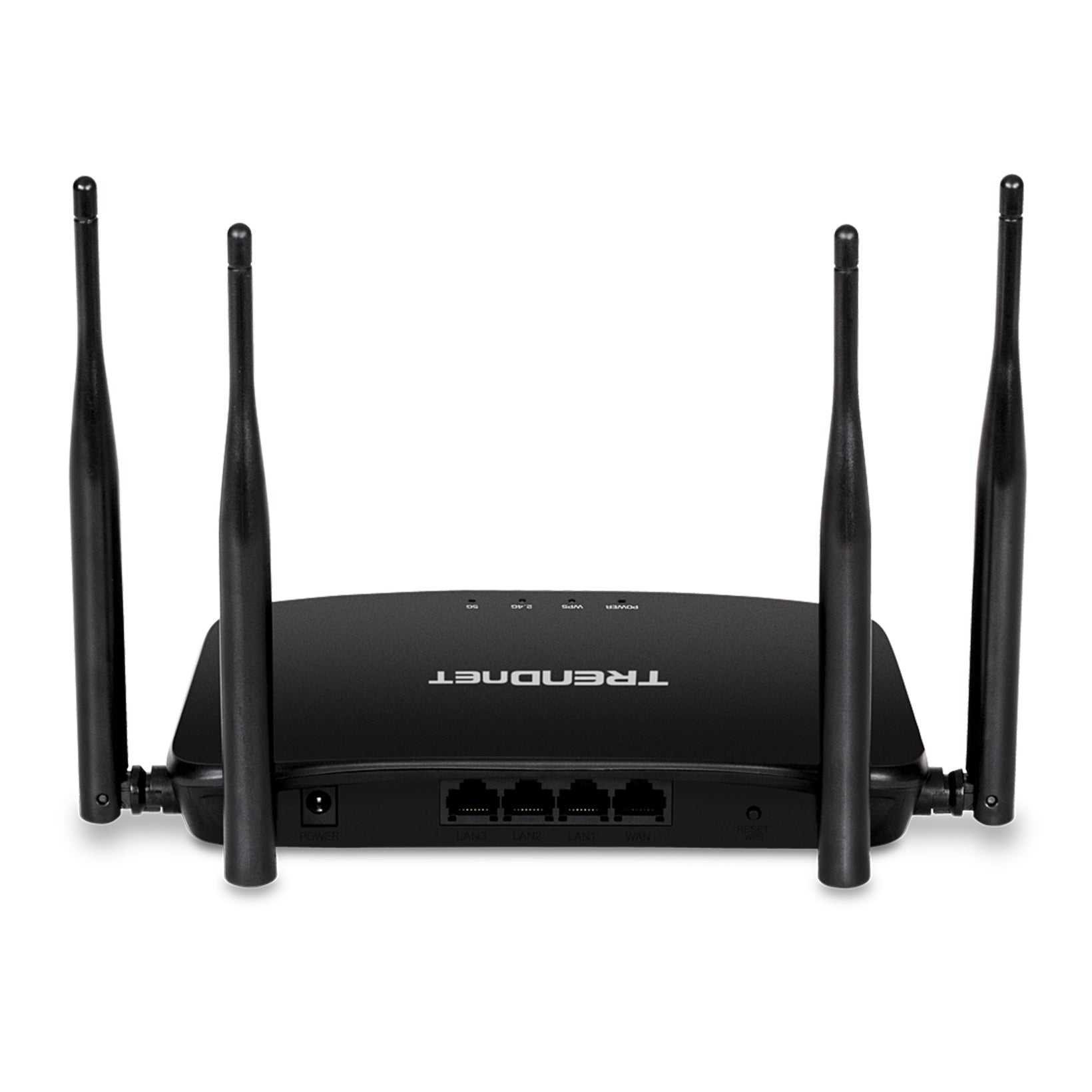

Device Interface
  • 3 x 10/100Mbps LAN ports
  • 1 x Gigabit WAN port
  • WPS/Reset button
  • LED indicators
Special Features
  • IEEE 802.1Q tagged-based VLAN
  • Bandwidth controls
  • MU-MIMO
  • 4 x 5 dBi dual band antennas
  • IPv6 support
  • Multi-Language interface: English, Spanish, Portuguese
  • Pre-encrypted wireless network
  • TR-069
Access Control
  • Wireless encryption: 64/128-bits WEP; WPA/WPA2
  • NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interface
  • ALG: PPTP/L2TP/IPsec VPN passthrough, FTP/TFTP/SIP/RTSP/IRC/H.323 passthrough
  • MAC, IP, Domain name, Application filtering
  • Wireless client isolation
  • DoS prevention
Quality of Service
  • WMM
  • Management/Monitoring
  • HTTP/HTTPS web-based management
  • Internal system logging
  • Manual firmware upgrade
  • Backup and restore configuration
  • Diagnostic tools: Built-in ping and traceroute network utilities
Frequency
  • 2.412 – 2.472GHz
  • 5.180 – 5.825GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 4 x 5 dBi Fixed Antenna
Wireless Output Power
  • 802.11a: FCC: 16 dBm (max.) / CE: 16 dBm (max.) / IC: 16 dBm (max.)
  • 802.11b: FCC: 18 dBm (max.) / CE: 18 dBm (max.) / IC: 18 dBm (max.)
  • 802.11g: FCC: 17 dBm (max.) / CE: 17 dBm (max.) / IC: 17 dBm (max.)
  • 802.11n (2.4GHz): FCC: 17 dBm (max.) / CE: 17 dBm (max.) / IC: 17 dBm (max.)
  • 802.11n (5GHz): FCC: 15 dBm (max.) / CE: 15 dBm (max.) / IC: 15 dBm (max.)
  • 802.11ac: FCC: 13 dBm (max.) / CE: 13 dBm (max.) / IC: 13 dBm (max.)
Receiving Sensitivity
  • 802.11a: -75 dBm (typical) @ 54Mbps
  • 802.11b: -90 dBm (typical) @ 11Mbps
  • 802.11g: -72 dBm (typical) @ 54Mbps
  • 802.11n (2.4GHz): -72 dBm (typical) @ 300Mbps
  • 802.11n (5GHz): -72 dBm (typical) @ 867Mbps
  • 802.11ac: -61 dBm (typical) @ 867Mbps
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1-13
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165, ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**
Power
  • Input: 100 – 240V AC, 50 – 60Hz, 1A
  • Output: 12V DC, 1A external power adapter
  • Max. Consumption: 5.68W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions (L x W x H)
  • 239 x 155 x 30mm (9.4 x 6.1 x 1.18 in.)
Weight
  • 228g (8 oz.)
