TRENDnet TEW-840APBO2K AC1200 High Power Outdoor PoE Preconfigured Point-to-Point Bridge Kit PoE Access Point (IPX6)

SKU TNTEW-840APBO2K
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

TRENDnet 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit

  • 5GHz WiFi AC867 point-to-point bridge kit

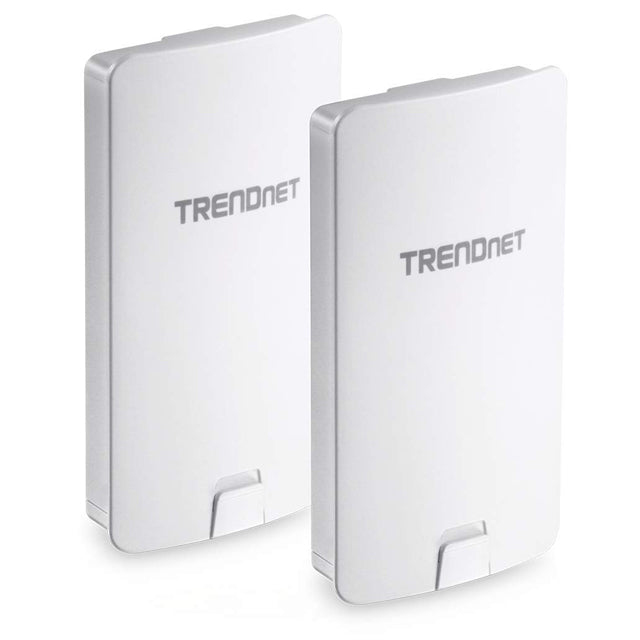

  • Includes two preconfigured TEW-840APBO access points

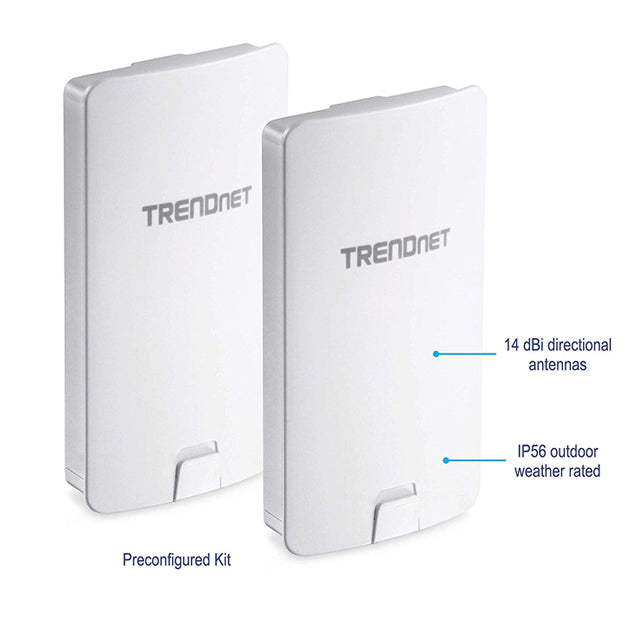

  • 14 dBi directional antennas
  • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
  • Proprietary PoE power adapters included
  • IP56 outdoor weather rated housing
  • 1 x Gigabit PoE (in) port, and 1 x Gigabit port

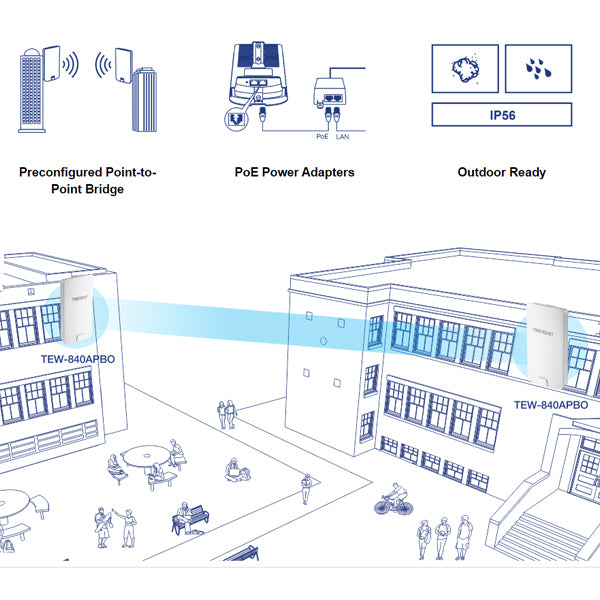

TRENDnet’s 14 dBi WiFi AC867 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-840APBO2K, provides long-range wireless AC867 point-to-point connectivity.This preconfigured outdoor WiFi bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi bridge kit conveniently links two locations together with wireless AC speed and performance. The IP56 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware.

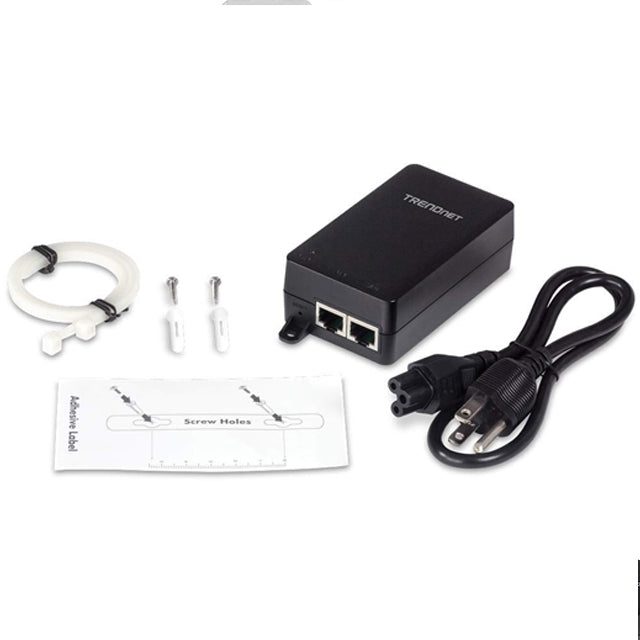

PACKAGE CONTENTS

  • 2 x TEW-840APBO
  • Quick Installation Guide
  • Proprietary/Passive PoE injectors (24V DC, 0.6A)
  • Mounting hardware

Specs

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1d
  • IEEE 802.1Q VLAN
  • IEEE 802.1X network based authentication
  • IEEE 802.11d
  • IEEE 802.11e
  • IEEE 802.11h
  • IEEE 802.11i
  • IEEE 802.11a
  • IEEE 802.11r
  • IEEE 802.11k
  • IEEE 802.11n (5GHz up to 300Mbps @ 64QAM)
  • IEEE 802.11ac Wave 2 MU-MIMO (5GHz up to 867Mbps @ 256QAM)

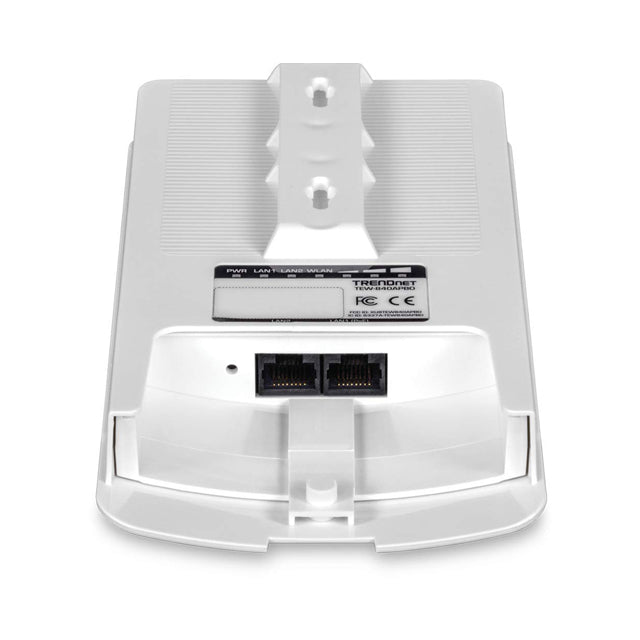

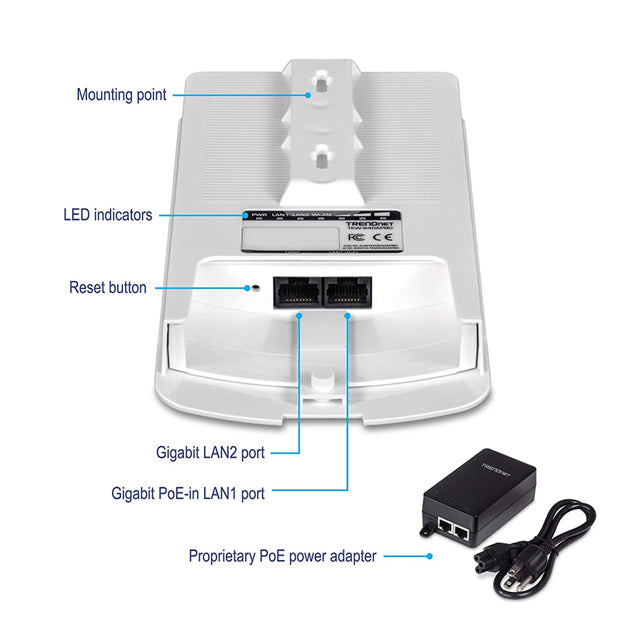

Hardware Interface
  • 1 x Gigabit PoE-in LAN1 port (proprietary PoE max. cable length 60m (197 ft.))
  • 1 x Gigabit LAN2 port
  • LED indicators
  • Reset button
Special Features
  • IP56 weather rated
  • 802.1Q VLAN
  • WiFi scheduling
  • Scheduled auto reboot
  • CSMA/TDMA support
  • Preconfigured point-to-point bridge kit
Access Control
  • Wireless AP mode encryption: WPA2-PSK, WPA2-Enterprise
  • Wireless WDS bridge mode encryption (CSMA): WEP, AES
  • Wireless WDS AP/Station encryption (CSMA/TDMA): WPA2-PSK, WPA2-Enterprise
  • Access Controls: MAC (AP & WDS AP mode only), Layer 2 isolation, client Isolation
  • Client limit
  • Bandwidth limit (download/upload) per SSID or per client
  • RSSI Threshold
QoS
  • WMM
Operation Modes
  • Access Point (AP)
  • WDS Access Point
  • WDS Bridge (CSMA mode only)
  • WDS Station
  • Client Bridge
SSID
  • Up to 7 SSIDs
  • 802.1Q VLAN assignment per SSID
Management/Monitoring
  • Web management (HTTP)
  • CLI management (Telnet, SSHv2)
  • SNMP v2c/v3
  • IPv4 (DHCP/static IP), IPv6 (link-local, static IP, DHCPv6) assignment
  • Email alert
  • Upgrade firmware
  • Backup/restore configuration
  • Internal logging
  • External syslog
  • Scheduled automatic reboot
  • Restore to factory defaults
  • Ping test
  • Traceroute
  • Nslookup
  • NTP
  • Management VLAN ID
  • Schedule radio on/off per SSID
  • Real time traffic monitor
  • Real time CPU load monitor
  • Device discovery (Point to point AP connections only)
  • Speed test (Point to point AP connections only)
  • LED control
Frequency
  • FCC: 5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz
Wireless Channels
  • 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation
  • 802.11a: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n (5GHz): BPSK, QPSK, 16-QAM, 64-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK mode
  • TDMA (Point to point AP connections only)
Antenna Gain
  • 14 dBi internal patch antenna
Wireless Output Power (max output power without antenna gain)
  • 802.11a: FCC: 23 dBm (max.)
  • 802.11n (5GHz): FCC: 22 dBm (max.)
  • 802.11ac: FCC: 22 dBm (max.)
  • Receiving Sensitivity (per chain)
  • 802.11a: -71 dBm (typical) @ 54Mbps
  • 802.11n (5GHz): -66 dBm (typical) @ 300Mbps
  • 802.11ac: -55 dBm (typical) @ 867Mbps
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.4A
  • Output: 24V DC, 0.6A proprietary/passive PoE injector
  • Max. Consumption: 9.5W
Surge Protection
  • Line to ground: 2kV
ESD Protection
  • Contact: 4kV
  • Air: 8kV
Operating Temperature
  • -10° – 60° C (32° – 140° F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 185 x 100 x 35mm (7.3 x 3.9 x 1.4 in.) per access point
Weight
  • 268g (0.6 lbs.) per access point
Warranty
  • 3 year
