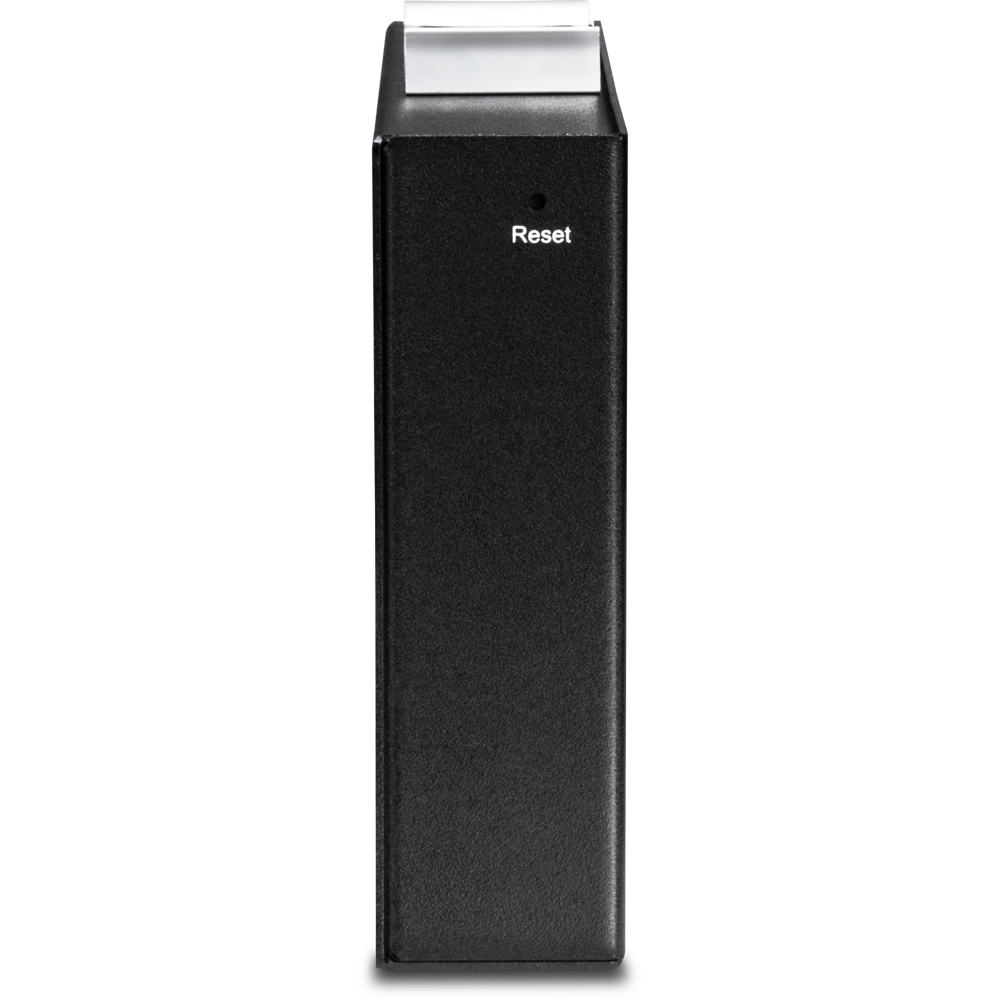

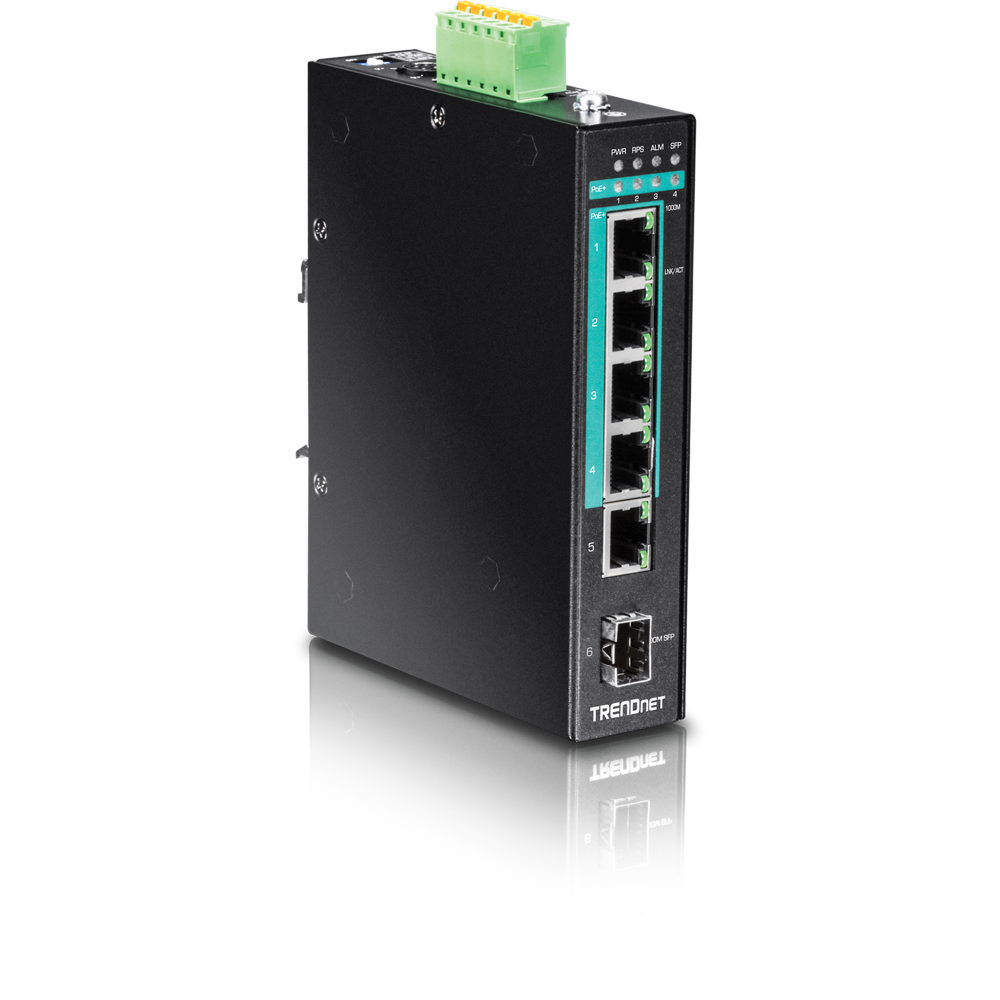

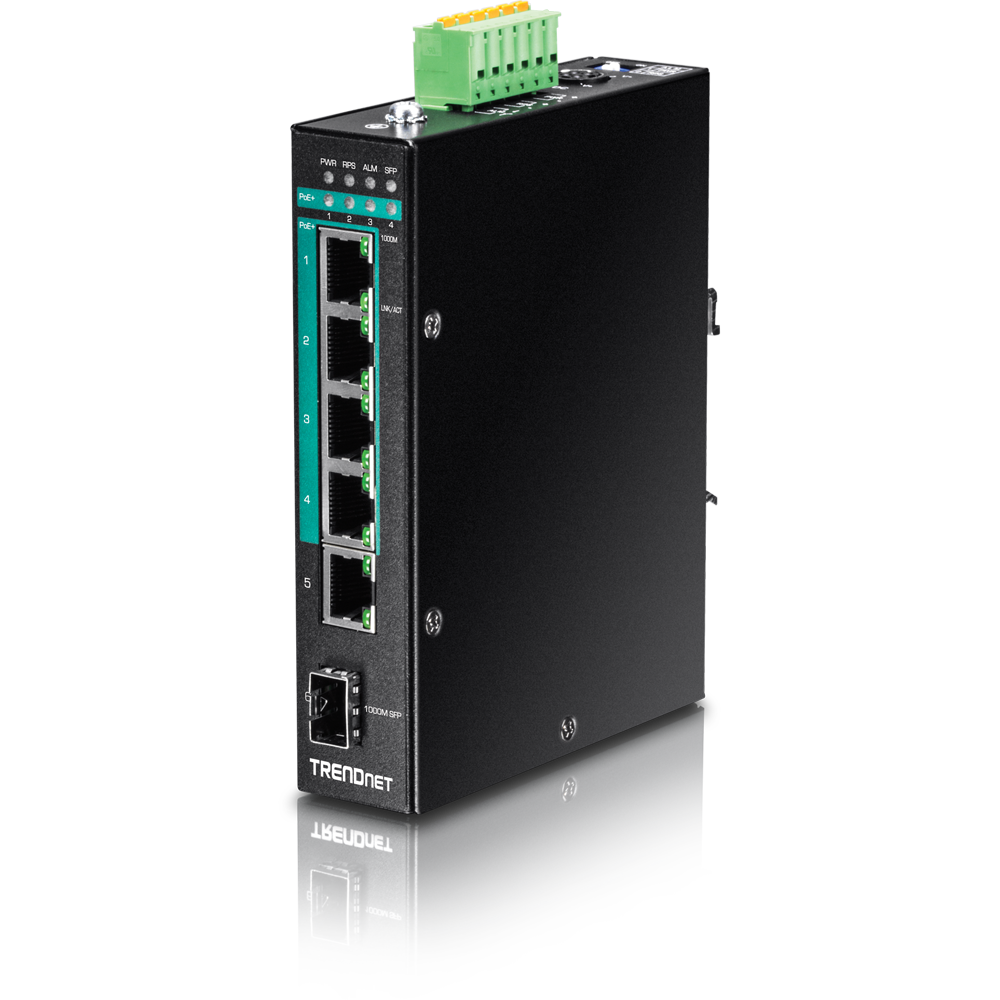

TRENDnet TI-PG541 5-port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

SKU TNTI-PG541
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch <pTI-PG541 (Version v1.1R)

  • 4 x Gigabit PoE+ (802.3at) ports, 1 x Gigabit port, and 1 x Gigabit SFP slot
  • 120 W full PoE+ power budget
  • 12 Gbps switching capacity
  • Hardened IP30 rated metal switch with integrated DIN-Rail mount
  • -40 to 70 ºC (-40 to 158 ºF) operating temperature range
  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)
  • Lifetime Warranty*

TRENDnet's TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts.

Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and / or redundant power failure.

  • Full PoE+ Power Budget: Supplies up to 30 Watts of PoE/PoE+ power per port (ports 1-4 802.3at/802.3af) with a 120 Watt PoE power budget
  • Network Ports: Five Gigabit Ethernet ports (port 1-4 PoE/PoE+) and 1 x SFP slot

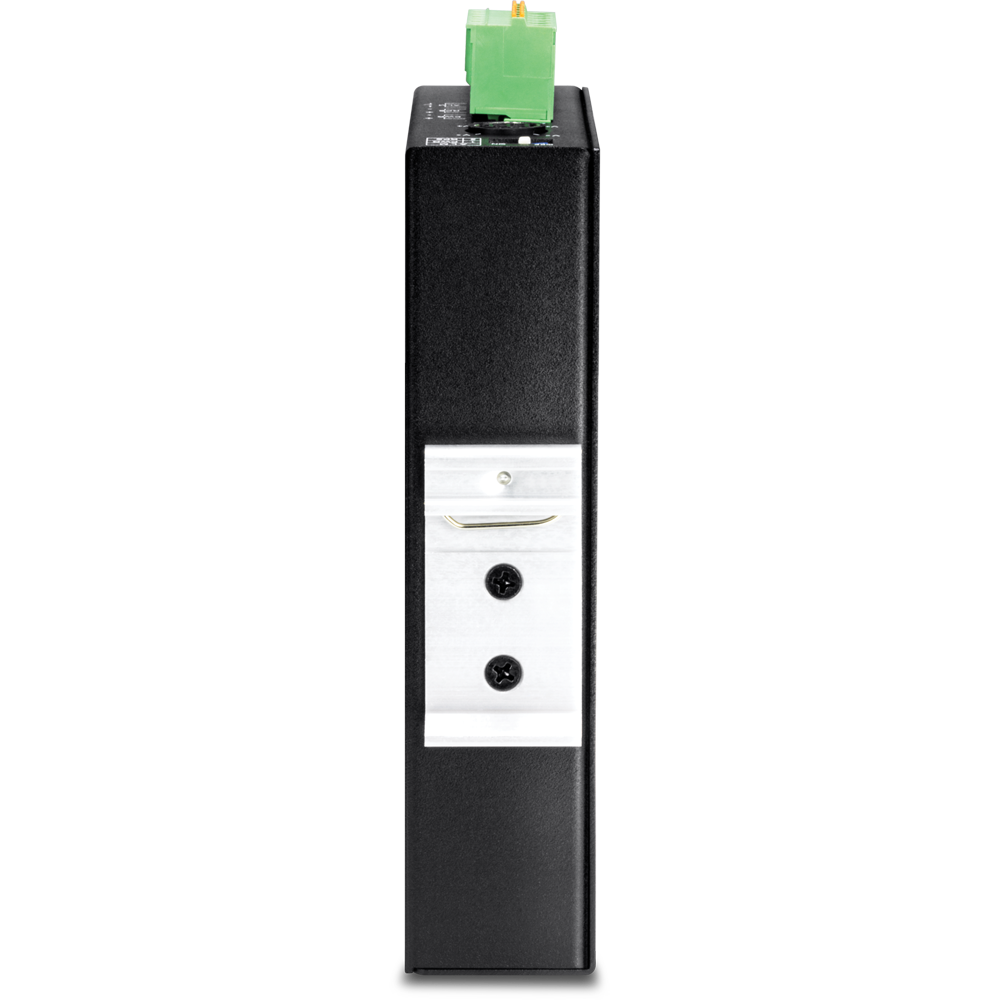

  • Integrated DIN-Rail Mount: IP30 rated metal enclosure with integrated DIN-rail mounting hardware
  • Switching Capacity: 12 Gbps switching capacity
  • Redundant Power: Dual redundant power inputs with overload current protection Note: power adapter sold separately: model 48VDC2000
  • Alarm Output: Alarm output triggered by power failure of primary and/or redundant power (defined by DIP switch)
  • Jumbo Frame: Sends larger packets, or Jumbo Frames (up to 10 KB), for increased performance
  • Extreme Temperatures: Hardened switch is rated for an operating temperature range of -4 to 140 ºF (-20 to 60 ºC)
  • Electro Magnetic Compliance: Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
  • Shock and Vibration Resistant: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
  • LED Indicators: LED indicators convey power, redundant power, alarm, SFP, and network port status

Grounding Point

Grounding point protects equipment from external electrical surges
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3at
  • IEEE 802.3af
  • IEEE 802.3x

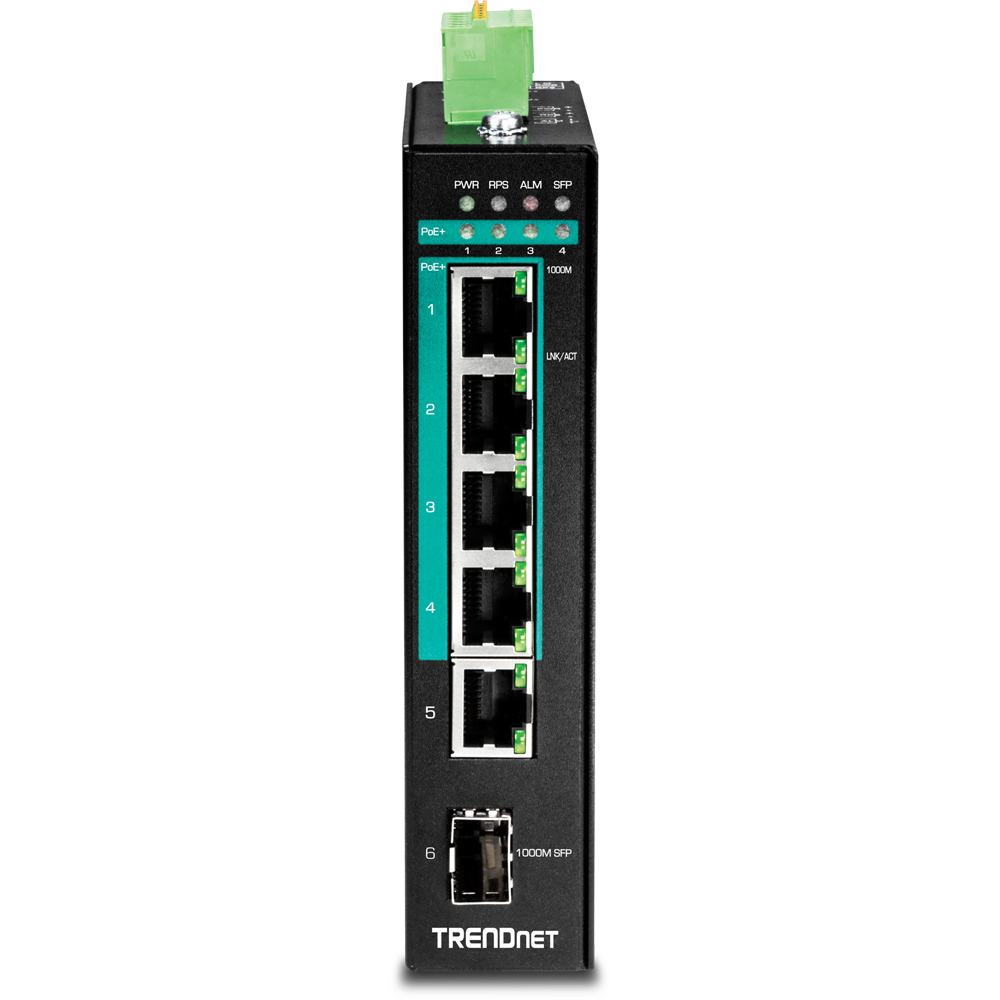

Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x Gigabit SFP slot
  • 6-pin terminal block (removable)
  • DIP switch
  • DC power connector
  • LED indicators
  • Integrated DIN-Rail mount
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
  • SX / LX: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 512 KB
  • Switching Fabric: 12 Gbps
  • MAC Address Table: 8 K entries
  • Jumbo Frame: 10 KB
  • Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
  • Full PoE+ power to each PoE+ port
  • Hardened components rated for extreme temperatures
  • Dual redundant power inputs
  • Alarm output triggered by power failure
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 KV and Surge 6 KV protection
Optional Power Adapter (48VDC3000 sold separately)
  • Input: 100 - 240 V AC, 50/60 Hz, 2 A
  • Output: 48 V DC, 3.34 A 160 watts max.
Optional Power Supply (TI-S24048 / TI-S12048 sold separately)
  • Input: 100 – 240 V AC, 50/60 Hz, 1.8 A 125 – 370 V DC
  • Output: 240 Watts, 48 V, 5 A
  • DIN-rail: TS-35/7.5 or 15
  • Operating Temperature: - 25 to 70 °C (- 13 to 158 °F)
Terminal Block
  • Input: PWR (Primary): 48 - 57 V DC
  • RPS (Redundant): 48 - 57 V DC
Power Consumption
  • Min.: 10 Watts (standby)
  • Max.: 130 Watts
  • PoE budget: 120 Watts (Max.)
PoE
  • Up to 15.4 watts / port for PoE
  • Up to 30 watts / port for PoE+
  • PoE: pin 1, 2 for power + and pin 3, 6 for power - (mode A)
  • IP30 metal case
  • Integrated DIN-rail mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV Surge protection
Operating Temperature
  • - 40 – 70 °C (- 40 - 158 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 135 x 100 x 30 mm (5.3 x 3.9 x 1.2 in.)
Weight
  • 500 g (1.2 lbs.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
