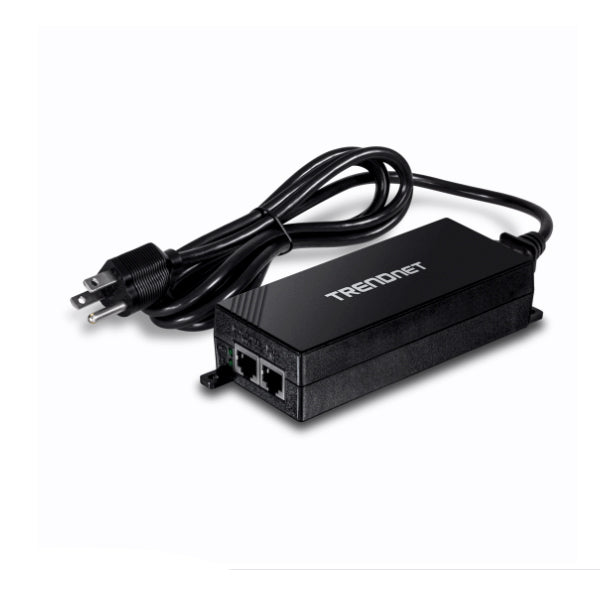

TRENDnet TPE-115GI PoE+ Gigabit Injector

SKU TNTPE-115GI
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Full Duplex Gigabit speeds
  • Supplies PoE (15.4W) or PoE+ (30W) power
  • Integrated power supply
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Converts a non-PoE Gigabit port to a PoE+ Gigabit port
  • Save on installation and equipment costs
  • IEEE 802.3af and IEEE 802.3at compliant

PoE Powered

No external power required—saves installation time and cost

Easy Setup

Simple installation in minutes

Installation Flexibility

Wall-mountable design accommodates most installations scenarios

Gigabit Ports

The PoE Extender features one gigabit PoE+ input port and one gigabit PoE+ output port

PoE Distance

Provides a PoE+ network connection up to 100 meters (328 ft.)



LED Indicators

LED indicators confirm PoE connectivity



Auto-Sensing Technology

Auto-sensing technology delivers up to 30W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices.


TRENDnet’s Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit PoE+ signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices.

Connect the injector to a non-PoE Gigabit switch and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at

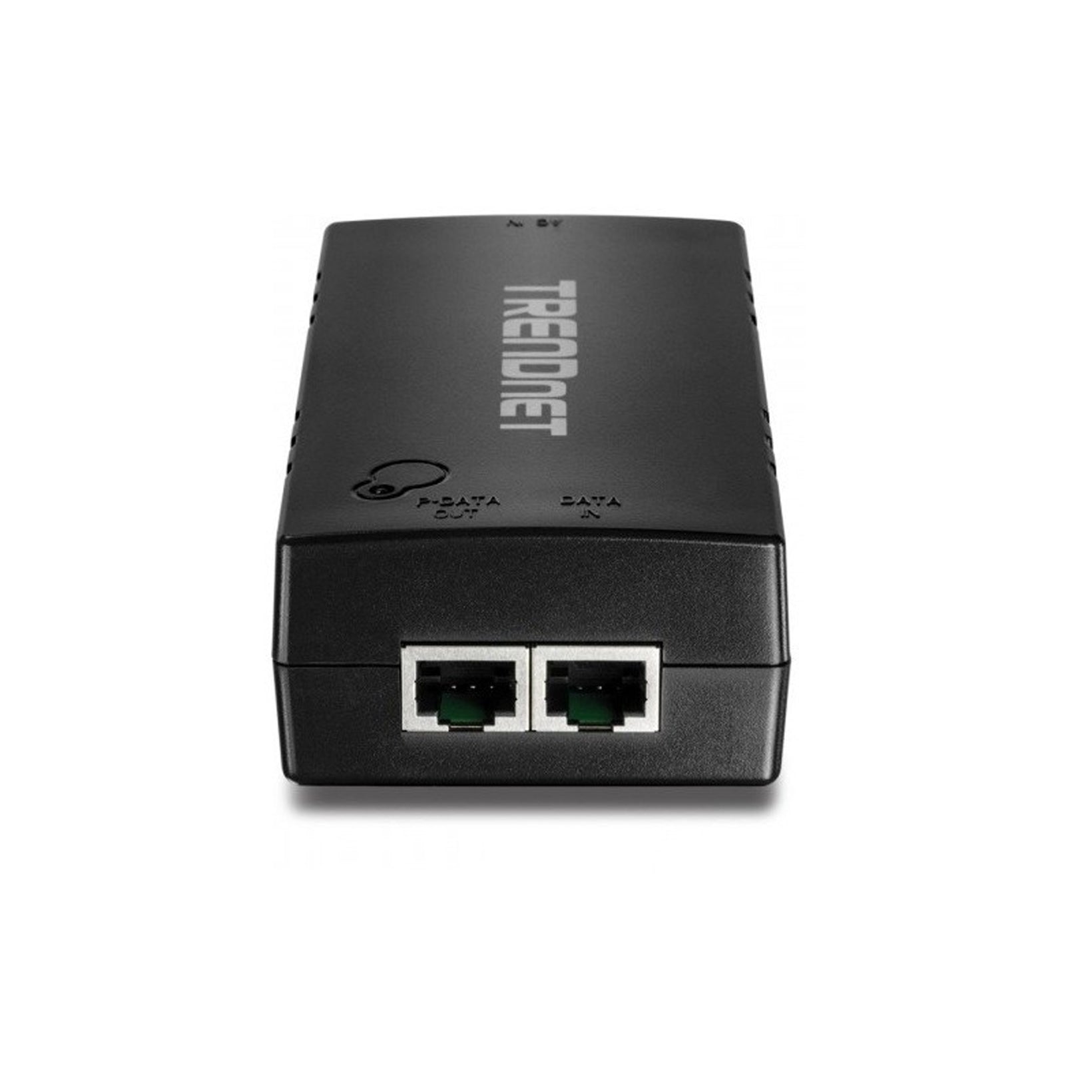

Device Interface
  • 1 x Gigabit Data in port
  • 1 x Gigabit Data & Power out port
  • LED indicators
Special Features
  • Wall-mountable
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
PoE Delivery
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)

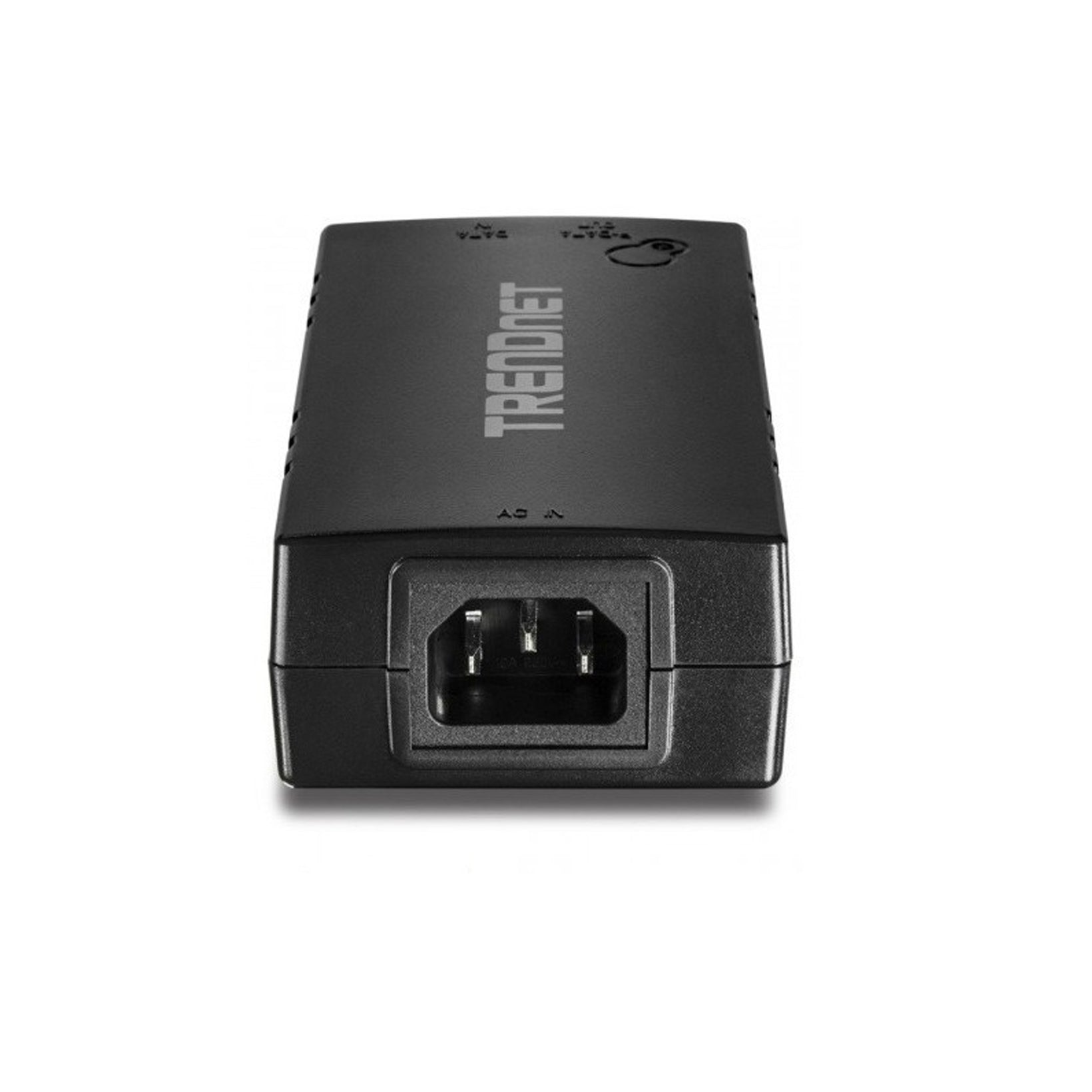

Power
  • Input: 100~240V AC, 50/60Hz, 0.6A max.
Power Consumption
  • Max 30W
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 155 x 57 x 33mm (6.1 x 2.3 x 1.3 in.)
Weight
  • 188g (6.64 oz.)
Certifications
  • CE
  • FCC
