TRENDnet TPE-224WS 24-port 10/100Mbps Web Smart PoE Switch w/ 4 Gigabit Ports and 2 Mini-GBIC Slots

SKU TNTPE-224WS
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

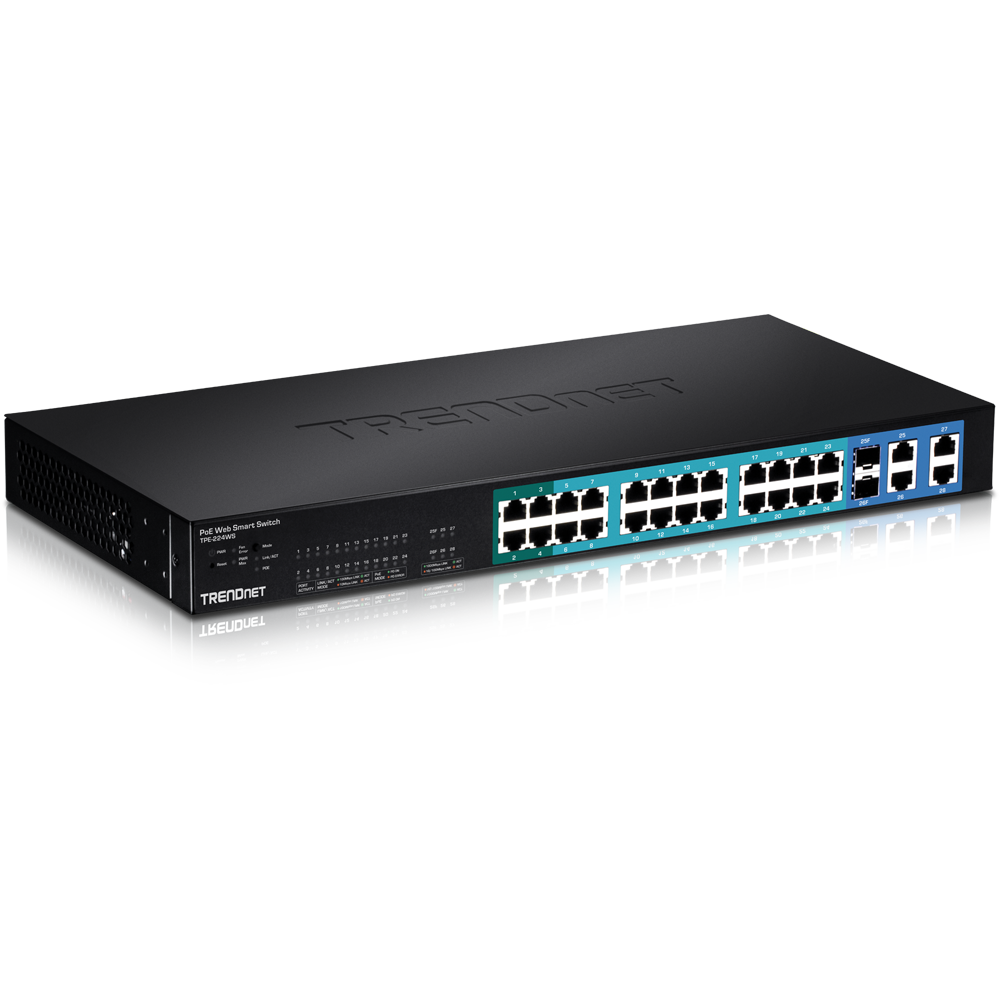

28-Port 10/100 Mbps Web Smart PoE+ Switch / TPE-224WS (Version C1.1R)

  • 20 x PoE ports (15.4 W / port)
  • 4 x PoE+ ports (30 W / port)
  • 2 x Gigabit ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • 193 Watt PoE budget
  • 12.8 Gbps switching capacity
  • Rack mountable
  • Smart fans reduce energy consumption
  • Lifetime Warranty*

TRENDnet's 28-Port 10/100 Mbps Web Smart PoE+ Switch, model TPE-224WS, offers 24 x 10/100 Mbps PoE ports (Ports 1-4 support PoE+), 2 x Gigabit ports, 2 x shared Gigabit ports (RJ-45 or SFP), and a PoE Power budget of 193W.

This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost.

  • 24x 10/100 Mb/s Auto-MDIX Fast Ethernet PoE RJ-45 ports
  • 4x 10/100/1000 Mb/s Auto-MDIX Gigabit ports
  • 2x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports)
  • 12.8 Gb/s switching capacity
  • IEEE 802.3af Power over Ethernet (PoE) compliant
  • PoE power of up to 15.4 watts for each PoE port
  • Maximum PoE power of up to 170 watts for all PoE ports
  • IEEE 802.3x Full Duplex Flow Control and Back Pressure
  • IEEE 802.3ad Port Trunk
  • IEEE 802.1D Spanning Tree Protocol IEEE 802.1p QoS
  • IEEE 802.1X Authentication and SNMP v1 support
  • Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
  • Supports Auto-recognition of PoE Powered Device (PD) signature
  • Full Wire-Speed Non-Blocking reception and transmission
  • Store and Forward switching method
  • Integrated address look-up engine with an 8K absolute MAC address table
  • Supports 128KBytes RAM for data buffering
  • Easy configuration via Web browser
  • Front panel diagnostic LEDs
  • Standard 1U (19") rack mount size (rack mount kit included)
  • Certifications CE, FCC
Standards
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1ab
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3af (15.4 W / port)
  • IEEE 802.3at (30 W / port)
  • IEEE 802.3az
Device Interface
  • 4 x 10/100 Mbps PoE+ ports,
  • 20 x 10/100 Mbps PoE ports
  • 2 x Gigabit ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • LED indicators (Mode Button displays Link / Activity or PoE port status)
  • Reset Button
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit Ethernet: 2000 Mbps (full duplex)
Performance
  • Switch fabric: 12.8 Gbps
  • RAM buffer: 512 KB
  • MAC Address Table: 8 K entries
  • HOL Blocking Prevention
  • Forwarding rates: 9.5 Mpps (64-byte packet size)
Management
  • HTTP / HTTPS (SSL v2 / 3 TLS) Web based GUI
  • SNMP v1, v2c, v3
  • RMON v1
  • Static Unicast MAC Address
  • Enable / disable 802.3az Power Saving
  • LLDP
  • Virtual Cable Test
  • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB
  • MIB II RFC 1213
  • Bridge MIB RFC 1493
  • Bridge MIB Extension RFC 2674
  • SNMPv2 MIB RFC 1907
  • Ethernet Interface MIB RFC 1643
  • Ethernet –like MIB RFC 2863
  • Interface Group MIB RFC 2233
  • MIB Traps Convention RFC 1215
  • RMON MIB RFC 1757, RFC 2819
  • 802.1p MIB RFC 2674
  • RADIUS Client Authentication MIB RFC 2618
  • LLDP-MIB IEEE 802.1ab
  • Ping MIB RFC 2925, RFC 4560
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
  • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
  • Static Link Aggregation
  • 802.3ad Dynamic LACP
Quality of Service (QoS)
  • 802.1p Class of Service (CoS)
  • DSCP (Differentiated Services Code Point)
  • Bandwidth Control per port
  • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
  • Multiple management VLAN assignment
  • Asymmetric VLAN
  • 802.1Q Tagged VLAN
  • Dynamic GVRP
  • Up to 256 VLAN groups, ID Range 1-4094
  • Private VLAN (Protected Ports)
  • Voice VLAN (10 user defined OUIs)
Multicast
  • IGMP Snooping v1, v2, v3 (per VLAN)
  • Static Multicast Address
  • Up to 256 multicast entries
Port Mirror
  • RX, TX, or Both
  • One to one
  • Many to one
Access Control
  • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
  • Local Dial In User Authentication
  • DHCP Snooping (per VLAN)
  • Loopback Detection
  • Duplicated Address Detection
  • Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6
  • MAC Address
  • VLAN ID
  • Ether Type (IPv4 only)
  • IP Protocol 0-255
  • TCP / UDP Port 1-65535
  • 802.1p
  • DSCP (IPv4 only)
  • IPv6 Address (IPv6 only)
Compatibility
  • Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003 / 2008 Server
Special Features
  • PoE+
  • IPv6
  • 802.3az power saving
  • Rack mountable
Power

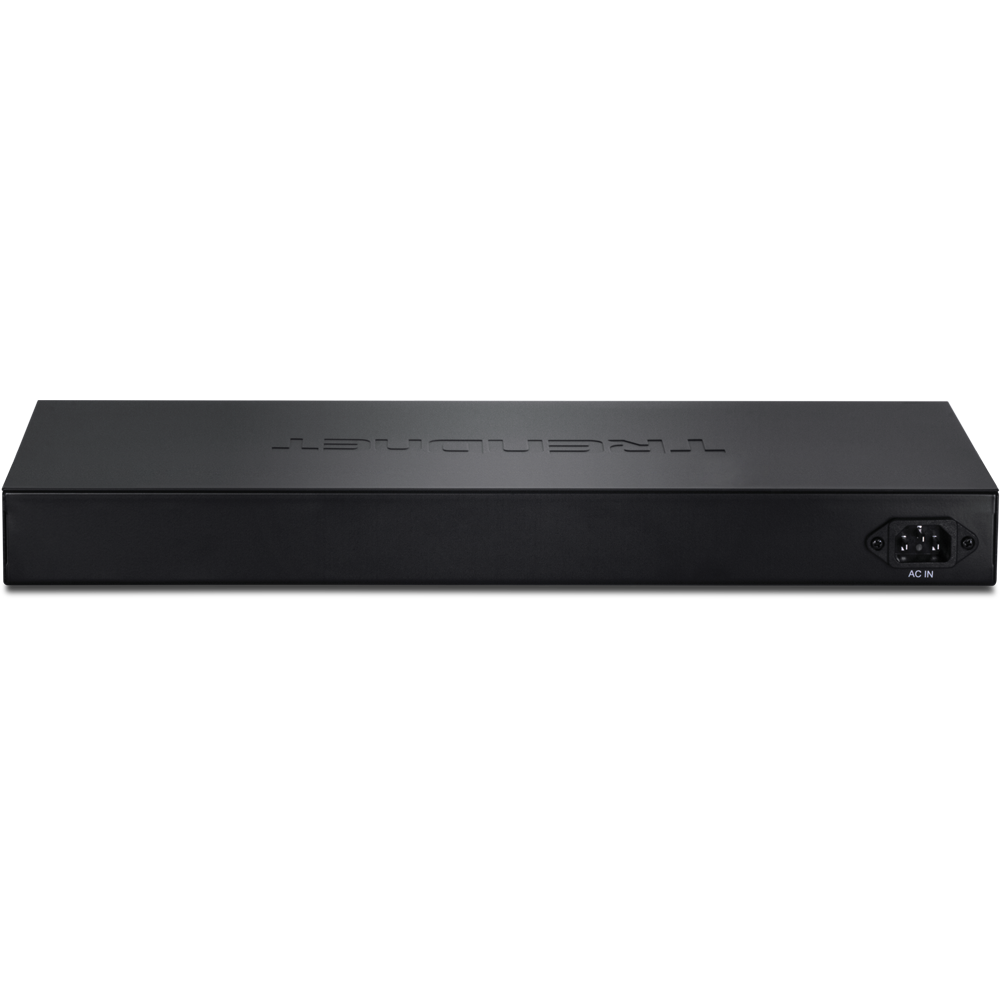

  • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
  • Consumption: 239.7 W (max.)
PoE
  • PoE budget: 193 W
  • 802.3at: Up to 30 W per port (ports 1-4)
  • 802.3af: Up to 15.4 W per port (ports 5-24)
  • Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
  • PD auto classification
  • Over current / short circuit protection
Fan / Acoustics
  • Quantity: 2
  • Noise Level: 54 dB(A) (max.)
MTBF
  • 283,830 hours
Operating Temperature
  • -5 – 50 °C (23 – 122 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.)
  • Rack mountable 1U height
Weight
  • 3.26 kg (7.18 lbs.)
Certifications
  • CE
  • FCC
  • UL
