TRENDnet TPE-5048WS 52-Port Gigabit Web Smart PoE+ Switch (740W)

Name: TRENDnet TPE-5048WS 52-Port Gigabit Web Smart PoE+ Switch (740W)
Brand: TRENDnet
SKU: TNTPE-5048WS
Availability: InStock

by TRENDnet

SKU TNTPE-5048WS

52-Port Gigabit Web Smart PoE+ Switch

48 x Gigabit PoE+ ports
4 x Shared Gigabit ports (RJ-45 or SFP)
740W PoE power budget
Easy-to-use web-based management interface
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private and Voice VLAN support
Smart Fan
104Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
Lifetime Warranty*

Specs

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az

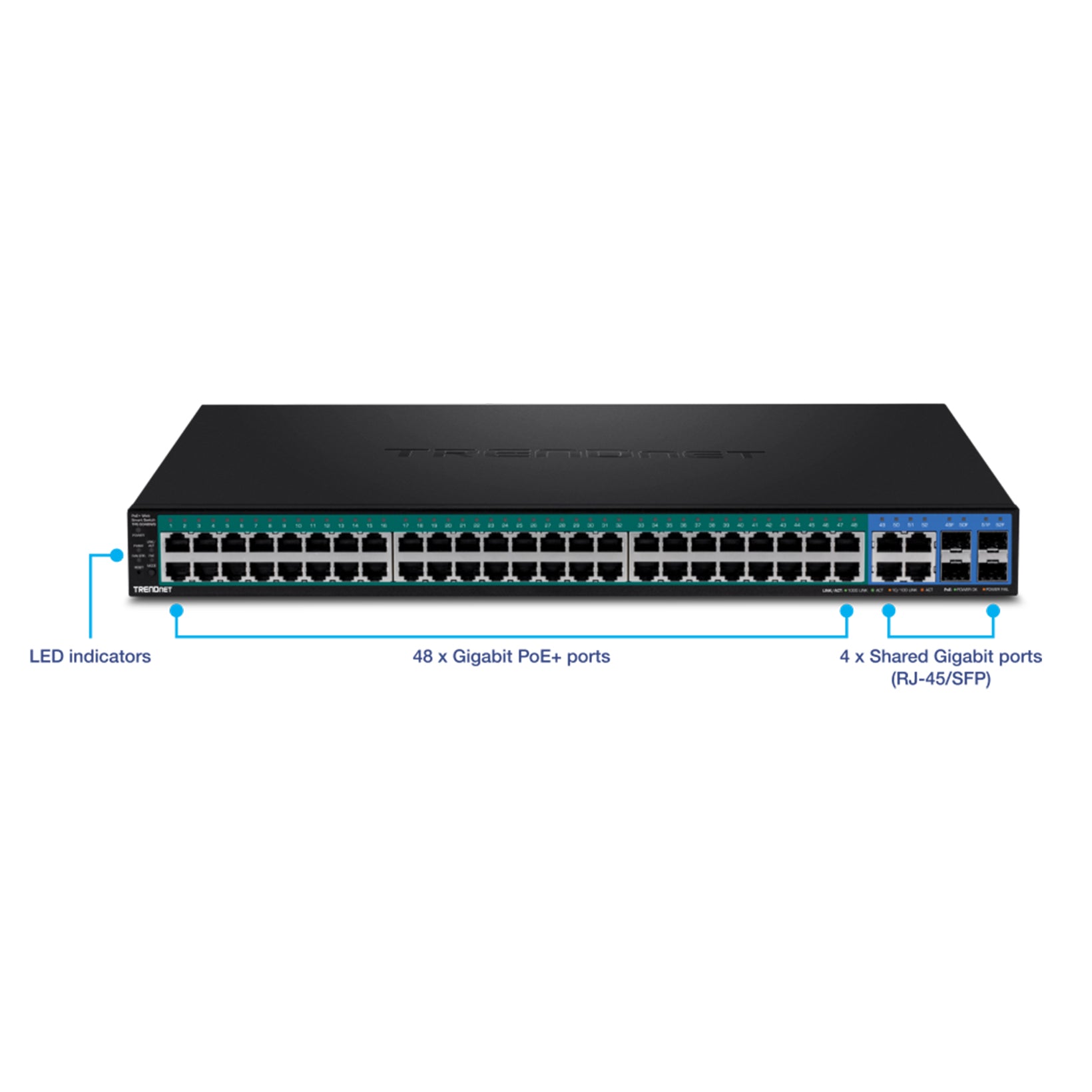

Device Interface	48 x Gigabit PoE+ ports 4 x Shared Gigabit ports (RJ-45/SFP) LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 104Gbps RAM buffer: 12Mbits MAC Address Table: 16K entries Jumbo Frames: 10Kbytes HOL Blocking Prevention Forwarding rate: 77.4Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP and LLDP-MED Virtual Cable Diagnostics Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
MIB	IP FORWARD TABLE MIB RFC 1354 RMON MIB RFC 1271 IPV4 MIB RFC 1213 IPV6 MIB RFC 2465 GVRP MIB IEEE 802.1Q-VLAN LA MIB IEEE 802.3ad LLDP MIB IEEE 802.1AB IGMP SNOOPING MIB RFC 2933 MLD SNOOPING MIB RFC 3019 PRIVATE VLAN MIB IEEE 802.1Q DHCPSNOOP MIB RFC 2026 QOS MIB RFC 4323 SNMP MIB RFC 3415 STP MIB RFC 4318 PNAC MIB IEEE 802.1x VLAN MIB IEEE 802.1q DNS MIB RFC 1611 ACL MIB BANDWIDTH CTRL MIB LBD MIB MIRROR MIB IPV6 NEIGHBOR MIB SNTP MIB STORM CTRL MIB STATISTICS MIB Tool MIB VOICE VLAN MIB DOS MIB
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One to one
Encryption	802.1X Port-Based Network Access Control , RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows^® 10, 8.1, 8, 7, Vista, XP, Windows^® 2003/2008 Server
Special Features	PoE+ IPv6 802.3az power saving Rack mountable PoE scheduling
Power	Input: 100 - 240V AC, 50/60Hz, internal power supply Consumption: 963W (max.) Power Budget: 740W
Fan/Acoustics	Quantity: 5 Noise Level: 55 dBA (max.)
MTBF	338,601 hours
Operating Temperature	-5 – 50°C (23 - 122°F)
Operating Humidity	Max. 95% non-condensing
Dimensions	440 x 430 x 44mm (17.3 x 17 x 1.74 in.) Rack mountable 1U height
Weight	6.58kg (14.5 lbs.)
Certifications	CE FCC UL
