TRENDnet TPE-E100 Gigabit PoE+ Repeater

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Easy installation
  • Extends 100m for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 3 units for a total PoE network extension of up to 400m (1,312 ft.)*
  • Supports PoE (15.4W) and PoE+ (30W)
  • Wall mountable
  • LED Indicators
  • Durable metal housing

PoE Powered

No external power required—saves installation time and cost

Easy Setup

Simple installation in minutes


Connect up to 3 units for a PoE+ network extension of up to 400m (1,213 ft.).

Gigabit Ports

The PoE Extender features one gigabit PoE+ input port and one gigabit PoE+ output port



Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device

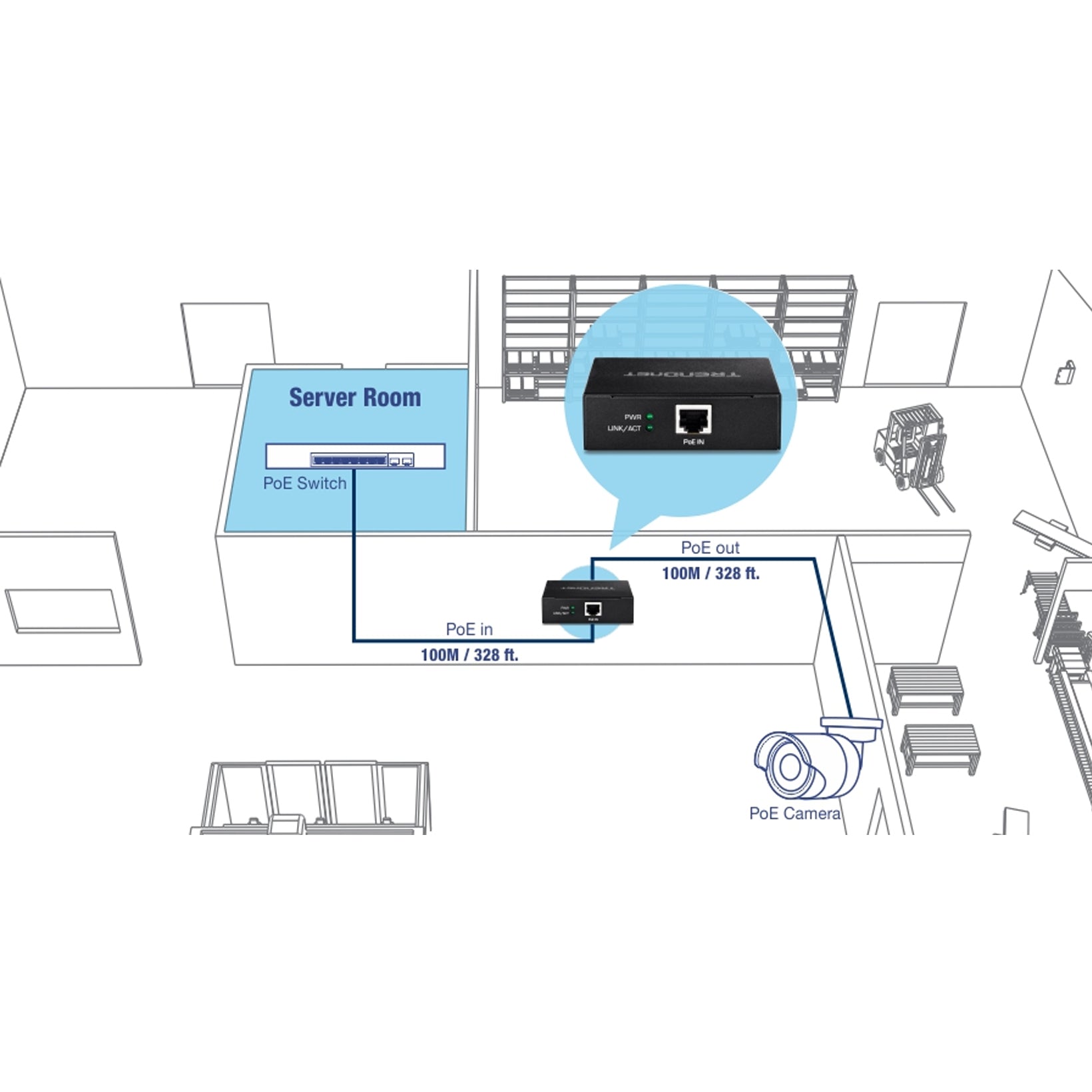

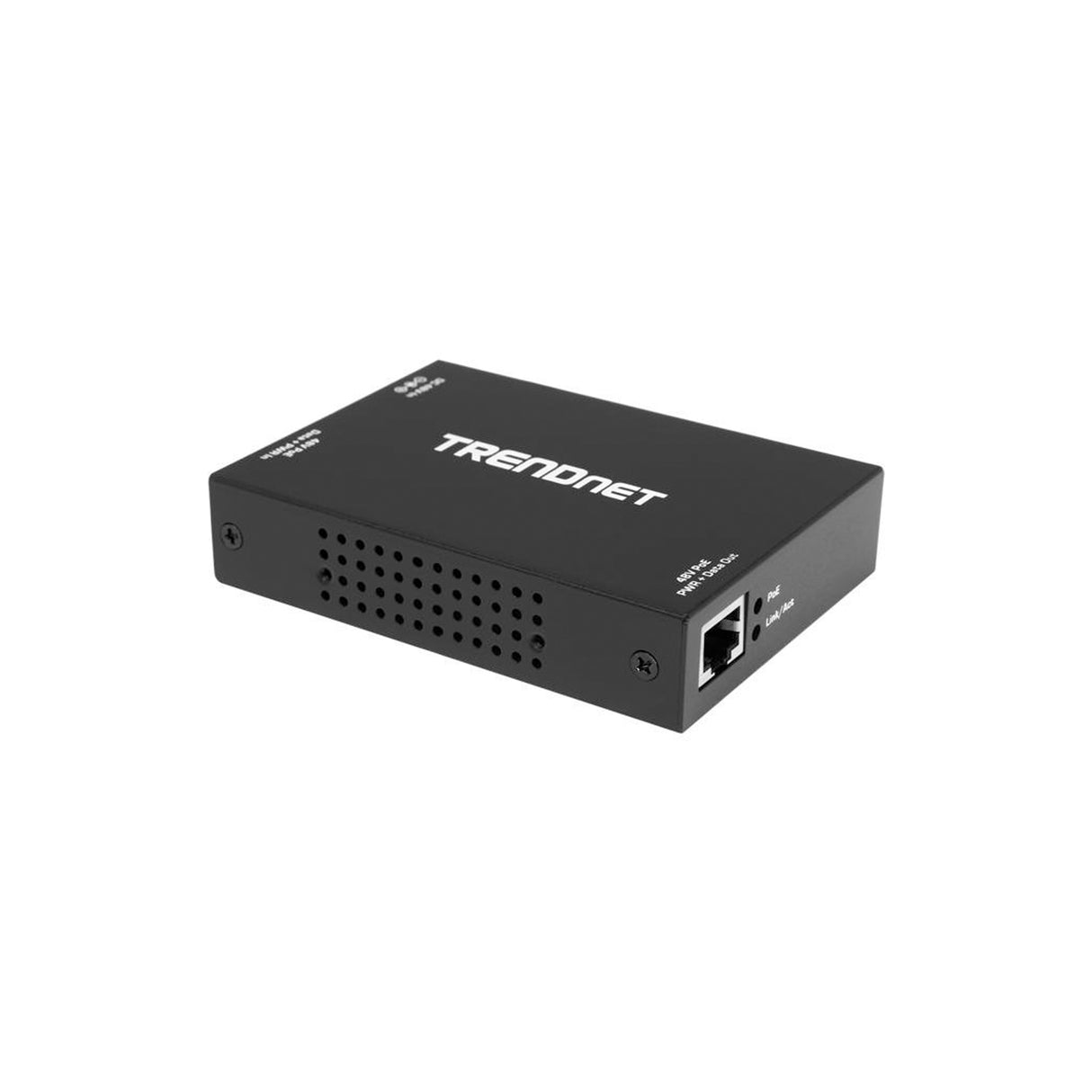

TRENDnet’s Gigabit PoE+ extender, model TPE-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation.

The PoE Extender auto-detects a PoE (15.4W) or PoE+ (30W) connection and extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment.

The TPE-E100 features a convenient wall mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 400m (1312 ft.).

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at

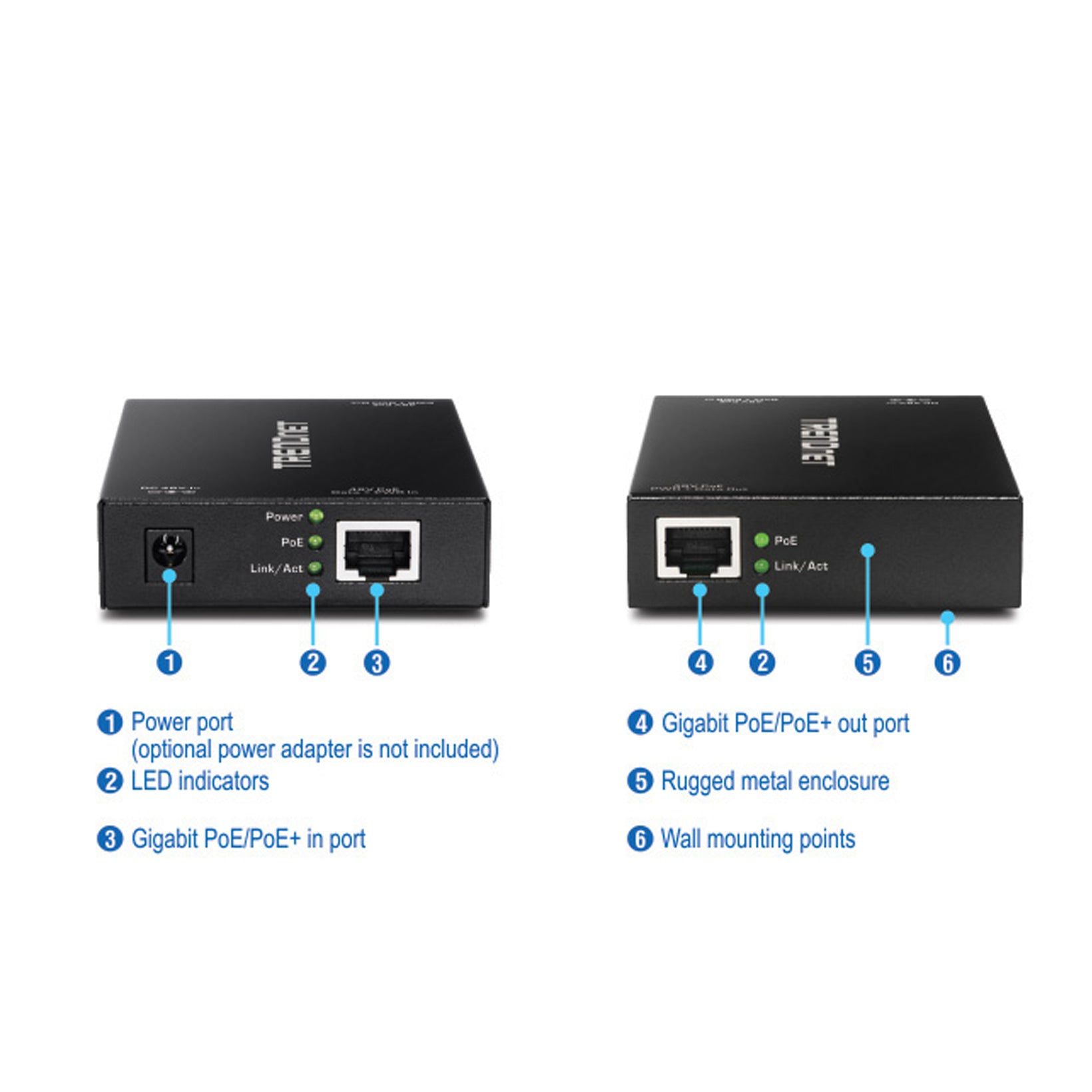

Device Interface
  • 1 x Gigabit PoE+ in port
  • 1 x Gigabit PoE out port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • SRAM buffer: 128KB
  • MAC Address Table: 2K
  • Jumbo Frame: 9KB
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 400m (1312 ft.)
  • Cascade up to 3 repeaters
  • Powered by PoE+ Device
  • Max. consumption: 0.9W
PoE Delivery
  • Pair 1: pin 1, 2
  • Pair 2: pin 3, 6
Operating Temperature
  • 0 – 40° C (32 - 104° F)
Operating Humidity
  • Max. 90% non-condensing
  • 86 x 79 x 25mm (3.4 x 3.1 x 1 in.)
  • 198g (7 oz.)
  • CE
  • FCC
  • 3 year
