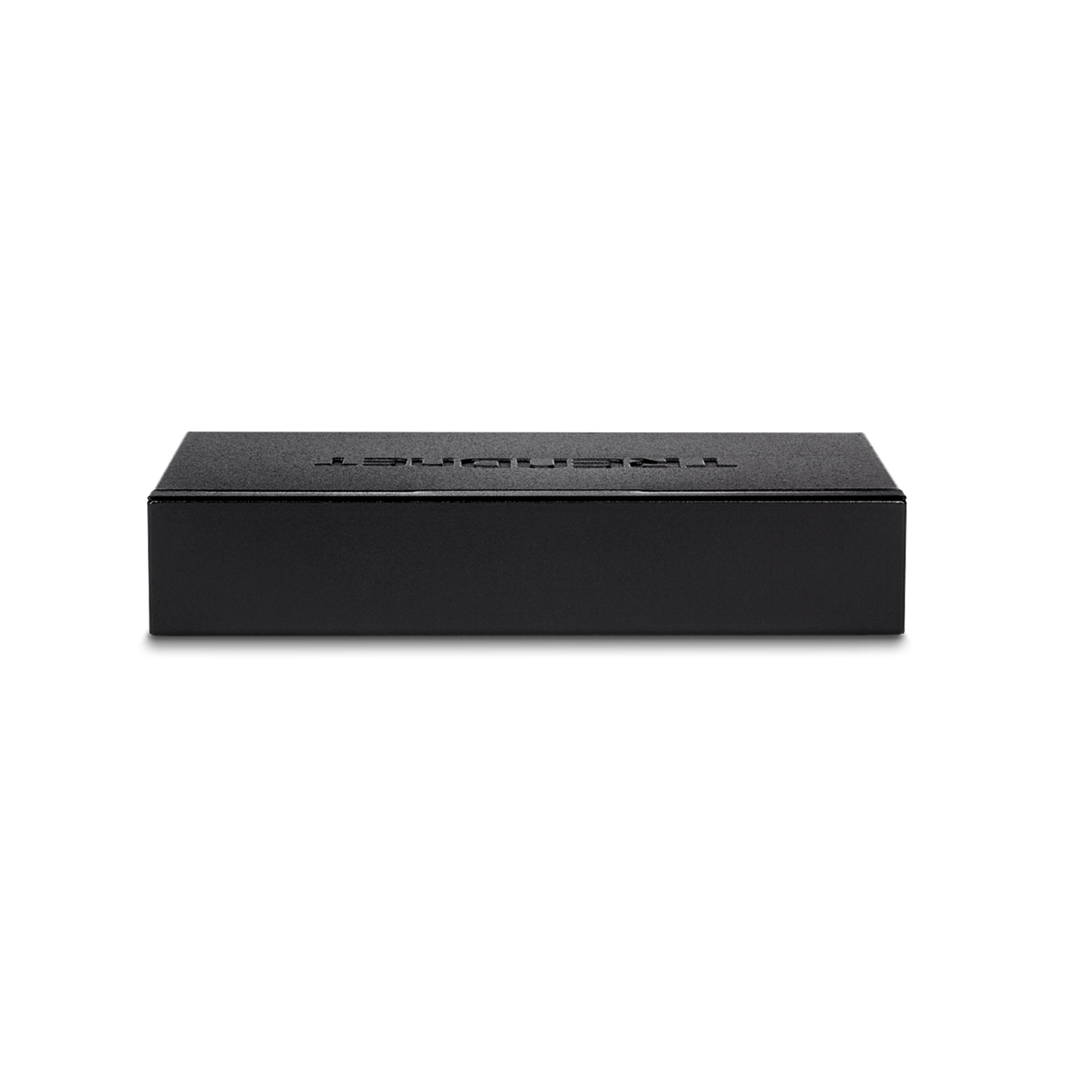

TRENDnet TPE-P521ES 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through (15W)

SKU TNTPE-P521ES
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • 1 x Gigabit PoE+ input port
  • 2 x Gigabit PoE output ports
  • 2 x Gigabit ports
  • 18W PoE power budget
  • Easy to use web-based management interface
  • Supports static link aggregation, VLAN, QoS, STP, RTSP and IGMP Snooping
  • Voice VLAN for VoIP applications
  • Bandwidth control per port
  • 10Gbps switching capacity
  • IEEE 802.1p QoS with queue scheduling support
  • Compact fanless design
  • Wall mountable metal housing
  • Lifetime Warranty*

Ports

Eight gigabit PoE+ ports provide a 16Gbps switching capacity

LED Indicators

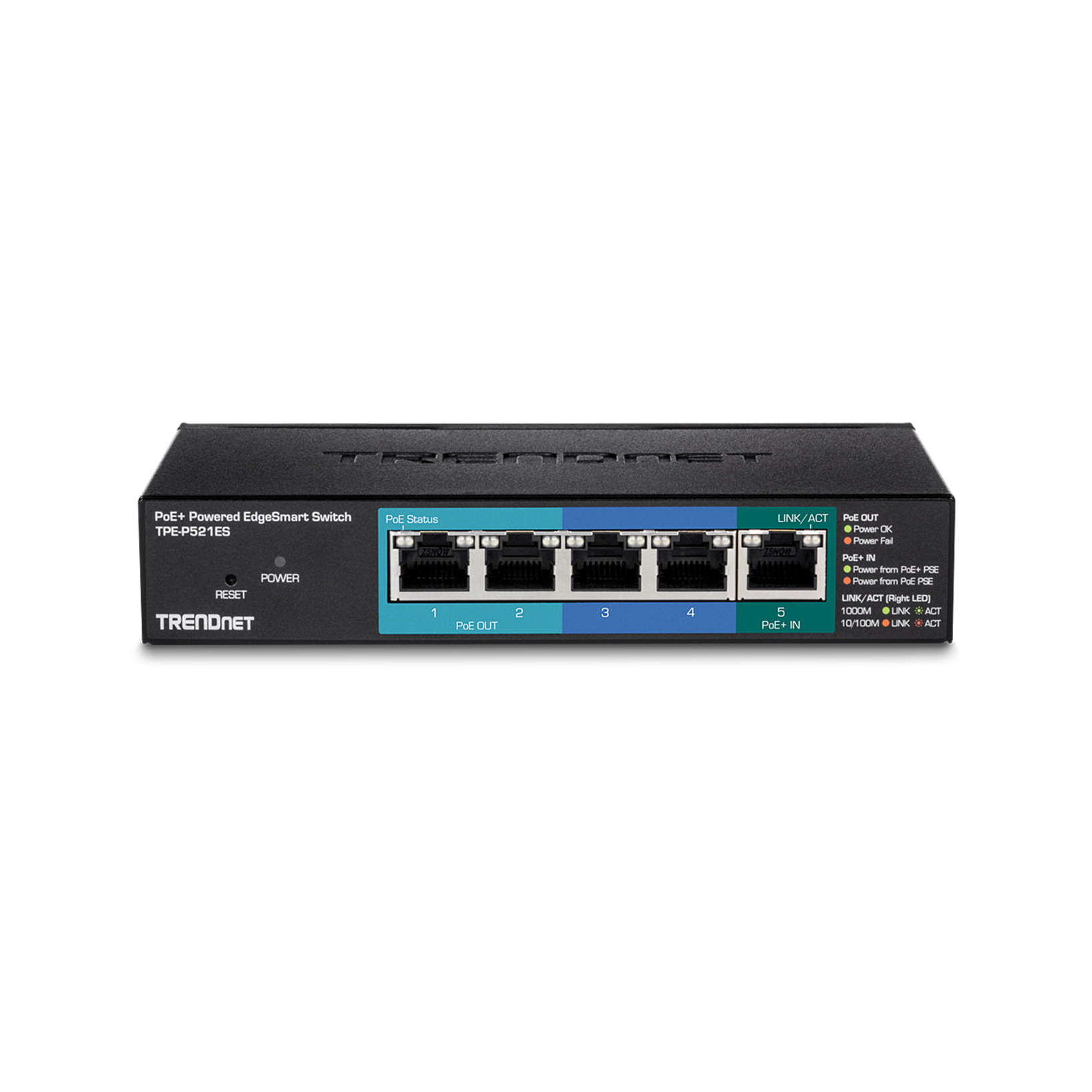

The desktop PoE managed switch includes LED indicators that convey port status



Troubleshooting

Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting.

Housing

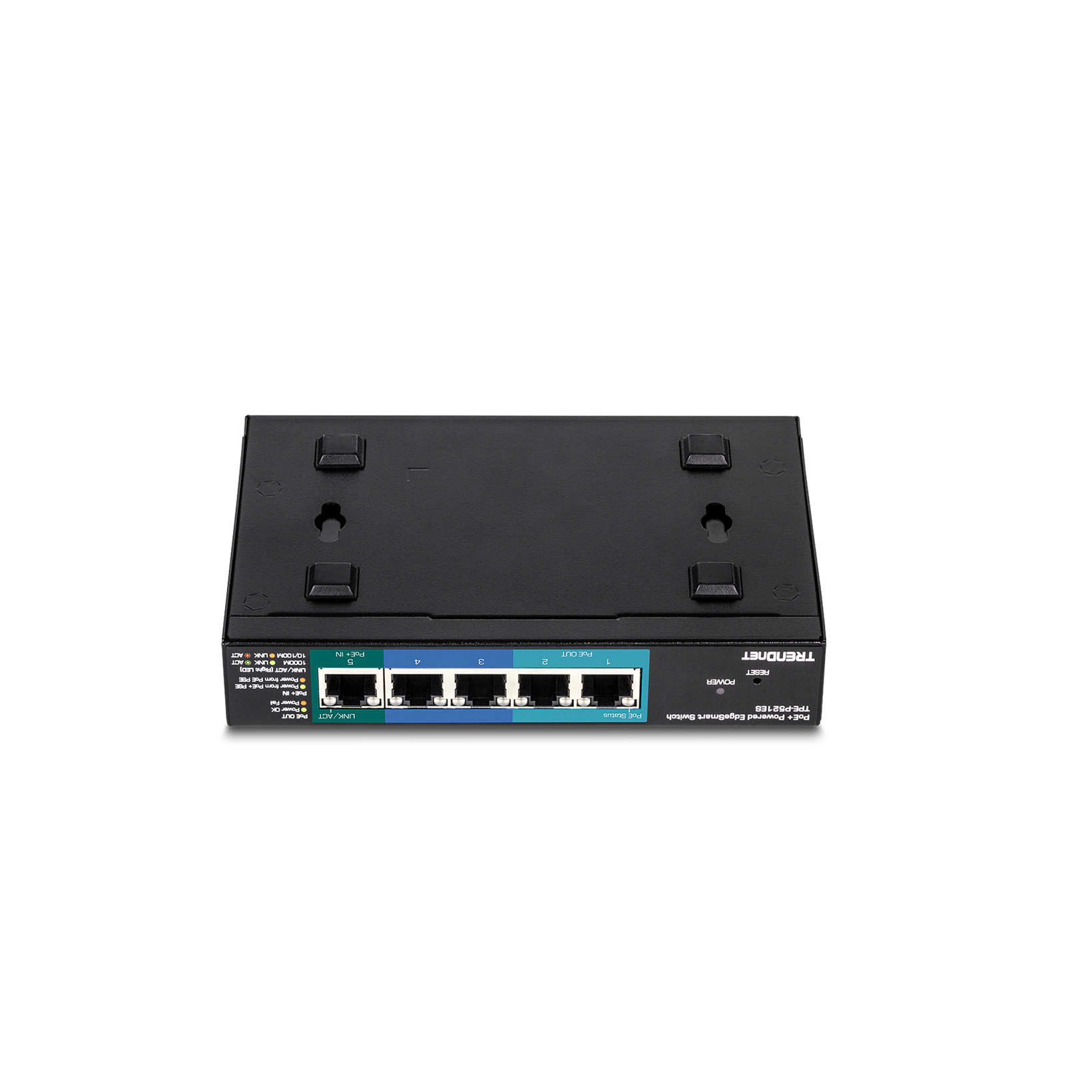

Wall mountable metal housing



PoE+

Supplies up to 30 Watts of power per port with a 246 Watt PoE budget



Network Management

A broad range of network configurations are supported by: static link aggregation, 802.1Q VLAN, bandwidth controls, IGMP, loopback detection, port mirroring, STP, RTSP and 802.1p (QoS).

5-Port Gigabit PoE+ Powered Edge Smart Switch with PoE Pass Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required.

It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points.

Reducing unnecessary switch complexity, this Edge Smart switch is equipped with only the most commonly used managed switch features.

The simple web based user interface allows you to easily manage VLANs, QoS, and monitoring.

Specs

Standards
  • IEEE 802.1d
  • IEEE 802.1w
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 1 x Gigabit PoE+ PD port
  • 2 x Gigabit PoE PSE ports
  • 2 x Gigabit Ports
  • LED indicators
  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch fabric: 10Gbps
  • RAM buffer: 512KB
  • MAC Address Table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Management
  • HTTP Web based GUI
  • SNMP v1, v2c
  • Cable diagnostic test
  • Backup/Restore Configuration
  • Upload Firmware
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation
  • Static link aggregation (up to 2 groups)
Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • Private VLAN
  • Asymmetric VLAN
  • Voice VLAN (5 user defined OUIs)
Multicast
  • IGMP Snooping v1/2/3
  • Block unknown multicast source
  • Up to 32 multicast groups
Port Mirror
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 8Kbps)
  • Multicast (Min. Limit: 8Kbps)
  • Loopback Detection
Special Features
  • PoE Powered
  • Enable/disable 802.3az Power Saving
  • Wall mountable
Power
  • IEEE 802.3at (30W) or IEEE 802.3af (15.4W) PoE input only (no external power supply)
  • IEEE 802.3at Type 2 PoE PD Class 4
  • IEEE 802.3af Type 1 PoE PD Class 0
  • Max. Consumption 2.4W (without PoE load)
  • Max. Consumption 20.4W (with max PoE load)
PoE
  • 18W PoE Budget with IEEE 802.3at (30W) input power
  • 8W PoE Budget with IEEE 802.3af (15.4W) input power
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
  • PD auto classification
  • Over current/short circuit protection
Fan / Acoustics
  • Fanless design
MTBF
  • 730,455 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
