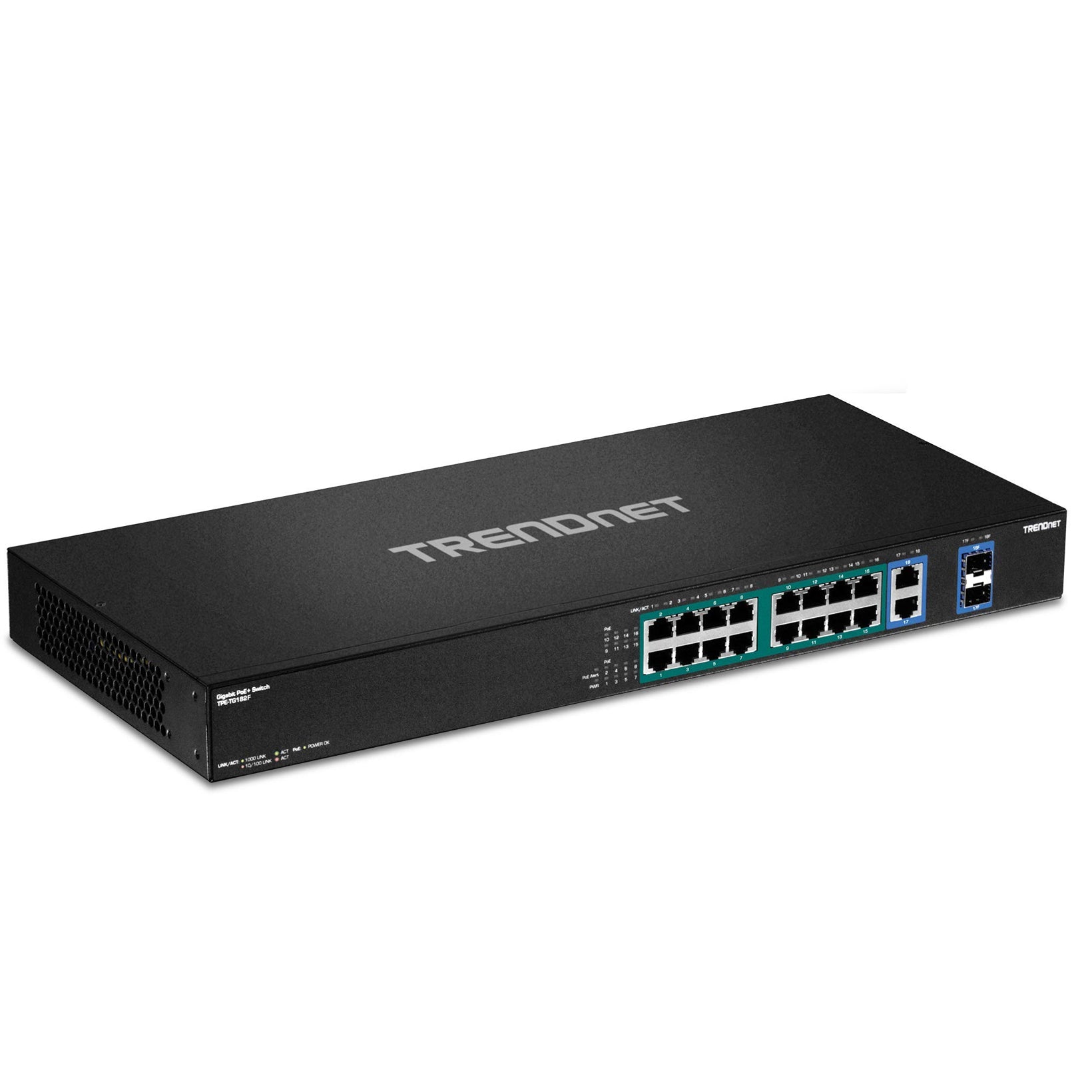

TRENDnet TPE-TG182F 18-port Gigabit High Power PoE+ Switch

SKU TNTPE-TG182F
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • 16 x Gigabit PoE+ ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • 36Gbps switching capacity
  • Internal power supply
  • 440W PoE power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • Sturdy rack mountable metal housing
  • Lifetime Warranty*

Housing Design

Provides 16 gigabit PoE+ ports, 2 shared gigabit ports (RJ-45 or SFP), a 36Gbps switching capacity, a built-in power supply, and rackmount brackets

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB) for increased performance

LED Indicators

The desktop PoE managed switch includes LED indicators that convey port status



High Power PoE Switch

Supplies up to 30 Watts of PoE power per port with a 440 Watt power budget

TRENDnet’s 18-Port Gigabit High Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables.

This rack mountable ,high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports.

The TPE-TG182F high-power PoE switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and VoIP phone systems.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE+ ports
  • 2 x Shared Gigabit ports (RJ-45 or SFP)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 36Gbps
  • RAM Buffer: 512KB
  • MAC Address Table: 8K entries
  • Forwarding Rate: 26.78Mpps (64-byte packet size)
  • Jumbo Frames: 9KB
Power
  • Input: 110-240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 18W (Max. without PD)
PoE
  • PoE budget: 440W
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics
  • Quantity: 1
  • Noise Level: 56 dBA (max.)
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 196 x 44mm (17.4 x 7.7 x 1.7 in.)
Weight
  • 3.05kg (6.72 lbs.)
