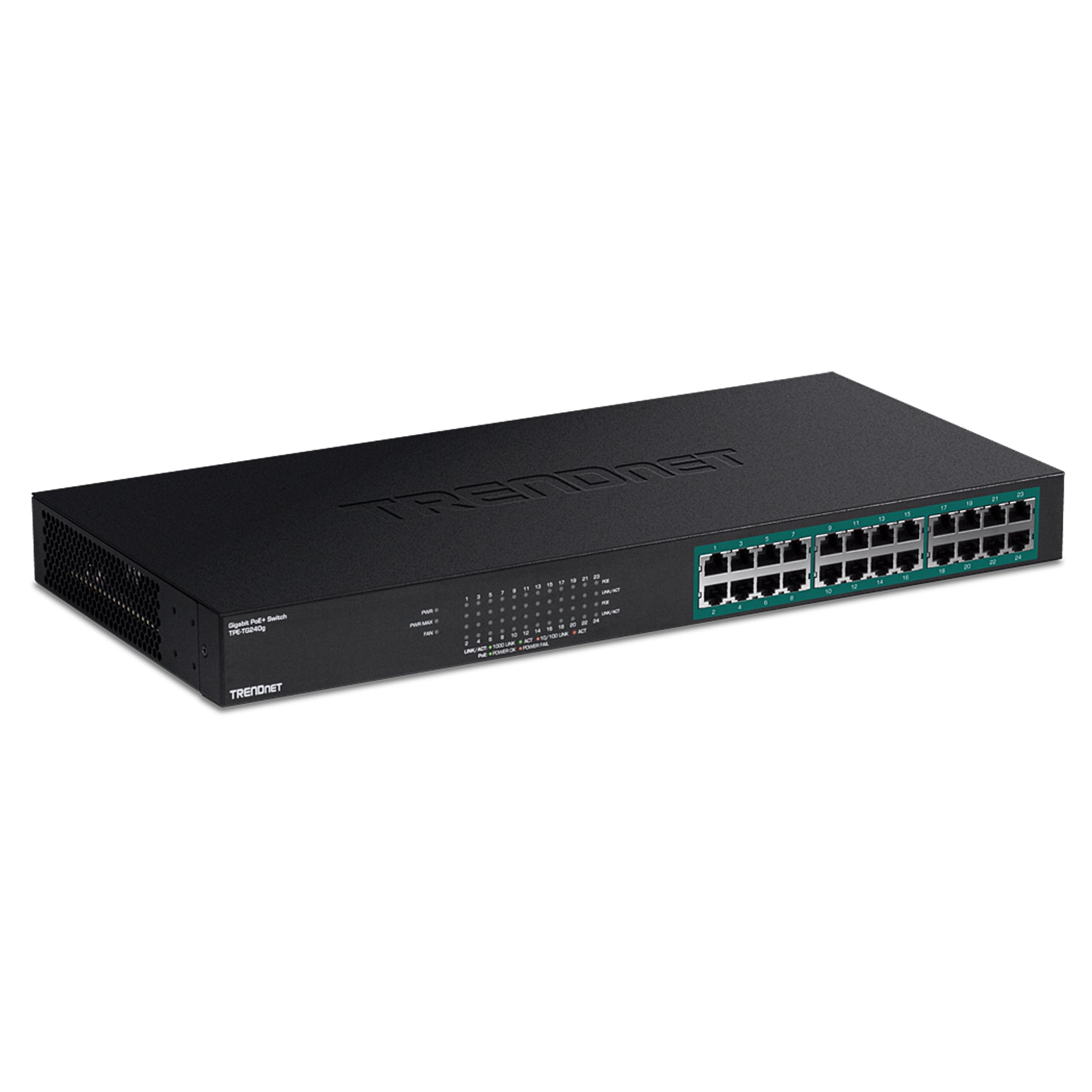

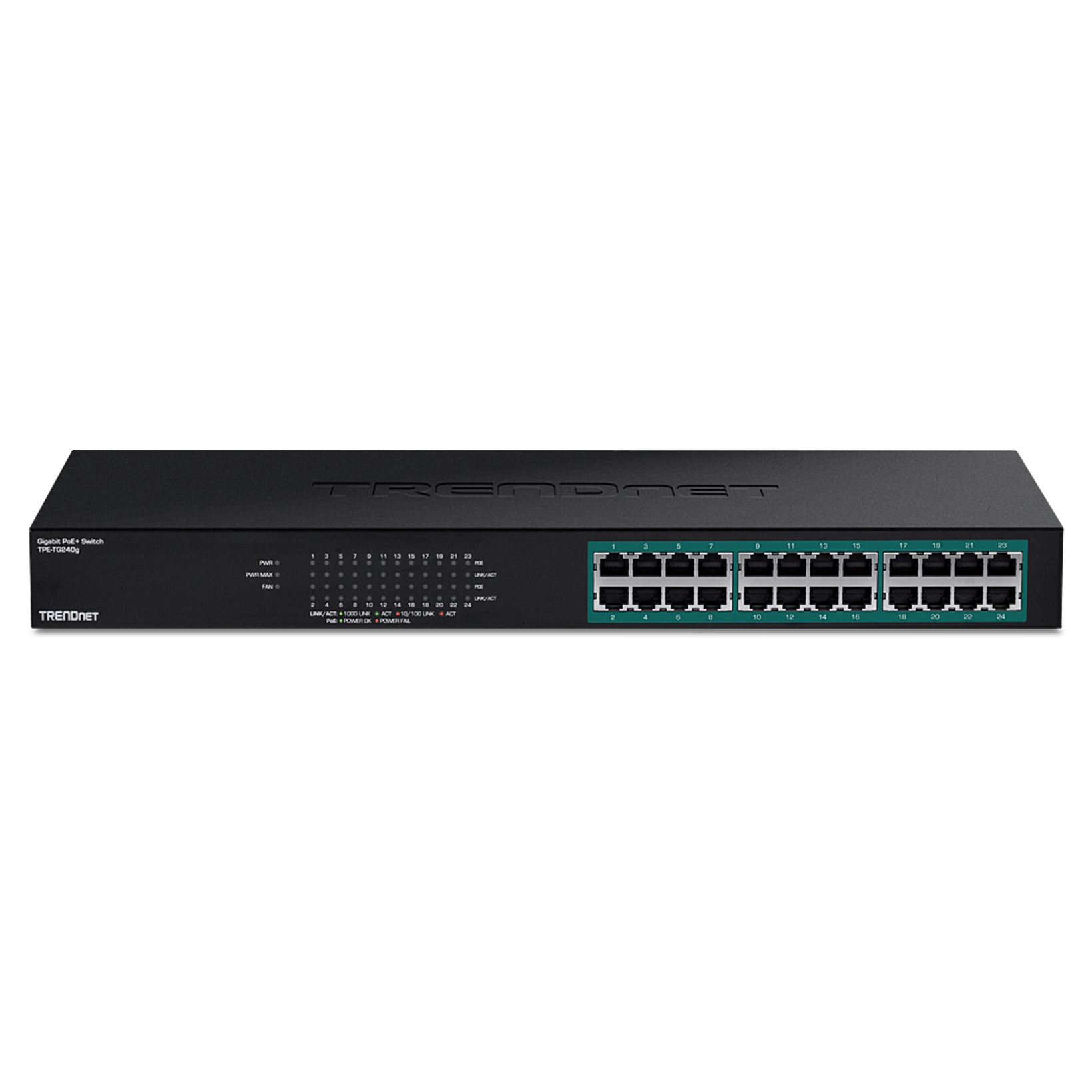

TRENDnet TPE-TG240g 24-port GREENnet Gigabit PoE+ Switch (370W)

SKU TNTPE-TG240g
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • 24 x Gigabit PoE+ ports
  • 370 Watts total power budget
  • 48 Gbps switching capacity
  • Sturdy metal switch
  • Rack mount brackets included
  • Lifetime Warranty*

Ports

Eight gigabit PoE+ ports provide a 16Gbps switching capacity

Rack Mountable

Rack mountable metal enclosure with included mounting kit

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10 KB) for increased performance

Troubleshooting

Traffic statistics and a convenient cable diagnostic test

LED Indicators

The desktop PoE managed switch includes LED indicators that convey port status



Switching Capacity

48 Gbps switching capacity



PoE+

Supplies up to 30 Watts of PoE power per port with a 370 Watt power budget

TRENDnet’s 24-Port Gigabit PoE+ Switch, model TPE-TG240g, offers 24 x Gigabit PoE+ ports, a 48 Gbps switching capacity, and a PoE power budget of 370 Watts. This rugged metal switch comes with a rack mount kit.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 24 x Gigabit PoE / PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 512 KB
  • Switch Fabric: 48 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 35.7 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB
Power
  • Input: 110-240 V AC, 50/60 Hz, 0.75 A
  • Consumption: 36 Watts (Max. without PD)
PoE
  • PoE budget: 370 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
  • Over current protection
  • Circuit sorting protection
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 250 x 44 mm (17.3 x 9.8 x 1.7 in.)
Weight
  • 3.6 kg (8 lbs.)
Certifications
  • CE
  • FCC
