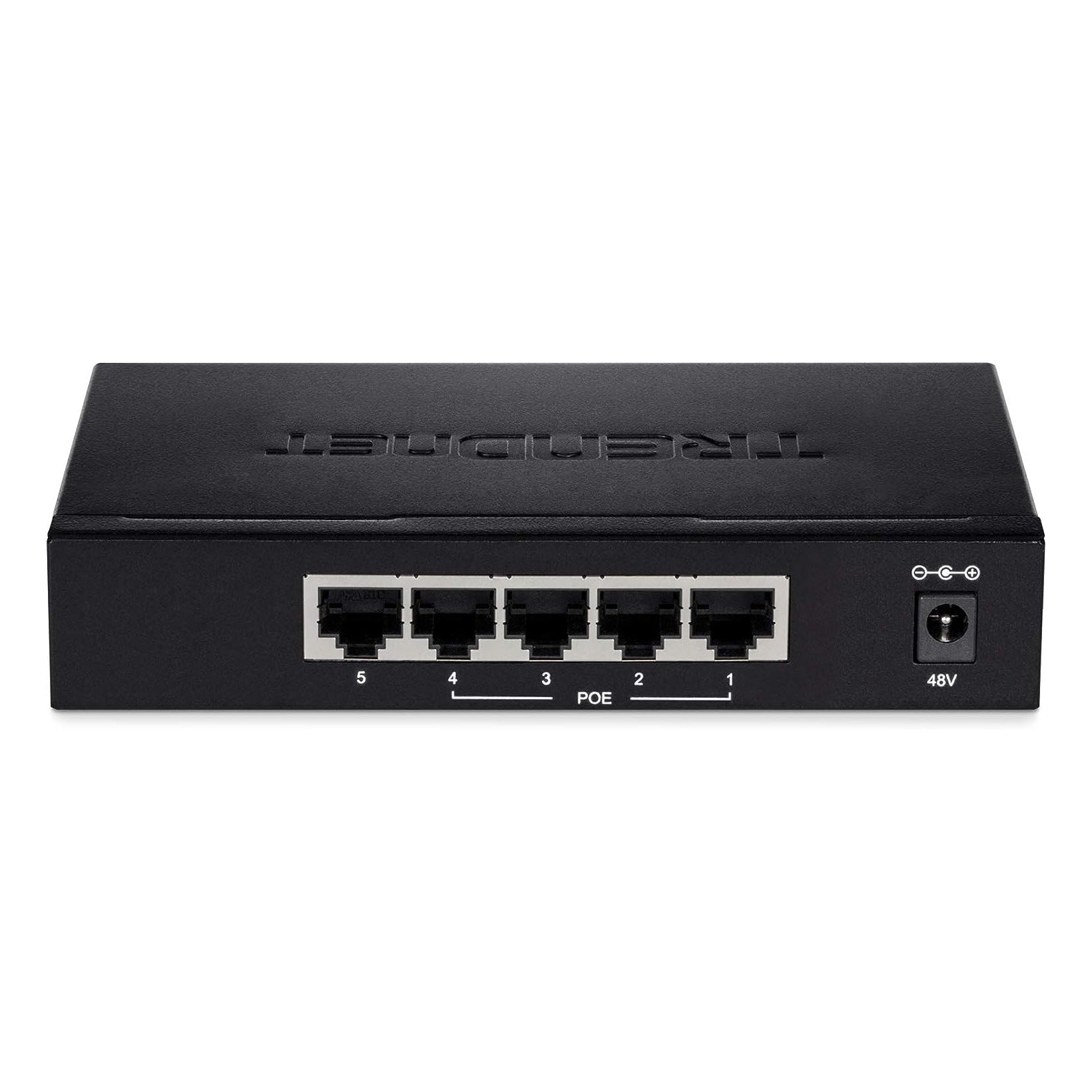

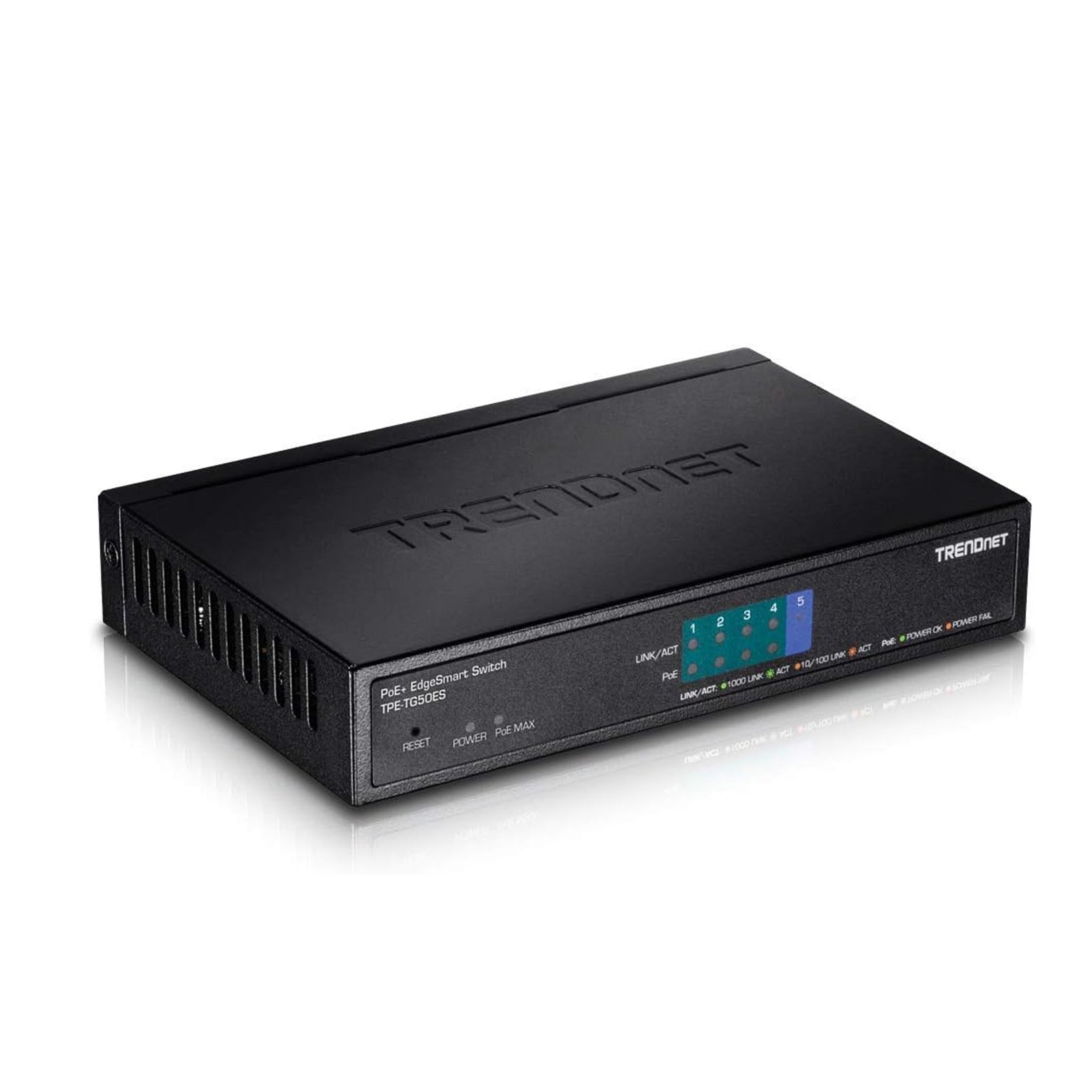

TRENDnet TPE-TG50ES 5-Port Gigabit EdgeSmart PoE+ Switch (31W)

SKU TNTPE-TG50ES
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

5-Port Gigabit EdgeSmart PoE+ Switch / TPE-TG50ES (Version v1.0R)

  • 4 x Gigabit PoE+ ports
  • 1x Gigabit port
  • 31W PoE power budget
  • Easy-to-use web-based management interface
  • Supports static link aggregation, RSTP, VLAN, QoS, and IGMP Snooping
  • Voice VLAN for VoIP applications
  • Bandwidth control per port
  • 10Gbps switching capacity
  • IEEE 802.1p QoS with queue scheduling support
  • Compact fanless design
  • Wall mountable metal housing
  • Lifetime Warranty*

TRENDnet's 5-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG50ES, is a cost-effective desktop managed switch solution for high-speed gigabit PoE+ applications.

This 5-port smart PoE+ switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring.

TRENDnet's TPE-TG50ES provides four gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.

EdgeSmart Management

Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

PoE+ Power

A 31W PoE power budget supplies up to four Power over Ethernet devices from the 5-port smart PoE+ switch.

Integration Flexibility

Managed features include loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.

Standards
  • IEEE 802.1d
  • IEEE 802.1w
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • LED indicators
  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Packet Buffer: 125KB
  • Switch Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo Frame: 9KB
Management
  • HTTP Web based GUI
  • SNMP v1, v2c
  • Cable diagnostic test
  • Backup/Restore Configuration
  • Upload Firmware
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation
  • Static link aggregation (only 1 group)
  • Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • Private VLAN
  • Asymmetric VLAN
  • Voice VLAN (5 user defined OUIs)
Multicast
  • IGMP Snooping v1/2/3
  • Block unknown multicast source
  • Up to 32 multicast groups
Port Mirror
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 8Kbps)
  • Multicast (Min. Limit: 8Kbps)
  • Loopback Detection
Special Features
  • PoE+ support
  • Enable/disable 802.3az Power Saving
  • Wall mountable
Power
  • Input: 110-240V AC, 50/60Hz, 0.75A
  • Output: 48V DC, 0.8A external power adapter
  • Max. consumption: 34W
PoE
  • PoE budget: 31W
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
MTBF
  • 2,942,586 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 98 x 28mm (5.9 x 3.86 x 1.1 in.)
Weight
  • 380g (13.4 oz.)
Certifications
  • CE
  • FCC
