TRENDnet TPE-TG80g 8-port Gigabit GREENnet PoE+ Switch

SKU TNTPE-TG80g
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

8-Port Gigabit PoE+ Switch / TPE-TG80g (Version v3.3R)

  • 8 x Gigabit PoE+ ports
  • 123 W PoE power budget
  • 16 Gbps switching capacity
  • Sturdy metal switch
  • Plug and Play installation
  • Lifetime Warranty*

The TPE-TG80G 8-Port Gigabit GREENnet PoE+ Switch from TRENDnet offers users 8 x Gigabit PoE/PoE+ ports, a 16 Gbps switching capacity, and a PoE power budget of 123W. It supports IEEE 802.1p QoS, 802.3, 802.3u, 802.3x, 802.3ab, 802.3af, 802.3at, and 802.3az standards and Ethernet data transfer rates of 10 Mbps (half duplex) and 20 Mbps (full duplex), Fast Ethernet data transfer rates of 100 Mbps (half duplex) and 200 Mbps (full duplex), and Gigabit data transfer rates up to 2,000 Mbps (full duplex). Jumbo Frame technology also allows users to send larger packets, or jumbo frames up to 9KB for increased performance.

The TPE-TG80G allows for an easy and convenient network configuration and users can take advantage of a variety of features that make this switch easy to setup and manage. Initially, the Plug and Play functionality gets you going with minimal setup needed. Once plugged in you can then take advantage of the Power over Ethernet capabilities of this switch. Power over Ethernet, or PoE, enables you to run power through the Ethernet cabling to compatible devices, such as wireless access points, Internet cameras, VoIP telephony systems, and more, eliminating the need for additional power sources. This switch recognizes non-PoE, PoE, and PoE+ devices and will automatically supply the required amount of power. PoE devices receive up to 15.4W, while PoE+ devices receive up to 30W.

The full duplex ports found on this switch help to enable consistent data transfer. Full duplex ports allow for simultaneous data transfer that not only increases data speeds, but also increases efficiency, as data no longer has to wait to be transferred. This TRENDnet switch also gives you more ports, thus allowing for increased connections. With an enhanced switching capacity, you will have the expanded ability to transfer more data faster.

With integrated LED indicators, you no longer need to delve into the configuration settings of the switch to display its various aspects. The on-off switch allows for increased power efficiency, making it simple to turn off the switch when not in use. If you have non-PoE devices connected to the switch, the switch automatically recognizes them, cutting the power to those devices to conserve power. The TPE-TG80G operates using 110 - 240 VAC at 50/60 Hz and 0.75A. It includes a 54 VDC / 2.77A power adapter.

Power Over Ethernet

Power over Ethernet, or PoE technology, describes a system to pass electrical power safely, along with data, over Ethernet cabling. The TrendNet PoE switch allows for Power Over Ethernet capability, which in turn helps to reduce equipment cost by delivering data and power over existing network cables. By providing power over Ethernet cabling you now have the ability to utilize various components such as IP security cameras, network routers, network webcams, wireless access points, remote point of sale kiosks and a variety of devices compatible with power over Ethernet.

10/100/1000 Mbps Full Duplex PoE Ports

The 10/100Mbps full duplex PoE ports found on the TrendNet Switch work by making simultaneous use of two physical pairs of twisted cable inside the jacket, wherein one pair is used for receiving packets while the other is used for sending packets. This effectively makes the cable itself a collision-free environment and doubles the maximum data capacity that can be supported by the connection. Some of the benefits of utilizing a full duplex configuration include increased efficiency, availability of full data capacity in both directions, and the eliminated need for nodes having to wait until others complete their transmission.

Plug and Play

Plug and play is a term used to describe the characteristics of a variety of computer devices and peripherals. The TrendNet Switch can be referred to as a plug and play device as there is minimal configuration necessary to get the device up and running.

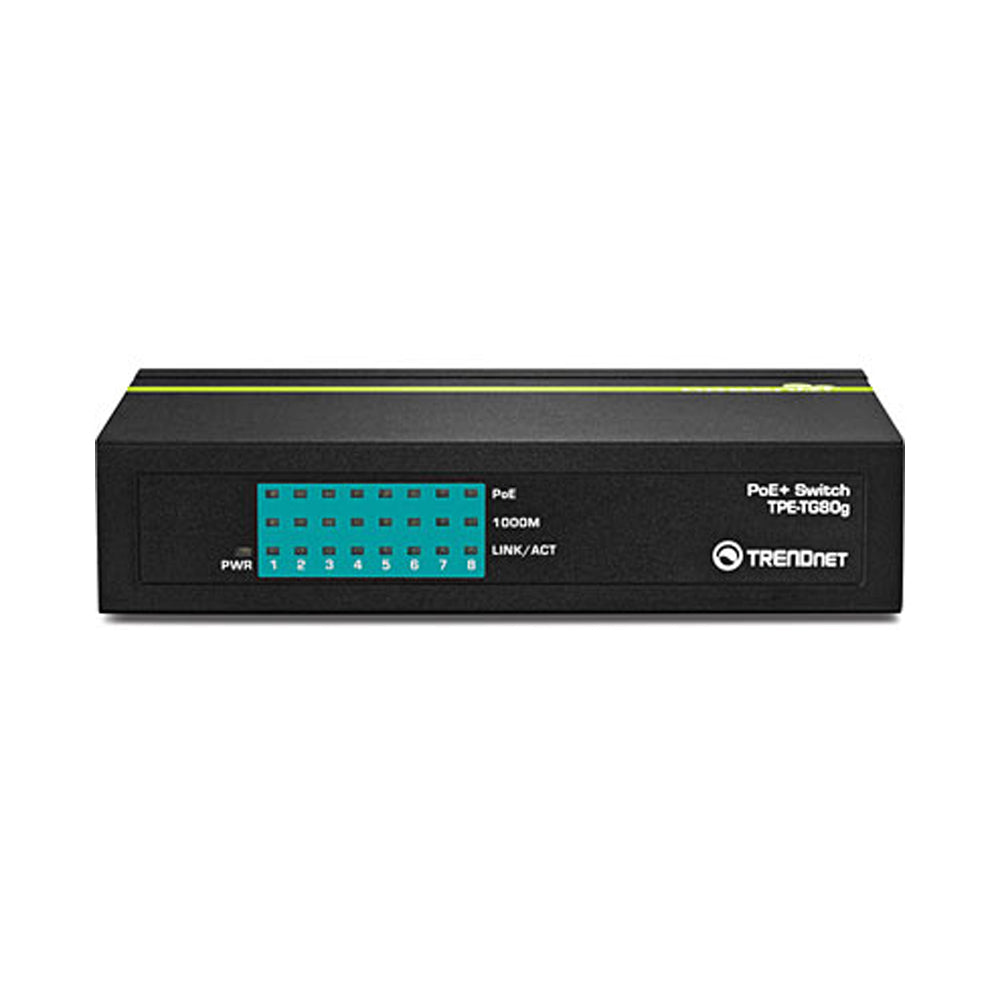

Diagnostic LEDs

With diagnostic LEDs you have the ability to see the status of the network. With LEDs displaying power, link/activity, and PoE/status you no longer have to dig into the configuration settings of the switch to see just how well the switch is performing.
Standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 8 x Gigabit PoE/PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switch Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Special Features
  • GREENnet energy saving technology
Power
  • Input: 100-240 V AC, 50/60 Hz, 1.9 A
  • Output: 54V DC, 2.77A
  • Max. consumption: 5.3W
PoE
  • PoE budget: 123 W
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Operating Temperature
  • 0 – 45 °C (32 - 113 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 96 x 28mm (5.9 x 3.8 x 1.1 in.)
Weight
  • 400g (14 oz.)
Certifications
  • CE
  • FCC
