TRENDnet TPE-TG82G 8-Port Gigabit PoE+ Switch

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

8-Port Gigabit PoE+ Switch / TPE-TG82g (Version v1.0R)

  • 8 x Gigabit PoE+ ports
  • 61W PoE budget
  • 16Gbps switching capacity
  • Sturdy metal switch
  • Plug and Play installation
  • Use with TRENDnet's PoE Splitter to network and power non-PoE devices
  • Lifetime Warranty*

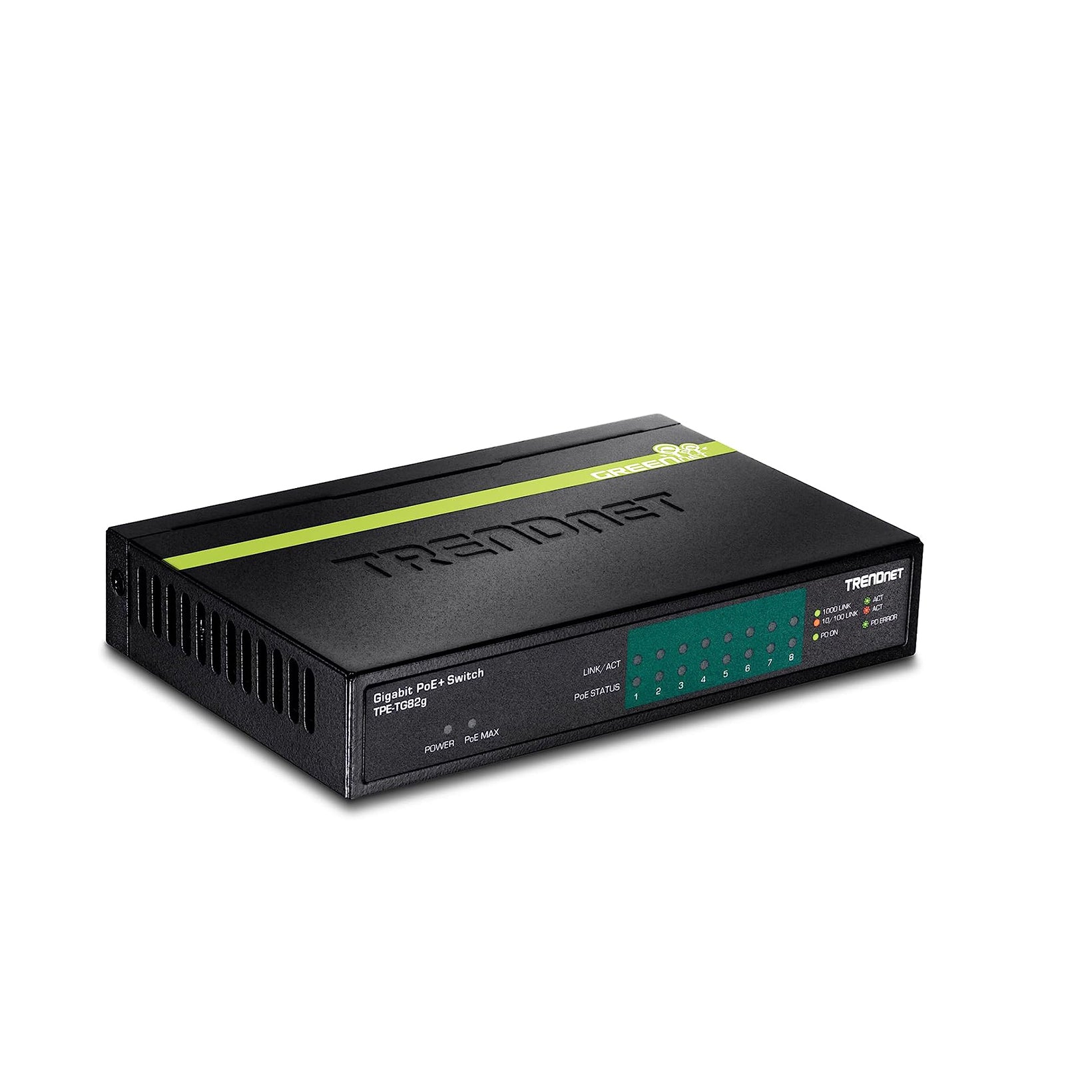

Deliver both data and power over existing Ethernet cables with the TPE-TG82G 8-Port Gigabit PoE+ Unmanaged Switch from TRENDnet. This PoE+ switch comes equipped with eight Gigabit PoE-compliant ports, each supporting up to 30W of power with a total power budget of 61W to power devices such as IP cameras, IP phones, and other PoE-compliant devices.

The TPE-TG82G features a 16 Gbps switching capacity and supports Jumbo Frames up to 9KB for enhanced networking performance. Additionally, the switch comes with a sturdy metal housing and supports enhanced energy savings thanks to built-in GREENnet technology.

  • With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
  • Supplies up to 30W of PoE+ power per port with a total power budget of 61W. Supports both PoE (802.3af) and PoE+ (802.3at) devices
  • Eight Gigabit PoE+ ports
  • 16 Gbps switching capacity
  • Sends larger packets, or Jumbo Frames (up to 9 KB) for increased performance
  • Embedded GREENnet technology reduces power consumption
  • Sturdy metal housing
  • LED indicators convey port status
  • Convenient front-panel 4-digit seven segment LED display
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.1p
Device Interface
  • 8 x Gigabit PoE/PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
  • Data RAM Buffer: 128KB
  • Switch Fabric: 16Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frame: 9K
  • Input: 110-240V AC, 50/60 Hz 1.2A
  • Output: 54 V DC, 1.67 A
  • Consumption: 36 Watts (Max.)
  • PoE budget: 61W
  • Pin 3,6 for power+ and pin 1,2 for power- (mode B)
Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
Operating Humidity
  • Max. 90% non-condensing

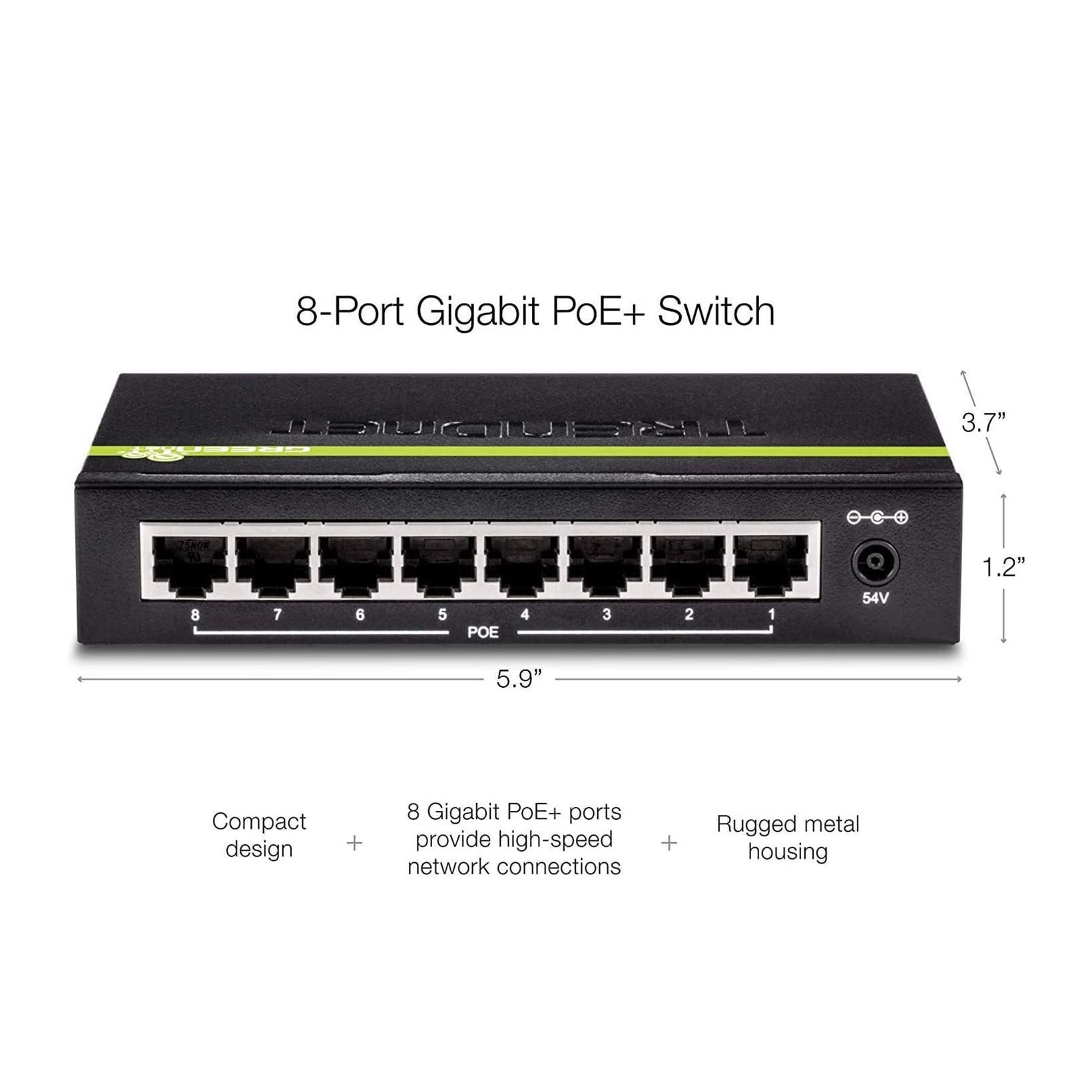

  • 150 x 95 x 30 mm (5.9 x 3.7 x 1.2 in.)
  • 400 g (14 oz.)
  • CE
  • FCC
